MCO Home - MH7...

Z-Wave plus thermostat for heating...

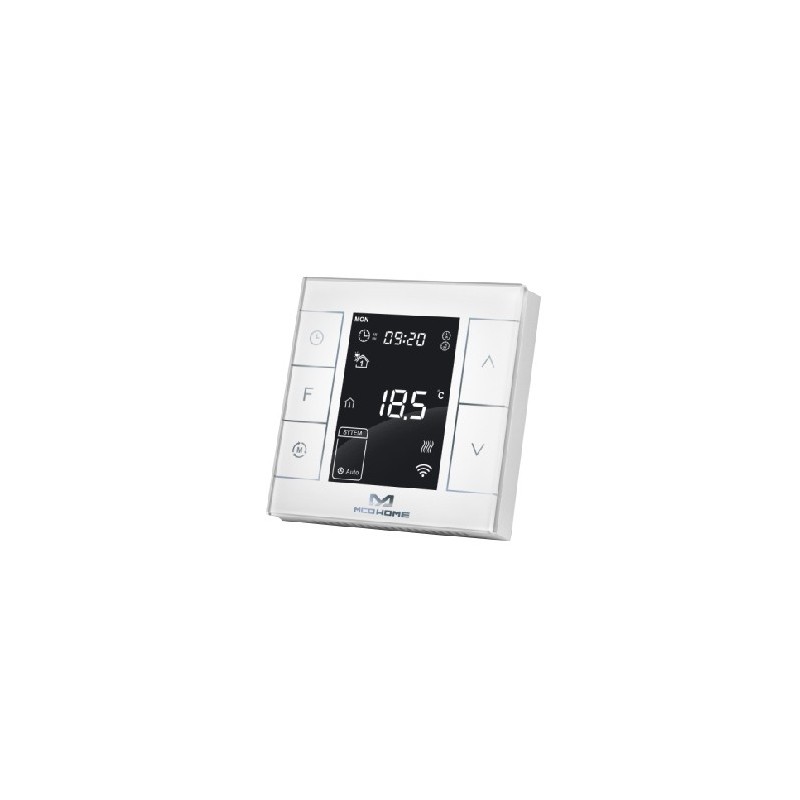

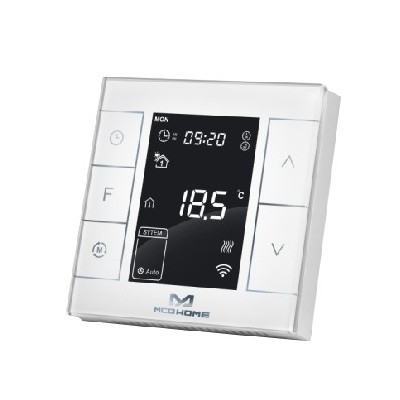

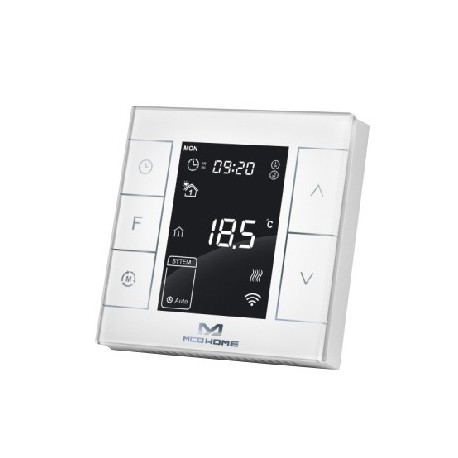

MCO Home - Termostato para Calefacción Eléctrica MH7

View larger

MCO Home - MH7 thermostat for Electric Heating

Reference MH7-EH-EU

Condition: New

Z-Wave plus thermostat for heating based on clean water such as gas boiler systems , valve or water pump, hot water underfloor heating, radiator systems, etc.

More details

In Stock

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Technical characteristics

Technology	Z-Wave Plus

More info

Z-Wave plus thermostat for heating based on clean water such as gas boiler systems, valve or water pump, hot water underfloor heating, radiator systems, etc.

This thermostat Tempered glass panel with capacitive buttons
Programmable programming: 4 events every day of 7 days 5 + 2 5 + 1 + 1
Operation: Manual, Automatic (Periods of time), Holidays (Energy saving)
With two temperature sensors for the internal temperature control. Sensor: NTC 15K
External temp. Sensor (optional): NTC R25 = 15K and Omega B25 / 50 = 3550K
Working environment: 0-50 <90% RH (without condensation)
Built-in Z-Wave module (UE) Optional: RS485, WIFI

Download

MCO Home MH7 Series

Download (316.66k)

Extended Z-Wave info

Name: Heating Thermostat

Manufacturer:MCO Home

Identifier:MH7H-WH/EH

Z-Wave Certification Number:ZC10-18046084

Hardware Plattform:ZM5202

FLiRS:NO

Role Type:Always On Slave

Short Description:MCOHome Water / Electrical Heating Thermostat MH7H is a Z-Wave Plus enabled device for indoor temperature control.

Description: MH7H-WH is mainly applied to control wall mounted boiler, water valve/pump etc. , while MH7H-EH is for electrical heating system.The device is of high reliability and practicability, which can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Features：  Capacitive touch buttons  Tempered glass panel, PC alloy enclosure  Precise temperature calibration function  Attractive appearance  Clear display, easy to operate Specification:  Power Supply：AC85-260V, 50/60HZ  Output: MH7H-WH ≤5A ; MH7H-EH≤ 16A  Self Consumption：≤1W  External Temp. Sensor(optional): NTC R25℃=15KΩ B25℃/50℃=3550K  Working Environment：0-50℃; 0-90% RH（Non- condensation)  Temperature Setting：5-37 ℃（41-99℉）（Adjustable）  Dimension：86* 86*15mm  Hole Pitch：60-61mm

Manual download HERE.

Group

Max Nodes

Description

Z-Wave Plus Lifeline

Number

Size (Bytes)

Default Value

Name

Description

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic

COMMAND_CLASS_BASIC

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Mode V2

COMMAND_CLASS_THERMOSTAT_MODE_V2

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V2

COMMAND_CLASS_THERMOSTAT_SETPOINT_V2

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V2

COMMAND_CLASS_VERSION_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Inclusion

In normal working interface, press & hold S4 to enter interface for adding or removing of Z-Wave network. Before device added into network, “- - -” will display on the screen. Then press S4 once, device will enter learning mode to get a node ID. If adding is succeed, a node ID will display on the screen in a few seconds.

A node ID can always inform us whether the device is in the network or not.

After adding, turn off the device and then turn it on. Now the device is ready to be operated by controller/ gateway in Z-Wave network.

Exclusion

In normal working interface, press & hold S4 to enter interface for adding or removing of Z-Wave network. Before device removed from network, a Node ID will display on the screen. Then press S4 once. If removing is succeed, “- - -”will display on the screen in a few seconds.

A node ID can always inform us whether the device is in the network or not.When removed, the device will restore its factory setting.

Factory Reset

A parameter P18 in the secret menu can be used to restore factory setting locally. Please use this procedure only when the network primary controller is missing or otherwise inoperable. ; And a parameter FF can be used to restore the factory setting via Z-Wave.

S2 Unauthenticated

S2_UNAUTHENTICATED

Thermostat HVAC Systems Supported

Indicate which HVAC system or systems are supported by the thermostat.

Thermostat Modes

Select the mode(s) supported by the thermostat.

Thermostat Power Source

Select one or more supported power sources for a thermostat.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Switch Load Capacity Current

The amount of switch load energy the product is rated for in Amps
