MCO Home MH5-4A Fan4-Control Thermostat - Thermostat for Fan Coil (4 Tubes) Z-Wave Plus (700 Series)

The MCO Home MH5-Fan4-Control thermostat is a Z-Wave enabled device (700 series) for indoor temperature control.

The MCO Home MH5-Fan4-Control thermostat This is a Z-Wave device (700 series) for indoor temperature control. It is primarily used with 4-pipe fan coil systems. It can read the ambient temperature and automatically adjust the fan speed based on the temperature difference. This product is compatible with and works with any Fibaro-Nice hub and other manufacturers' Z-Wave-enabled hubs, such as the Yubii Home, Yubii Home Pro, FIBARO Home Center 3 Lite, and Home Center 3.

The device is highly reliable and practical. This product can be integrated and operated on any Z-Wave network with other Z-Wave certified devices from any manufacturer.

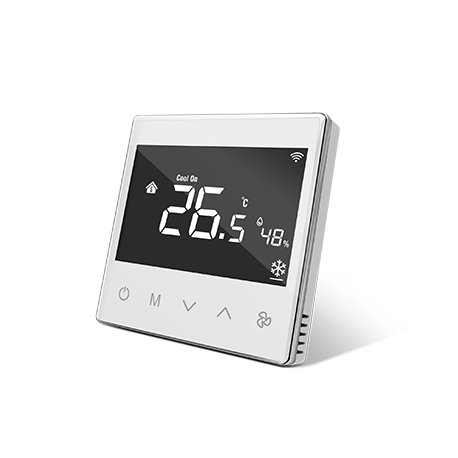

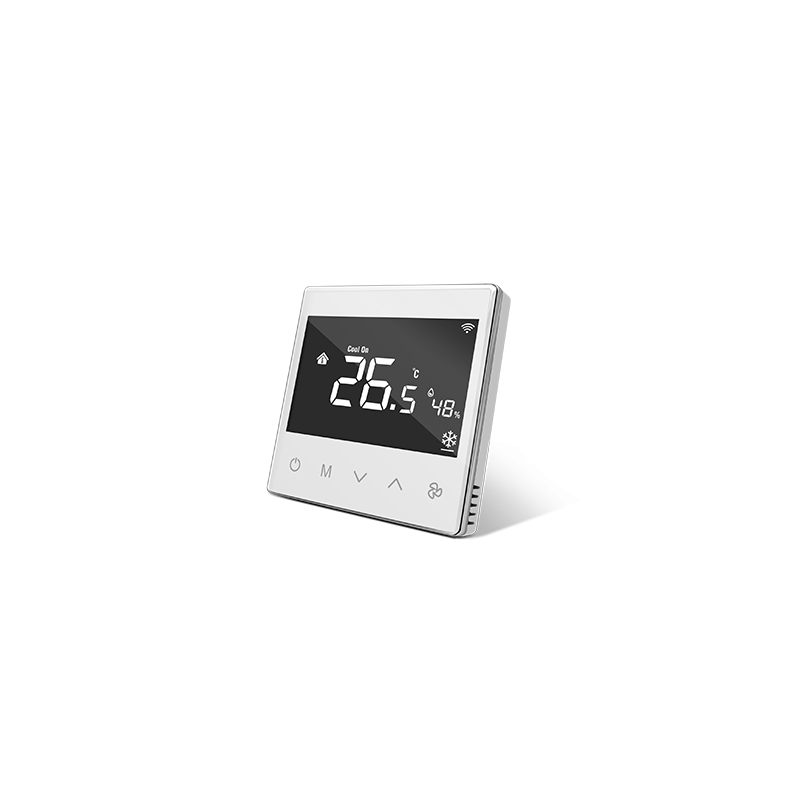

MCO Home MH5-Fan4-Control Thermostat

MCO Home MH5-Fan4-Control thermostat for precise temperature measurement

The innovative thermostat is designed for precise temperature measurement and control in buildings equipped with 4-pipe fan-assisted convection units. It automatically adjusts the fan speed to maintain the desired temperature (during both cooling and heating). It also features a standby mode. Fan2-Control is compatible with Z-Wave technology (700 series). It can read the room temperature and automatically control the fan speed based on the temperature difference.

The device should be installed in an enclosed room, approximately 1.5 m above the floor, where the average room temperature can be accurately measured. To avoid inaccurate readings, it should be kept away from direct sunlight, covers, or any other heat source.

MCO Home MH5-Fan4-Control is an innovative thermostat designed to measure and manage the internal temperature of convectors for the office or holiday home, as it automatically adjusts the fan speed based on manual temperature differences.
MCO Home MH5-Fan4-Control is available in two versions, created for the most common fan coil installations:

MCO Home MH5- Fan4-Control and MCO Home MH5- Fan4-Control for 2 and 4 pipe convectors.

Main features:

• Capacitive touch buttons.
• Tempered glass panel, PC alloy casing.
• Precise temperature calibration function.
• Non-volatile memory, operating state saved even in case of power failure.

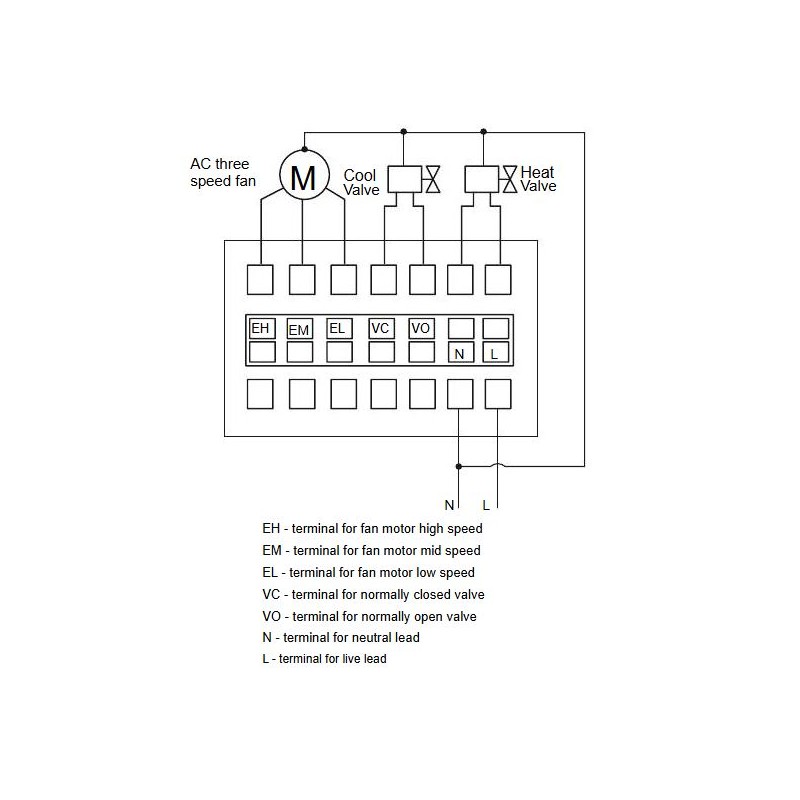

• Electric (ball) valve or air valve with intelligent on/off control.

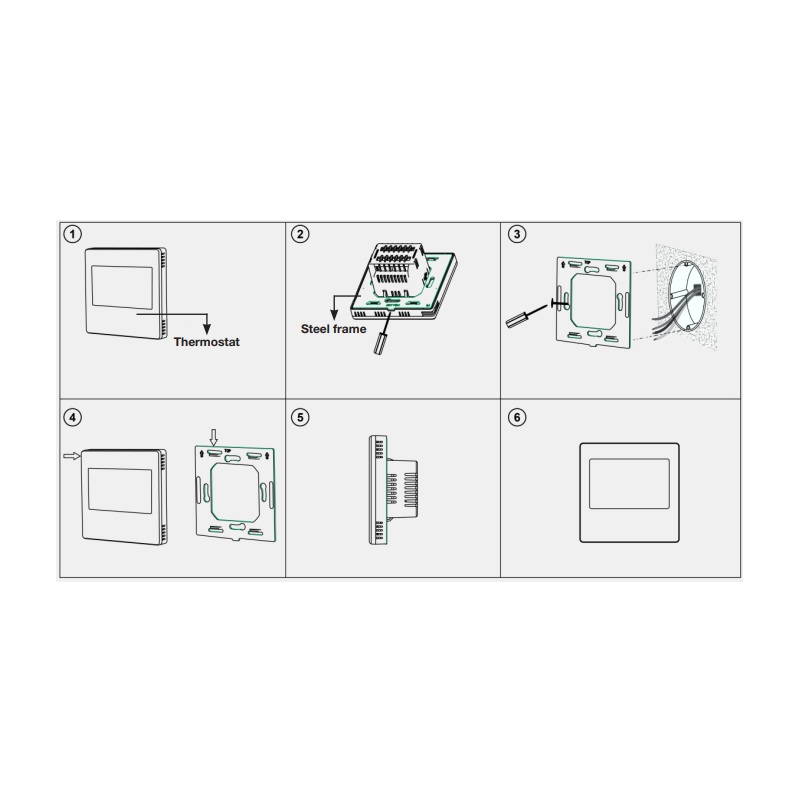

• Easy installation of the steel backplate.

Main features:

"Capacitive touch pushbuttons."

"Tempered glass panel, PC alloy case."

"Precise temperature calibration function."

"Non-volatile memory, operating state saved even in case of power failure."

"Electric (ball) valve or air valve with intelligent on/off control.

"Easy installation of the steel frame backplate."

TECHNICAL CHARACTERISTICS

Three-speed radiator temperature control thermostat (2 pipes) 1 FAN4-CONTROL Three-speed radiator temperature control thermostat (4 pipes)

FAN-CONTROL range code

AC85 260V Power Supply

Nominal load current (A) <= 3

Compatible load type: Resistive. Self-consumption (W) <= 1

Overcurrent protection: 10A external circuit breaker required

Serving temperature (°C Min./Max.) 0 ÷ 55

Temperature adjustment range (°C Min./Max.) 5 ÷ 37

NTC 10K temperature sensor

Operating humidity (RH) < 95% (non-condensing)

Z-Wave radio protocol (700 series)

Radio frequency (MHz) Z-Wave EU

Hole width (mm) 60-65 (standard junction box 60 or 86)

Dimensions (mm) 86 x 86 x 14 h
