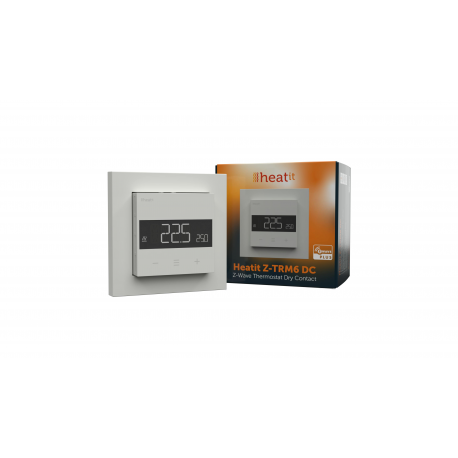

Heatit Z-TRM6 DC (Dry Contact) - Built-in Z-Wave hot/cold thermostat

New

Smart thermostat resulting from 4 previous generations of HEATIT Z-TRM thermostats. Allows manual adjustment of consumption measurement, switching via hysteresis or PWM, excellent design and quality.

  • Z-Wave 800 chip
  • DRY CONTACT relay up to 3A (potential-free - electrically isolated)
  • Consumption measurement
  • PWM/Hysteresis
  • OTA updates
  • Inputs for 2 wired sensors

More details

In Stock

108,90 €

Technical characteristics

Technology Z-Wave Serie 800

More info

Heatit Z-TRM6 DC is an electronic thermostat with potential-free relay, designed for the control of boilers, heat pumps and actuators. The thermostat can be controlled via your Z-Wave network or via the buttons on the front. The thermostat has a user-friendly interface. The thermostat for boilers or systems that require a dry contact relay, can be controlled via your Z-Wave network or physically by the buttons on the front of the thermostat itself. The thermostat has a user-friendly interface. As it has a cool-heat mode, it is ideal for operating solenoid valves or actuators on underfloor heating/cooling water manifolds that do not run on 220V.

Heatit Z-TRM6 DC has 3 modes; Heat - Cool and Eco.

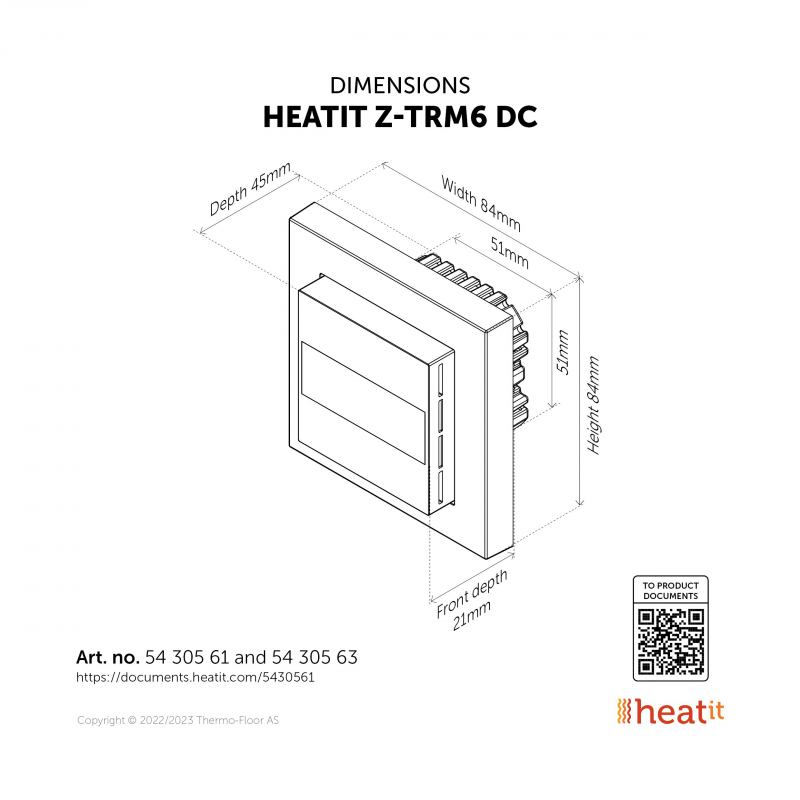

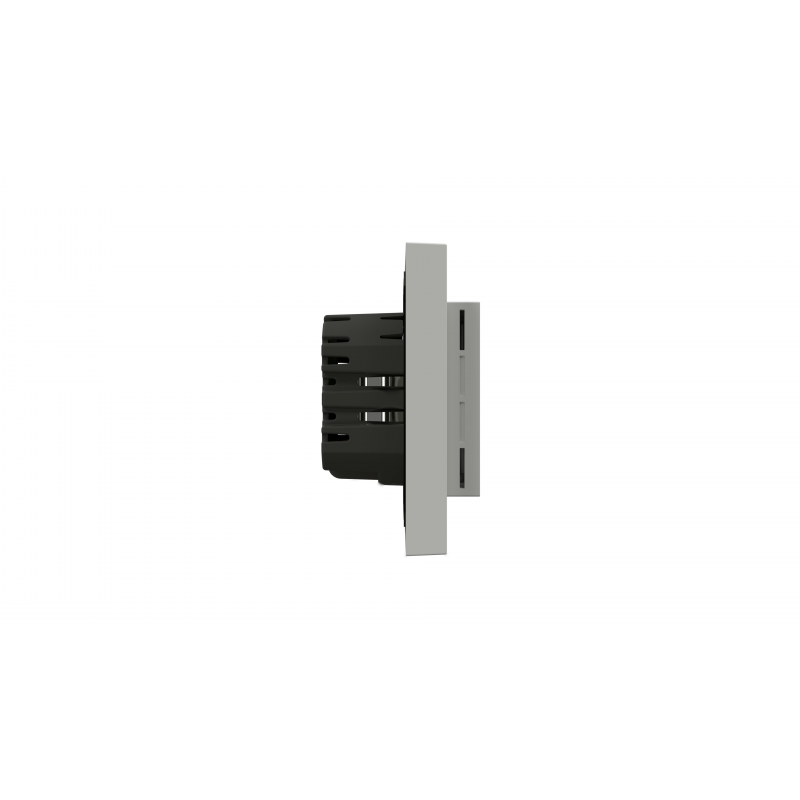

The thermostat fits standard European junction boxes and can be used with most System 55 frames. It has a robust metal frame for secure fixing in the junction box. The thermostat has an integrated room temperature sensor. Two additional external temperature sensors can also be connected.

The Heatit Z-TRM6 DC allows manual adjustment of the power measurement value.

The thermostat can be configured with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays, e.g. wall sockets.

Wiring diagram for dry contact control of room thermostat (TA) on gas boiler.

Wiring connection diagram for 24V DC solenoid valve control..

Electrovalvula suelo radiante 24V

How the Heatit Z-TRM6 Z-Wave Thermostat Regulates Temperature

The thermostat uses temperature readings obtained from the internal sensor and/or external wired sensors to regulate the temperature.
the temperature. The thermostat will regulate the temperature using hysteresis or PWM, based on the setpoint temperature.
To select "HYST" or "PWM", you can find the menu option "REG" or use parameter 13 "OPER".

When selecting regulation via Hysteresis
The hysteresis will switch the load on and off depending on the hysteresis value compared to the setpoint. You can make changes to the hysteresis of the thermostat. You can choose hysteresis values between 0.3°C and 3.0°C using parameter 14. The default setting for the default setting is 0.5°C. When water heating is used, we recommend a hysteresis of 1.0°C.
You can also change the hysteresis by entering the local settings menu and holding down the centre button for 2 seconds when "REG" is displayed. Here you can choose values between 0.3 and 3.0.

When PWM regulation is selected
With PWM regulation activated, the thermostat will regulate according to the duty cycles. The thermostat switches on and off in percentage intervals of the cycle. The amount of time the relay will be on is based on how far the measured temperature is from the set point.

Heatit Z-Wave Thermostat Z-TRM6 DC


Z-Wave Thermostat
Internal room sensor
External room sensor (wired)
Floor sensor
Temperature limiter
Boiler and heat pump control
Actuator control
3 modes: Heat - Cool and Eco
Hysteresis/PWM
Temperature calibration
Open window detection
Relay status icon
Adjustable display brightness
Single pole switch
Lock mode/child lock
Temperature reading on gateway
Weekly programming on gateway
Manual power measurement
SmartStart
Firmware update (OTA)
Supports S0, S2 Authenticated Class, S2 Unauthenticated Class encryption modes

Developed and designed according to strict quality (ISO 9001) and environmental (ISO 14001) requirements.

We recommend that electrical installations are carried out by an authorised electrical installer. The product must be installed in accordance with our installer's manual and national building codes. Any incorrect installation, misuse or damage to the product is not covered by the warranty.

The appliance can withstand a maximum load of 3A.

Heatit Z-TRM6 termostato suelo radiante refrescante

KEY POINTS:

Dry contact - Special thermostat to control potential free connected loads.

Modes - The thermostat has 3 modes: Heat - Cool and Eco. Cool and Eco are new features.

Metal frame - The thermostat has a metal frame for secure mounting in the junction box, which increases the durability of the product in contrast to previous plastic solutions.

Associations - The thermostat can be configured with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays.

Power regulator - Heatit ZTRM-6 DC has a built-in power regulator as an alternative to temperature regulation.

Hysteresis - With hysteresis regulation activated, the thermostat will only regulate according to the temperature. The thermostat switches on and off depending on the hysteresis value in relation to the setpoint.

Pulse Width Modulation/PWM - With pulse width modulation control activated, the thermostat will regulate according to the cycles. The thermostat switches on and off in percentage intervals of the cycle.

Window open detection - With window open detection, the thermostat detects if a window is open, allowing it to cut off the heating when there is a rapid drop in temperature.

Manual power measurement - The thermostat has a manual power measurement that gives you an overview of the consumption in real time. The load size is set as a fixed value in the menu.

Push buttons - With a combination of push buttons and touch functionality, the thermostat is easier to use.

DOWNLOAD MANUAL

Extended Z-Wave info

Name: Heatit Z-TRM6 DC
Manufacturer:Heatit
Identifier:Z-TRM6 DC
Z-Wave Certification Number:ZC14-23120376
Hardware Plattform:EFR32ZG23A
FLiRS:NO
Role Type:Always On End Node
Short Description:Heatit Z-TRM6 DC is an electronic thermostat with a potential free relay, designed for boiler control or actuators. The thermostat can be controlled through your Z-Wave™ network or via the buttons on the front. The thermostat has a user friendly interface. Heatit Z-TRM6 DC has 3 modes; Heat - Cool and Eco.
Description:Heatit Z-TRM6 DC is an electronic thermostat with a potential free relay, designed for boiler control or actuators. The thermostat can be controlled through your Z-Wave™ network or via the buttons on the front. The thermostat has a user friendly interface. Heatit Z-TRM6 DC has 3 modes; Heat - Cool and Eco.
Group
Max Nodes
Description
1
1
2
10
3
10
4
10
Number
Size (Bytes)
Default Value
Name
Description
1
1
0
Disable buttons
Disable or enable local control
10
1
0
Internal sensor calibration (CAR)
Manually calibrate the Internal sensor
11
1
0
Floor sensor calibration (CAF)
Manually calibrate the Floor sensor
12
1
0
External sensor calibration (CAE)
Manually calibrate the External sensor
13
1
0
Regulation mode (REG)
Select regulation mode
14
1
10
Temperature control hysteresis (HYST)
Select degrees for regulation hysteresis
15
1
0
Temperature display
Decide what is shown during standby
16
1
10
Active display brightness (BR1)
Set brightness during active state
17
1
5
Standby display brightness (BR2)
Set brightness during standby state
18
2
840
Temperature report interval
Set temperature report interval
19
1
10
Temperature report hysteresis
Set temperature report hysteresis in °C
2
1
1
Sensor mode(OPER)
Select sensor mode of the device.
20
2
0
Action after error
Time to turn on regulation after error
21
2
210
Heating setpoint
Set the setpoint for heating mode
22
2
180
Cooling setpoint
Set the setpoint for Cooling mode
23
2
180
ECO setpoint
Set the setpoint for ECO mode
24
2
43200
Thermostat state update interval
Set thermostat state update interval
25
1
1
Operating Mode(MODE)
Changes operating mode
26
1
0
Open window detection
Enable or disable OWD
27
1
0
Size of load
Set the size of load
28
1
0
Inverted output
Decide if output should be inverted
29
1
0
Valve inactivity exercise
Valve exercise period
3
1
0
Sensor value(SEN)
Select resistance of the connected NTC
4
2
50
Internal sensor min temp limit
Set minimum setpoint for Internal sensor
5
2
50
Floor sensor min temp limit
Set minimum setpoint for Floor sensor
6
2
50
External sensor min temp limit
Set minimum setpoint for External sensor
7
2
400
Internal sensor max temp limit
Set maximum setpoint for Internal sensor
8
2
400
Floor sensor max temp limit
Set maximum setpoint for Floor sensor
9
2
400
External sensor max temp limit
Set maximum setpoint for External sensor
Association Group Information (AGI) V3
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic V2
COMMAND_CLASS_BASIC_V2
Configuration V4
COMMAND_CLASS_CONFIGURATION_V4
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta Data V5
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Indicator V3
COMMAND_CLASS_INDICATOR_V3
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Meter V5
COMMAND_CLASS_METER_V5
Multi Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Multi Channel V4
COMMAND_CLASS_MULTI_CHANNEL_V4
Multilevel Sensor V11
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
Notification V8
COMMAND_CLASS_NOTIFICATION_V8
Powerlevel
COMMAND_CLASS_POWERLEVEL
Protection
COMMAND_CLASS_PROTECTION
Security 0
COMMAND_CLASS_SECURITY
Security 2
COMMAND_CLASS_SECURITY_2
Supervision
COMMAND_CLASS_SUPERVISION
Thermostat Mode V3
COMMAND_CLASS_THERMOSTAT_MODE_V3
Thermostat Operating State
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE
Thermostat Setpoint V3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Where to find S2 DSK on product
The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;

• On the product.

• In the Quick Guide.

• On the packaging box/gift box.
Factory Reset Procedure
Enter the menu by holding the Center button for about 5 seconds, navigate in the menu with the ”+” button til you see FACT. Press the Center button until you see “-- --” blinking in the display, then hold for about 5 seconds to perform a reset.

You may also initiate a reset by holding the Right and Center buttons for 60 seconds.



When either of these procedures has been performed, the thermostat will perform a complete factory reset. The device will display “RES” for 5 seconds while performing a factory reset. When “RES” is no longer displayed, the thermostat has been reset.



Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Classic Inclusion
Add

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.

An always listening node must be powered continuously and reside in a fixed position in the installation to secure the routing table. Adding the device within a 2 meter range from the gateway can minimize faults during the Interview process.



Standard (Manual)

Add mode is indicated on the device by rotating LED segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been added to the network. Configuration mode can also be cancelled by performing the same procedure used for starting

Configuration mode.

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the ”+” button once to see “CON” in the display.

3. Start the add device process in your primary controller.

4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.



The device is now ready for use with default settings.

If inclusion fails, please perform a ”remove device” process and try again. If inclusion fails again, please see “Factory reset”.
Classic Exclusion
Remove

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.

When the device is removed from the network, it will NOT revert to factory settings.



Standard (Manual)

Remove mode is indicated on the device by rotating LED segments on the display. It indicates this for 90 seconds until a timeout occurs, or until the device has been removed from the network. Configuration mode can also be cancelled by performing the same procedure used for starting

Configuration mode.

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the ”+” button once to see “CON” in the display.

3. Start the remove device process in your primary controller.

4. Start the configuration mode on the thermostat by holding the Center button for approximately 2 seconds.



NB! When the device is removed from the gateway, the parameters are not reset. To reset the parameters, see Chapter ”Factory reset”.
S2 Authenticated
S2_AUTHENTICATED
S2 Unauthenticated
S2_UNAUTHENTICATED
Color
If the product is only available in one color, pick the color from the list.
IP (Ingress Protection) Rated
Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
Neutral Wire Required
For electric in-wall/wired switches, indicate whether a neutral wire is required for installation.
Switch Load Capacity Current
The amount of switch load energy the product is rated for in Amps
Switch Load Capacity Watts
The amount of switch load energy the product is rated for in Watts
Thermostat Modes
Select the mode(s) supported by the thermostat.
Thermostat Power Source
Select one or more supported power sources for a thermostat.
