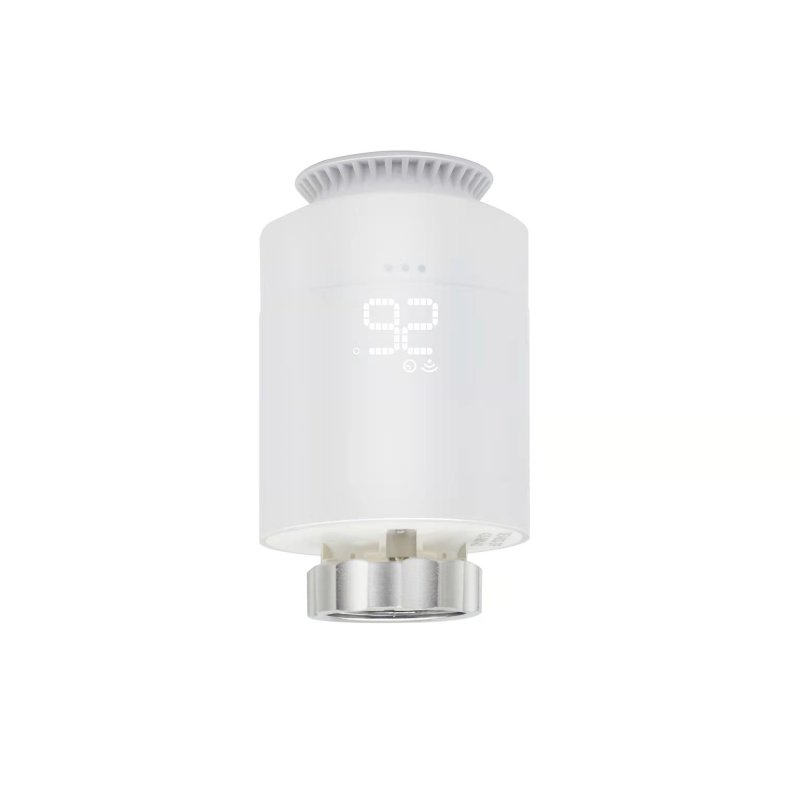

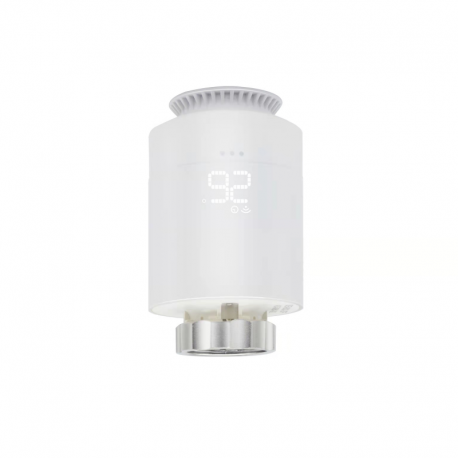

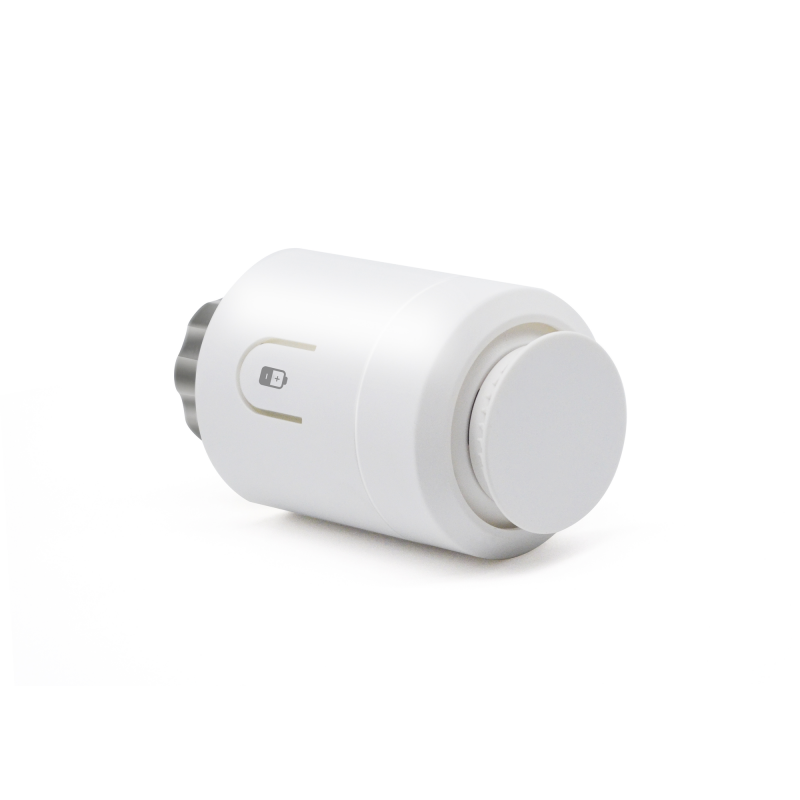

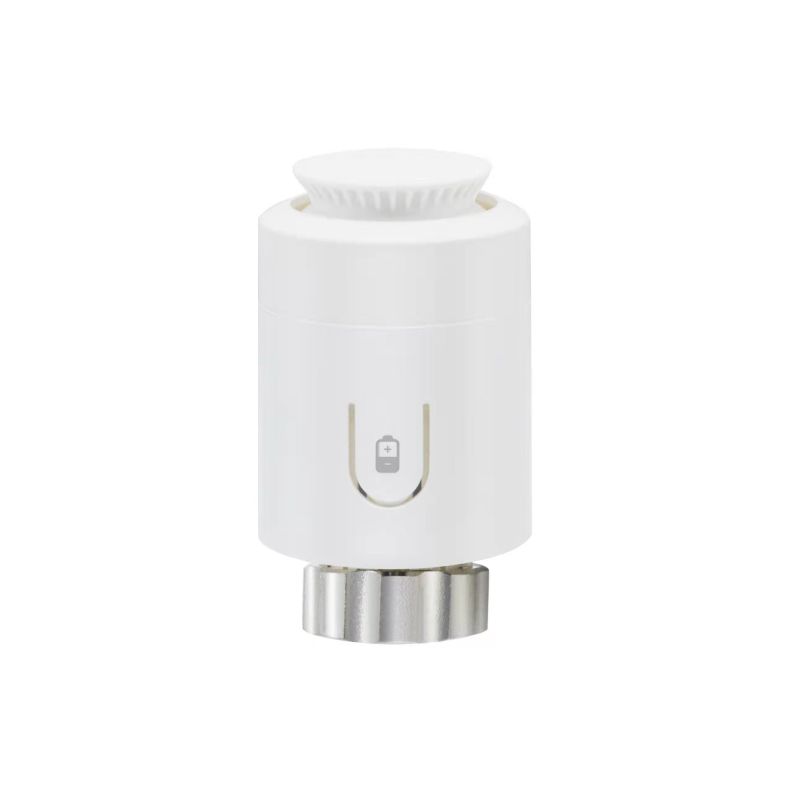

ZVIDAR Thermosatic Radiator Valve - Z-Wave+ Series 700 Thermostatic Head

The smart thermostatic radiator head is designed to provide individual control of heating, room by room. Working with or without a central thermostat, you can create a zoned heating system. You can then easily manage your heating remotely via an app for smartphones, tablets or computers.

The Smart Thermostatic Radiator Valve can be included and used on any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery powered devices within the network will act as repeaters regardless of the provider to increase network reliability.

The smart radiator thermostatic valve is a Z-Wave (S0/S2) safety device, so a controller that supports these safety levels is required to take full advantage of the full functionality of the thermostatic valve.

FUNCTIONS:

radiator thermostat
Manual or Z-Wave heating control with instant status update
700 series Z-Wave chip for greater range and faster control
SmartStart and S2 Security for a more secure network
Window opening function
Anti-limescale function
Child lock function
Antifreeze function
Danfoss RA, Caleffi and Giacomini adapters supplied
Easy to install

TECHNICAL SPECIFICATIONS :

Power: 3V (2 × 1.5V AA)
Battery life: 2 years
Operating current: ~20mA
Standby current: ~30uA
Communication protocol: Z-Wave
Radio frequency: 868.42 MHz (EU)
Wireless range: up to 100 meters in open space
Temperature setting accuracy: 0.5° C
Room temperature display range: 0-50°C
Operating temperature range: 5-30°C
Operating humidity: up to 85% non-condensing
Threaded connection: M30 × 1.5 mm (Danfoss RA, Caleffi and Giacomini adapters included)
