SECURE Temperature probe for pipe or tank with 1m cable

SES002

New

Secure SES 002 is a temperature probe to measure temperature in the external wall of a tube or a tank with hot liquid inside.

More details

In Stock

25,00 €

More info

The Secure SES002 probe is a temperature sensor adapted to measure the surface temperature of hot water pipes as well as hot water tanks. They can be used in association with a SES302 wall probe, SES303 or SIR321 timer and this probe can be included in a Z-Wave network. The use as an independent device is not possible.

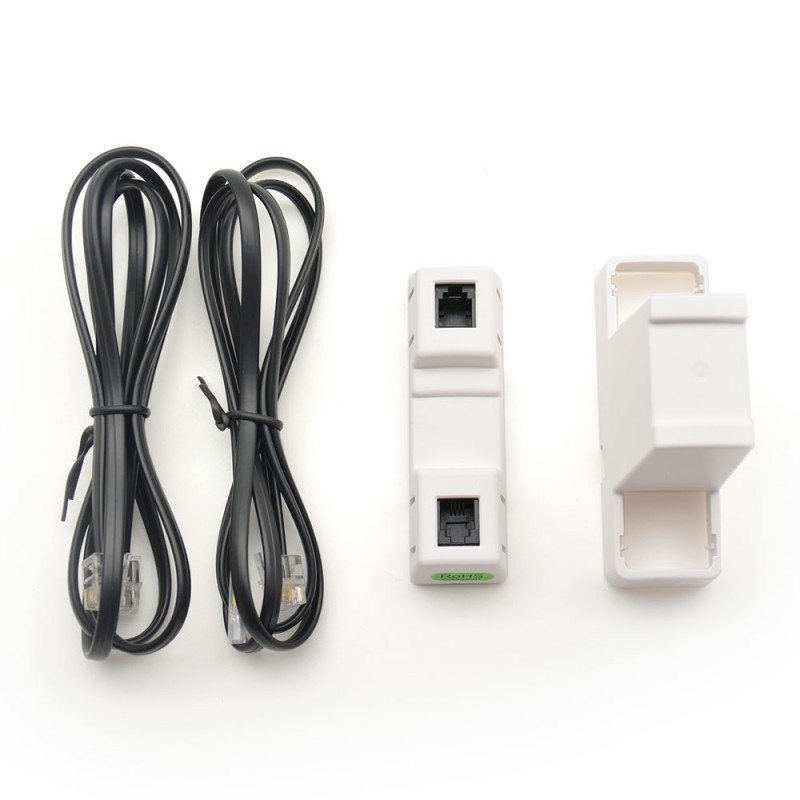

The SES002 comes with two cables of 1 meter each. The SES003 is supplied with a 4 meter communication cable.

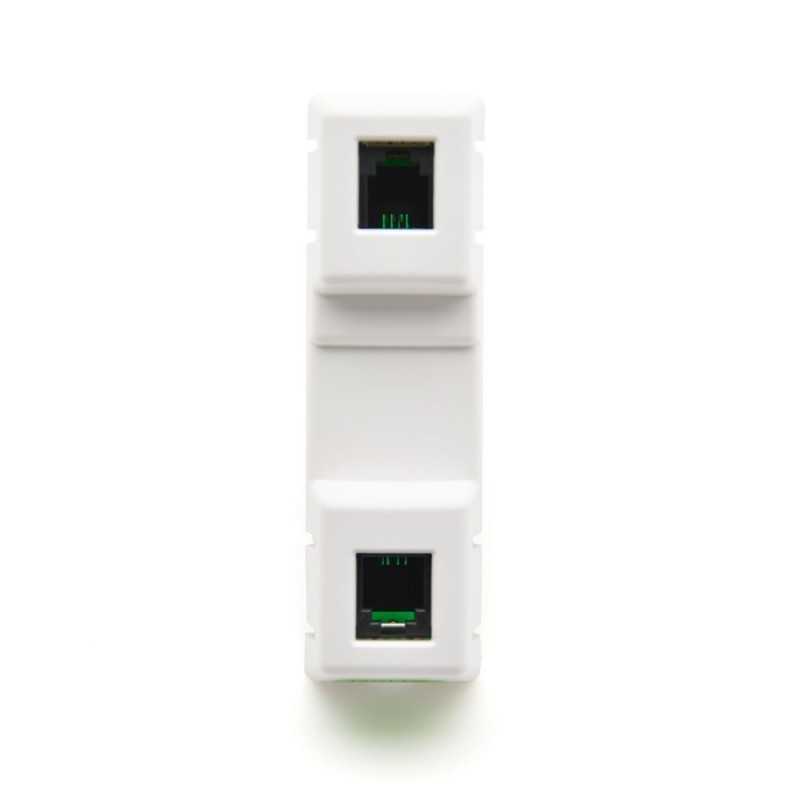

The main connection cable has an RJ10 connector on one end and bare cable on tips on the other end. While cascading the cables have RJ10 connectors at both ends. Up to four SES002 can be cascaded in an SES302, SES303 or SIR321, while only one SES003 probe can be connected to an SES302, SES303 or SIR321.

CHARACTERISTICS:
Measuring the temperature of hot water pipes
Measuring the temperature in the hot water tank
Optimization of the energy savings of the heating system and by measuring the water temperature in several points of demand
Dynamic temperature control of hot water storage tanks
indirect leak detection
The optimization of heating systems

TECHNICAL CHARACTERISTICS:

Temperature measurement range:
± 0.5 ° C from 0 ° C to 65 ° C
± 1 ° C to 66 ° C to 85 ° C
dimensions:
Tube of the probe: 20 mm (H) x 79 mm (W) x 24 mm (D)
Sensor for the tank: 69 mm (H) x 83 mm (W) x 28 mm (D)
Operating temperatures: 0 ° C to 85 ° C
Storage temperature: -20 ° C to 85 ° C
