External temperature sensor,...
External temperature sensor, specially designed to read in pipes or tanks.
Warning: Last items in stock!
Out of stock
Temperature sensor for a hot water pipe / a hot water tank
The SES002 and SES003 are hardwired temperature sensors designed to measure the surface temperature of hot water pipes and tanks. They can only be used in combination with a SES302, SES303 wall sensor or a SIR321 timer and included in a Z-Wave network. Independent use is not possible.

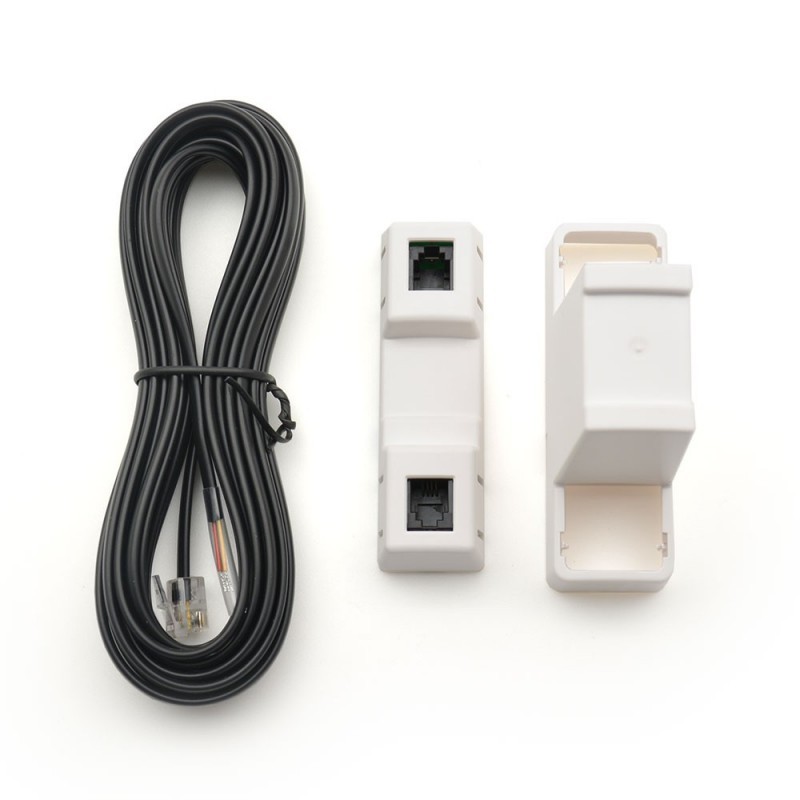

The SES 002 is supplied with two cables of 1 meter each. The SES003 is supplied with a 4 meter communication cable.
The main patch cord has a male RJ10 connector on one end and bare wires on the other end. While cascade cables have RJ10 connectors on both ends. Up to four SES002s can be cascaded into one SES302, SES303, or SIR321, while only one SES003 can be connected to one SES302, SES303, or SIR321.
Measuring the temperature in hot water pipes
Measurement of the temperature in the hot water tank
Heating system optimization and energy saving by measuring water temperature at various demand points
Dynamic temperature control of hot water in storage tanks
Indirect leak detection
Optimization of heating systems
Temperature measurement range:
± 0.5 ° C for 0 ° C to 65 ° C
± 1 ° C for 66 ° C to 85 ° C
Tube probe: 20mm (H) x 79mm (W) x 24mm (D)
Tank probe: 69mm (H) x 83mm (W) x 28mm (D)
Operating temperatures: 0 ° C to 85 ° C
Storage temperatures: -20 ° C ° C to 85 ° C
