Wireless Z-Wave Vision siren powered AC / DC with backup battery

VIS_ZM1602-5

New

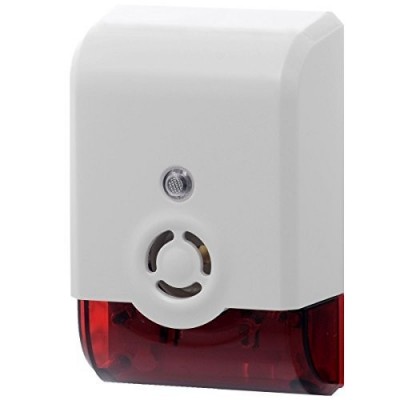

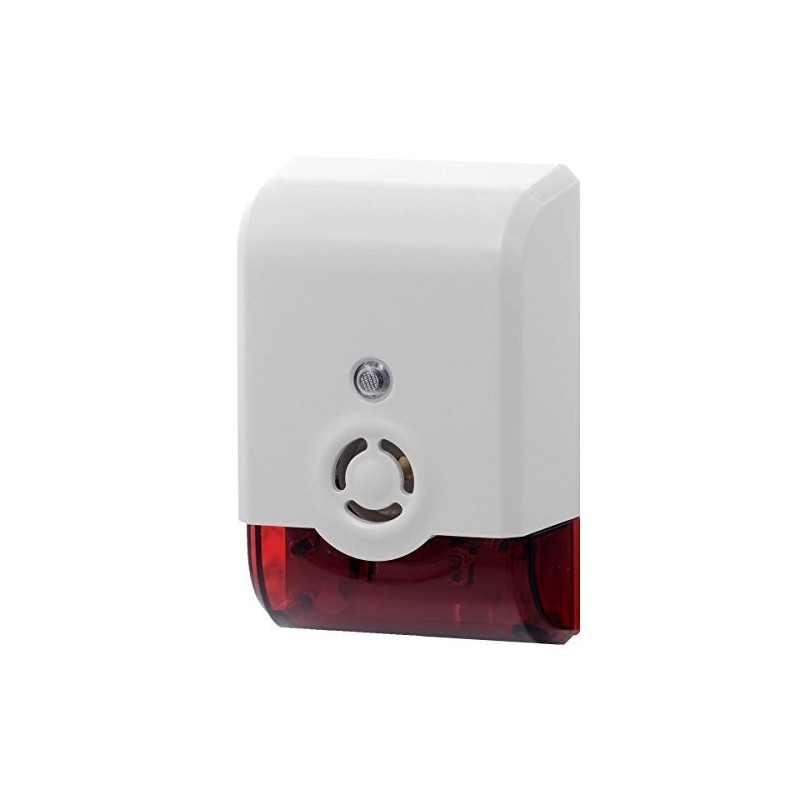

Indoor siren Vision ZM1602-5 powered by AC or DC power supply with backup battery for safety applications or alarms based on Z-Wave that emits a powerful sound, along with a flashing light warning of the triggering of an alarm

More details

In Stock

72,90 €

Technical characteristics

Technology Z-Wave Plus

More info

The wireless siren of Z-Wave technology for indoor, will alert and warn everyone in the building or home by a great sound and a "flash" light when an alarm occurs. This device is especially suitable for security applications based on Z-Wave in combination with other Z-Wave devices such as door and window sensors and motion detectors. The siren emits a loud sound and an intermittent warning light, so that everyone can see that an alarm has gone off. This is intended to alert the inhabitants or deter intruders. The device can be configured to use the strobe light and / or the acoustic siren or both. An anti-tamper switch (tamper switch) protects the device from being opened or tampered with if used in safety functions. The Z-Wave siren of the Vision ZM1602-5 must be powered by an AC or DC power supply, but it has a backup battery in case the power goes out or the power is cut off. This is: in case of power failure, the internal battery takes over the siren. The power supply can vary between 12 and 39 V DC and between 9 and 28 V AC so it is very easy to put near the electrical panel or a nearby register to take power from the source of the telephone or intercom, video intercom or even put a DIN rail source only for the siren. The flexibility in terms of power supply of this Z-Wave interior siren is total. Being a Z-Wave device powered and not batteries, it will participate fully in the Z-Wave routing, acting as a repeater for other devices.

Z-Wave controller (remote control, ZWave dongle, &) is required to integrate this siren into your existing Z-Wave network.

Product content:

1 Wireless indoor siren Z-Wave Vision ZM 1602-5 (ZWave +)

1 Double-sided adhesive

2 screws

1 Instruction manual

Note: The power adapter or power supply is not included .

Technical specifications:

  • Technology: Z-Wave Plus (EU = 868.42MHz)
  • Visible Alarm: Red strobe light
  • Sound volume: 105db
  • Modes: Siren, Strobe, Siren and Strobe
  • Tamper Alarm: Yes
  • Low battery alert: Yes
  • Usage: indoors only
  • Selectable auto-stop: 30 sec., 60 sec., Without auto-stop
  • Power supply: Required power supply (not included) - DC 12-39V, AC 9-28V
  • Dimensions (Height x Width x Depth): 116 x 77 x 40mm

Extended Z-Wave info

Name: Wireless Siren
Manufacturer:Vision
Identifier:ZM1602US-5
Z-Wave Certification Number:ZC10-18056104
Hardware Plattform:ZM5202
FLiRS:NO
Role Type:Always On Slave
Short Description:Siren will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network.
Description:Features: *Loud audible alarm>105dB@1 meter *LED strobe lighting *Low battery detection *Siren for Battery Back-Up *100ft line of sight *LED Status Indicator *Operating temp: -15oC~60oC *Working Voltage: 6V *Dimensions: 116*77*40mm

Manual download HERE.

Group
Max Nodes
Description
1
5
Lifeline
Number
Size (Bytes)
Default Value
Name
Description
1
1
0
Siren/Strobe mode
User can change value from 0 to 2 to turn either Siren sound, Strobe light, or both when triggered.
2
1
0
Alarm Auto Stop Time
User can change the duration of siren time when triggered.
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic
COMMAND_CLASS_BASIC
Configuration
COMMAND_CLASS_CONFIGURATION
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V2
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Notification V4
COMMAND_CLASS_NOTIFICATION_V4
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Switch Binary
COMMAND_CLASS_SWITCH_BINARY
Version V2
COMMAND_CLASS_VERSION_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Inclusion
Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1602 to your controller. To get in the “inclusion” mode, the distance between siren and controller is suggested to be in one meter. Open the bracket and press the program switch of ZM 1602 for 1 second at least & release to be included. After setting, the LED Setting Lighting should go off,
Exclusion
Set up the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1602 from your controller. Press the Tamper Switch of ZM 1602 for 1 second at least & release to be excluded.
Factory Reset
This device can’t be reset manually. It is reset to factory defaults when it is excluded. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Device Wake-Up
removing the back cover of the ZM1602 to get into “Awake” mode,
Additional Special Features
1. Support OTA firmware update from controller

2. Support Explorer Frame function
Color
If the product is only available in one color, pick the color from the list.
Supported Notification Types
Select the Notification Types that the product handles (controllers), or sends (slaves).
