Z-Wave.Me - Z-Uno Shield DIN Rail

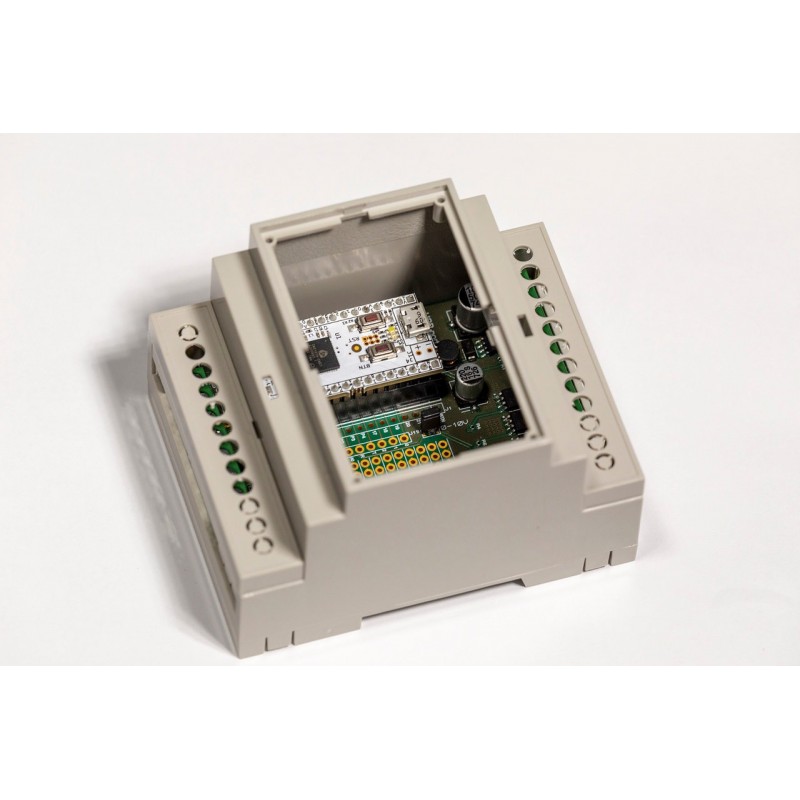

Z-Uno (included) is very powerful but requires some knowledge of schematics and programming. To help users and installers to work with Z-Uno the Z-Uno Shield was created. Z-Uno Shield is a multifunctional DIN-rail smart home device based on Z-Uno. It implements most useful features of Z-Uno and requires no soldering and no programming.

No soldering required!

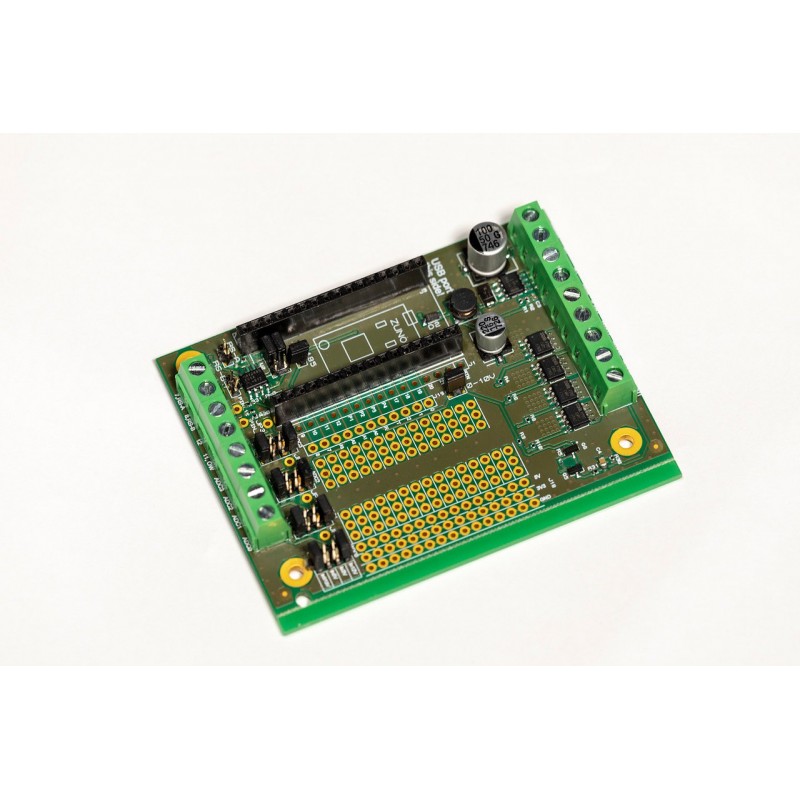

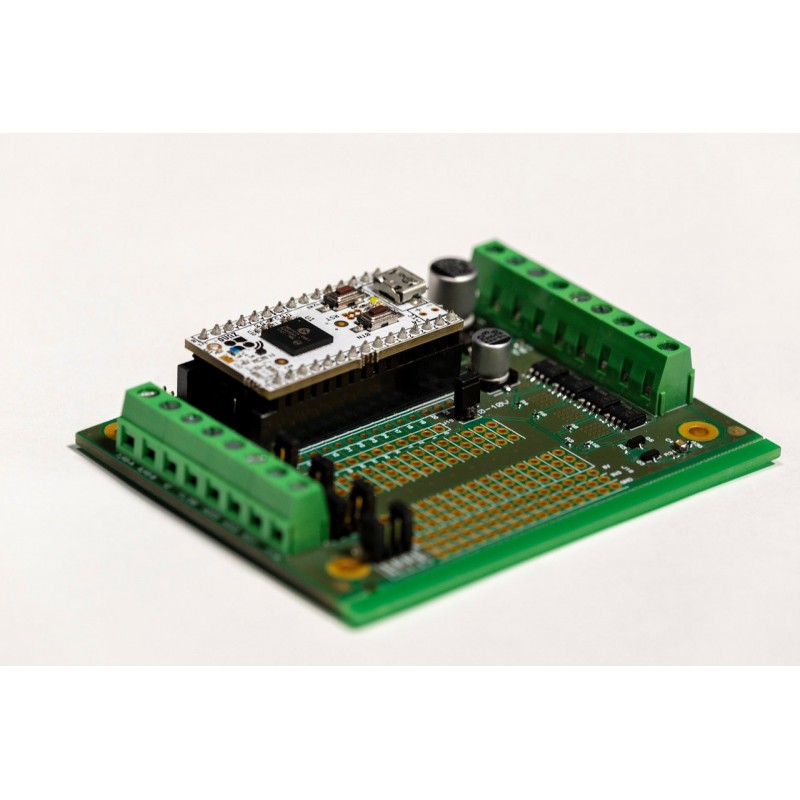

Z-Uno Shield is very easy to wire. It allows to connect many smart home actors and sensors out of the box:

• One 0-10 V analog output — control industrial dimmers
• Up to four PWM or switch outputs (up to 5 A per channel) — control contactors, switches, halogen bulbs or LED strips
• Up to eight digital 0/3 V inputs or outputs — connect various low voltage digital senors and actors
• Up to four digital 0/3, 0/5 or 0/12 V digital or analog inputs — connect industrial 10 V sensors or any Arduino-compatible sensor
• RS485 or UART — for industial meters
• OneWire — for DS18B20 or other sensors

For those who still want to solder something there is a bread board for your additional components.

No programming required!

The Z-Uno Shield Configurator will not only help you to wire your Z-Uno Shield correctly, but will also write the Z-Uno sketch for you. Most popular cases are covered by this tool. You can still modify the generated code or write your own sketch.

Z-Uno Shield Configurator allows you to create:

• Dimmers and Blinds
• Switches, Sirens, Valve controls and Door locks
• Sensors
• Thermostats

Scope of delivery:

• Z-Uno
• Z-Uno Shield
• Sealed housing + accessoires
