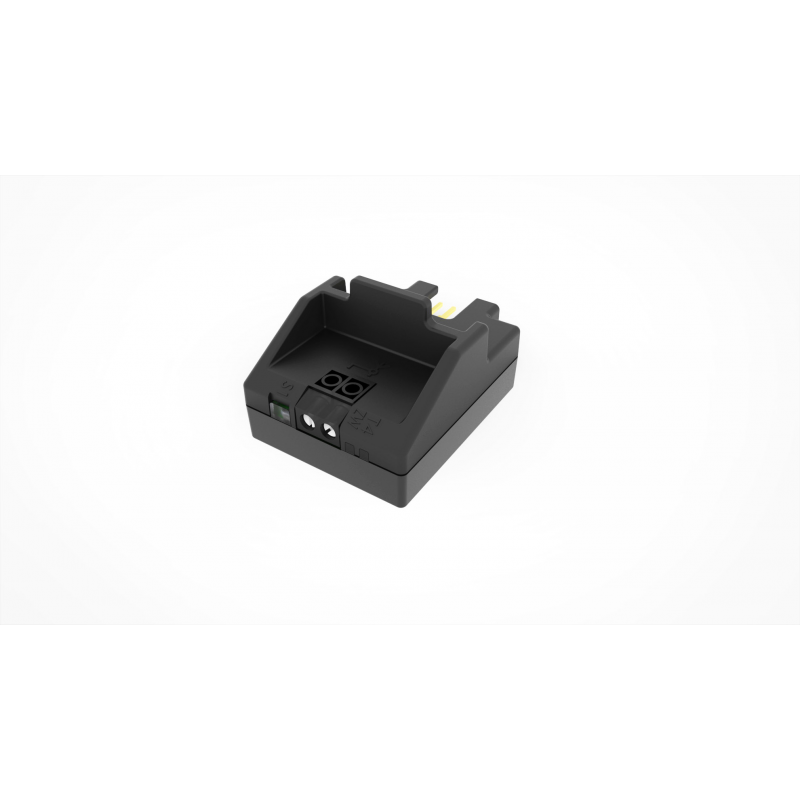

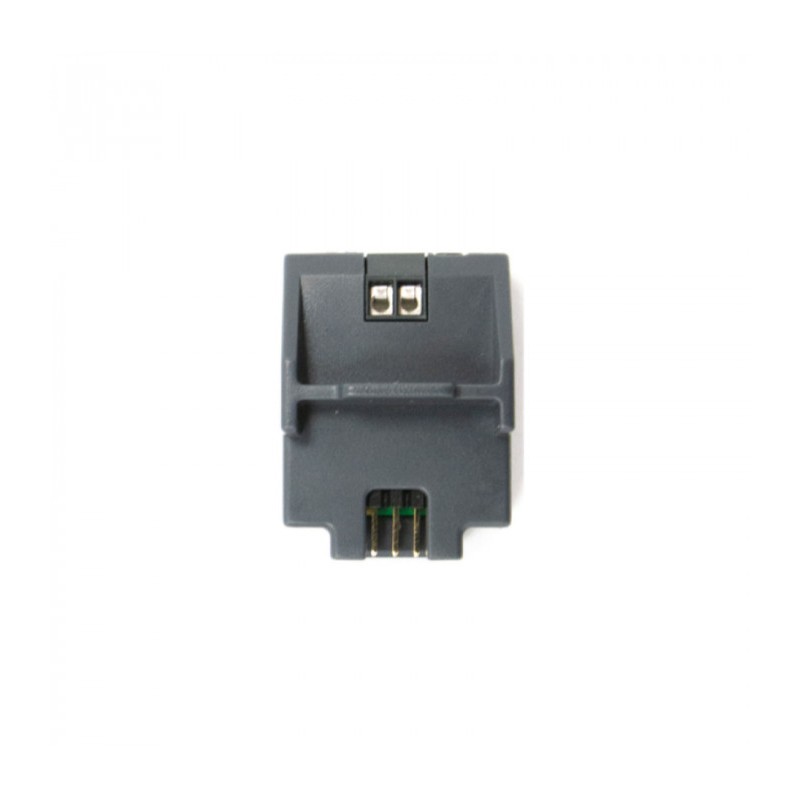

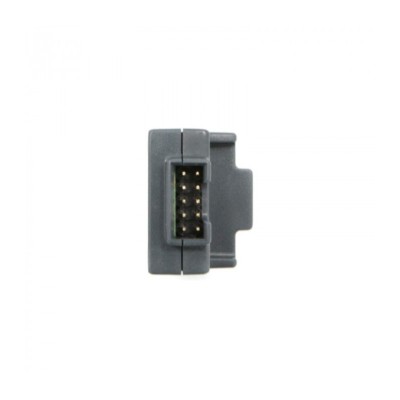

Nice BiDi-ZWave - BUST4-ZWAVE interface BIDI Z-Wave automation NICE

More info

Interface designed to facilitate installation in Nice electronic boxes. It allows its integration with the FIBARO system.

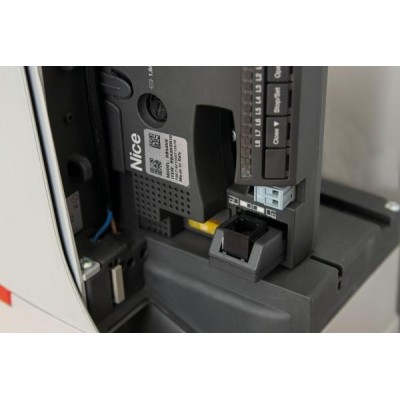

Nice BiDi-ZWave is an interface designed for easy installation in NICE control units. Allows easy integration with the FIBARO system. It also offers the ability to monitor, report status, and send diagnostic information.

FUNCTIONS:

Compatible with Z-Wave and Z-Wave + controllers
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
Collects and provides diagnostic information
Works with various NICE actuators offered in the last 10 years
Plug & Play installation
Intelligent algorithm automatically recognizes proprietary BUS protocol
Additional capabilities include not only opening and closing the door, but also status reporting and collecting diagnostic information
No need to replace the old radio module and ditch the traditional Nice remotes - they can work in parallel with BiDi-ZWave without any problem

TECHNICAL SPECIFICATIONS :

Power supply: 24V DC (supplied by the control unit)
Current consumption: maximum 50mA
Operating temperature: -20 ° C to +50 ° C
Radio protocol: Z-Wave Plus V2
Radio frequency: 868.0 - 868.6; 869.7 - 870.0 MHz
Maximum transmit power of internal antenna: 10dBm
Maximum peak power of external antenna 3 dBi
External antenna cable length: 1 ... 3 m
External dimensions (length x width x height): 37mm x 28mm x 21mm
Weight: 10g
Enclosure protection degree: IP40 (only indoors or protected environments)
Operating temperature: -20 to +50 ° C

Extended Z-Wave info

Name: BusT4-Z-Wave interface

Manufacturer:NICE Spa

Identifier:IBT4ZWAVE

Z-Wave Certification Number:ZC12-20040043

Hardware Plattform:ZGM130

FLiRS:NO

Role Type:Always On Slave

Short Description:The IBT4ZWAVE accessory is a device that – by means of Z-Wave communication – allows for controlling the movement and status of Gate&Door-type Nice automations compatible with the BusT4 (Opera) protocol.

Description:The IBT4ZWAVE accessory is a device that – by means of Z-Wave communication – allows for controlling the movement and status of Gate&Door-type Nice automations compatible with the BUS T4 (Opera) protocol. Main features: • Compatible with Nice Gate&Door control units equipped with BUS T4 connector, • Allows to control the gate in Step-By-Step mode and control its status, • Equipped with two LEDs that inform about the device status, • Does not require additional power supply, • Compatible with Z-Wave and Z-Wave Plus controllers, • Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption.

Manual download HERE.

Group

Max Nodes

Description

1

Reports the device status to the Z-Wave gateway

Number

Size (Bytes)

Default Value

Name

Description

30

4

0

Alarm configuration - 1st slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value [0x00, 0x00, 0x00, 0x00] (disabled). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

31

4

100597760

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value [0x05, 0xFF, 0x00, 0x00](Water Alarm, any notification, no action). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

32

4

33488896

Alarm configuration - 3rd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value[0x01, 0xFF, 0x00, 0x00](Smoke Alarm, any notification, no action). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

33

4

50266112

Alarm configuration - 4rd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value [0x02, 0xFF, 0x00, 0x00] (CO Alarm, any notification, no action). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

34

4

83820544

Alarm configuration - 5th slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Default value [0x04, 0xFF, 0x00, 0x00] (Heat Alarm, any notification, no action). The 4 bytes must be converted to a single decimal value to be entered in the gateway sending the configuration parameter value. Example: Event: Home Security (0x07) Status: Motion Detected (0x08) Parameter: None (0x00) Action: Open (0x01) = 0x07080001 which is 117964801 decimal to be entered in the gateway.

Application Status

COMMAND_CLASS_APPLICATION_STATUS

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Protection V2

COMMAND_CLASS_PROTECTION_V2

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Switch Multilevel V4

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

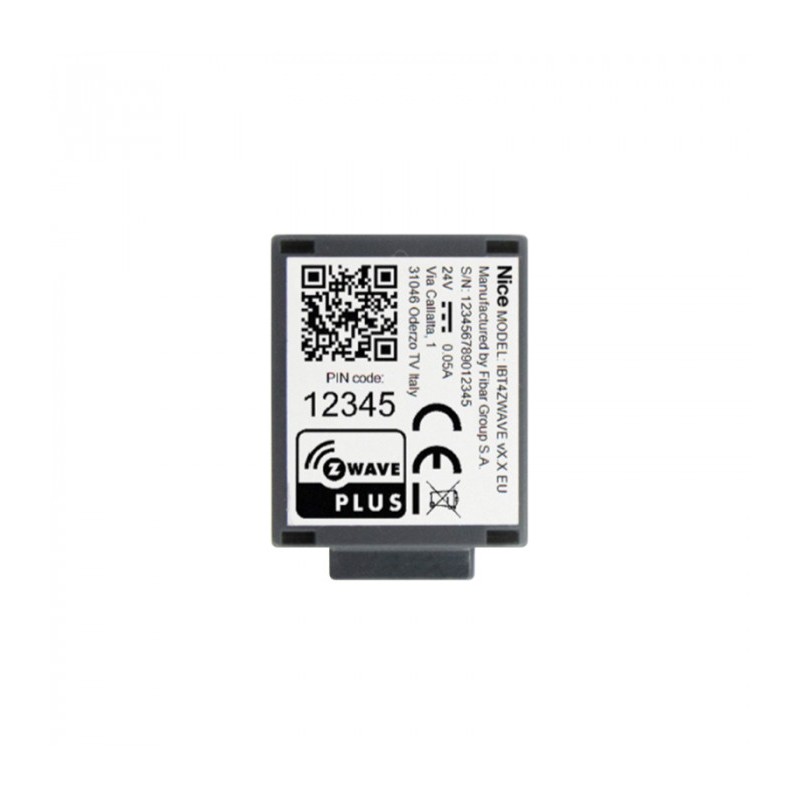

Where to find S2 DSK on product

Page 3 of 9 in the manual, point 4.2.03

Classic Exclusion

01. Set the Z-Wave gateway into remove mode (see the Z-Wave gateway’s manual)

02. On the IBT4ZWAVE press and release the S1 button 3 times x3 S1

03. LEDs on the IBT4ZW AVE will start slow flashing alternately

04. Wait for the removing process to end

Factory Reset Procedure

01. Press and hold the S1 button

03. Wait 3 seconds

04. LEDs will show adding and antenna status (Table 1 in manual) for 3 seconds

05. LEDs will turn off for 3 seconds

06. LEDs will show selected antenna (Table 2 in manual) for 3 seconds

07. When both LEDs light up simultaneously, release the button

08. Press and release the S1 button

09. Both LEDs will flash once at the end of the procedure

Classic Inclusion

Install the external antenna before powering the device and adding to the Z-Wave network for the device to automatically detect and enable it (use only antennas and cables compliant with technical specification).

01. Set the Z-Wave gateway into adding mode (see the Z-Wave gateway’s manual)

02. On the IBT4ZWAVE press and release the S1 button 3 times x3 S1

03. LEDs on the IBT4ZW AVE will start slow flashing alter nately

04. If you are adding in Security S2 Authenticated, input the underlined part

of the DSK (label on the box) DSK: XXXXX-XXXXX-XXXXX-XXXXX XXXXX-XXXXX-XXXXX-XXXXX

05. When the adding process ends, the LEDs on the IBT4ZWAVE will show adding and antenna status (Table 1 in manual)

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Communications Protocol

For external interfaces, choose the communications protocol used.
