Ajax HUB2PLUSKIT-DP-PRO Kit - Hub 2 Plus, 2 PIRCAM, 1 magnetic, 1 remote control, 1 keyboard and 1 siren

New

  • Professional alarm kit
  • Grade 2 Certificate
  • Ethernet / Wi-Fi / dual SIM 4G communication
  • Wireless 868 MHz Jeweler and Wings
  • Ajax HUB 2 Plus, 2 PIRCAM, 1 magnetic contact
  • 1 remote control, 1 keypad and 1 indoor siren

More details

In Stock

1 133,00 €

More info

Professional AJAX intrusion alarm system with two-way wireless communication.

The wireless link achieves high reliability thanks to its advanced Jeweler protocol with high security AES encryption. The exclusive instantaneous and intelligent supervision system detects the inhibition of the signal identifying a certain time of inactivity and at the same time allows to reduce the maintenance costs since it manages to considerably extend the life of the batteries of the detectors without compromising safety. The wireless signal is capable of covering distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the intelligent bracket (Smart-Bracket) or the simple linking of the detectors to the alarm system.

It allows up to 100 wireless zones, allowing the possibility of grouping said devices into up to 25 different groups, on which the different actions of arming, partial arming, and disarming can be carried out. These Ajax wireless devices have different possible configurations such as 24 hour zone, zone with entry or exit delay ...

The AJ-HUB2PLUS-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours. This control panel incorporates the Wings radio protocol to be able to receive the images from the AJ-MOTIONCAM photodetector.

Ethernet communication is its main advantage for remote access, both for the user and for the installer, since it allows its connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user ) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms and modify their configurations. The use of the cloud is compatible with dynamic IP without the need to open ports.

The Ajax user will enjoy multiple benefits, as they will be able to receive reliable and instant notifications in both desktop software and mobile applications. As an additional complement to the Ajax alarm system, up to 100 IP cameras or video recorder channels can be added from the mobile application in order to verify the video stream live.

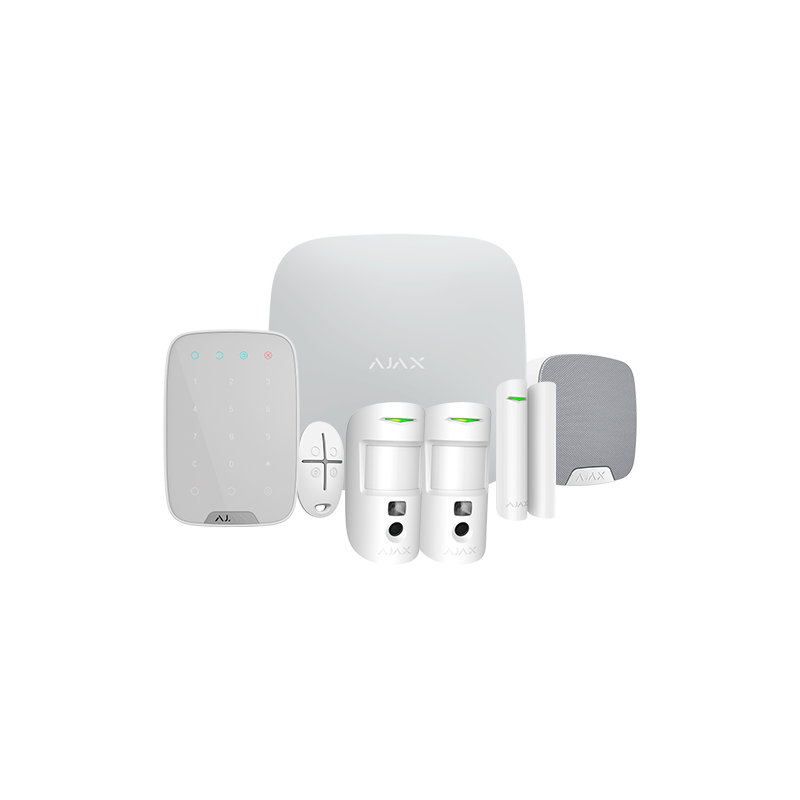

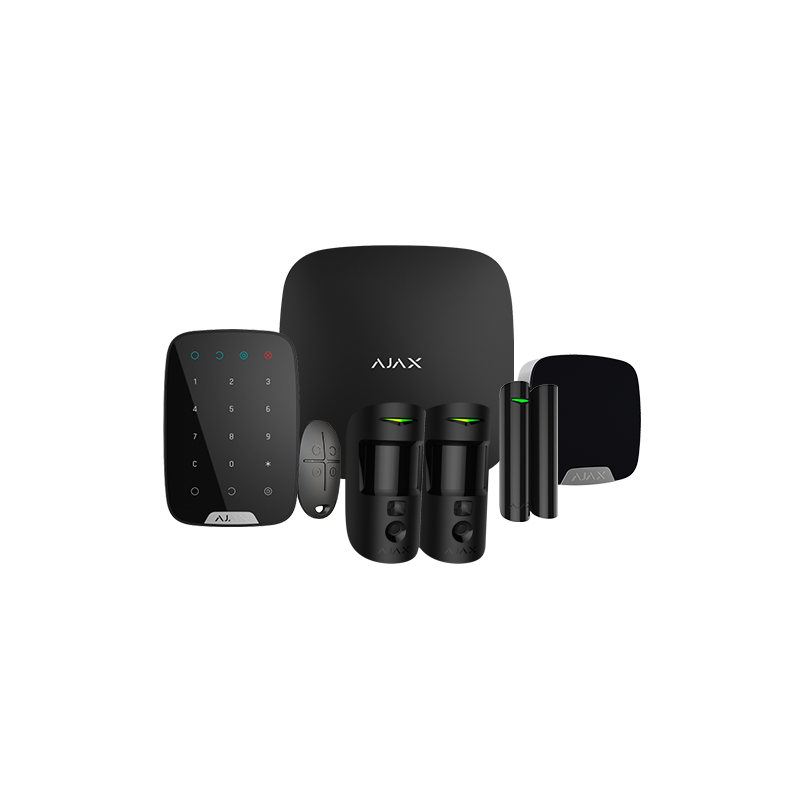

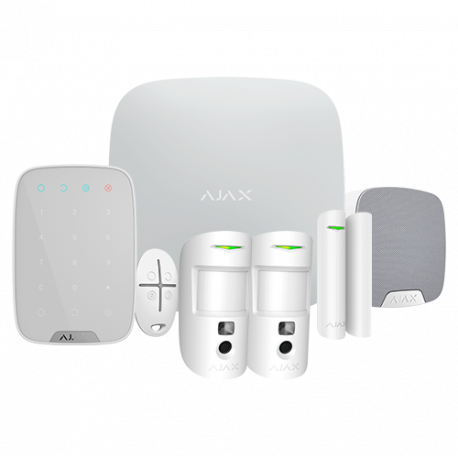

The kit includes the AJ-HUB2PLUS control panel, 2 AJ-MOTIONCAM photodetectors, an AJ-DOORPROTECT magnetic contact, an AJ-SPACECONTROL remote control, an AJ-KEYPAD wireless keyboard and an AJ-HOMESIREN indoor siren.

Kit Ajax Equipment Specifications

Control Panel

Mark Ajax
Model AJ-HUB2PLUS-W
Degree of security Grade 2
RF frequency 868 MHz. Jeweler radio protocol
Internal security Anti-opening tamper
Internal siren Does not have
Communication Ethernet / Wi-Fi / Dual SIM 4G (LTE)
Maximum devices 200
Video integration Up to 100 IP cameras or video recorder channels
Number of users Up to 200
Communication with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Cover material ABS plastic
Feeding AC 110 ~ 250 V, 50/60 Hz
Backup battery Duration up to 15 hours
Temp. functioning + 5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (W) mm

PIRCAM

Mark Ajax
Model AJ-MOTIONCAM-W
Units 2
Technology Volumetric PIR with chamber
Degree of security Grade 2
PIR lens 24 zones and 6 planes
Detection field 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweler and Wings (send images)
Transmission distance d 1700 m in open space
Pet immunity d 20 kg, d 50 cm
Masking Does not have
Sensitivity Adjustable. 3 levels (low, medium and high)
Image resolution Up to VGA (640 x 480)
Number of images Up to 5 images for each detection
Sending images Send and receive images in less than a minute
Infrared illumination IR for night mode
Indication LEDs Alarm, tamper, signal
Battery 2 CR123A 3.0 V batteries (duration up to 4 years)
Compatibility AJ-HUB2-W / B
Temp. functioning 0º C ~ 40º C
Cover material ABS plastic
Dimensions (without stand) 135 (H) x 70 (W) x 60 (Fo) mm

Magnetic contact

Model AJ-DOORPROTECT-W
Degree of security Grade 2
Transmission distance d 2000 m in open space
Frequency 868 MHz
Battery 1 CR123A 3.0 V battery (approximate duration 7 years)
Cover material ABS plastic
Dimensions 90 mm (Fo) x 20 (Ø) mm

Remote control

Model AJ-SPACECONTROL-W
Feeding 1 x CR2032 3V battery
Transmission distance d 1000 m in open space
Frequency 868 MHz
Battery 1 CR123A 3.0 V battery (approximate duration 5 years)
Temp. functioning -20º C ~ 50º C
Cover material ABS plastic
Dimensions 65 (H) x 37 (W) x 10 (Fo) mm

Wireless keyboard

Model AJ-KEYPAD-W
Degree of security Grade 2
Features Arming, disarming, partial arming and emergency
Frequency 868 MHz Jeweler
Transmission distance d 1700 m in open space
Compatibility Compatible with Ajax HUB from firmware version 2.0 or higher
Battery 4 AAA 1.5 V batteries (approximate duration 2 years)
Cover material ABS plastic
Temp. functioning -10º C ~ 50º C
Dimensions 150 (H) x 102.5 (W) x 13.2 (D) mm

Inner siren

Model AJ-HOMESIREN-W
Degree of security Grade 2
Volume 81 ~ 97 dB at 1 meter
Alarm duration Configurable between 3 seconds and 3 minutes
Battery 2 CR123A 3.0 V batteries (approximate duration 5 years)
Frequency 868 MHz Jeweler
Transmission distance d 2000 m in open space
LED indications Arming / disarming alarm and audible signal
Internal security Rear tamper against tampering
Protection IP50
Dimensions 75 (H) x 75 (W) x 27 (Fo) mm
Weight 96 g
