AJAX HUB2 Alarm Kit AJ-HUB2KIT-MP-PRO

New

  • Professional alarm kit
  • Grade 2 Certificate
  • Ethernet communication and dual SIM GPRS
  • Wireless 868 MHz Jeweler and Wings
  • Ajax HUB 2, 2 PIRCAM, 1 PIR detector
  • 1 remote control, 1 keypad and 1 indoor siren

More details

In Stock

884,00 €

More info

Professional AJAX anti-intrusion alarm system with two-way wireless communication.

The wireless link achieves high reliability thanks to its advanced Jeweler protocol with high-security AES encryption. The exclusive instantaneous and intelligent supervision system detects the inhibition of the signal identifying a certain time of inactivity and at the same time allows to reduce maintenance costs since it manages to considerably extend the life of the detectors batteries without compromising safety. The wireless signal is capable of covering distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the intelligent bracket (Smart-Bracket) or the simple linking of the detectors to the alarm system.

It allows up to 100 wireless zones, allowing the possibility of grouping these devices into up to 9 different groups, on which the different actions of arming, partial arming, and disarming can be carried out. These Ajax wireless devices have different possible configurations such as 24 hour zone, zone with entry or exit delay ...

The AJ-HUB2-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 16 hours. This control panel incorporates the Wings radio protocol to be able to receive the images from the AJ-MOTIONCAM-W photodetector.

Ethernet communication is its main advantage for remote access, both for the user and for the installer, since it allows its connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user ) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms and modify their configurations. The use of the cloud is compatible with dynamic IP without the need to open ports.

The Ajax user will enjoy multiple benefits, as they will be able to receive reliable and instant notifications in both desktop software and mobile applications. As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile application to verify the video stream live.

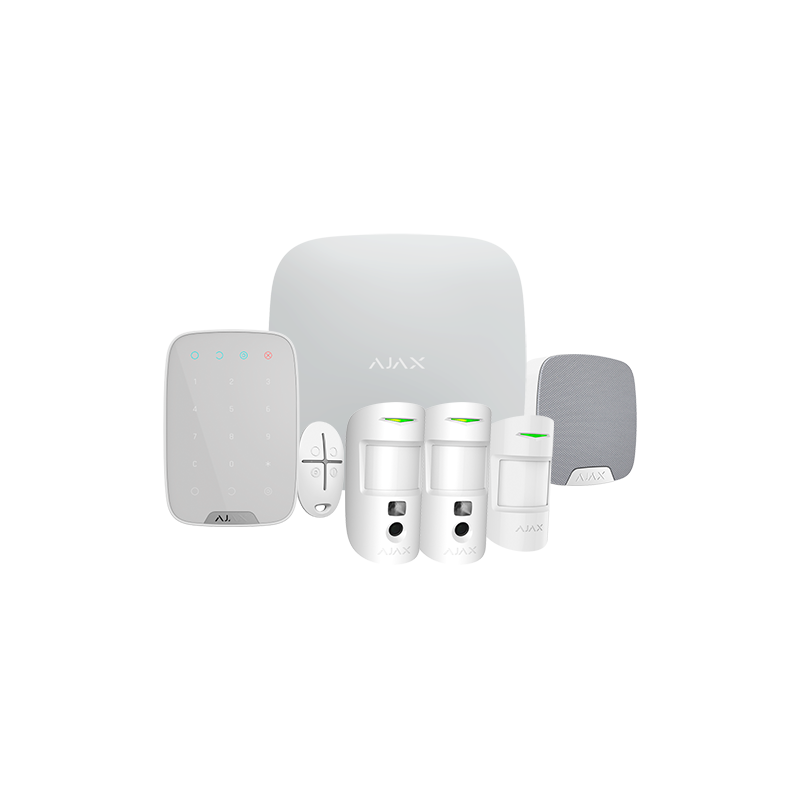

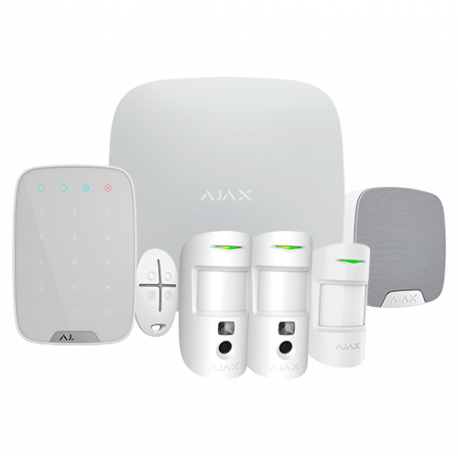

The kit includes the AJ-HUB2-W control panel, 2 AJ-MOTIONCAM-W photodetectors, an AJ-MOTIONPROTECT-W PIR detector, an AJ-SPACECONTROL-W remote control, an AJ-KEYPAD-W wireless keyboard and a indoor siren AJ-HOMESIREN-W.

Technical specifications of the elements of the AJAX Alarm KIT based on HUB2

Control Panel

Brand Ajax
Model AJ-HUB2-W
Degree of security Grade 2
RF frequency 868 MHz. Jeweler radio protocol
Internal security Anti-opening tamper
Internal siren Does not have
Communication Ethernet / Dual SIM 2G (GPRS)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number of users Up to 50
Communication with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Cover material ABS plastic
Feeding AC 110 ~ 250 V, 50/60 Hz
Backup battery Duration up to 16 hours
Temp. functioning + 5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (W) mm

PIRCAM

Model AJ-MOTIONCAM-W
Units 2
Technology Volumetric PIR with chamber
Degree of security Grade 2
PIR lens 24 zones and 6 planes
Detection field 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweler and Wings (send images)
Transmission distance d 1700 m in open space
Pet immunity d 20 kg, d 50 cm
Masking Does not have
Sensitivity Adjustable. 3 levels (low, medium and high)
Image resolution Up to VGA (640 x 480)
Number of images Up to 5 images for each detection
Sending images Send and receive images in less than a minute
Infrared illumination IR for night mode
Indication LEDs Alarm, tamper, signal
Drums 2 CR123A 3.0 V batteries (duration up to 4 years)
Compatibility AJ-HUB2-W / B
Temp. functioning 0º C ~ 40º C
Cover material ABS plastic
Dimensions (without stand) 135 (H) x 70 (W) x 60 (Fo) mm

PIR detector

Model AJ-MOTIONPROTECT-W
Technology Volumetric PIR
Degree of security Grade 2
PIR lens 24 zones and 6 planes
Detection field 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Pet immunity d 20 kg, d 50 cm
Frequency 868 MHz
Transmission distance d 2000 m (in open space)
Masking Does not have
Sensitivity Adjustable. 3 levels (low, medium and high)
Indication LEDs Alarm, tamper, signal
Drums 1 CR123A 3.0 V battery (approximate duration 7 years)
Temp. functioning 0º C ~ 50º C
Cover material ABS plastic
Dimensions (without stand) 110 (H) x 65 (W) x 50 (Fo) mm

Remote control

Model AJ-SPACECONTROL-W
Degree of security Grade 2
Feeding 1 x CR2032 3V battery
Transmission distance d 1000 m in open space
Frequency 868 MHz
Drums 1 CR123A 3.0 V battery (approximate duration 5 years)
Temp. functioning -20º C ~ 50º C
Cover material ABS plastic
Dimensions 65 (H) x 37 (W) x 10 (Fo) mm

Wireless keyboard

Model AJ-KEYPAD-W
Degree of security Grade 2
Features Arming, disarming, partial arming and emergency
Frequency 868 MHz Jeweler
Transmission distance d 1700 m in open space
Compatibility Compatible with the Ajax HUB from firmware version 2.0 or higher
Drums 4 AAA 1.5 V batteries (approximate duration 2 years)
Cover material ABS plastic
Temp. functioning -10º C ~ 50º C
Dimensions 150 (H) x 102.5 (W) x 13.2 (Fo) mm

Inner siren

Model AJ-HOMESIREN-W
Degree of security Grade 2
Volume 81 ~ 97 dB at 1 meter
Alarm duration Configurable between 3 seconds and 3 minutes
Drums 2 CR123A 3.0 V batteries (approximate duration 5 years)
Frequency 868 MHz Jeweler
Transmission distance d 2000 m in open space
LED indications Arming / disarming alarm and audible signal
Internal security Rear tamper against tampering
Protection IP50
Dimensions 75 (H) x 75 (W) x 27 (Fo) mm
Weight 96 g

  • Control panel AJ-HUB2-W
  • 2 AJ-MOTIONCAM-W photodetectors
  • PIR detector AJ-MOTIONPROTECT-W
  • AJ-SPACECONTROL-W remote control
  • Independent keyboard AJ-KEYPAD-W
  • Indoor siren AJ-HOMESIREN-W
  • Instructions for use
