Kit Alarma AJAX HUB2 AJ-HUB2KIT-DP-PRO

Professional AJAX anti-intrusion alarm system with two-way wireless communication.

The wireless link achieves high reliability thanks to its advanced Jeweler protocol with high-security AES encryption. The exclusive instantaneous and intelligent supervision system detects the inhibition of the signal identifying a certain time of inactivity and at the same time allows to reduce maintenance costs since it manages to considerably extend the life of the detectors batteries without compromising safety. The wireless signal is capable of covering distances of up to 2 km in open space. It also includes functions to facilitate installation, such as the intelligent bracket (Smart-Bracket) or the simple linking of the detectors to the alarm system.

It allows up to 100 wireless zones, allowing the possibility of grouping these devices into up to 9 different groups, on which the different actions of arming, partial arming, and disarming can be carried out. These Ajax wireless devices have different possible configurations such as 24 hour zone, zone with entry or exit delay ...

The AJ-HUB2-B panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 16 hours. This control panel incorporates the Wings radio protocol to be able to receive the images from the AJ-MOTIONCAM-B photodetector.

Ethernet communication is its main advantage for remote access, both for the user and for the installer, since it allows its connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user ) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them in rooms and modify their configurations. The use of the cloud is compatible with dynamic IP without the need to open ports.

The Ajax user will enjoy multiple benefits, as they will be able to receive reliable and instant notifications in both desktop software and mobile applications. As an additional complement to the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile application to verify the video stream live.

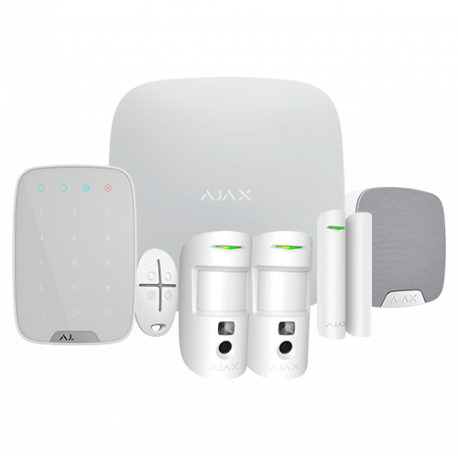

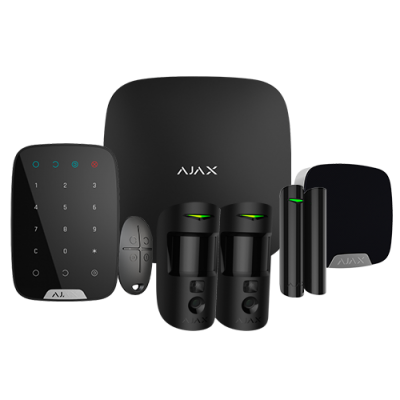

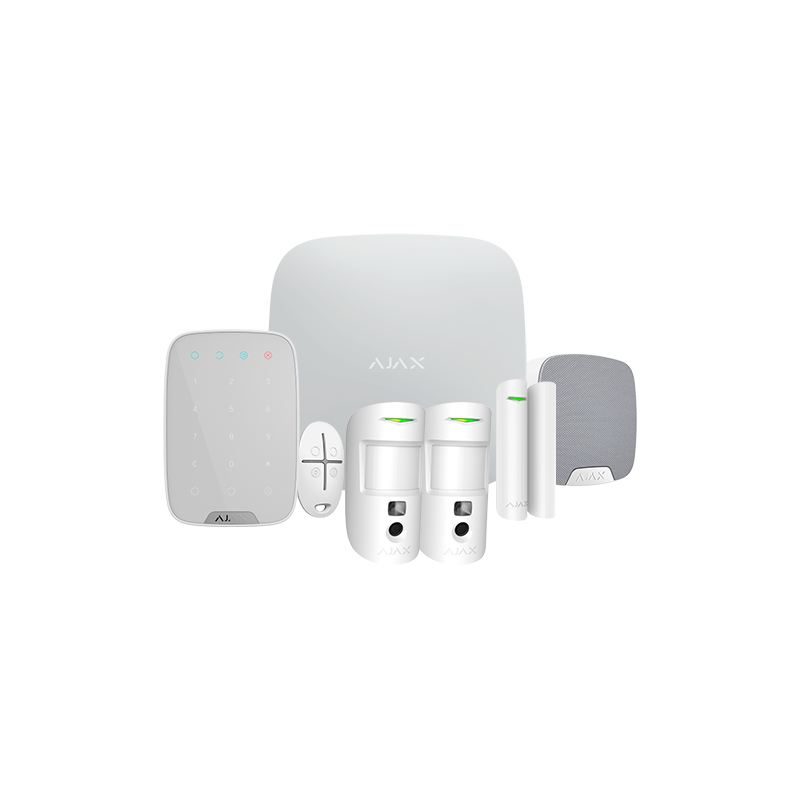

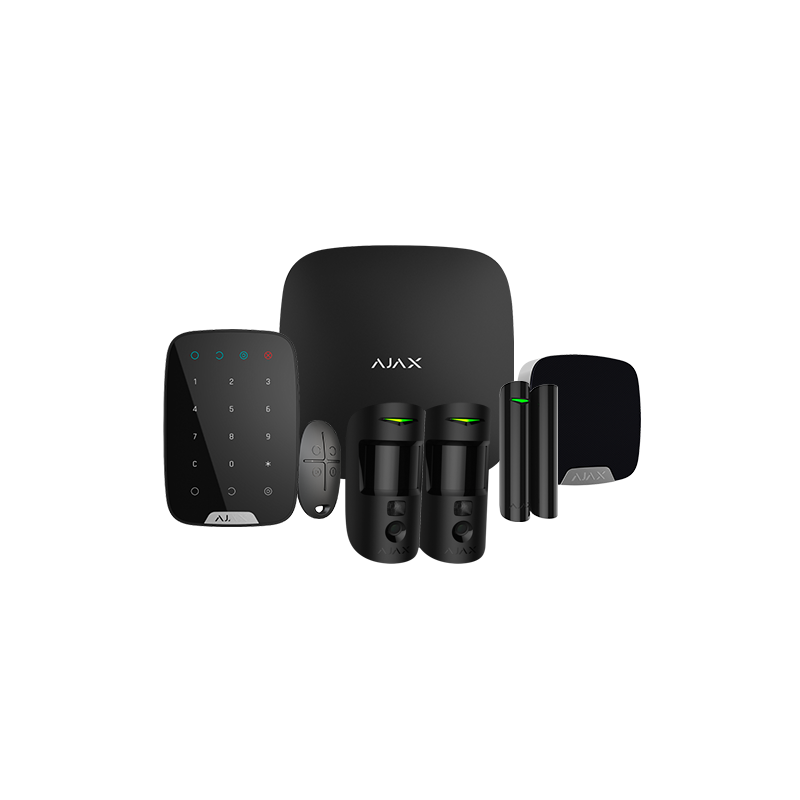

The kit includes the AJ-HUB2-B control panel, 2 AJ-MOTIONCAM-B photodetectors, an AJ-DOORPROTECT-B magnetic contact, an AJ-SPACECONTROL-B remote control, an AJ-KEYPAD-B wireless keyboard and a indoor siren AJ-HOMESIREN-B.

Control Panel

PIRCAM

Magnetic contact

Remote control

Wireless keyboard

Inner siren

Container content

• Control panel AJ-HUB2-B
• 2 AJ-MOTIONCAM-B photodetectors
• Magnetic Door / Window Contact AJ-DOORPROTECT-B
• Remote control AJ-SPACECONTROL-B
• Independent keyboard AJ-KEYPAD-B
• Indoor siren AJ-HOMESIREN-B
• Instructions for use
