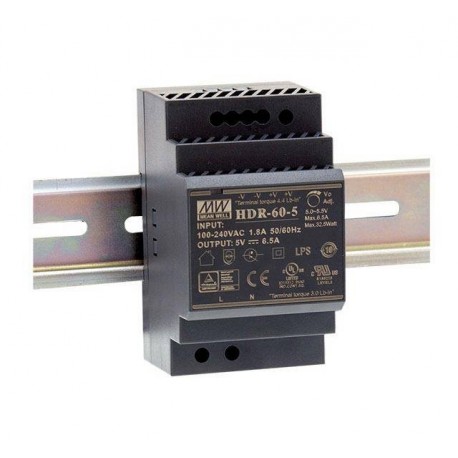

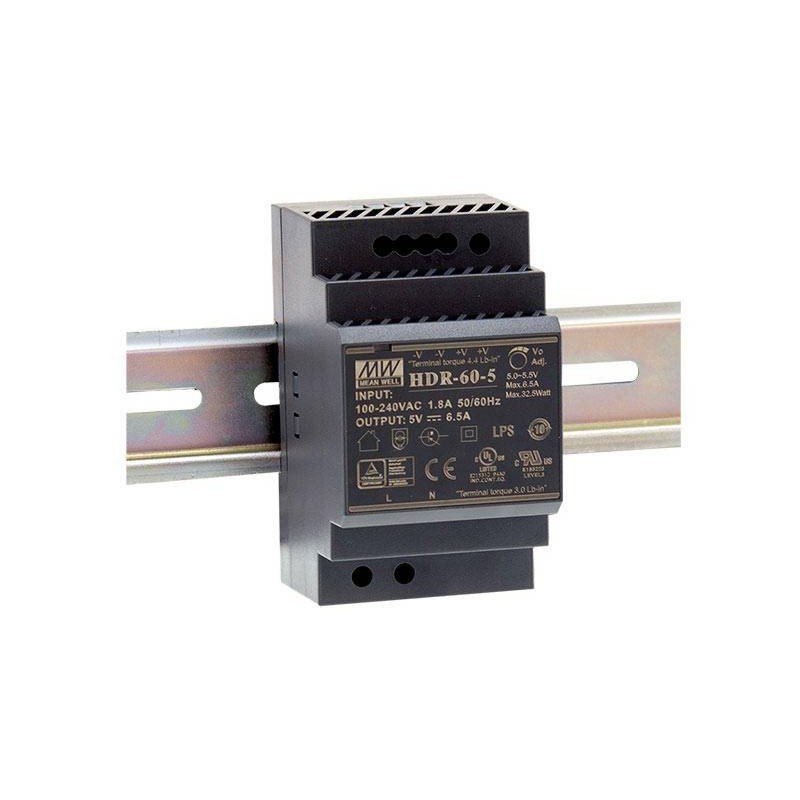

MEAN WELL 5V and 6.5A power supply for DIN rail

Switching power supply.

DIN rail mounting format.

Universal input range 85-264Vac 47-63Hz.

Output voltage 5Vdc. Adjustable by potentiometer (5-5.5Vdc).

Output current 6.5A.

Power: 32.5W.

Efficiency: 85%.

No-load power consumption <0.3W.

4000Vac input-output isolation.

Noise and ripple of 80mVp-p.

Operating temperature: from -30 to +70 ºC at ambient temperature. See the technical data sheet for drift curves.

Dimensions (Width x Height x Depth): 52.5 (3SU) x 90 x 54.5mm.

3-year warranty.

Manufacturer: MEAN WELL.

The HDR-60 series is the latest generation of ladder-style DIN rail power supplies from MEAN WELL.
These are Class II power supplies without earthing, designed for installation in residential electrical panels for building automation, industrial, security, telecommunications applications and also for residential applications as they are certified EN61558-2-16.

It is CE, TÜV, BMSI, EAC, RCM, UKCA, RoHS, and UL certified, and is listed as a limited power equipment (LPS). It has protection against overloads, short circuits, and output overvoltages.

It complies with EN55032 Class B without the need for additional components, although the final board design should always be verified. It also complies with the safety standard for residential use 62368-1, for many applications such as coffee machines, household appliances, etc.

They have low no-load consumption and high efficiency, making them suitable for all types of applications and allowing for greater energy savings.
They are designed to fit perfectly into a home electrical panel with their ladder-type format and 2SU (35mm) width.

They have protection against short circuits, overloads and overvoltages at the output.
