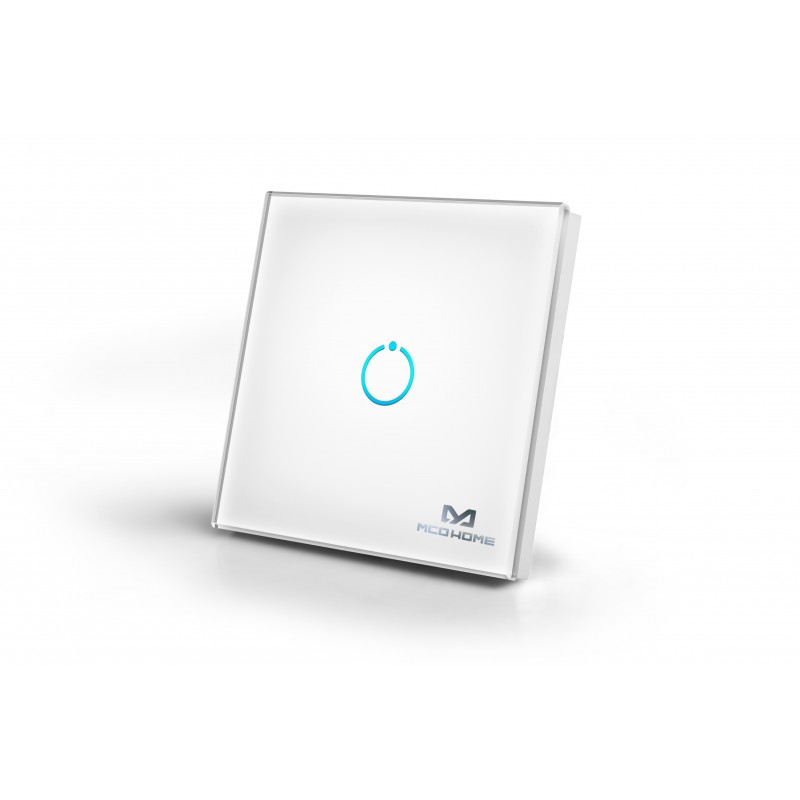

MCO-Home Glass Touch GEN5 (1 button) White glass on-off touch switch Z-Wave

The MCO-Home Z-Wave Plus TPS411 GEN 5 technology touch switch is a wall switch with integrated switch relay and scene control. The relay can be controlled with both the touch switch, which is integrated into the glass surface, and with the Z-Wave commands. The relay can switch a load of up to 1,100 watts. In addition to local switching, the device can be used to control two groups of directly associated devices. A blue LED on each button indicates the switching status.

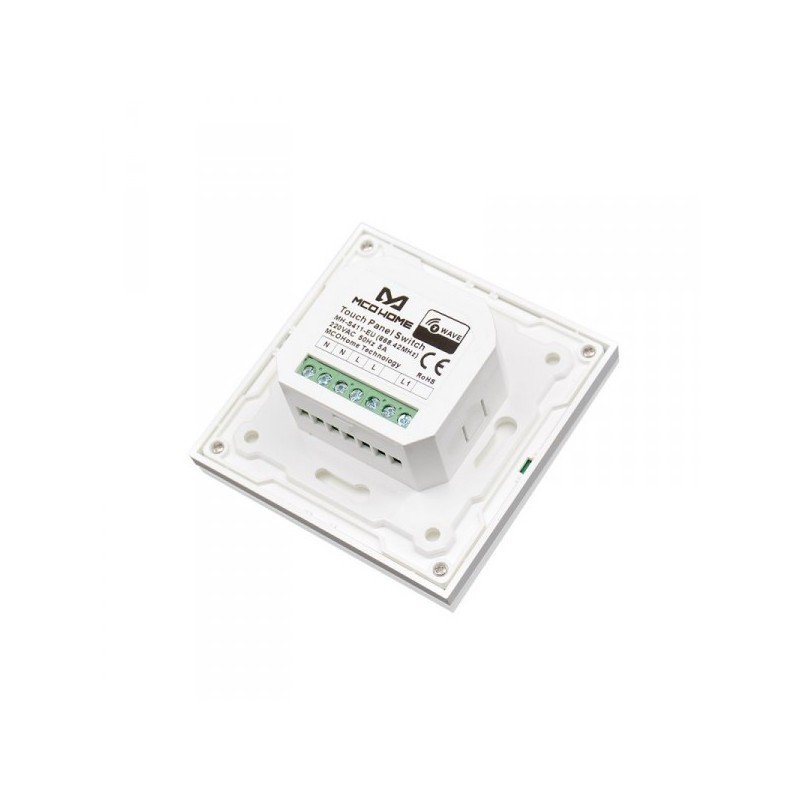

The wall switch can be easily connected to an electric load without installing a flush mounted module separately. The relay is inside a module that connects directly to the glass touch button. With that MCO Home wall switch you can replace any switch insert or toggle switch. The wall switch can be mounted in any recessed box.

With the elegant MCO Home glass switches you can easily integrate your already installed lights into your home automation network. Without installing new cables, you can change the lighting as usual through the wall switch, but thanks to Z-Wave technology also through the remote control, the smartphone or the sensor-controlled automation. With the new scene control function you can now start your configured scenes with one touch.

Characteristics:

Wall switch with integrated relay and scene control
Elegant glass touch switch (one button)
Ready for assembly, incl. glass frame
Replace the complete wall switch
Relay up to 1,100W / 230VAC
Integrated status LED
Allows ZWave Associations
For 3-wire systems, neutral required
Wireless Technology: Z-Wave Plus

Description:

This MCO-Home switch model TPS411 recessed with glass touch surface and design give a modern style to your switches for the control of your lamps or electrical appliances.

This Z-Wave touch switch can control any type of load, a light or an electrical device with a load of up to 1100W. It is possible to combine up to 5 other devices to the monitor manually from the switch or the Z-Wave controller.

In addition to switching local loads, two groups of associated devices can be controlled with the device.

The switch is also equipped with an LED that indicates its status.

Functions:

• Send signal to a lamp or a remote device
• It is installed instead of an existing switch
• On off
• Compatible with the controls of the Association (Group 1 and Group 2)
• Local support control
• Status LED
• Modern Crystal Design
• Touch button

Characteristics:

• Module Type: Z-Wave Receiver
• White color
• Power: 230 V, 50 Hz
• Wiring: 3 child, Neutral needed
• Maximum power: 5A (1100W)
• Frequency: 868.42 MHz
• Range: up to 30 meters
• Dimensions: 86 x 86 x 43 mm
• Display: blue LED

It is important to note that this touch switch requires a Neutral cable to operate. A 50 mm deep and 67 mm deep wall mechanism box is recommended for installation (SCHALB71322).
