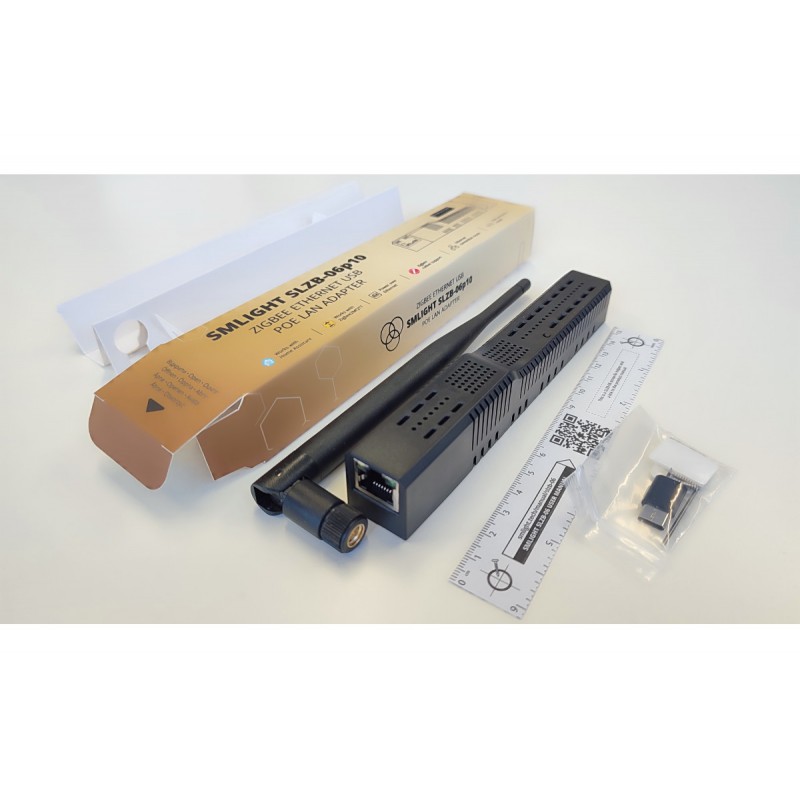

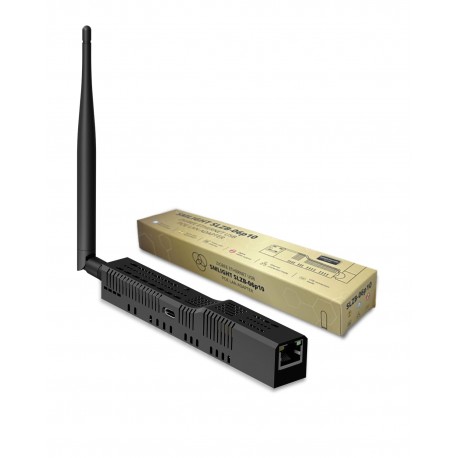

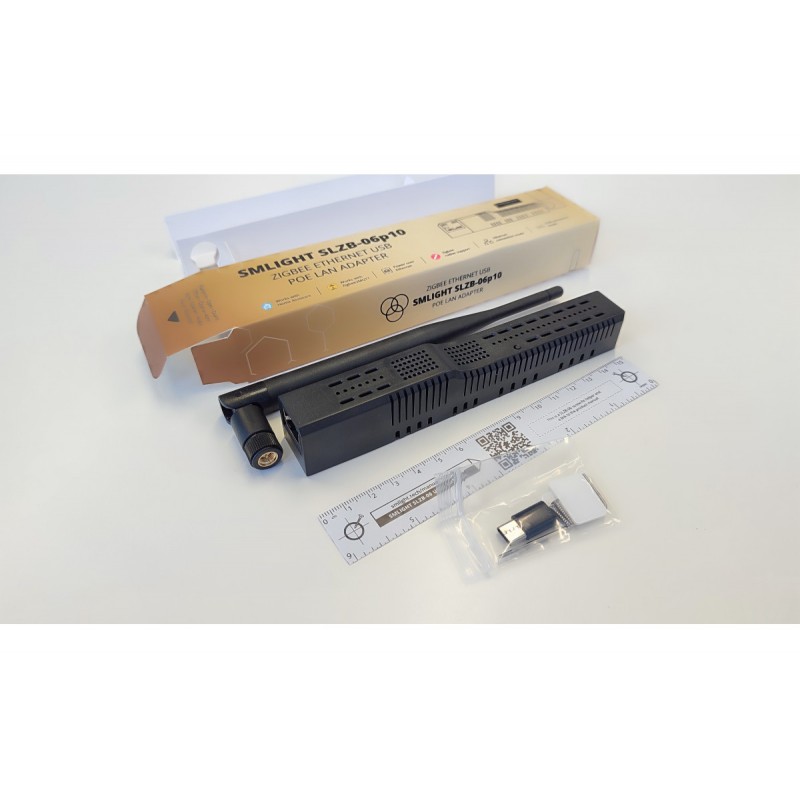

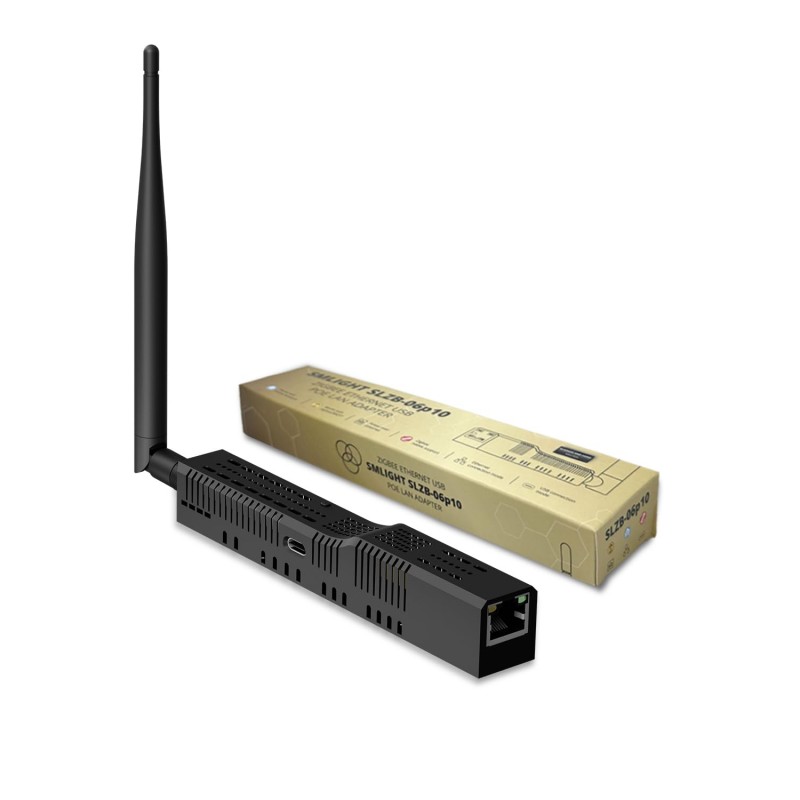

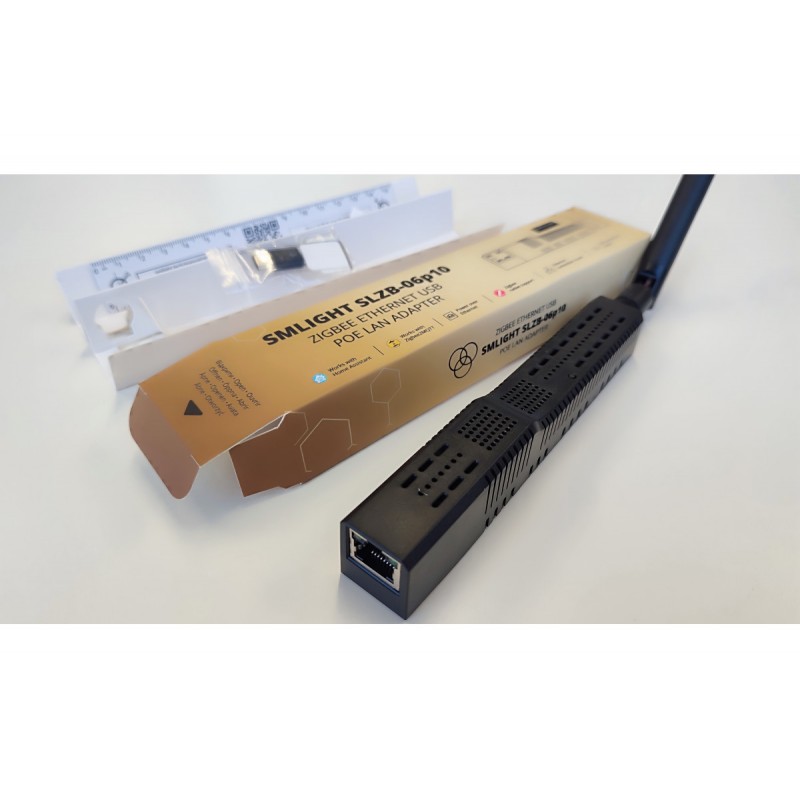

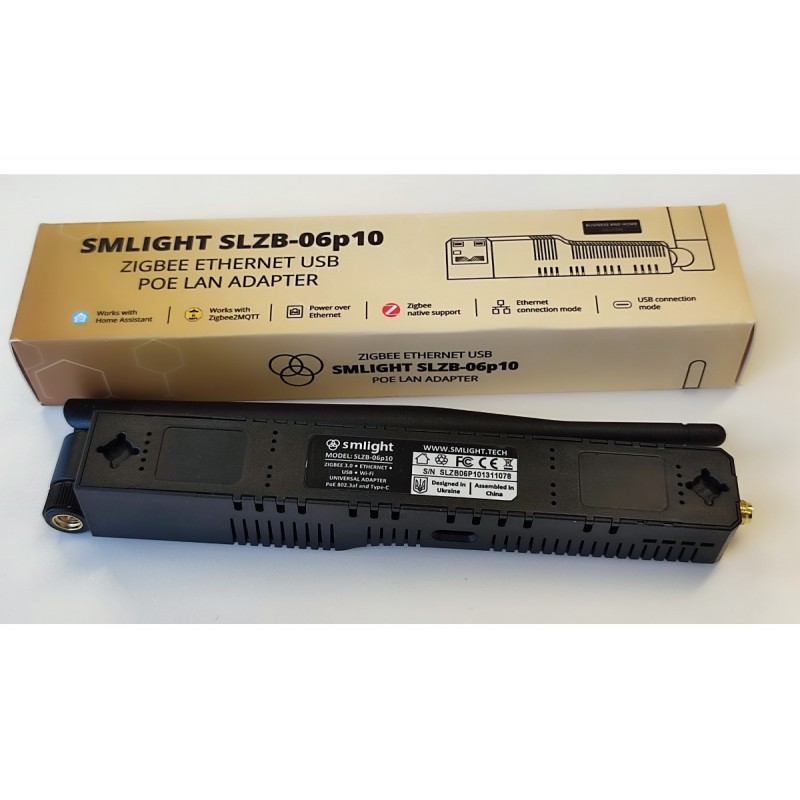

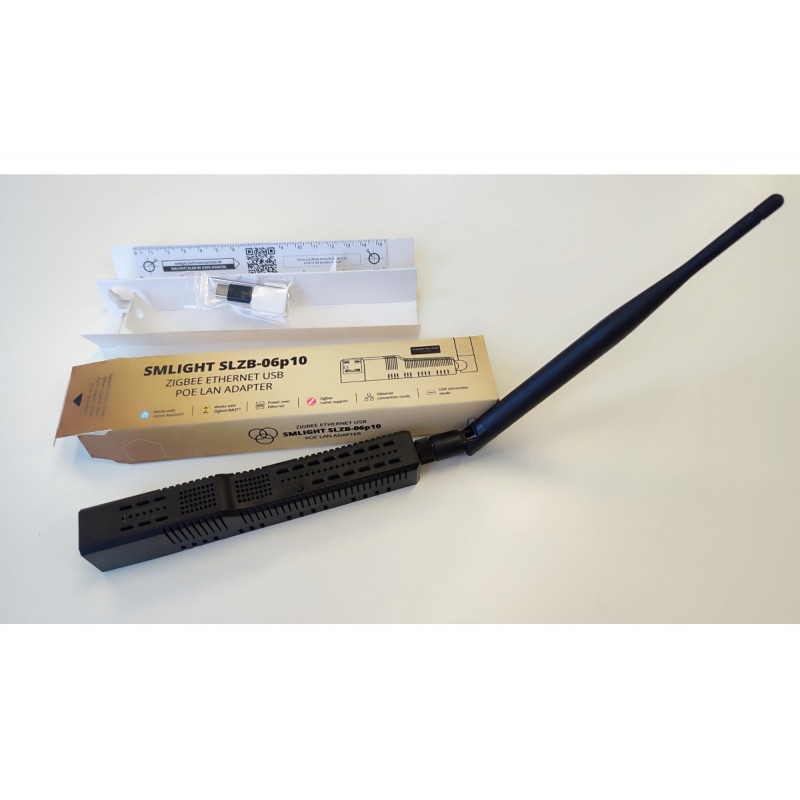

SMLIGHT - SLZB-06P10 Ethernet POE Zigbee 3.0 CC26574P10 Dongle (Zigbee2mqtt and ZHA)

The SLZB-06P10 USB dongle, which ensures Zigbee compatibility with Ethernet, USB and WiFi interfaces, incorporates POE functionality and comes preconfigured for immediate use. It acts as a gateway for the Zigbee 3.0 protocol and is compatible with various open-source home automation environments, such as Zigbee2MQTT, Home Assistant and ZHA.

The device offers the option of operating in LAN or USB mode, with the choice of simple configuration via internal software or a physical button.

It allows the integration of an unlimited number of Zigbee coordinators to a server, making it easy to extend coverage to multiple zones or buildings while remaining connected to a single instance of Home Assistant.

For power, users can choose between using POE or a USB Type-C connector. For convenience, the package includes a microUSB to USB Type-C adapter.

Thanks to the Zigbee CC26574P10 SoC, the device benefits from a +20dB power boost and is equipped with a +5dB internal antenna.

Remote updates are possible for the CC26574P10 and ESP32 components, eliminating the need to physically access the device to update it.

The ESP32 module also supports direct flashing via USB, thanks to an automatic flashing function, which only requires connecting a Type-C cable to start the process.

Technical characteristics of the SMLIGHT SLZB-06P10 dongle

Main Zigbee 3.0 chip: CC26574P10 Texas Instruments

Main control chip: ESP32 Espressif

Specification:

USB/UART converter: CP2102

Ethernet network: LAN8720

Output gain: +20dB

Additional antenna gain: +5dB

Ethernet support: Yes

Wi-Fi support: Yes

PoE support: Yes

PoE standard: IFFF802. 3 af (15W)

USB Type-C control: Yes

EPS32 autostart: Yes via DTR/RST

Pre-flashed: Yes, Zigbee and ESP

Zigbee 3.0 coordinator mode: Yes Router mode

Zigbee 3.0 router mode: Yes

Zigbee to Ethernet: Yes

Zigbee to USB: Yes

3 modes: Zigbee to Ethernet, WiFi or USB mode

In 15 languages

VPN support for the additional Wireguard module for Home Assistant

Live Zigbee and Core updates, scheduled automatic updates

Secure connection, whitelist

Lots of settings and controls

Sophisticated and adjustable interface with light/dark modes

Built-in help for all settings

For personal and professional use
