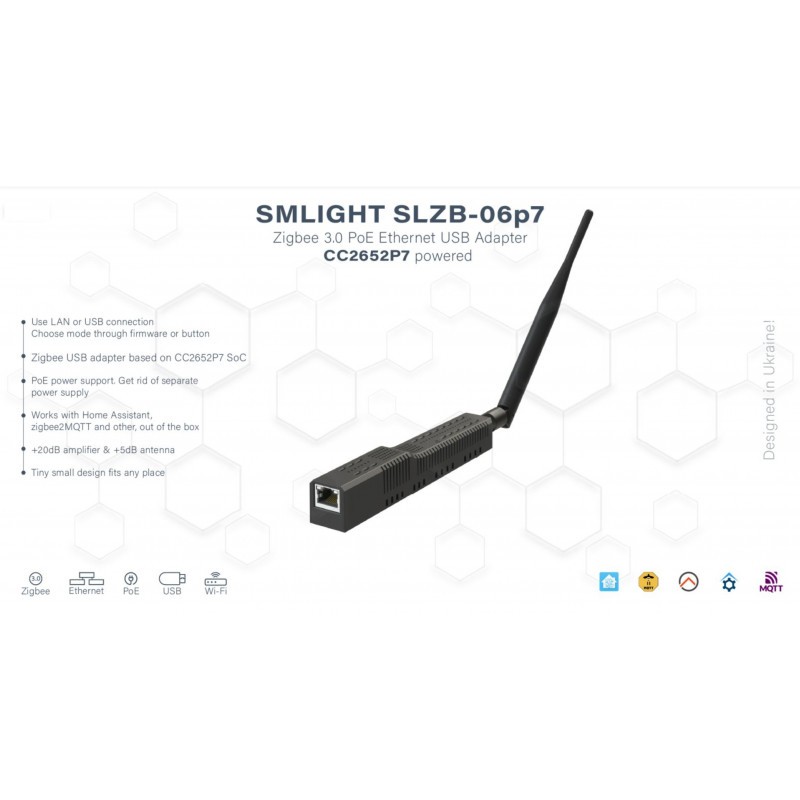

SLZB-06P7 – High Stability and Performance Zigbee USB and PoE Coordinator

SMLIGHT - SLZB-06P7 Zigbee 3.0 CC2652P7 Ethernet POE Adapter (Zigbee2mqtt and ZHA)

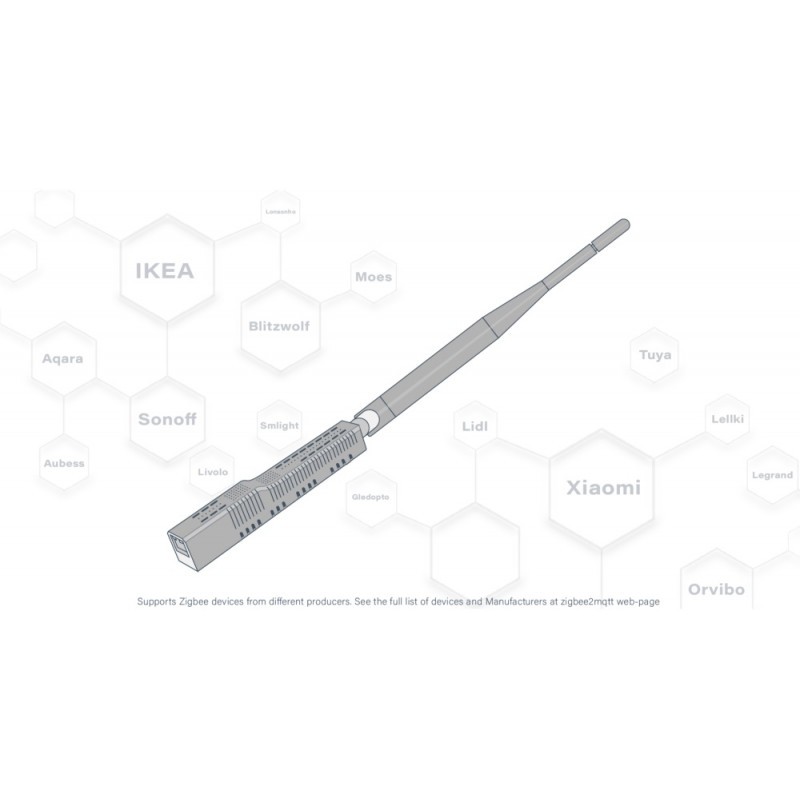

The SLZB-06P7 adapter, which ensures Zigbee compatibility with Ethernet, USB and WiFi interfaces, incorporates POE functionality and comes preconfigured for immediate use. It acts as a gateway for the Zigbee 3.0 protocol and is compatible with various open-source home automation environments, such as Zigbee2MQTT, Home Assistant and ZHA.

The device offers the option of operating in LAN or USB mode, with a simple configuration choice via internal software or a physical button.

It allows the integration of an unlimited number of Zigbee coordinators to a server, making it easy to extend coverage to multiple zones or buildings while remaining connected to a single instance of Home Assistant.

For power, users can choose between using POE or a USB Type-C connector. For convenience, the package includes a microUSB to Type-C adapter.

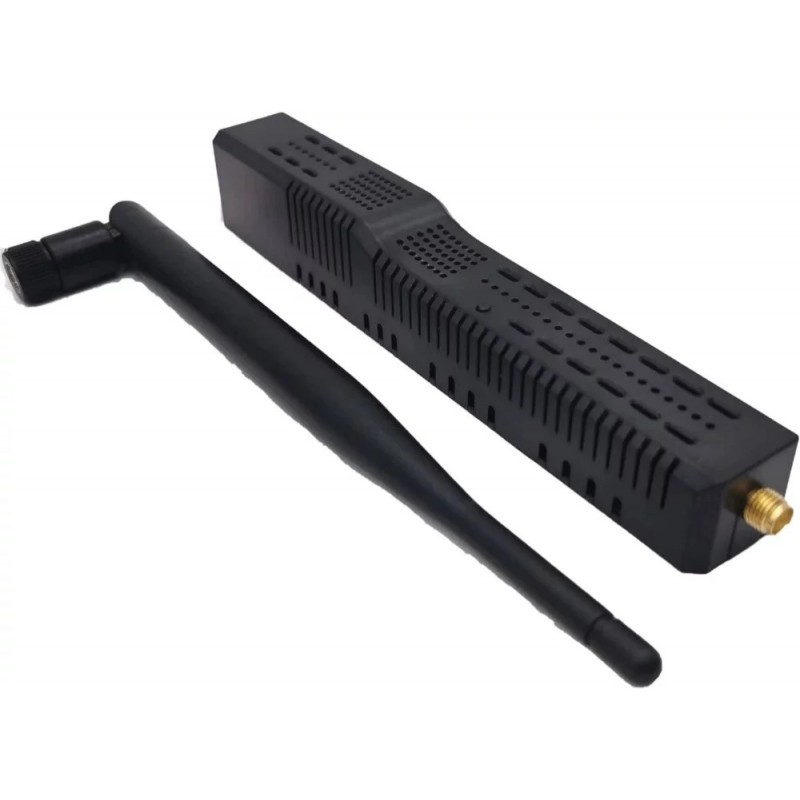

Thanks to the Zigbee CC2652P7 SoC, the device benefits from a +20 dB power boost and is equipped with a +5 dB internal antenna.

Remote updates are possible for the CC2652P7 and ESP32 components, eliminating the need to physically access the device to update it.

The ESP32 module also supports direct flashing via USB, thanks to an automatic flashing function, which only requires connecting a Type-C cable to start the process.

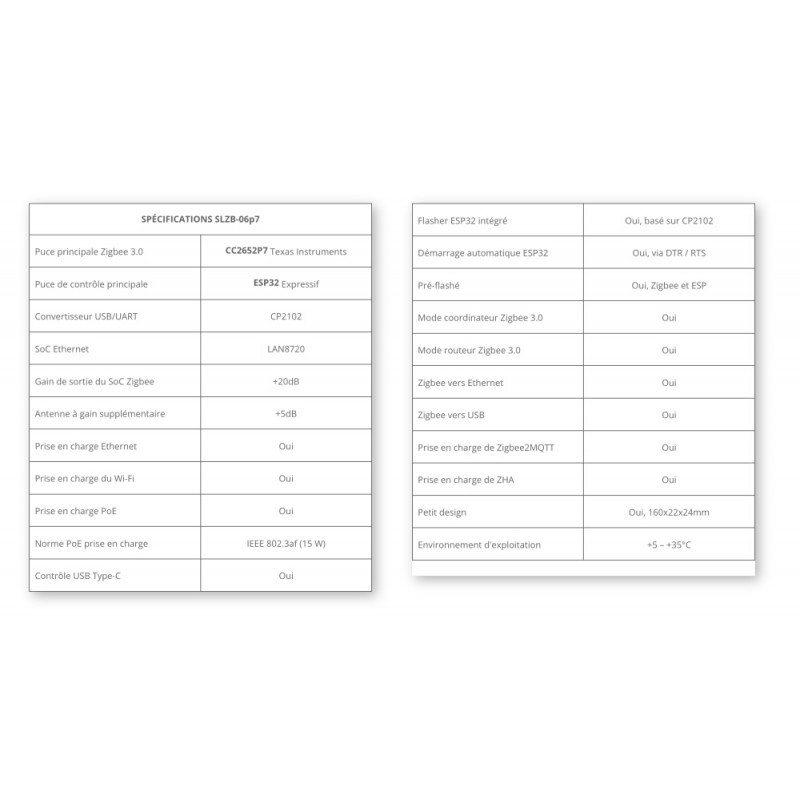

Technical characteristics of the SLZB-06P7 SMLIGHT adapter

Main Zigbee 3.0 chip: CC2652P7 Texas Instruments

Arm Cortex-M4F processor at 48 MHz

352 KB of flash memory

258 KB of ROM

8 KB of SPAM cache

Main control chip: ESP32 Espressif

Dual-core processor

520 KB SRAM

448 KB ROM

Specification:

USB/UART converter: CP2102

Ethernet network: LAN8720

Output gain: +20dB

Additional antenna gain: +5dB

Ethernet support: Yes

Wi-Fi support: Yes

PoE support: Yes

Standard PoE: IFFF802.3af (15W)

USB Type-C control: Yes

EPS32 auto-start: Yes

Pre-flashed: Yes

Zigbee 3.0 coordinator mode: Yes

Zigbee 3.0 router mode: Yes

Zigbee to Ethernet: Yes

Zigbee to USB: Yes

3 modes: Zigbee to Ethernet, WiFi or USB

In 15 languages

VPN support for the additional Wireguard module for the Home Assistant

Live Zigbee and Core updates, scheduled automatic updates

Secure connection, whitelists

Numerous settings and controls

Adjustable and sophisticated interface with light/dark modes

Integrated help for all settings

For personal and professional use
