HEIMAN MS1 - Zigbee Rain Sensor (Ewelink, Home Assistant, Zigbee2mqtt)

Heiman Zigbee rain sensor compatible with Ewelink

This Zigbee rain sensor compatible with Ewelink is designed for outdoor use thanks to its IP65 waterproof rating.

It is battery operated.

This sensor is not a rain gauge but a binary Zigbee rain sensor. It does not indicate the amount of rain but rather two states: Rain (1) or No rain (0).

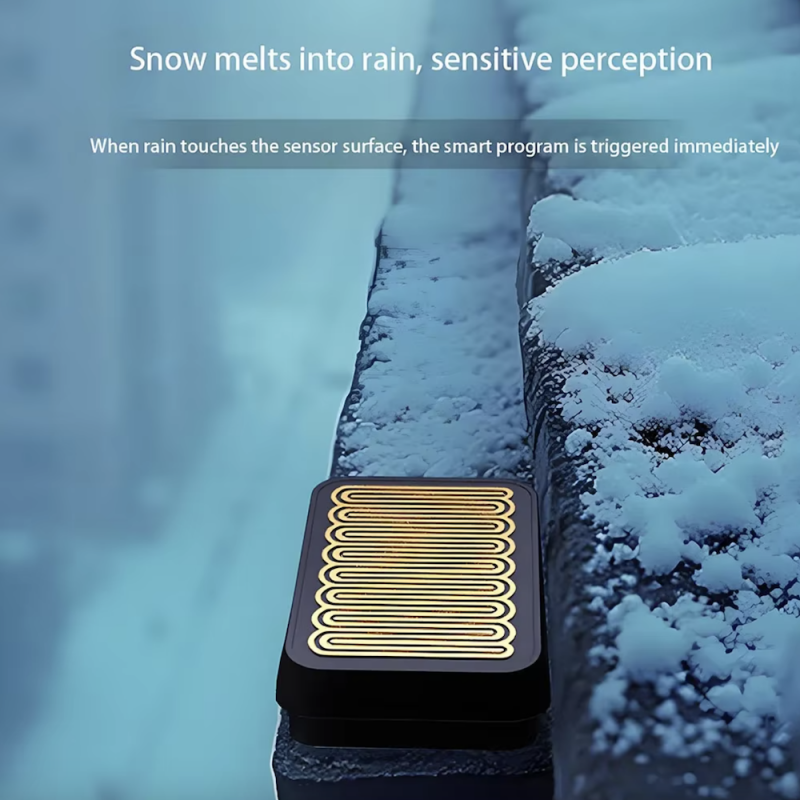

The sensor can be placed anywhere you want, and you can use the Ewelink app to create scenarios to automate actions when rain touches the sensor's surface.

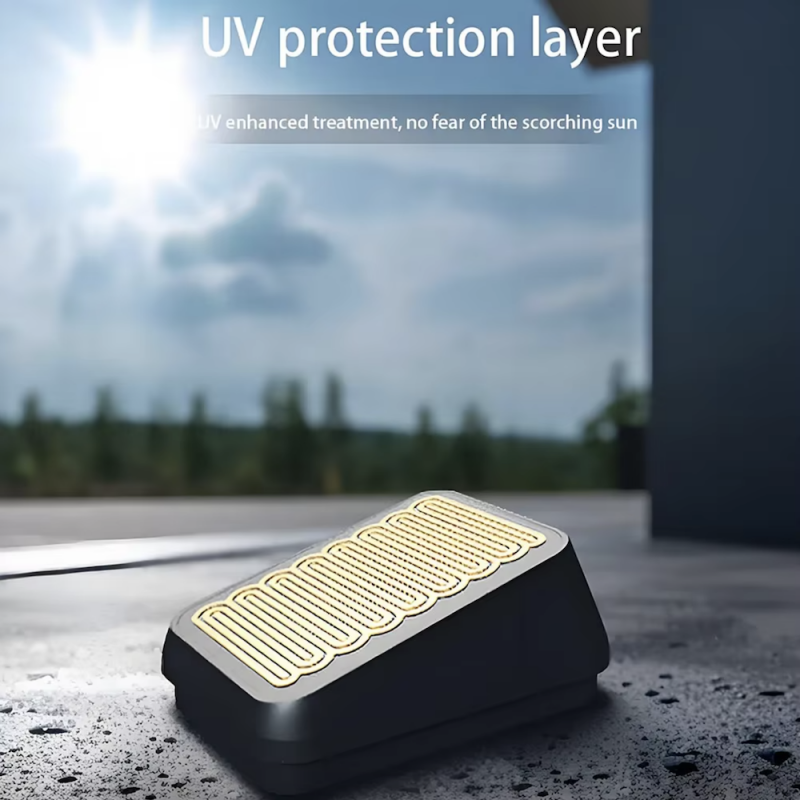

It has a UV protection layer. As soon as the sensor detects an abnormal water level, it sends an alert notification to your smartphone.

Zigbee rain sensor functions

• It detects rain and the absence of rain.
• It allows you to create scenarios based on the rain (turn off a smart sprinkler, close a smart valve, etc.).

Technical specifications of the Zigbee rain sensor

• Communication technology: Zigbee 3.0
• Model number: MS2403240
• Product Name: Zigbee Rain Sensor
• Model: MS1
• Power supply: 2 x 1.5V type 7 batteries
• Current :
• < 1mA
• Dimensions: 86 x 56 x 36 mm
