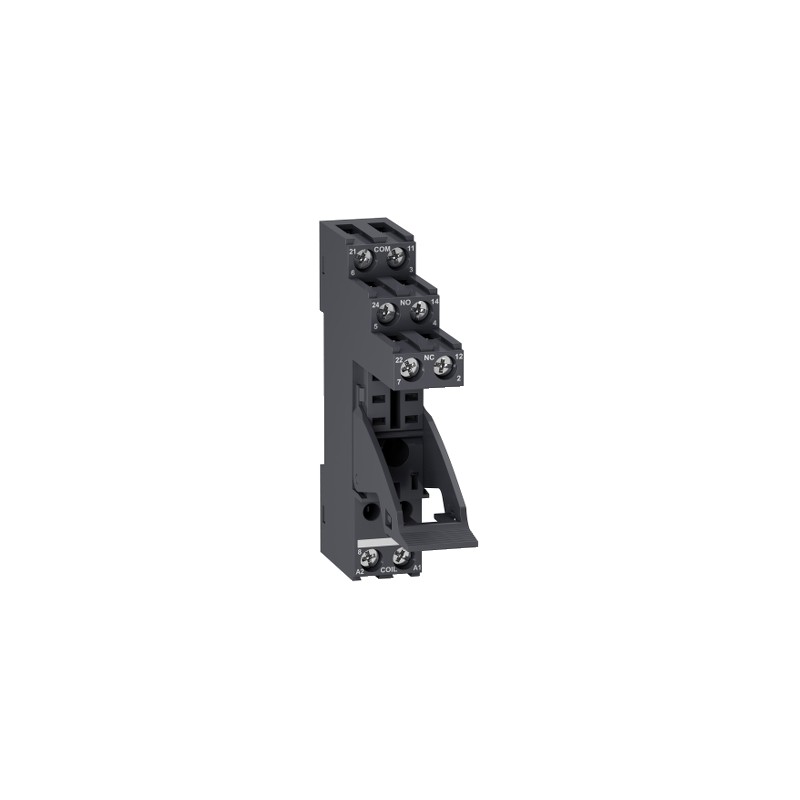

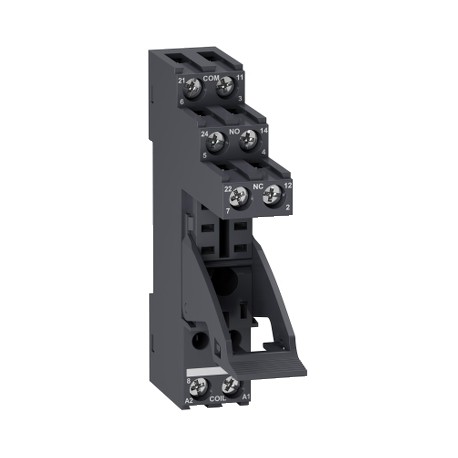

RXG2 relay socket, 5A, screw connector, separate contact, 250 V

Reference RGZE1S48M

Condition: New

"This Harmony RGZ timing relay socket has separate contact terminals." "It allows quick and easy installation of relays without the need for tools." "It is compatible with all 2 AC/O DPDT RXG relays." Simple clamp-on relay retention allows for quick relay replacement and minimizes machine downtime.

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Specifications

Major
Product range	Harmony electromechanical relays
Type of Product or Component	Plug
contact terminal layout	Separate

Complementary
Product Compatibility	Relays with RXG plug-in mounting ((*)) with holding capacity: 2 C/O contact
[Ui] rated insulation voltage	250V
[Uimp] Rated shock resistance voltage	6 kV between coil and contact with reinforced insulation (()) 4 kV between contacts with basic insulation (()) 4 kV between poles with basic insulation (()) 4 kV between terminals and DIN rail with basic insulation (())
[In] Rated Current	5A
[Ue] rated operating voltage	250 V according to IEC 300 V UL Compliant
dielectric strength	5 kV between coil and contact with reinforced insulation (()) 2.5 kV between contacts with basic insulation (()) 3 kV between poles with basic insulation (()) 3 kV between terminals and DIN rail with basic insulation (())
connections - terminals	Screw terminals, 1 x 0.25...1 x 2.5 mm² - cable type: AWG 22...AWG 14) Flexible With terminal Screw terminals, 2 x 0.25...2 x 1 mm² - cable type: AWG 22...AWG 17) Flexible With terminal Screw terminals, 2 x 0.5...2 x 1.5 mm² - cable type: AWG 20...AWG 16) solid Without terminal Screw terminals, 1 x 0.5...1 x 2.5 mm² - cable type: AWG 20...AWG 14) solid Without terminal
screw type	M3

Around
Storage ambient temperature	-40&85°C
Ambient operating temperature	-40&70°C
RH	10&85%
Rules	CSA C22.2 No 14 IEC 61984 UL 508
Product Certifications	EAC EC CSA U.L. DNV-GL
IP Protection Degree	IP20
Overvoltage category	III
Pollution degree	3

Packaging units
Package Unit Type 1	PCE
Number of units in package 1	1
Package 1 Height	6.15cm
Package 1 Wide	1.6cm
Package 1 Length	8cm
Package 1 Weight	39.7g
Package Unit Type 2	BB1
Number of units in package 2	10
Package 2 Height	7.8cm
Package 2 Wide	8.4cm
Package 2 Length	16.3cm
Package 2 Weight	445g
Package Unit Type 3	S03
Number of units in package 3	180
Package 3 Height	30cm
Pack 3 Wide	30cm
Package 3 Length	40cm
Package 3 Weight	8,648kg
