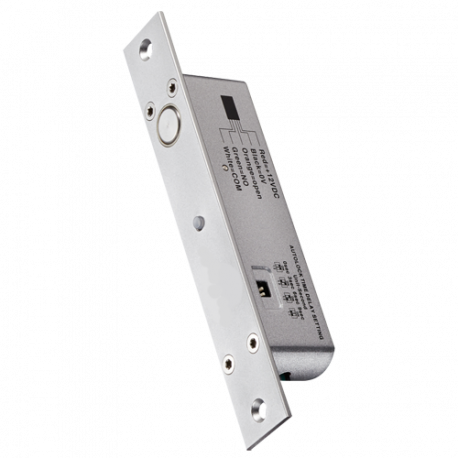

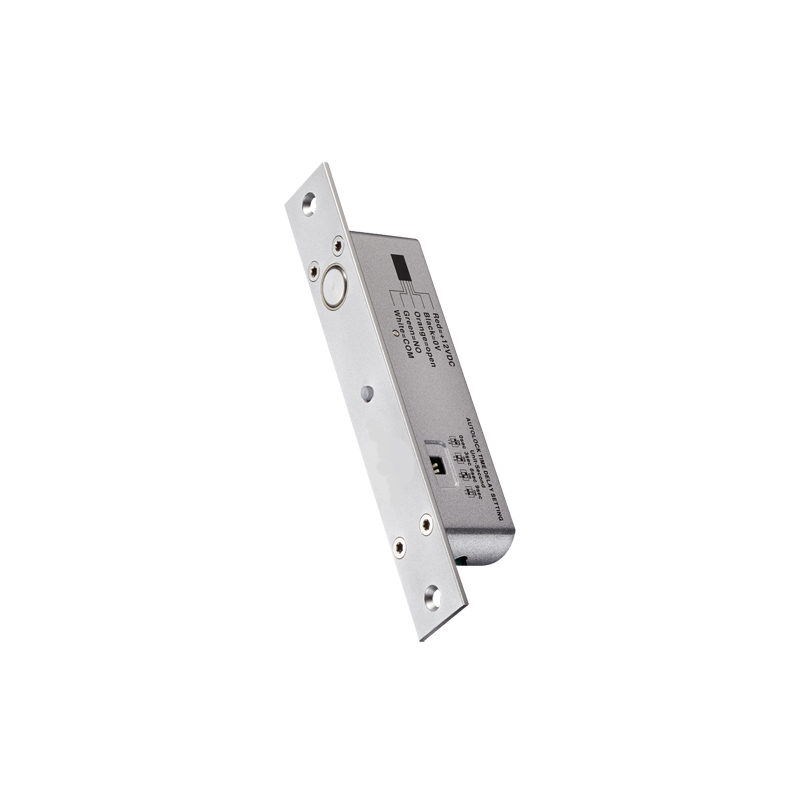

Electromechanical bolt-on security lock

Reference ByDOM-CEEM01

Condition: New

Electromechanical security lock with bolt or piston that remains "normally closed" (NC / Fail Safe) to avoid dangerous situations in situations of power failure or emergency. Lock format for embedding or mortising.

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Electromechanical security lock
Fail Safe opening mode (NO)
Holding force 1000 Kg
Open door status signaling
Programmable self-closing
Timer with Delay of 0/3/6/9 seconds
Applicable in firefighting systems
Has status LED
Mounting on Wood, Metal, Glass and RF doors
12 VDC

Mounting	Embedded
Opening mode	Fail Secure (NO)
Closing delay time	0, 3, 6 and 9 seconds
It was rza retention	1000 Kg
Cylinder	Euro 37 x 37mm with eccentric cam
Feeding	DC 12 V / 960/180 mA start / standby
Opening sensor	Indicator LED, door indicator output, integrated in socket
Input profile	23mm narrow

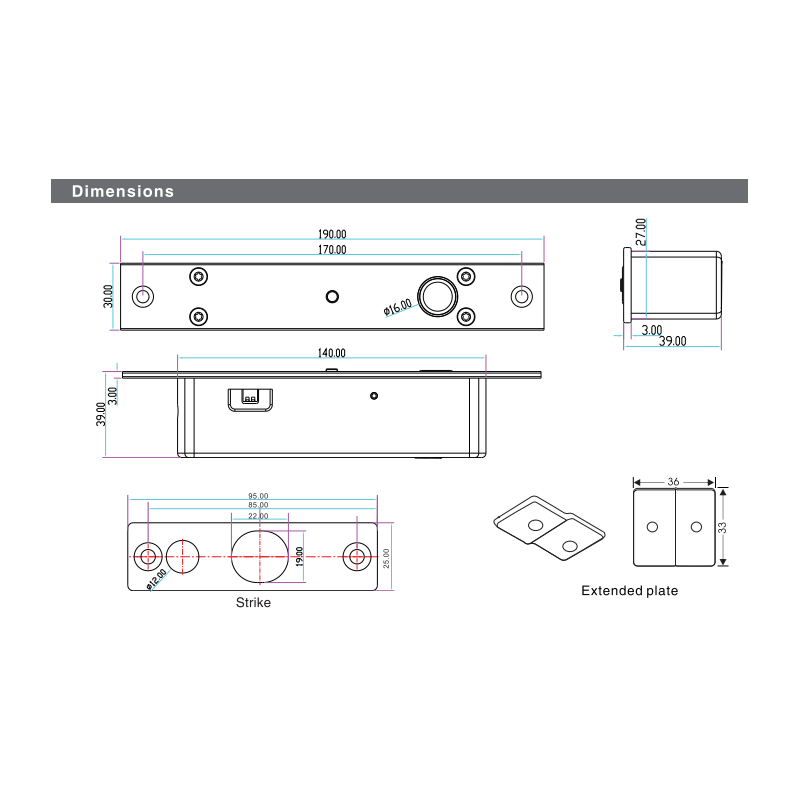

Plate dimensions	42 (Fo) x 210 (H) x 25 (W) mm
Socket dimensions	90 (Fo) x 3 (H) x 25 (W) mm
Weight	1000 g
Temperature	-40º C ~ + 60º C
