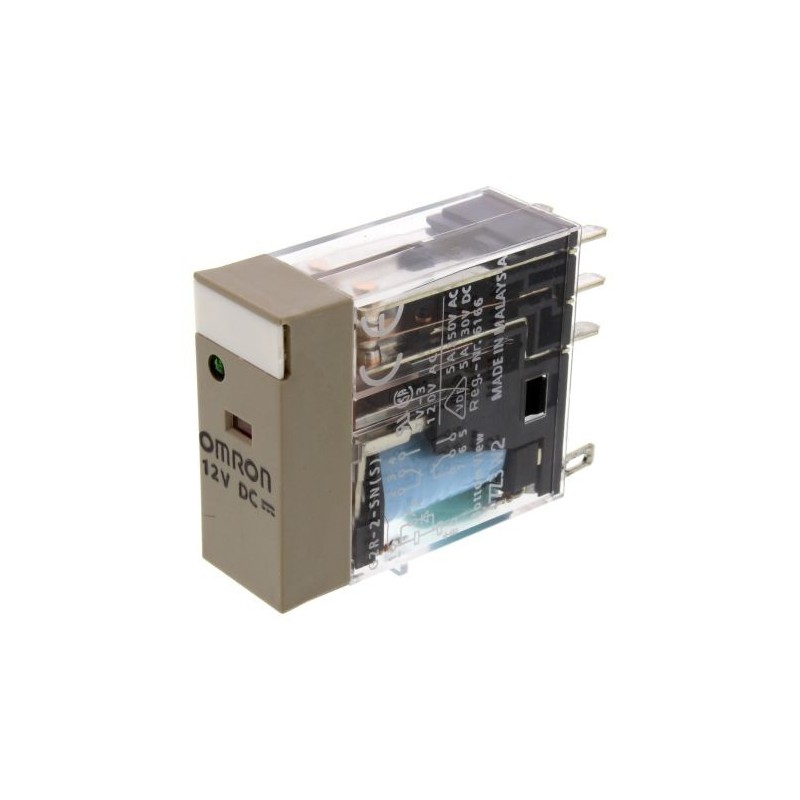

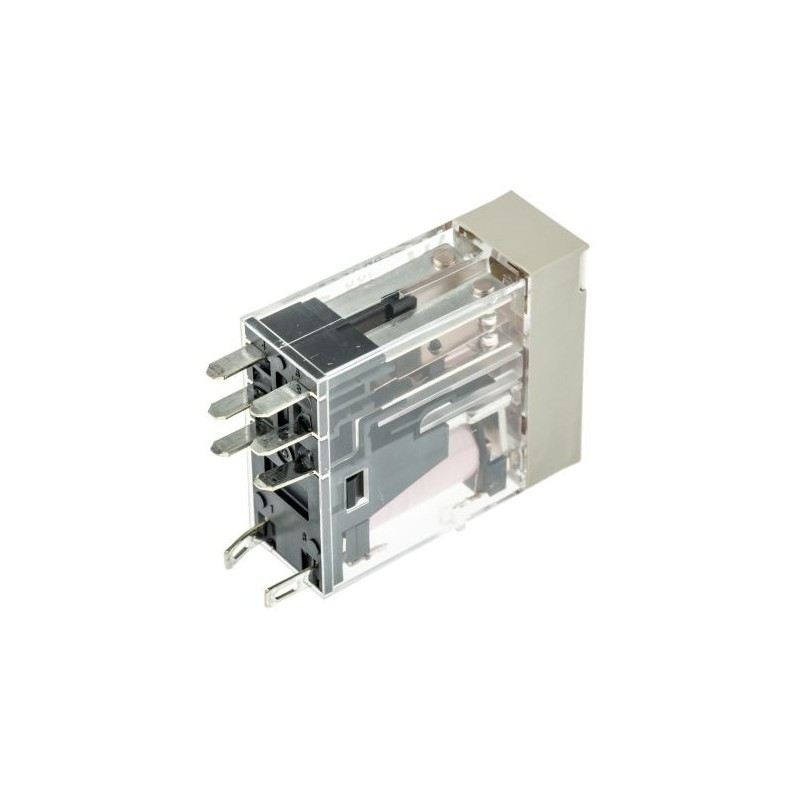

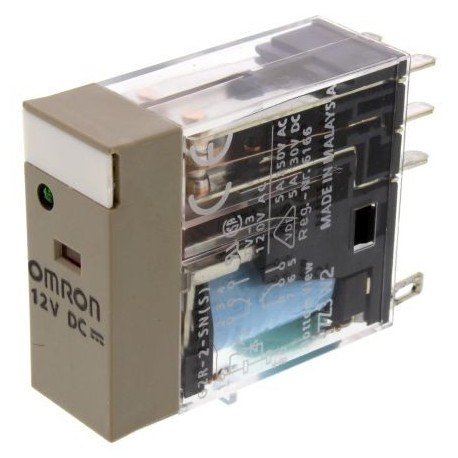

Omron G2R-2-SNI 230AC (S) Relay without interlock, DPDT, Plug-in, 230V ac

G2R-2-SNI 12DC(S)

New

Relay without interlock, DPDT, Plug-in, 230V ac general purpose very narrow and space-saving

More details

In Stock

17,99 €

More info

Omron G2R-2-SNI 230AC (S) G2RS Series with Test Button

Reduces wiring work by 60% when combined with the
P2RF - @ - PU Push-In Plus plug
(In accordance with the real measurements of OMRON).
Button test key models available.
Built-in mechanical operation indicator.
Provided with identification plate.
The type of AC is equipped with a self-diagnostic coil-disconnection
Function (LED type).
High switching power (1 pole: 10 A)

Omron G2R-2-SNI 230AC (S)

Integrated coil, status LED and mechanical operation indicator
No cadmium or lead
Contact resistance: 100 m ©
Contact coil insulation: 5,000 Va.c.
Operating temperature range: -40 ° C to +70 ° C
Alt. 35.5, Anch. 29, Prof. 13 mm
Sockets for DIN rail and PCB are available separately

Note Omron G2R-2-SNI 230AC (S)

It can be used to replace the previous versions of the Omron G2R-SN series by checking the air separation height.

Certificates

UL, CSA, VDE

Specifications
AttributeValue
Coil voltage 230 V ac
Contacts Configuration DPDT
Switching Current 5 A
Mounting Type Plug-in
Type of Terminal Contact for PCB mounting
Coil resistance 27,172 k ©
AC Maximum Switching Voltage 250V ac
Maximum DC Switching Voltage 30V dc
Type of application Power
Length 29mm
Depth 13mm
Height 41.7mm
Dimensions 29 x 13 x 41.7mm
Maximum Operating Temperature + 70 ° C
Contact Coil Insulation 5kV
Minimum Operating Temperature -40 ° C
Coil power 900mW
DC Maximum Switching Power 150 W
Operating Temperature Range -40 '+ 70 ° C
AC Maximum Switching Power 1.25 kVA
