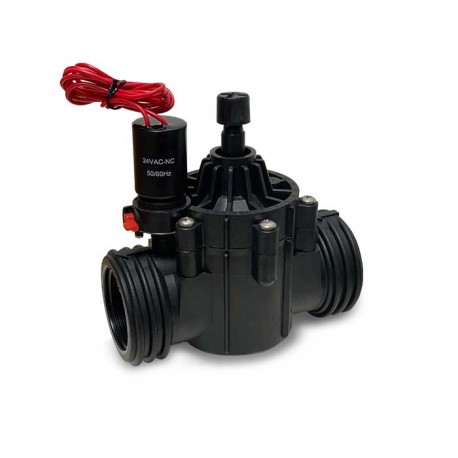

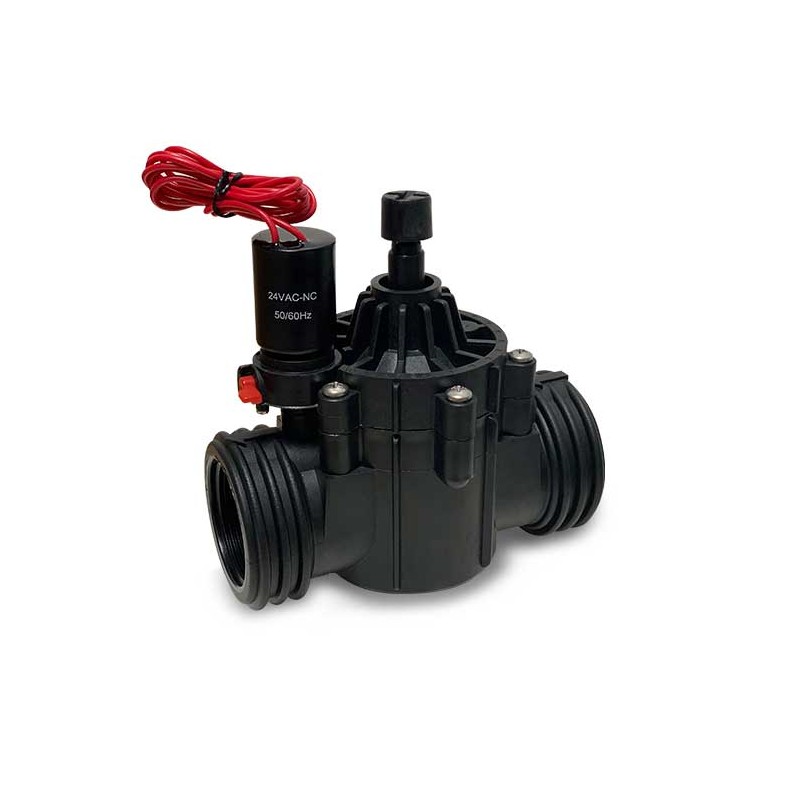

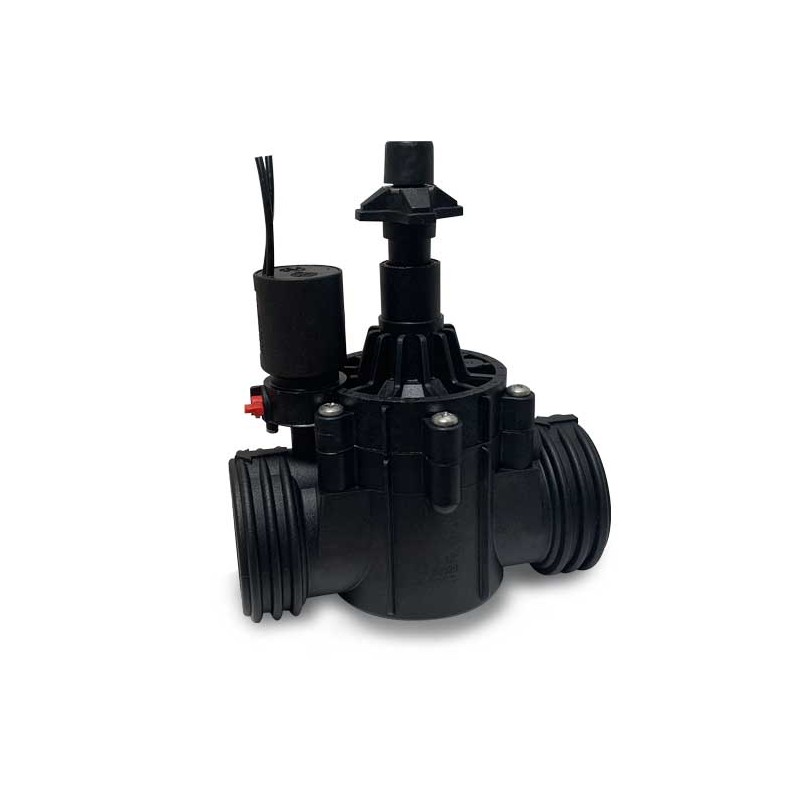

Galarza - 1,5" irrigation water solenoid valve - 24Vac

New

1 and a half inch (1.5 ") 2-way solenoid valve suitable for intelligent irrigation. The home automation water solenoid valve can be controlled as a Wi-Fi solenoid valve used in conjunction with an actuator or relay Z-Wave, zigbee, LoRa, Wi-Fi, etc. It can also be used with conventional irrigation programmers It works at 24V AC.

More details

In Stock

42,35 €

More info

This plastic electric valve is designed to resist like no other; With a piston system, it is very effective even at very low pressure.

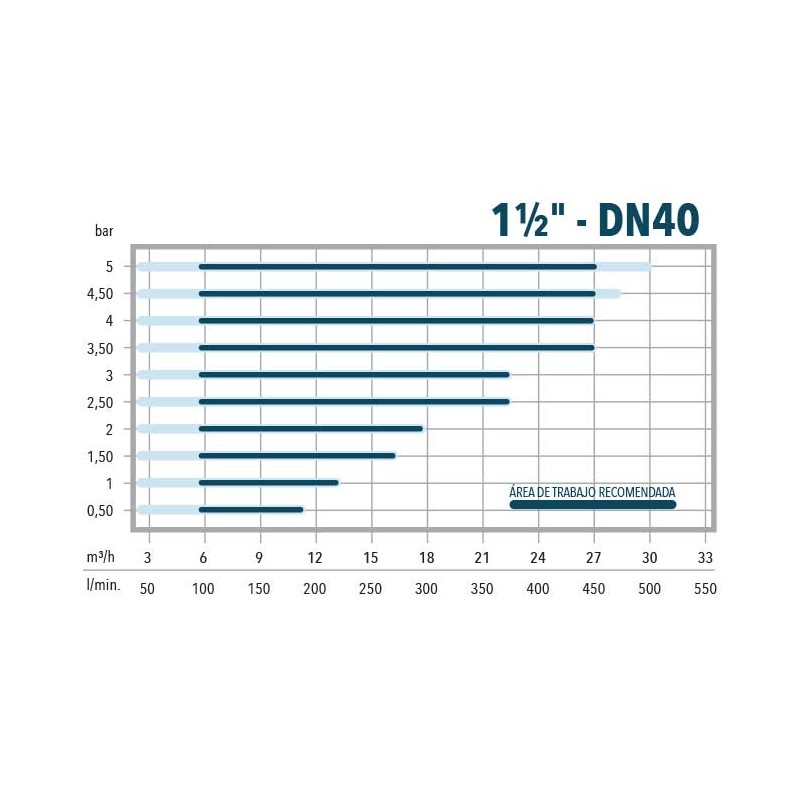

RECOMMENDED WORKING PRESSURE

0.05 A 30 M3 / HR 0.2 A 120 GPM

TYPE OF SOLENOID

24 VAC50/60 HZ

The GALARZA 620 series solenoid valves offer high performance, reliability, robustness and long life, since thanks to their plastic components they are not affected by corrosion like valves made of cast iron. These electric valves or solenoid valves are molded in plastic of the highest quality with great resistance to impact and a special variation made to tolerate chemical products (variant available on request), they are ideal especially for irrigation installations, gardening, nurseries, swimming pools, agriculture and industrial processes.

FEATURES

  • Capacity 15.5 BAR (225 PSI)
  • Double manual bleeding system.
  • High strength fiberglass reinforced body
  • Chlorine and chloramine resistant EPDM diaphragm.
  • Optional Viton for greater resistance in our CP-Line. (Consult)
  • BSP Threads (NPT Optional)
  • Optional 2 and 3-way for in-line or angle installation.

  • Piston type actuator for high precision even at low pressure
  • Brass insert M-5
  • Screws, nuts, washers and springs in AISI 304 to resist aggressive products.
  • Internal filter in AISI 304
  • Robust design to resist water shocks.
  • Solenoid 24 Vac 50 / 60Hz
  • 5-year commercial warranty.

Angle function valve, in line function, high flow.

Spanish manufacturing

solenoid valve made in Spain

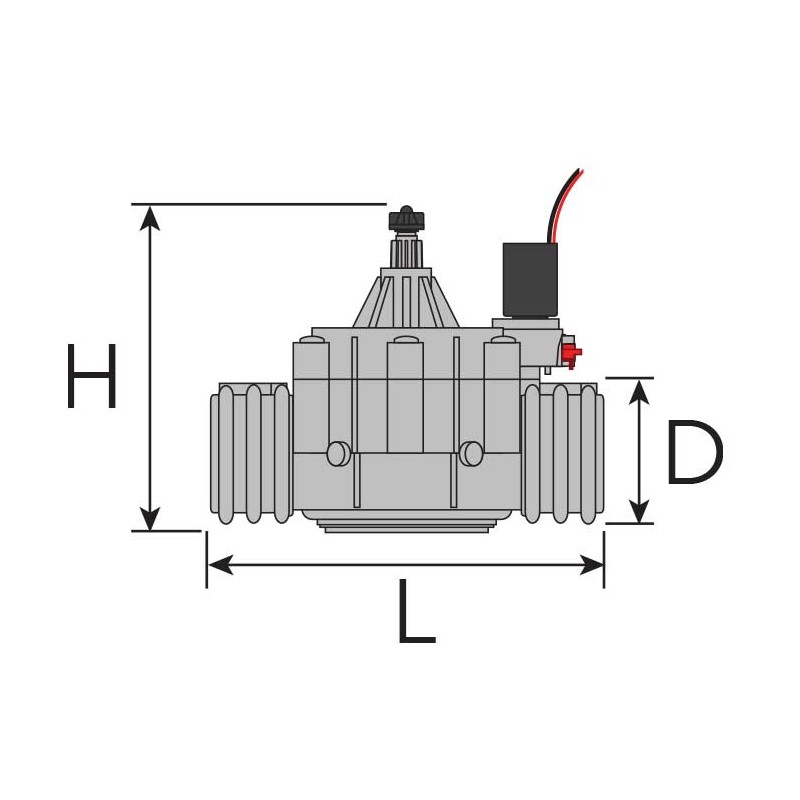

DIMENSIONS:

GALARZA SIZES 1.5
  • D 69 mm 2.72 "
  • H 119 mm 4.69 "
  • L 149 mm 5.87 "
  • DN 40
  • Thread diameter 1 and 1/2 "
  • Thread: BSP
  • Weight: 0.680 gr.

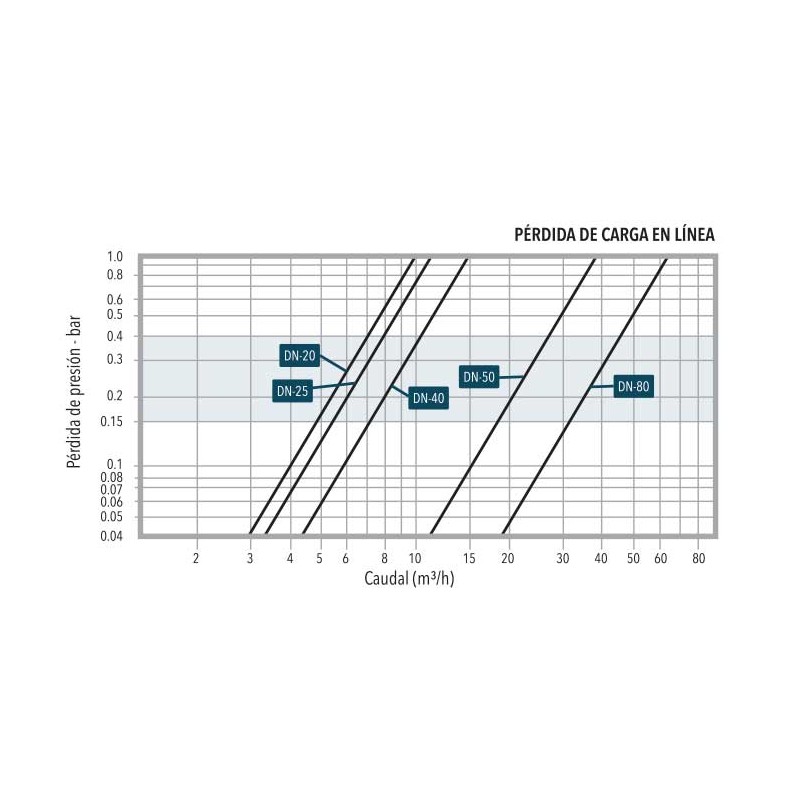

CUBIC METERS HOUR

FLOW m3 / hrLINEANGLE
5 0.10 0.08
6 0.10 0.08
7 0.10 0.09
8 0.11 0.10
9 0.12 0.11
10 0.14 0.13
eleven 0.15 0.14
12 0.16 0.15
14 0.22 0.19
18 0.33 0.29
twenty 0.44 0.37
22 0.52 0.46
24 0.64 0.58
26 0.76 0.66
