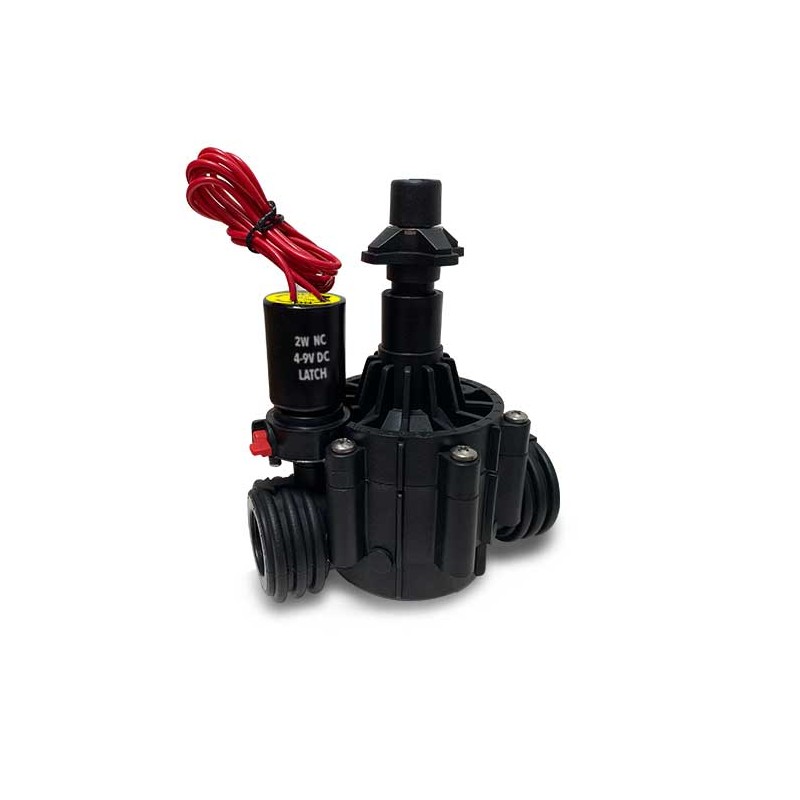

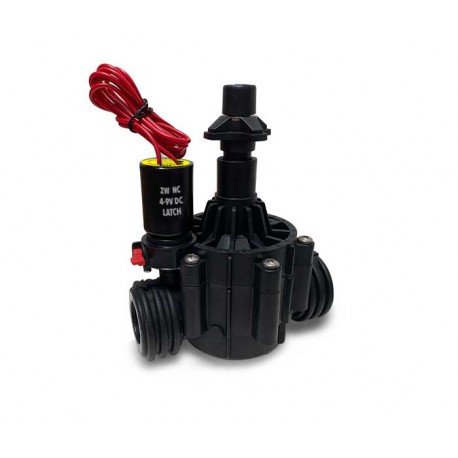

Galarza - LATCH 9V DC 3/4" 2-way solenoid valve

New

  • They allow the opening and cutting of the water flow through automatic irrigation programmers or 9V home automation systems
  • They work only with 9V DC battery controllers
  • Recommended for use in areas where electrical current does not reach or use with solar panels and alternative electrical systems

More details

In Stock

62,92 €

More info

Irrigation solenoid valve 9v LATCH

This plastic electric valve is designed to resist like no other; With a piston system, it is very effective even at very low pressure.

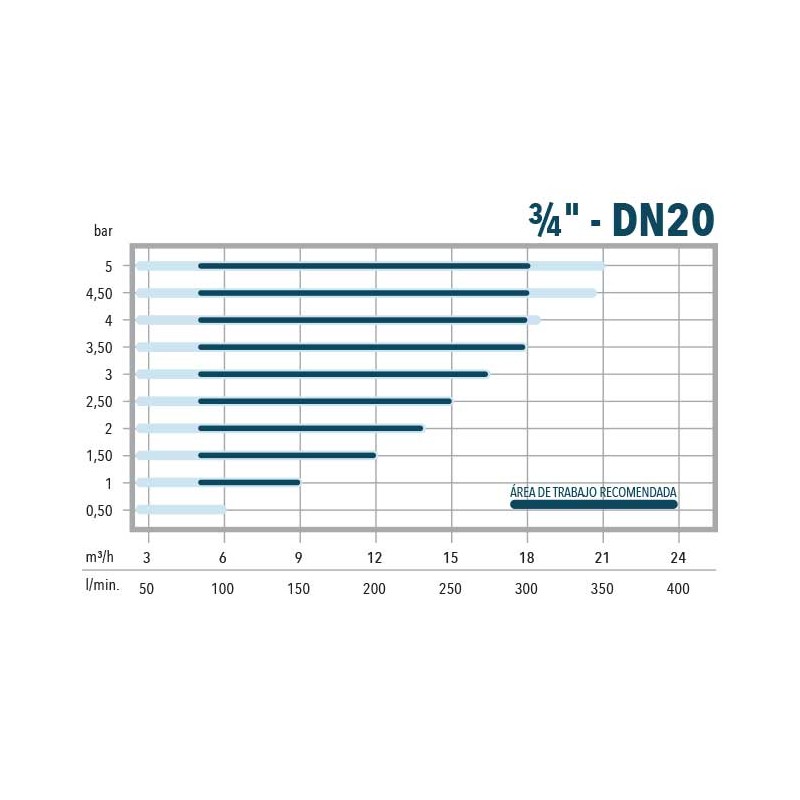

RECOMMENDED WORKING PRESSURE

0.05 A 30 M3 / HR 0.2 A 120 GPM


TYPE OF SOLENOID

LATCH 6 A 40 VDC
The battery operated solenoid valves DC 9V (direct current) are an ideal solution when we do not have an electrical outlet for our irrigation system. They are compatible with 9 volt DC battery powered programmers. We have a wide range of high quality Spanish-made DC 9V battery operated solenoid valves.

TECHNICAL CHARACTERISTICS

Capacity 15.5 BAR (225 PSI)
Double manual bleeding system.
High strength fiberglass reinforced body
Chlorine and chloramine resistant EPDM diaphragm.
Optional Viton for greater resistance in our CP-Line.
BSP Threads (NPT Optional)
Optional 2 and 3-way for in-line or angle installation.
Piston type actuator for high precision even at low pressure
Brass insert M-5
Screws, nuts, washers and springs in AISI 304 to resist aggressive products.
Internal filter in AISI 304
Robust design to resist water shocks.
Solenoid Latch 6 at 40 Vdc
5-year commercial warranty.

Spanish manufacturing

solenoid valve made in Spain

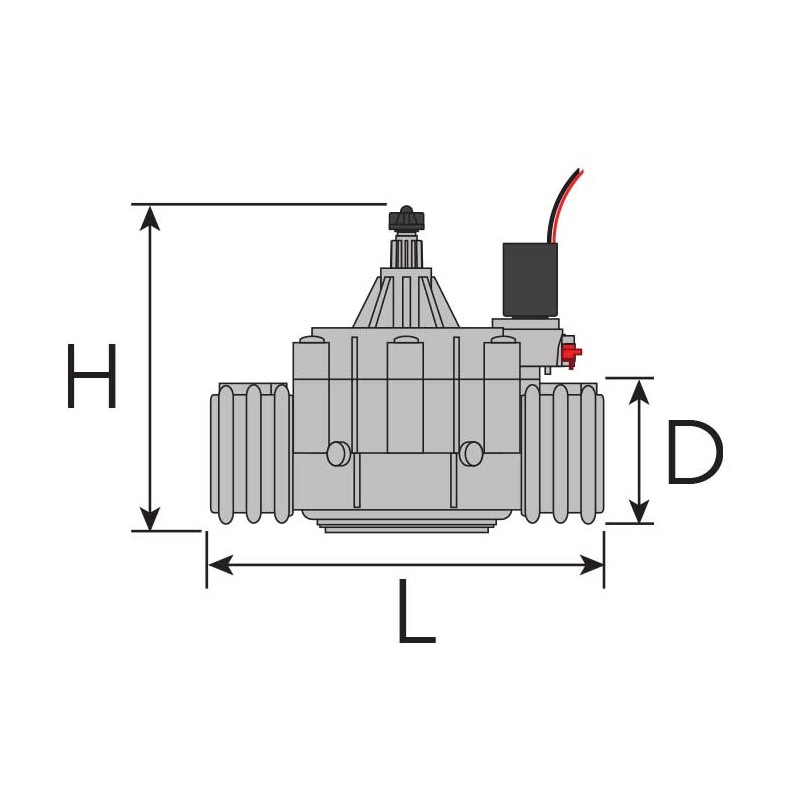

DIMENSIONS

D 50 mm 2 "
H 101 mm 3.98 "
L 133 mm 5.24 "
DN 20
Thread diameter 3/4 "
Thread: BSP
Weight: 0.590 gr.

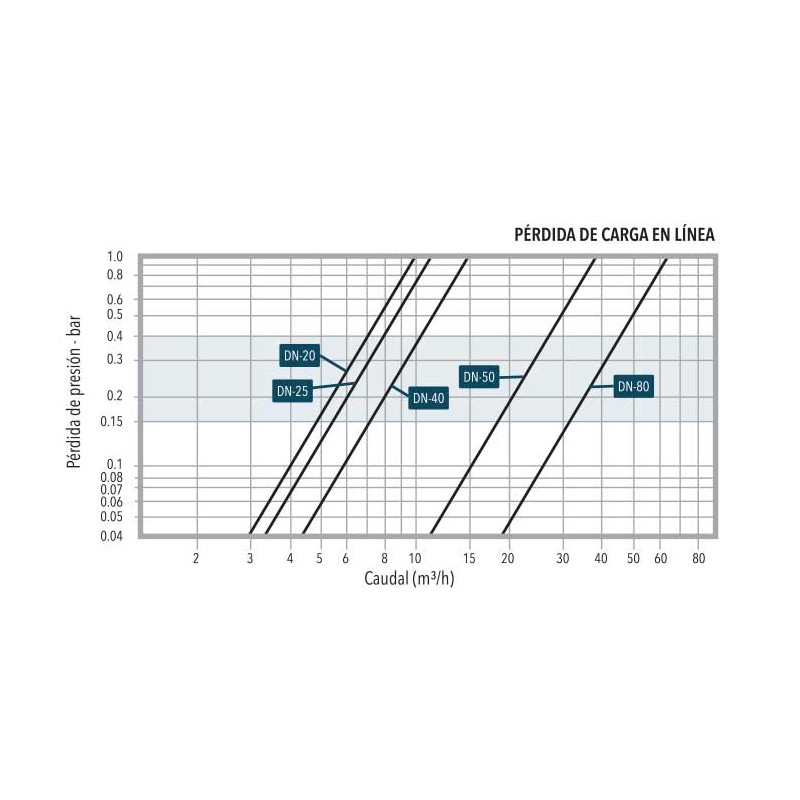

Head loss

GALLONS PER MINUTE
FLOW
GPM
LINE ANGLE
4 2.8 1.4
8 2.8 1.7
13 3.3 1.8
22 3.6 2.9
26 3.9 3.3
30 4.2 3.7
35 5.5 4.7
40 6.6 5.6
44 7.9 6.6
48 9.5 8.4
52 10.4 9.7
61 13.1 12.1
CUBIC METERS HOUR
FLOW m3 / hr LINE ANGLE
1 0.20 0.10
two 0.20 0.12
3 0.23 0.13
5 0.25 0.20
6 0.27 0.23
7 0.29 0.26
8 0.38 0.33
9 0.46 0.39
10 0.55 0.46
eleven 0.66 0.58
12 0.72 0.67
14 0.91 0.84
