They allow the opening and cutting of...
They allow the opening and cutting of the water flow through automatic irrigation programmers
They work only with 9V DC battery controllers
Recommended for use in areas where electrical current does not reach
Warning: Last items in stock!

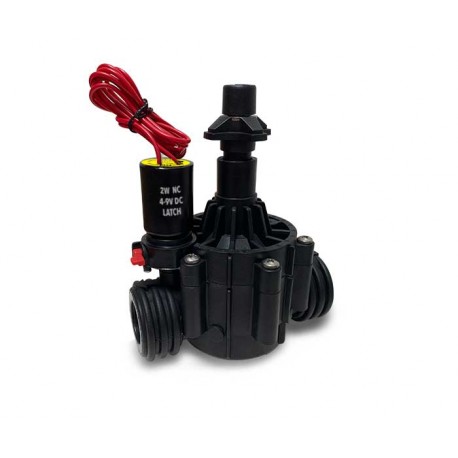

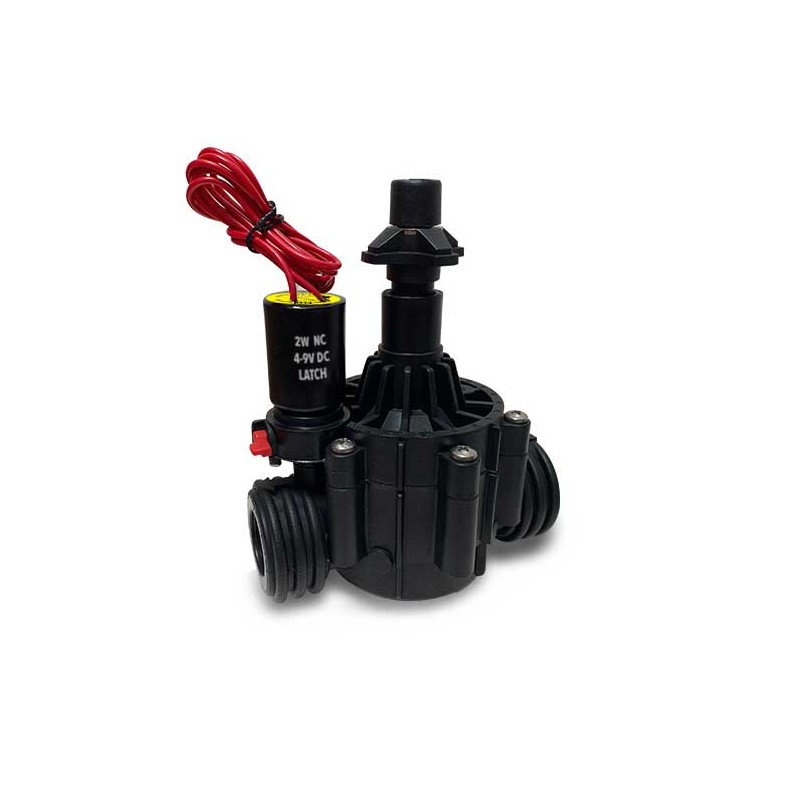

1 Inch solenoid valve for irrigation 9v LATCH
This plastic electric valve is designed to resist like no other; With a piston system, it is very effective even at very low pressure.
RECOMMENDED WORKING PRESSURE
0.05 A 30 M3 / HR 0.2 A 120 GPM
TYPE OF SOLENOID
LATCH 6 A 40 VDC
The battery operated solenoid valves DC 9V (direct current) are an ideal solution when we do not have an electrical outlet for our irrigation system. They are compatible with 9 volt DC battery powered programmers. We have a wide range of high quality Spanish-made DC 9V battery operated solenoid valves.
Capacity 15.5 BAR (225 PSI)
Double manual bleeding system.
High strength fiberglass reinforced body
Chlorine and chloramine resistant EPDM diaphragm.
Optional Viton for added strength in our CP-Line range.
BSP Threads (NPT Optional)
Optional 2 and 3-way for in-line or angle installation.
Piston type actuator for high precision even at low pressure
Brass insert M-5
Screws, nuts, washers and springs in AISI 304 to resist aggressive products.
Internal filter in AISI 304
Robust design to resist water shocks.
Solenoid Latch 6 at 40 Vdc
5-year commercial warranty.
|D 50 mm 2 "
H 101 mm 3.98 "
L 133 mm 5.24 "
Thread diameter 1 "
Weight: 0.580 gr.
|GALLONS PER MINUTE
CUBIC METERS HOUR
