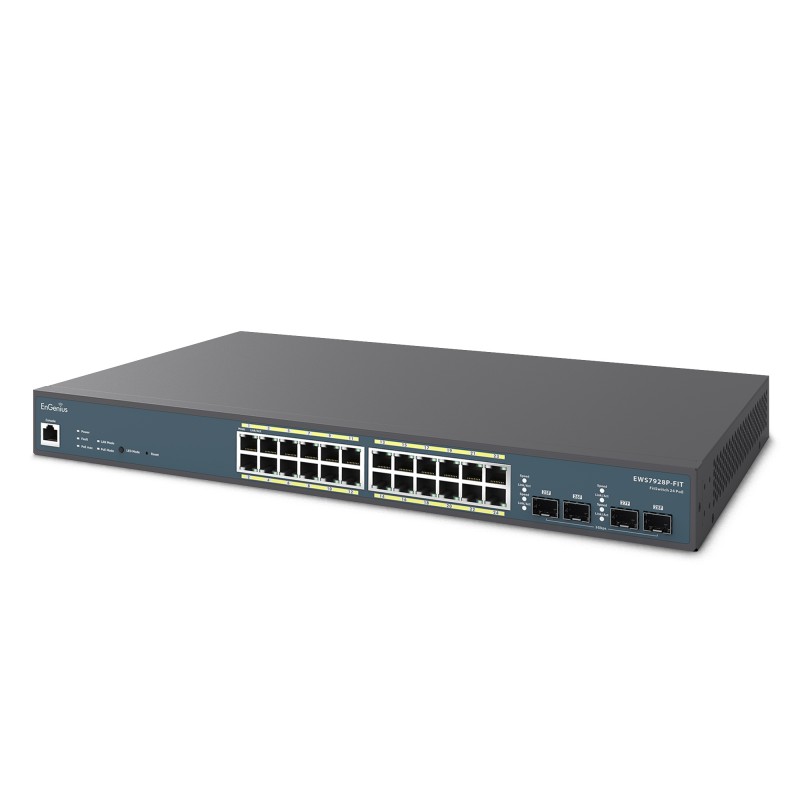

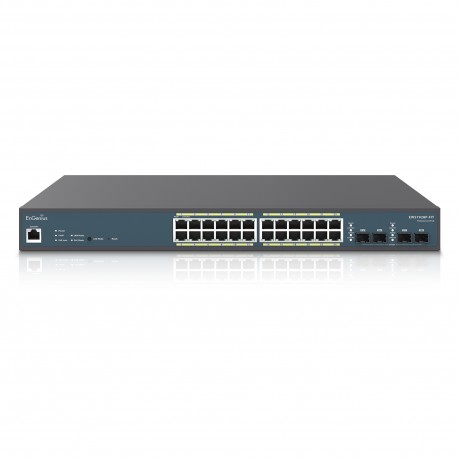

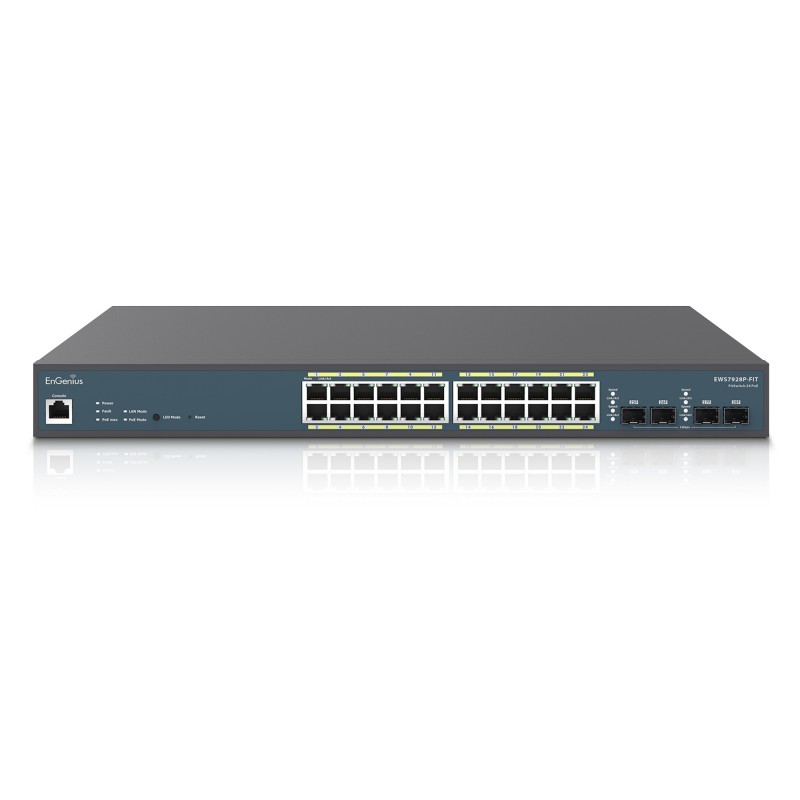

EnGenius FitSwitch 24 Full PoE EWS7928P-FIT - 24-port Gigabit 370W PoE+ managed switch

EnGenius Fit 240W Gigabit PoE+ 24-Port Power over Ethernet Switch

Main Features

The EnGenius Fit Managed Switch EWS7928P-FIT is a 24-port Gigabit PoE+ Layer 2 plus switch with a 240W PoE budget and 4 SFP uplink ports. Offers multiple management options for small business network environments, allowing you to select the on-premises or cloud management option that best suits your needs. With its enterprise-class features, the EnGenius Fit managed switch provides secure, reliable, high-performance switching while reducing operational and capital expenses for cost-conscious small businesses.

• 24 Ports 10/100/1000 Gigabit Ethernet BASE-T
• Full-featured Layer 2 plus switching

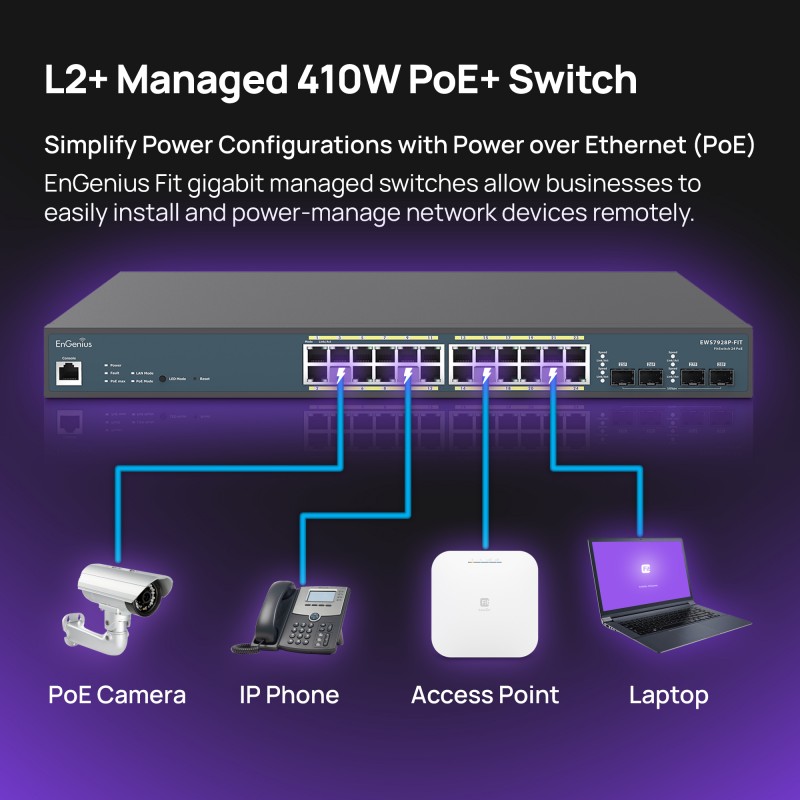

• PoE+ 802.3at/af ready on all ports with 240W PoE budget
• 56Gbps switching capacity
• Setup in minutes with step-by-step app-based instructions
• Quick scan device registration, remote monitoring and troubleshooting
• Real-time remote system metrics, analytics, and configurations
• Hybrid switch supports multiple management options
• Cloud visibility and control from anywhere
• Monitor one site or multiple sites without recurring costs or licensing fees
• Security: port security/access control list; 802.1x authentication
• IGMP and MLD snooping provides advanced multicast filtering and network efficiency

EnGenius EWS7928P-FIT Manageable Layer 2+ Gigabit POE Switch

24 LAN ports 10/100/1000 Mbps all POE 802.3 af/at up to 240W
4 SFP slot 1.25 GB (modules not included)
Hybrid cloud switch supports flexible management options such as FiTXpress app, FitCon100 on-premises or standalone
Format 19, includes Rack mounting kit
Robust security supporting port/MAC-based ACL storm control, DHCP snooping, DOS attack prevention, 802.1X and RADIUS authentication, and more

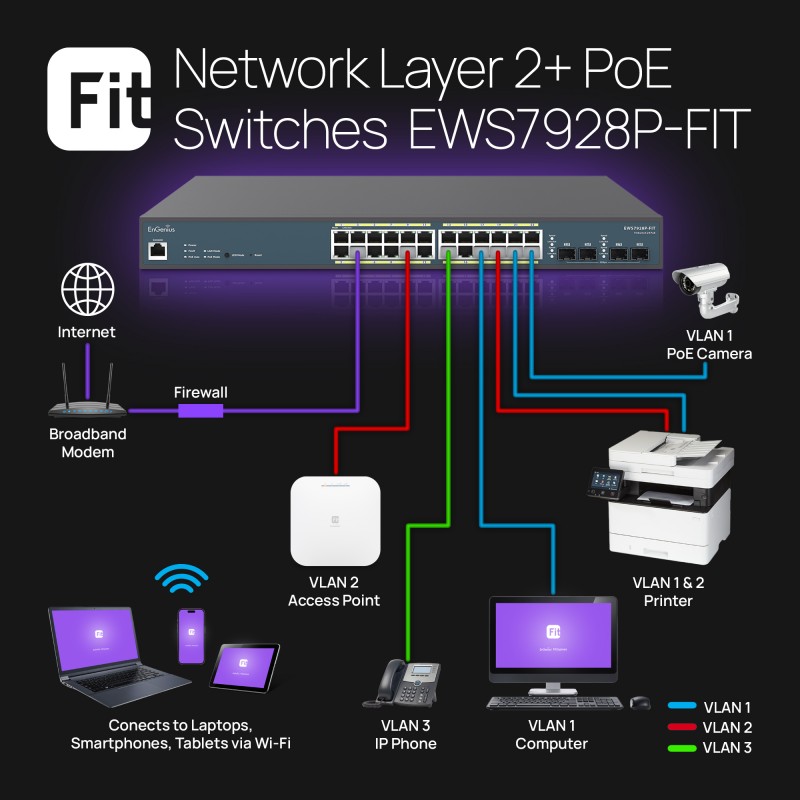

Manageable Layer 2+ (Layer 2 with Layer 3 feature support) supporting IGMP and MLD snooping, 802.3ad Link Aggregation, QoS, and quality voice and video with Voice VLAN feature

EnGenius FITSwitch EWS7928P-FIT is a 24-port Gigabit PoE+ Layer 2+ switch with 240W PoE power and 4 SFP uplink ports. Select cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even PoE power. Enterprise-class features optimize network efficiency and ensure maximum performance for SMBs.

Technical specifications EWS7928P-FIT

Port standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network port: Gigabit Ethernet ports

8×10/100/1000 Mbps ports

Network port: SFP ports

4 SFP ports

Switching capacity

56Gbps

SDRAM

256MB

Flash memory

32MB

PoE compatible ports

Ports 1-24

Total PoE power

240W

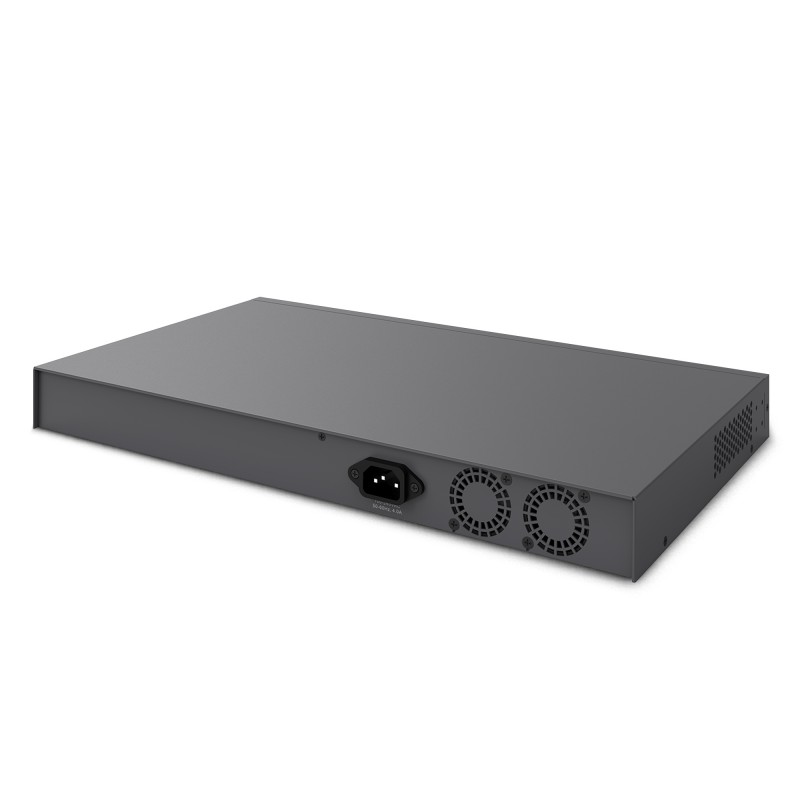

Power supply

100 to 240 VAC, 50/60 Hz

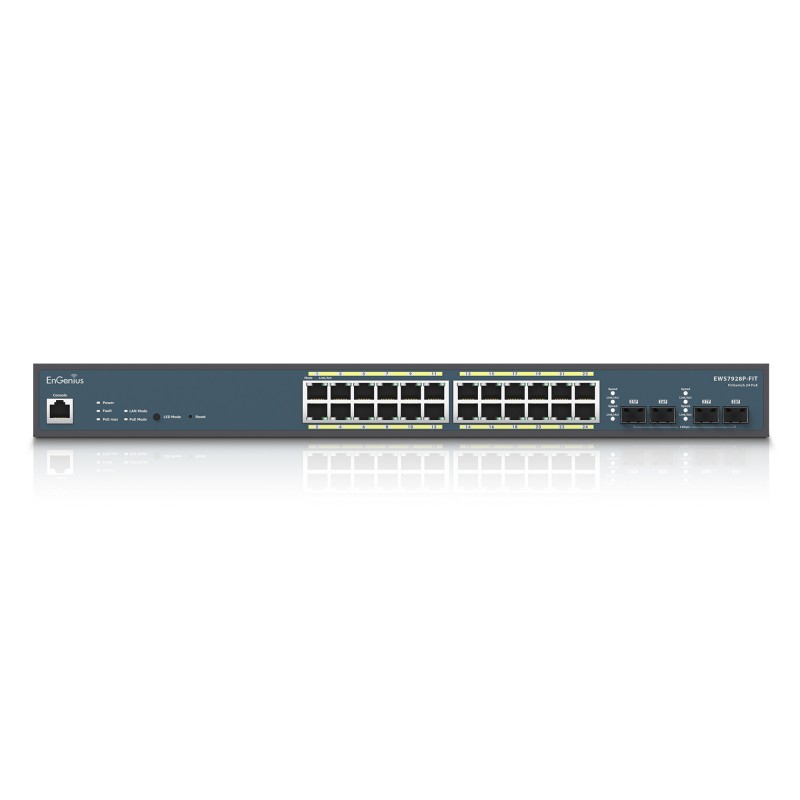

Physical Interface

LED indicators

Power LED

Fault LED

PoE Max LED

LAN mode LED

PoE mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network administration

EnGenius FITCloud Local Web GUI
FITCON

MAC address table

8K

Jumbo Frame

9K

multicast group

Max. 256 groups

MLD Espionage

MLD Spy: v1

QoS: number of priority queues supported

Up to 8 queues

Trust mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (in/out)

Port security

max.256 entries

Access Control List (ACL)

MAC-based ACL
IPv4/IPv6
Link ACL
Timebase ACL

Web graphical user interface (GUI)

HTTPIPv4/IPv6
HTTPSIPv4/IPv6

SSL certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 support

RMON

RMON 1,2,3,9

System time

Time setting/daylight saving time

Common L2 Features

802.1d spanning tree
Loopback Detection
IGMP multicast filtering

Multicast forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN Tagging
802.3x flow control
802.3ad Link Aggregation
Broadcast
DHCP IPv4 DHCP Snooping
IPv4 DHCP IPv4 Snooping Source
Checking MAC addresses
Inspection
ARP Validation of ARP packets (additional validation checks)

voice VLAN

Port-based VLAN

Protocol-based VLAN
CoS Allocation
802. 1X Radio Authentication Protocol Configuration
IPv4 Configuration
IPv6 IEEE 802. Command Line Interface (CLI)
Low Energy Ethernet (EEE) IEEE 802.3az
SSH Server Server
Telnet TFTP Client Configuration
Update/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning Tree

L3 Features

Multiple IP interface

20 IPv6 address

ARP table

max. 192 ARP entries

static ARP

Static inputs 192 ARP

IPv4 static route

max. 63 entries

IPv6 static route

max. 21 entries

Deployment options

Independent (Individually Managed)
FitXpress
FitController

Environmental use

Temperature range

Operating: 0°C to 50°C

Humidity (non-condensing)

Operating: 5% 95%

Device dimensions and weight

Weight: 3.9kg
Width: 440mm
Depth: 260mm
Height: 44mm

Package content

1 FIT Managed Switch
1 quick installation guide

1 power cord
1 RJ45 console cable

1 rack mounting kit

Warranty

2 years
