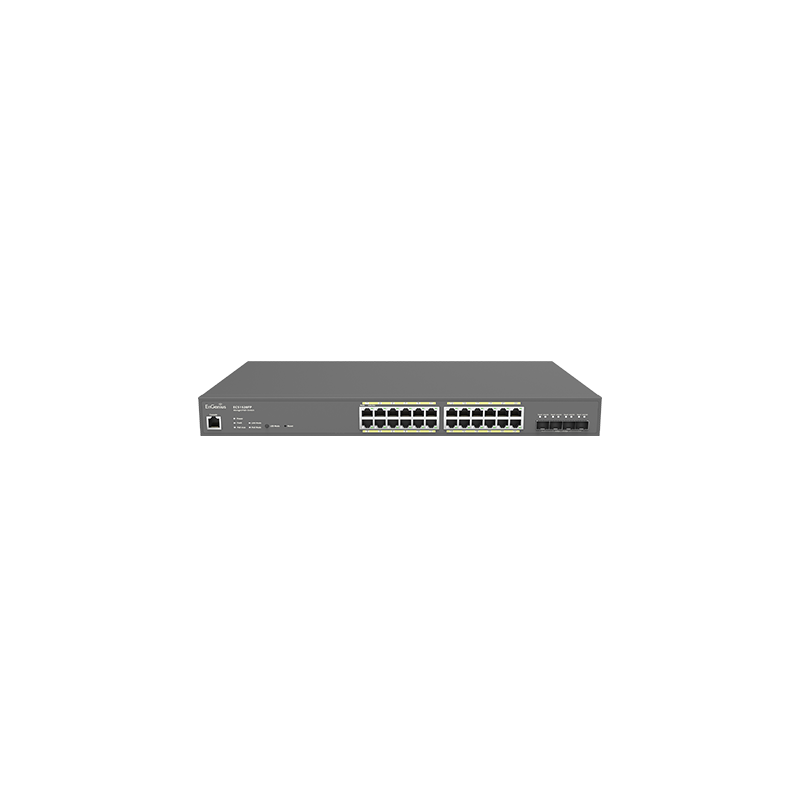

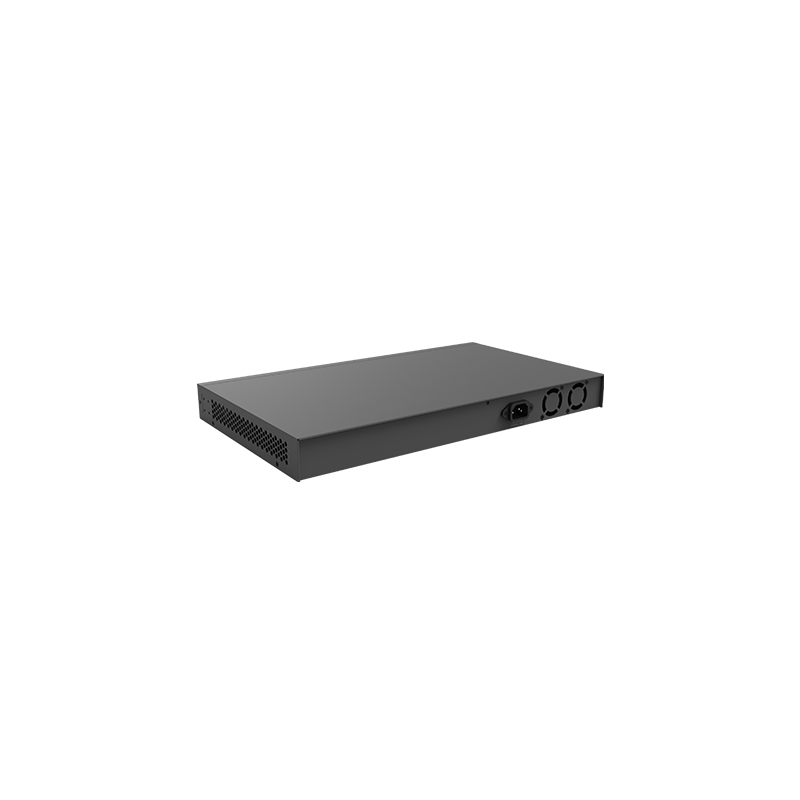

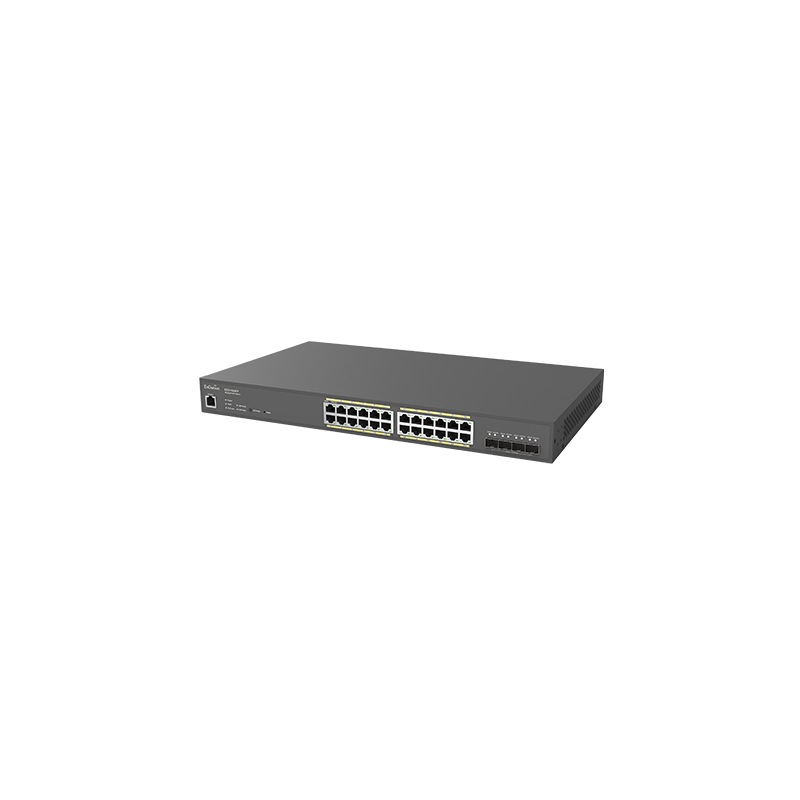

EnGenius ECS1528FP Cloud managed 24W PoE network switch 410W

The ECS1528FP Cloud Managed 410W 24-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use web interface. Power compatible PoE devices such as IP cameras, VoIP phones and AP.

Managed by the EnGenius cloud platform
(24) 10/100/1000 Mbps Gigabit Ethernet PoE ports
(4) 10/100/1000/10000 SFP + ports
The desktop model supports Layer 2 switching with full functionality
802.3af / at available on all ports with a total PoE budget of 410W

Technical specifications

Port standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex flow control

Network ports
(24) 10/100/1000 Mbps + 4x SFP + Ports

Switching capacity
128Gbps

SDRAM
512 MB

Flash memory
128MB

Ports with PoE capacity
1-24

Total PoE Budget
410w

Power source
100 ~ 240VAC, 50-60Hz

Physical interface
LED indicators
Power LED
LED fault
PoE Max LED
LAN mode LED
PoE mode LED

Ports
Link / Activity / Speed (per Ethernet port)
Link / Activity / Speed (per SFP space)

L2 features
Network management
EnGenius Cloud
ezMaster
Local Web GUI

MAC Address Table
16K

Jumbo frame
9K

Multicast Group
Maximum 256 groups

MLD Snooping
MLD Snooping: v1

QoS-number of priority queues supported
8 queue

Trust mode
Cos / 802.1p
DSCP
CoS / 802.1p-DSCP

Programming mechanism
Strict / WRR / Strict + WRR

Bandwidth Control
Port-based bandwidth control (Entry / Exit)

Port security
Max. 256 entries

Access Control List (ACL)
MAC based ACL
ACv based on IPv4 / IPv6
The ACL union
ACL time base

Graphical user interface on the web (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL certificate
Certificate / Import of keys

SNMP
SNMP v1 / v2c / v3 support

RMON
RMON 1,2,3,9

System time
Time adjustment / daylight saving

Common characteristics of L2
802.1d Expansion Tree
Recoil detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping source MAC address check
ARP inspection
ARP packet validation (additional validation checks)
Voice VLAN
Port-based VLAN
VLAN based on a protocol
CoS mapping
802. 1X radio authentication protocol
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH server
Telnet server
TFTP client
Configuration update / Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Expansion Tree

L3 features
Multiple IP interface
20 IPv6 Address

ARP table
Max. 192 ARP entries

Static ARP
Static 192 ARP inputs

IPv4 static route
Max. 63 tickets

IPv6 static route
Max. 21 tickets

Environmental and Physical
Temperature range
Operating: 32 ° F to 122 ° F (0 ° C to 50 ° C)

Humidity (no condensation)
5% 95%

Dimensions and weight
ECS1528FP device
Weight: 4.7Kg
Width: 260mm
Length: 440mm
Height: 44mm

Package content
1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cable
1x RJ45 Console Cable
1x Rack Mount Kit

Warranty
2 years
