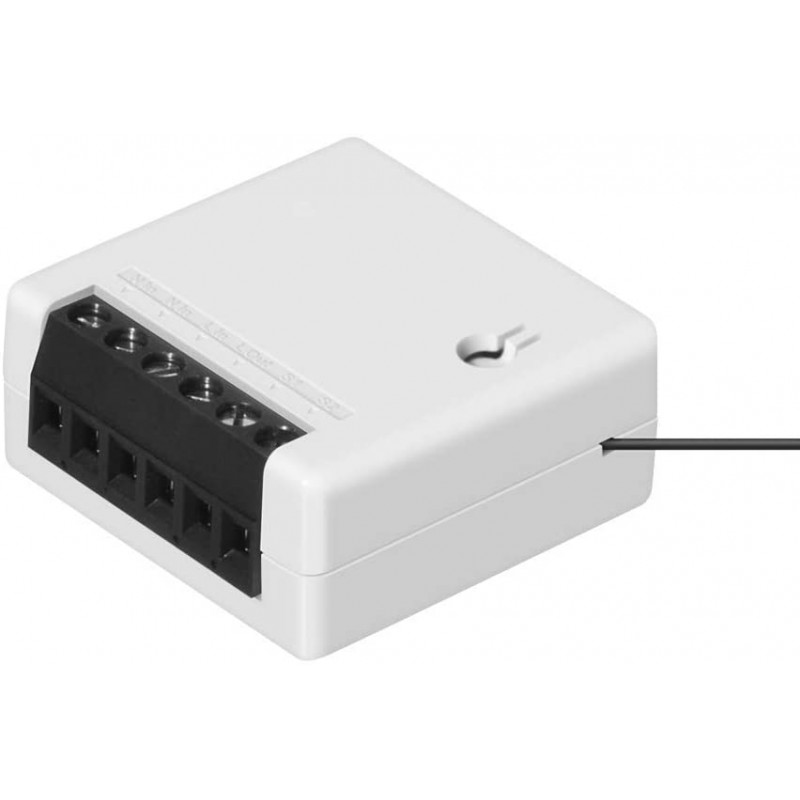

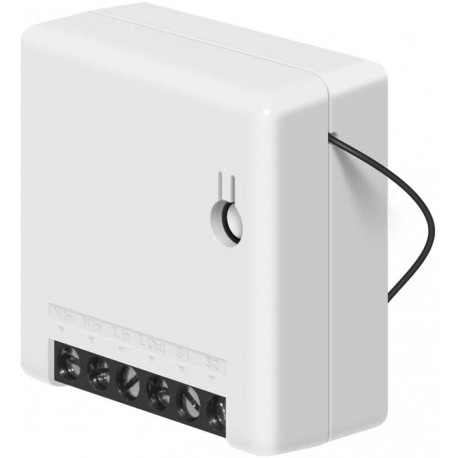

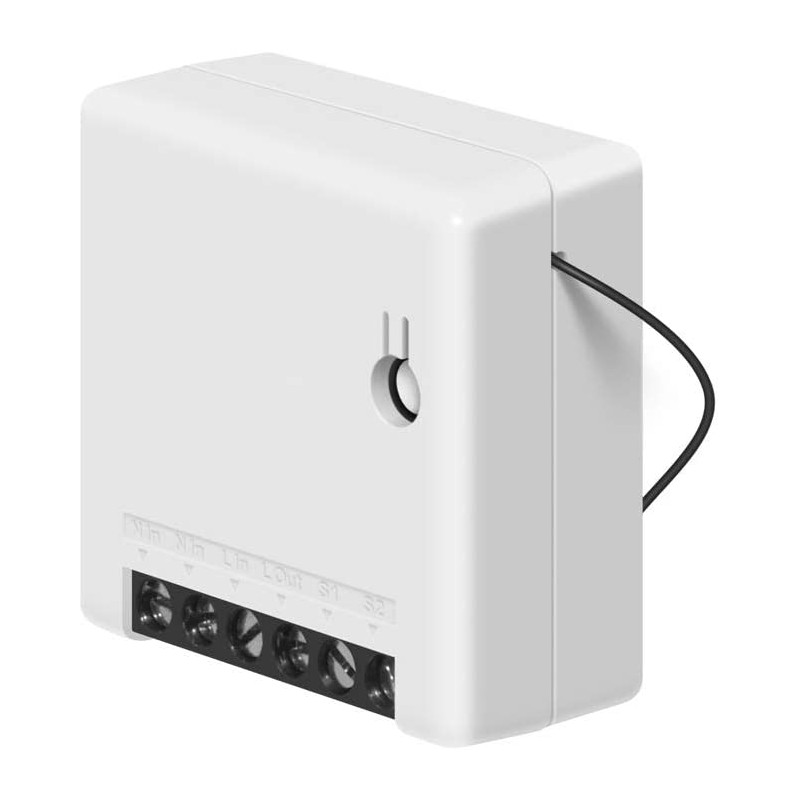

Sonoff - WiFi switch micro module (DIY)

SONOFF MINI is a microswitch module with WIFI connection that offers the possibility to control an appliance/lighting in your home. To do this, simply connect it respecting the maximum power supported so that this device/lighting is connected.

The MINI, as a rugged two-way MINI smart switch, has been redesigned to take safety and performance to the highest level. The MINI version has an external antenna, which gives you peace of mind when using it to control your devices. You must not connect a high current to any of the outputs.

The small and compact smart switch is used for various types of conduit boxes, even the smallest EU standard conduit box.

Convenient automation of your home appliances on the eWeLink app with your smartphone or with voice commands.

Supports DIY mode (designed for developers) that allows users to integrate the MINI into a global third-party open source smart home control system to achieve LAN control without cloud service, such as Home Assistant, openHAB, ioBroker .etc .

To view the DIY Mode (update) tool code and protocol document, visit http://developers.sonoff.tech/sonoff-diy-mode-api-protocol.html

FEATURES :

Compatible with Amazon Alexa.
Compatible with Google Home.
Compatible with Google Nest.
Compatible with IFTTT.
Control your home appliances with the app.
Ask appliances to turn on and off with a simple voice command.
Set a time for appliances to start or stop automatically.
Allow developers to flash firmware to access more features they want.
Supports toggle switch to control the devices (auto return switch not included).
Create smart scenes to turn on/off groups of SONOFF devices with one tap on your phone.
Perform an action to trigger another or receive an alert message on your phone.
Share the device with your family to control it together.
Check the device status change on your phone in real time.
Run the device on your phone but without a normal Wi-Fi connection.
Keep the device in the state before a power failure when the power is restored.

TECHNICAL SPECIFICATIONS :
Input: AC 100-240V 50/60Hz 10A Max;
Output: AC 100-240V 50/60Hz 10A Max;
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz;
Hardware: PC V0;
Switch: not included
Dimensions: 42.6X42.6X20mm;
CE certificate
