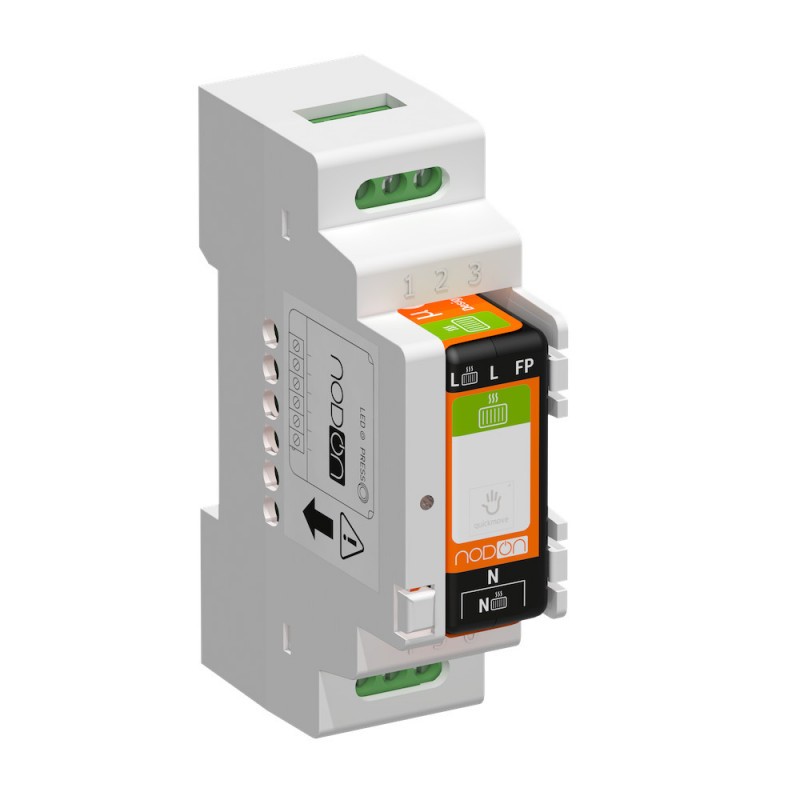

Nodon Caja de carril DIN V2 para micromódulos (5 piezas)

Reference DRB-2-2-00

Condition: New

The V2 DIN rail box allows installers and electricians to directly connect relay switches to the electrical panel. Pack of 5 units.

More details

Out of stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

A DIN rail adapter to simplify the installation of Nodon's hidden modules

The DIN rail adapter allows installers and electricians to connect the hidden modules directly to the electrical panel. Ideal for new construction and refurbishment projects, this DIN rail adapter saves time before installation and on site. The DIN rail adapter is compatible with the Multifunction modules, Lighting ON/OFF and Blinds (EnOcean and Zigbee). It is installed on DIN rails type © EN 50022.

Designed for electricians and home automation integrators, the DIN Rail box allows the connected modules to be plugged directly into the electrical panel. Ideal for new builds and renovations, it saves time both before installation and on site.

Compatible with DIN rail Type © EN 50022

The DIN rail box is designed for installation on DIN rail type © EN 50022, it adapts to most residential and commercial electrical panels.

Compatible with NoDon modules

The DIN rail box is compatible with the following modules: Lighting ON/OFF, Roller shutter, Multifunction, Pilot cable heating

Quick module/housing mounting

The module is quickly fixed in the DIN rail box thanks to internal pins and external notches.

Simple connection to the electrical panel

The DIN rail box is easily wired using terminals 1 to 6.

Note: DIN rail box is not sold separately. The package content includes 5 units. Modules are sold separately.

Nodon Din rail box home automation micromodules

Technical specifications

Compatible modules: SIN-2-2-XX, SIN-2-1-XX, SIN-2-RS-XX, SIN-4-1-XX, SIN-4-2-XX, SIN-4-RS-XX
Compatible DIN rail: Type © EN 50022
Maximum intensity: 10A
Protection index: IP20
Measurements: 87x27x58mm
