Outdoor vandal-resistant standalone keyboard

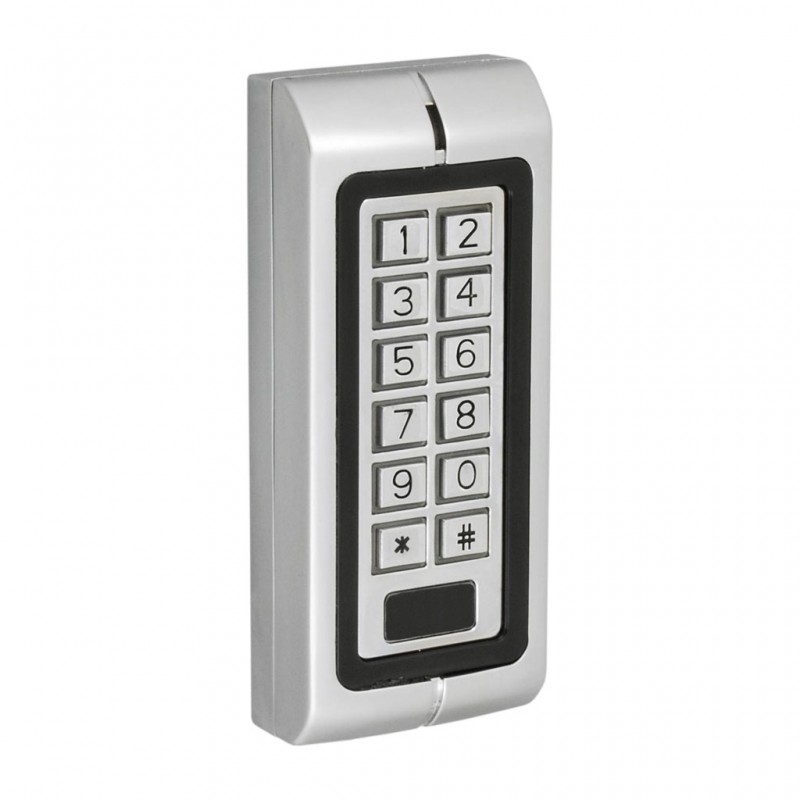

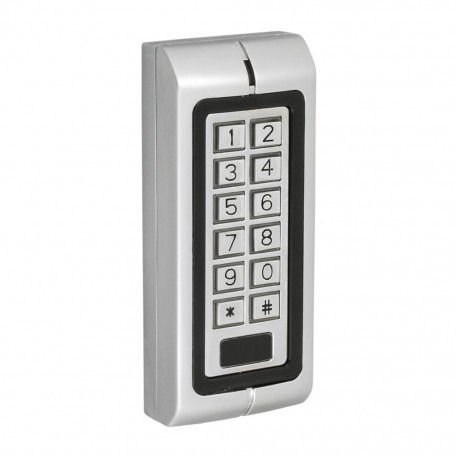

Vandal-Resistant Outdoor Standalone Keyboard

Robust and durable, ideal for outdoor access control. This vandal-resistant standalone keypad allows the opening of doors, gates, or electrical systems using a PIN code, without the need for an additional control unit. Made of stainless steel, it offers high durability against impacts, adverse weather conditions, and vandalism. Easy installation and standalone operation provide a secure and efficient solution.

Characteristics

- Valid for EM cards

- Easy installation and programming via keypad

- Programmable dual relay output

- Opening push button input

- Door sensor input

- Programmable alarm output

- Vandal-proof for outdoor installations

- IP68 protection rating

- Compact stainless steel

Specs

- Zone 1 Capacity: up to 1,100 codes/cards

- Zone 2 Capacity: up to 100 codes/cards

- Card type: EM 125 KHz

- Reading range: 3 ~ 6 cm

- Opening time: 0 ~ 99 seconds

- Alarm time: 0 ~ 3 minutes

- Inputs: opening button and door sensor

- Relay: 2 relays (COM/NO/NC)

- Power supply: 12 - 24V AC/DC

- Operating temperature: -55°C ~ +60°C

- Installation environment: Outdoor (IP68) / Indoor

- Dimensions: 135 x 58 x 26 mm

- Weight: 550 g
