Akuvox KIT02-IP - surface IP video intercom kit on Linux

Reference AK-KIT02-2

Condition: New

Linux surface video intercom kit
2 wires & WiFi | Plate and monitor
Crystal Clear Two-Way Audio
EM/MF and NFC reader
1 relay output | Cloud Maintenance
Connection of monitor and plates through Cloud
- Video intercom exterior panel to be installed on the surface
- Indoor monitor
- DC 24V power supply (1.67 A / 40 W)

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Akuvox
Video intercom kit
2 wire & WiFi technology

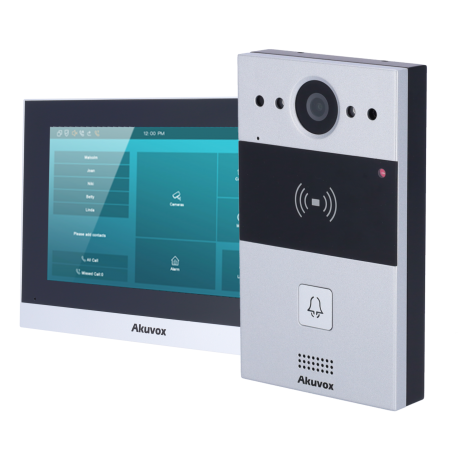

Kit consisting of: AK-R20A-2 outdoor video intercom panel for surface with 2 Mpx HD camera and AK-C313W-2 WiFi indoor monitor with 7" TFT LCD screen
EM/MF and NFC card reader
Complete configuration via web browser
Push notifications and calls between devices through the SmartPlus app
4 free users included in the app
Call and user directory
Firmware updates via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors through the cloud on different networks
Remote configuration access for installation
Connection distance of up to 100 meters between board and monitor with good quality cable

AK-C313W-2
Brand	Akuvox
Model	C313W-2
OS	LINUX OS
Hardware	RAM: 64MB \| ROM: 128MB
LCD	7" TFT 800x480
Operation mode	Capacitive touch panel
Tickets	8 configurable alarm inputs and 1 doorbell input
Departures	1 relay
Audio	Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722, DTMF (RFC2833), SIP Info
Remote access	SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: yes available
Operating mode	Local network and/or through the cloud on different networks
Firmware updates	Remotely with the cloud through an installer account or through a local web browser
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n
2-wire ports	2 pairs of ports: own power and external panel or monitor power
Feeding	DC 24V/48V \| 600mA max
Temp. functioning	-10º C ~ +45º C
Dimensions	200.2 (W) x 132.2 (H) x 27.2 (D) mm
Weight	600g
AK-R20A-2
Brand	Akuvox
Model	R20A-2
Access control	Door opening with RFID EM 125 kHz and MF 13.56 MHz and NFC card, with registrations
RFID user capacity	5,000 users
Keyboard	Mechanical call button with configurable LED lighting
Departures	1 relay for main lock, Wiegand OUT and RS485
Tickets	1 push button input and Wiegand IN
Remote access	SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: yes available
Image sensor	1/2.7" 2 Megapixel CMOS with infrared and light sensor
Vision angle	110° (H) / 58° (V)
Camera resolution	1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding	H.264 and H.265
Audio	Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722, DTMF (RFC2833), SIP Info
Network interface	RS485/RTSP
Operating mode	Local network and/or through the cloud on different networks
Firmware updates	Remotely with the cloud through an installer account or through a local web browser
Material	Aluminium alloy
Degree of protection	IP65
Temp. functioning	-30º C ~ +60º C
Dimensions	145 (H) x 85 (W) x 27.5 (D) mm
Feeding	DC 24V/48V \| 1000mA max
Weight	800g
