Akuvox KIT01-IP - IP video intercom kit on Linux surface

Reference AK-KIT01-IP

Condition: New

Linux surface video intercom kit
- Video intercom exterior panel to be installed on Akuvox surface
- Akuvox indoor monitor
IP & WiFi | AK-E12W outdoor unit and AK-C313W-W monitor
Crystal Clear Two-Way Audio
MF, NFC and BLE reader | Standard PoE
1 relay output | Cloud Maintenance
Connection of monitor and plates through Cloud

More details

In Stock

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Akuvox
Video intercom kit
IP & WiFi Technology

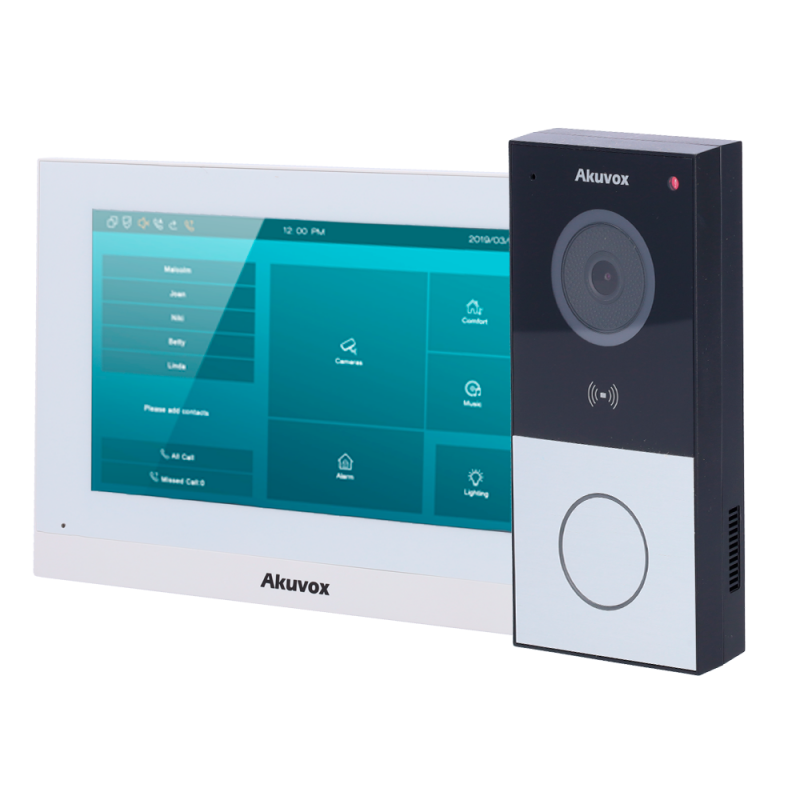

Kit consisting of: AK-E12W outdoor video intercom panel for surface with 2 Mpx HD camera and AK-C313W WiFi indoor monitor with 7" TFT LCD screen
MF, NFC and BLE card reader
Complete configuration via web browser
Push notifications and calls between devices through the SmartPlus app
4 free users included in the app
Call and user directory
Firmware updates via cloud with installer control
ONVIF protocol for integration with video surveillance recorders

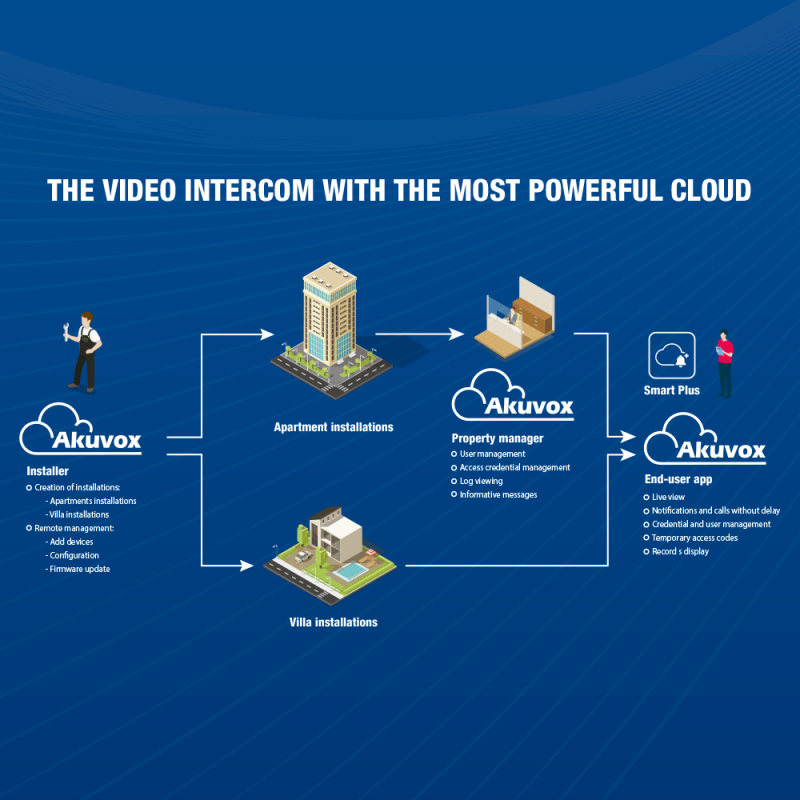

Connection between boards and monitors through the cloud on different networks
Remote configuration access for installation (on board only)

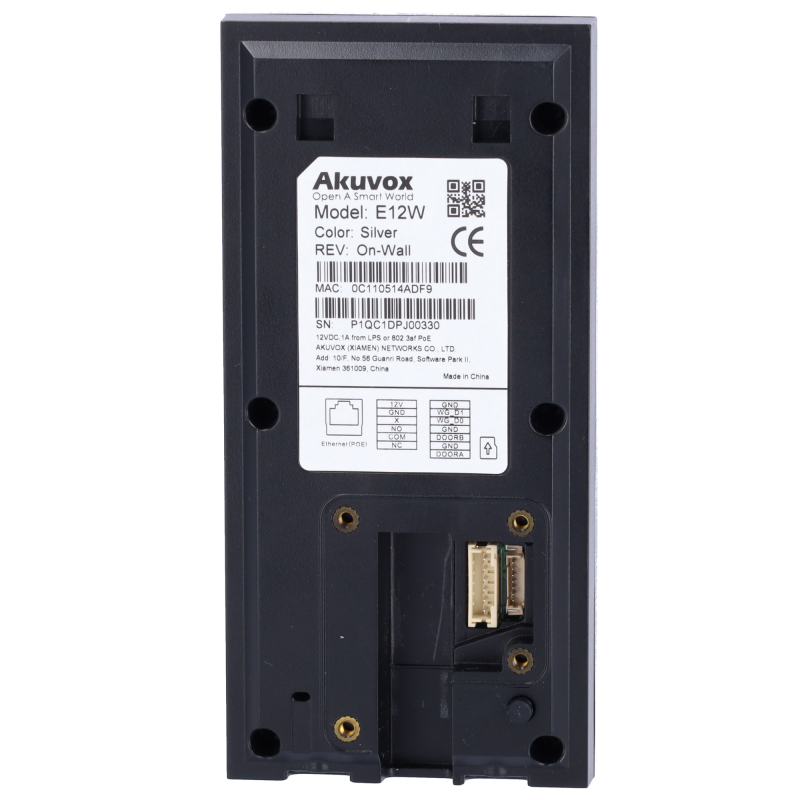

AK-E12W
Brand	Akuvox
Model	E12W
Access control	Door opening with MF 13.56 MHz card, NFC and Bluetooth, with registrations
RFID user capacity	5,000 users
Keyboard	Mechanical call button with configurable LED lighting
Departures	1 relay for main lock and Wiegand OUT
Tickets	2 inputs and Wiegand IN
Remote access	SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: yes available
Image sensor	1/2.7" 2 Megapixel CMOS with infrared and light sensor
Vision angle	123° (H) / 69° (V)
Camera resolution	1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding	H.264 and H.265
Audio	Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722 DTMF (RFC2833), SIP Info
Memory	MicroSD slot up to 32 GB
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n
Operating mode	Local network and/or through the cloud on different networks
Firmware updates	Remotely with the cloud through an installer account or through a local web browser
Material	Elegant satin plastic
Degree of protection	IP65
Temp. functioning	-40º C ~ +60º C
Dimensions	146(H) x 70(W) x 23(D) mm
Feeding	DC 12 V / 1000 mA max. /PoE IEEE802.3af
Weight	600g

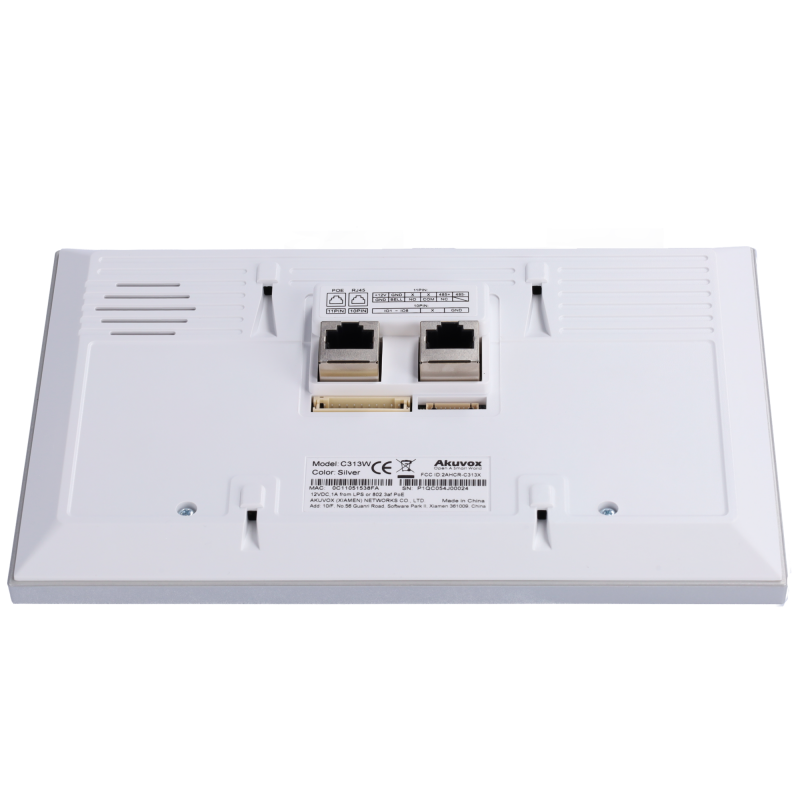

AK-C313W-W
Brand	Akuvox
Model	C313W
OS	LINUX OS
Hardware	RAM: 64MB \| ROM: 128MB
LCD	7" TFT 800x480
Operation mode	Capacitive touch panel
Tickets	8 configurable alarm inputs and 1 doorbell input
Departures	1 relay
Audio	Two-way audio with noise-reducing microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711¼, G.729, G.722 DTMF (RFC2833), SIP Info
Remote access	SmartPlus mobile phone application or configuration via WEB browser Remote access via Cloud: not available
Operating mode	Local network and/or through the cloud on different networks
Firmware updates	Remotely with the cloud through an installer account or through a local web browser
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n
Feeding	DC 12 V /600 mA /standard PoE (IEEE802.3af)
Temp. functioning	-10º C ~ +45º C
Dimensions	200.2 (W) x 132.2 (H) x 27.2 (D) mm
Weight	600g
Color	White
