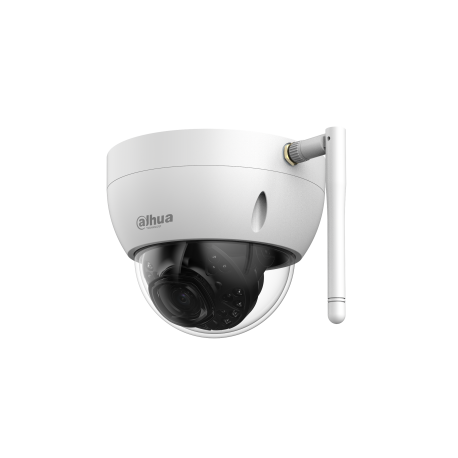

Reduced price! DAHUA Camara IP wifi domo fijo IPC-HDBW1235E-W-S2 View larger

DAHUA Fixed dome wifi IP camera IPC-HDBW1235E-W-S2

IPC-HDBW1235E-W-S2

New

  • Dome IP Camera
  • Sensor 1/3" Progressive CMOS
  • Resolution 2 Megapixel (2560x1440)
  • 2.8mm lens
  • IR Leds Range 30 meters
  • H.265/MJPEG Compression
  • RJ-45 10/100 BaseT / Wi-Fi IEEE 802.11b/g/n connection
  • Waterproof IP67
  • Vandal resistant IK10
  • DWDR / 3DNR
  • SD card recording
  • WEB interface, CMS, Smartphone and NVR
  • ONVIF Compliant

More details

Out of stock

114,82 €

-30%

164,03 €

Technical characteristics

Wi-Fi Si

More info

Dahua Entry Series Summary


With features of simple installation, easy operation, and high
performance-to-cost ratio, Dahua Entry series network camera is
Applicable to small and medium-sized scenes such as homes
residences, small stores and other small and medium-sized businesses.
medium businesses.

Functions

Smart H.265+ and Smart H.264+
With the advanced scene-adapted speed control algorithm, Dahua's intelligent encoding technology
Dahua intelligent encoding technology achieves higher encoding efficiency than H.265
and H.264, provides high quality video and reduces storage cost
storage and transmission.

WDR

With advanced wide dynamic range (WDR) technology, Dahua network camera
Dahua provides clear details in a strong contrast environment
contrast. Bright and dark area can get clear video even in high environment
high light or backlit shadow.

smart lighting

Dahua Smart Illumination technology can display the image on the
low-light or completely dark environment.
Depending on the distance of the targets, the camera adjusts
lighting intensity automatically to show the details of the
moving target.

Motion detection

When moving objects appear in the surveillance image, Dahua Motion technology
(General) activate the alarm or record.

Day Night

Dahua's Day/Night function provides a color image when the lighting is
when lighting is adequate; when lighting is inadequate, it switches to night mode and
provides a black and white image. You can ensure that the network camera
It can work normally when the lighting changes.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict tests on dust and immersion. Have
Dust protection function, and the case can work normally after soaking
in water 1 m deep for 30 min.
IK10: The casing can withstand more than 5 times the impact of a 5 kg hammer
falling from a height of 40 cm (impact energy is 20 J).
Wide Voltage: The camera allows a tolerance of ±30% of the input voltage (wide
voltage), and is widely applied to outdoor environments with
unstable voltage.


Dahua Cameras Spain

Camera

ImageSensor

1/2.7 2Megapixel progressive CMOS

Max. Resolution

1920(H)×1080(V)

ROM

128MB

RAM

128MB

Scanning System

progressive

Electronic Shutter Speed

Auto/Manual 1/3s 1/100,000s

Min.Illumination

Manual 1/30s
1.9231 Lux @F2.0 (Colour, 80IRE); 1.0843 Lux @F2.0 (W/B, 80IRE); 0 Lux (IR on)
Manual 1/3s
0.1970 Lux @F2.0 (Colour, 80IRE); 0.1168Lux @F2.0 (W/B, 80IRE); 0 Lux (IR on)

S/N Ratio

>49.85dB

Illumination Distance

30m (98.4ft)

Illuminator On/Off Control

Auto

IlluminatorNumber

18 (IR LEDs)

Pan/Tilt/Rotation Range

Pan: 0° 360°
Tilt: 0° 90°
Rotation: 0° 355°

lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm
3.6mm

Max. Opening

F2.0

Field of View

2.8mm:
Horizontal: 113°
Upright: 58°
Diagonal: 135°
3.6mm:
Horizontal: 93°
Upright: 48°
Diagonal: 114°

IrisType

Fixed

Close Focus Distance

2.8mm: 0.5m (1.6ft)
3.6mm: 0.7m (2.3ft)

DORI Distance

lens

Detect

I watched

Recognize

Identify

2.8mm

37.3m

(40m)

14.9m

(15 meters)

7.5m

(7.5m)

3.7m

(4m)

3.6mm

51.1m

(50m)

20.4m

(20m)

10.2m

(10m)

5.1m

(5m)

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

smartcodec

H.264: Yes
H.265: Yes

Video Frame Rate

50Hz
Main stream (1920 × 1080 @25fps), sub stream (640 × 480 @25fps)
60Hz
Main stream (1920 × 1080 @30fps), sub stream (640 × 480 @30fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); VGA(640×480); QVGA (320 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 24kbps 8192kbps
H.265: 9kbps 5632kbps

Day/Night

Auto(ICR)/Colour/B/W

HRC

And it is

HLC

And it is

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

motion detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

smart lighting

And it is

ImageRotation

0°/90°/180°/270° (Support 90°/270° with all resolution)

Mirror

And it is

privacy-masking

4 areas

Alarm

Alarm Event

Not SD card; SD card full; SD card failed; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering

network

network

RJ-45 (10/100 Base-T)

Wifi

And it is

SDK and API

And it is

Protocol

HTTP; TCP; ARP; RTSP; RTP; PDU; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QOS; NTP

Interoperability

ONVIF (Profile T/Profile S/Profile G); CGI; DMSS

user/host

20 (Total bandwidth: 20M)

Storage

FTP; SFTP; MicroSD card (256G); NAS

Browser

IE: IE9, IE11 and later
Chrome: 39.0.2171.95, and later version without plug-in (62.0.3202.94)
Firefox: 43.0.1 and later version without plug-in (69.0.3)

Management Software

DMSS

mobile-phone

iOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C

Power

power supply

12V DC

Power Consumption

Max 4.7W (12V DC) (IR full intensity)

Environment

Operating Conditions

30°C to +50°C ( 22°F to +122°F)/Less than 95%RH

Storage Conditions

40°C to +60°C ( 40°F to +140°F)

Protection Grade

IP67; IK10

Structure

casing

Metal

Dimensions

146.2mm × 110.7mm × 90.6mm (5.8" × 4.4" × 3.6") (L × W × H)

Net Weight

408g (0.9lb)

Gross Weight

729g (1.6lbs)
