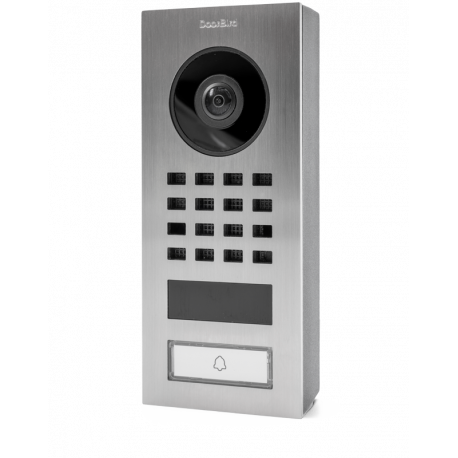

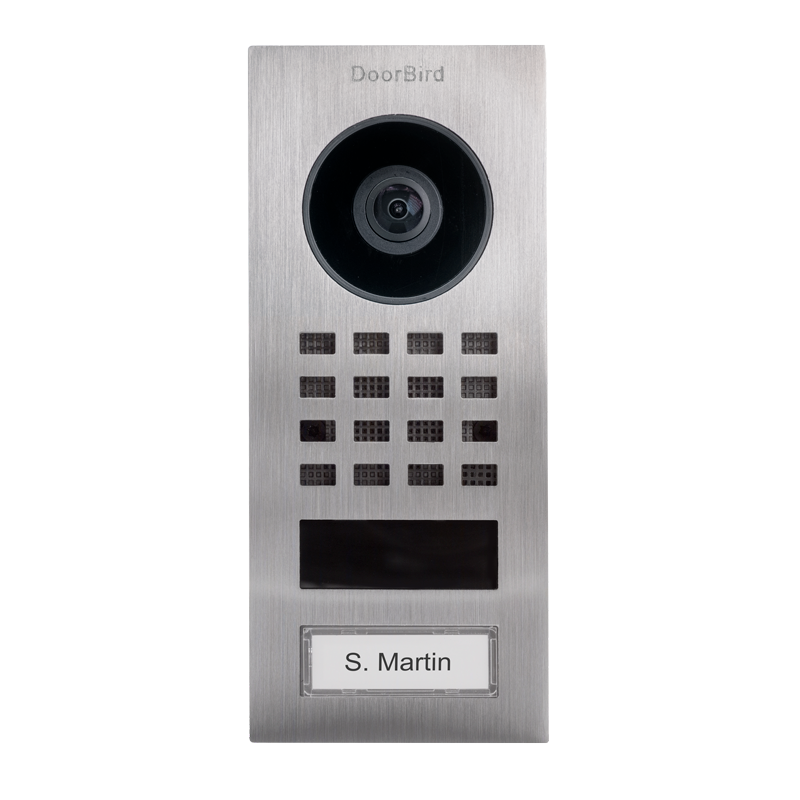

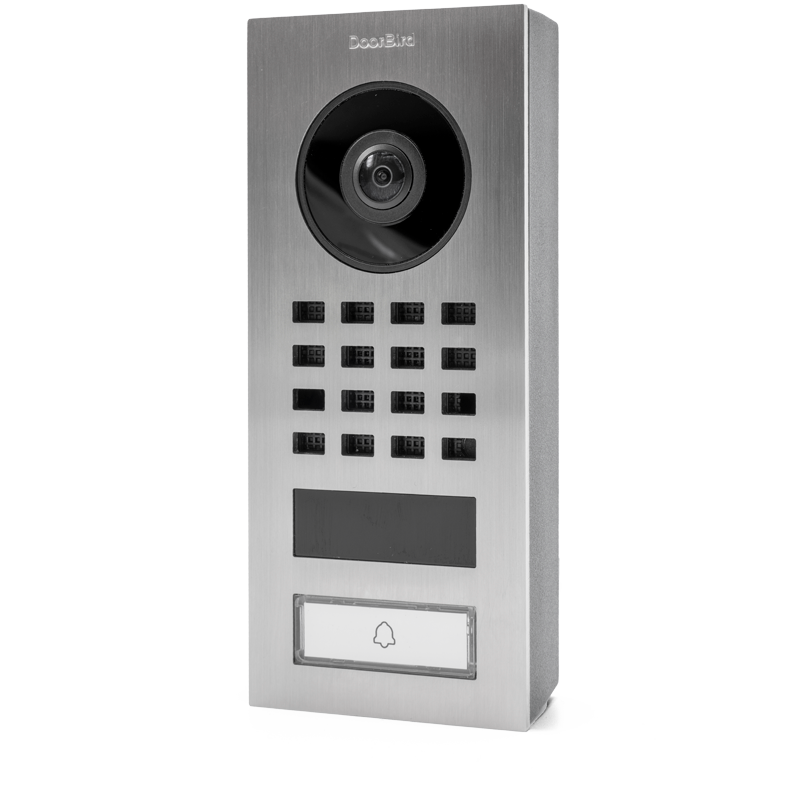

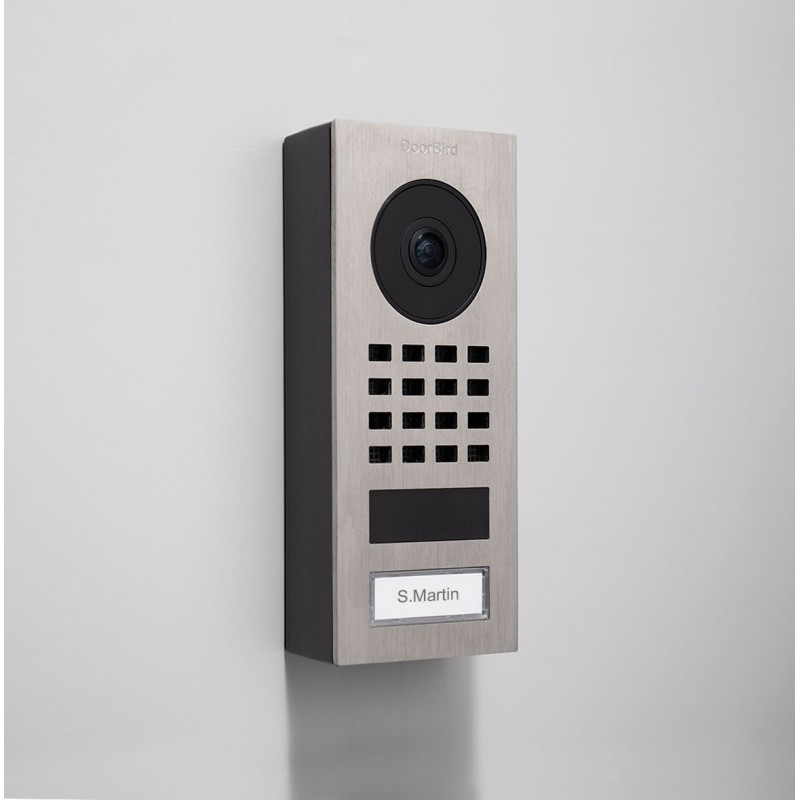

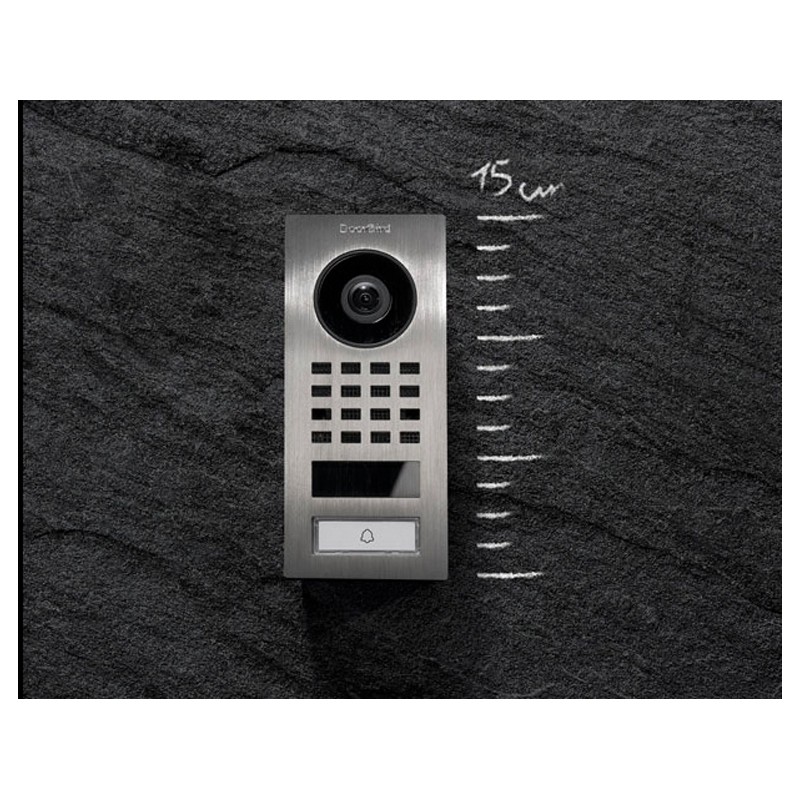

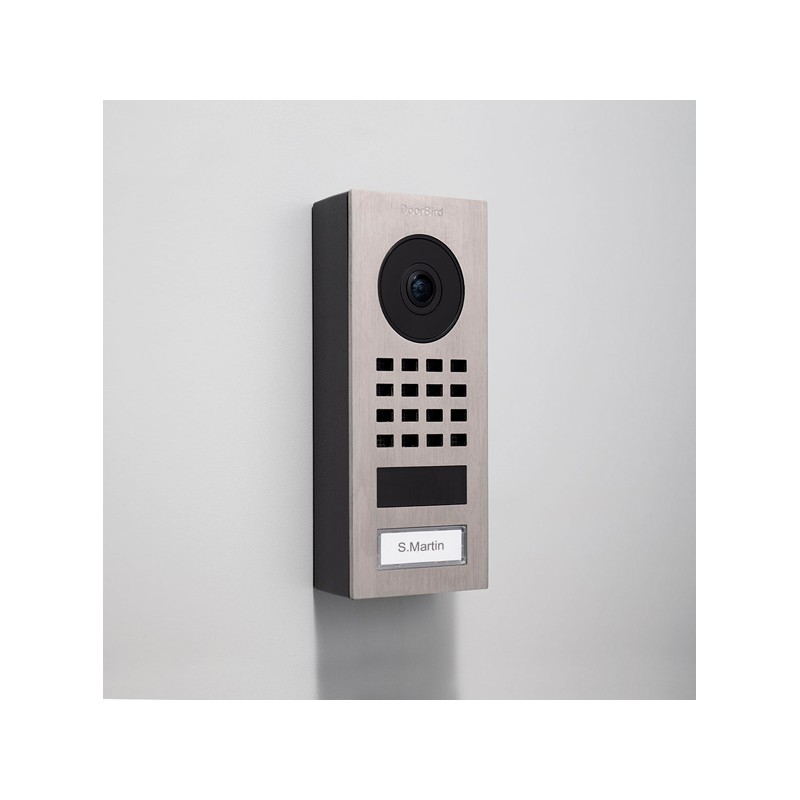

DOORBIRD - D1101V Surface Mount IP Video Intercom

D1101V-S

New

Compact edition of IP video intercom for surface installation. It is a connected IP video intercom that allows you to answer home calls from anywhere in the world.

  • Surface mount housing included
  • WiFi/LAN (PoE supported)
  • Two-way audio
  • Ultra wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • 1 bistable switching relay

More details

In Stock

568,37 €

Technical characteristics

Wi-Fi Si
PoE Si (Power Over Ethernet)

More info

HOW DOES IT WORK?

Imagine, you are not at home and your children have
they locked themselves outside or the courier wants to deliver
a package. With DoorBird this is no longer a problem.
Every time someone rings the doorbell, you get a
...and the push notification on your smartphone or tablet. Through the
The DoorBird application is not only capable of talking to the visitor
but also see them live in HD quality. you will never get lost
a visitor again. With DoorBird you are on the move and
still at home, even if a thief knocks on the door to check if
Someone is at home.

THE SMART HOME STARTS IN
THE FRONT DOOR

DoorBird is the smart solution for your home entrance.
Simply connect your DoorBird IP video intercom to
your smartphone and talk to your visitor - anywhere you
are. The IP video intercom can be used as a stand-alone unit or can be integrated into a Smart
The platform of the house. Even existing classical installations such as
a doorbell or an electric door opener can still be used
and controlled through the DoorBird app.

GERMAN QUALITY

All DoorBird products are designed, developed and produced by Bird Home Automation GmbH in Berlin, Germany. We manufacture all products with the utmost care and precision, and deliver them to our customers around the world.

WHY DOORBIRD?

  • Open API "Local interface for integration with SIP or other systems
  • Video and audio call
  • - On smartphones and
  • tablets (iOS, Android) or
  • landlines (SIP)
  • smart transmission
  • Mode (STM)
  • - Audio and video in real time
  • communication, optimized
  • for mobile devices via
  • WiFi, 3G, 4G, 5G
  • Compatible with Smart Home and NVR
  • - Control4, Loxone, Crestron,
  • Synology, AVM FRITZ!Fon, URC,
  • QNAP, RTI, ELAN, Fibaro,
  • Bang & Olufsen and others
  • Individual action programs,
  • For example:
  • - Bluetooth access
  • on Wednesday of
  • From 9 to 11 in the morning.
  • - 4D motion sensor switches
  • in the external lamp between
  • 9 pm and 6 am
  • Automatic door opener "For use in offices or others
  • Free cloud registration " Optionally activated for visitor registration
  • Geofencing "Automatic opening of the door or gate when returning home
  • Receive packages at any time "Send the carrier to the neighbor or open the garage door with your smartphone
  • Easy self-installation "Quick installation via QR code scanning
  • Night vision "With 12 infrared LEDs
  • Light Sensor " For night vision mode
  • Motion sensor with 4D technology " Distance up to 6 m (19.7 f) adjustable via App (interval: 1 m / 3.3 f)
  • HDTV Video "Ultra wide angle, Hemispherical lens, 200°
  • Echo and noise reduction (AEC, ANR)
  • Bluetooth Low Energy (BLE) " For access control, compatible with external sensors and smart locks
  • Configurable call button " With backlit name plate
  • Easy connection to the network " Connection via network cable (PoE, network data) or bell cable via a 2-wire transformer
  • A freely configurable bistable switching relay "Control a door or gate via App" Configurable status via App: temporary or permanent circuit
  • WiFi enabled "Works within a WiFi network, no LAN cable needed

Download Datasheet

DOWNLOAD INSTALLATION MANUAL

FEATURES AND DETAILS

  • open API
    • Local interface for integration with SIP or other systems
  • Audio and video calls
    • Calls to smartphones and tablets (iOS, Android), landlines (SIP)
  • Smart Transmission Mode (STM)
    • Real-time audio/video communication optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home and NVR compatible
    • Control4, Loxone, Crestron, Synology, QNAP, Iddero, URC, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone
    • Clear voice transmission
  • Automatic door opener
    • For use in offices or other
  • Free cloud registration
    • Optionally activated for visitor registration
  • Individual events, e.g. ex.:
    • Interlock relay #1 activates automatic door unlocking Monday to Friday from 9:00 a.m. to 4:00 p.m. when the call button is pressed
    • The 4D motion sensor turns on the external lamp between 9:00 p.m. and 6:00 a.m.
  • Geofencing
    • Automatic opening of the door or gate when returning home
  • Night vision
    • With infrared LEDs
  • HDTV video
    • 180° ultra wide angle hemispherical lens
  • Light sensor
    • For night vision mode
  • A freely configurable bistable switching relay
    • Control a door or gate through the App
    • Configurable status via App: Temporary or permanent blocking
  • Easy self-installation
    • Quick installation via QR code scanning
  • Configurable call button
    • With backlit nameplate
  • Motion sensor with 4D technology
    • Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Echo and noise reduction (AEC, ANR)
  • Easy network connection
    • Connection via network cable or doorbell cable via a converter 2 PoE Ethernet cables DoorBird A1071 (PoE, network data)
  • WiFi enabled
    • Works within a WiFi network, no LAN cable needed
  • Bluetooth Low Energy (BLE)
    • For access control, compatible with external sensors and smart locks

Technical information

GENERAL INFORMATION Faceplate 3 mm (0.12 in), Available in V2A/V4A stainless steel, brushed and bronze finish Back mounting box Polycarbonate Mounting type Surface mount, Flush version sold separately Call button Plastic See www .doorbird.com/es/buy Identification plate Illuminated Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) Weight 471 g Connections " LAN/PoE (T+, T-, R+ , R-) " Bistable (potential free) latching relay, max. 1-24 V DC/AC, 1 A, e.g. e.g. for electric door openers " Switching relay, max. 24 V DC / AC, 1 A, e.g. for conventional doorbells " External input for external door openers " 15 V DC input (+, -), max. 15 W Weather protection Yes, IP65 Compliance IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi CERTIFIED" Dimensions 151.9 x 65 x 32 mm (W x H x D) 5.98 x 2.56 x 1.26 in (W x H x D) Service Conditions -25°C to +55°C / -13°F to 131°F Relative Air Humidity 10% to 85% (non-condensing) Range delivery 1 x Electric main unit 1 x Faceplate 1 x Surface mount housing 1 x Power supply (110 - 240 V AC, 15 V DC) with 4 adapters for different countries 1 x Quick guide with digital passport 1 x Instruction manual installation 1 x Screwdriver 1 x Small parts Warranty See www.doorbird.com/es/warranty TECHNICAL SPECIFICATIONS SYSTEM REQUIREMENTS System requirements Mobile device: latest iOS version on iPhone/iPad, latest Android version on smartphone/tablet Internet: connection to the internet via high-speed broadband landline telephone network, DSL, cable or fiber optics, without Socks or Proxy servers Network: Ethernet network, with DHCP Recommended mounting height The camera lens must be at a minimum height of 145 cm (57 in.). Please check the optimal mounting height for your site before beginning installation. VIDEO HDTV camera 1080p, dynamic (VGA HDTV) Lens Hemispherical wide-angle lens 200° (D), 150° (H), 90° (V), rectified, infrared vision mode Night vision Yes, light sensor, light filter automatic infrared, 12 infrared LEDs (850 nm) AUDIO Audio components Speaker and microphone, noise and echo reduction (AEC, ANR) Audio transmission Bidirectional NETWORK Ethernet PoE 802.3af Mode-A, 10/100 Base-T WiFi 2.4 GHz b/g/n Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC -2976]), STM MOTION SENSOR Type Active Coverage angle 80° (H), 50° (V) Range 1 - 6 m (3.3 - 19.7 ft), depending on environment, configurable in sections of 1 m (3.3 ft) . 4D technology. Based on various integrated sensors and algorithms, e.g. e.g. Radio Frequency Energy (ERF) Configuration Via app, e.g. e.g. " Range of application (1 - 6 m / 3.3 - 19.7 ft) " Direction of movement (approaching, moving away, in both directions at the same time) " Individual events (e.g.: switching of a relay automatic notification, SIP call [ audio/video], HTTP notification (s),, " Individual time slots INTEGRATED WIRELESS MODULES WiFi 2.4 GHz Bluetooth Bluetooth Low Energy (BLE) Sensor 24 GHz, can be disabled THIRD PARTY INTEGRATION (DOORBIRD INTEGRATION) Integration from our partners See www .doorbird.com/es/connect API See www.doorbird.com/es/api Simultaneous video transmission One, for event recording ADDITIONAL ACCESSORIES Available separately
