Heatit WiFi7 White RAL 9003 - WiFi thermostat

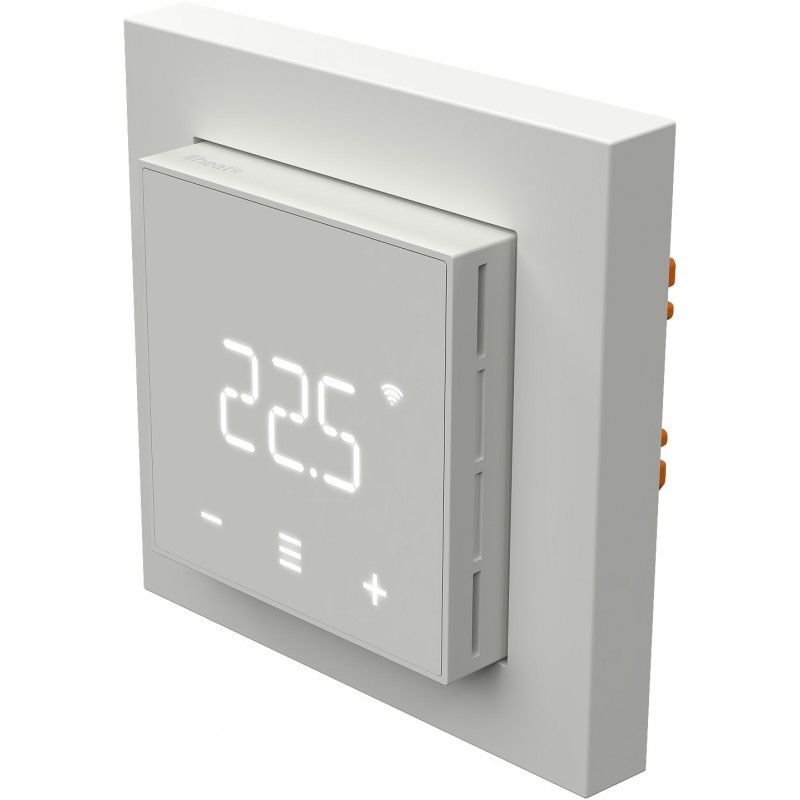

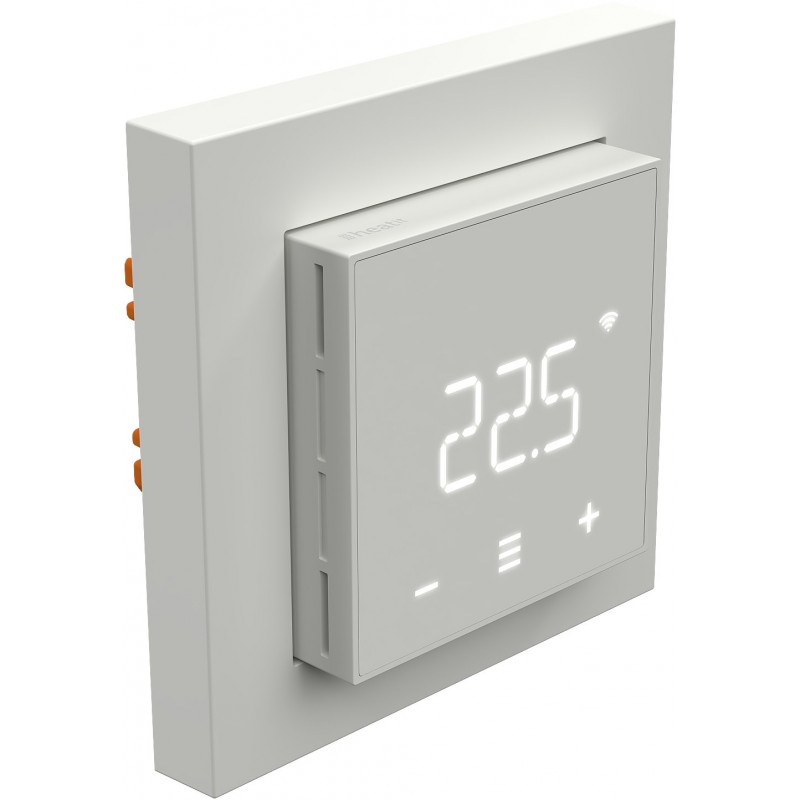

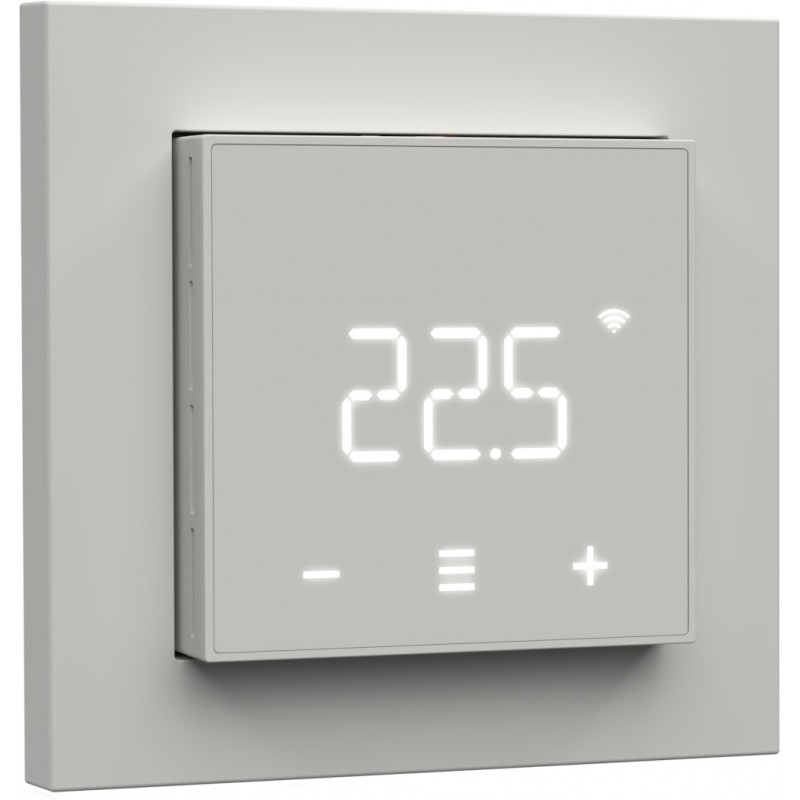

Smart thermostat or relay. The Heatit WiFi7 is an electronic thermostat designed to control electric and water heating systems. The Heatit WiFi7 can also function as a relay, enabling simple on/off switching. The thermostat can be controlled via Wi-Fi or Bluetooth (BLE) using the "MyHeatit" app or with the buttons on the front of the thermostat. The thermostat features an intuitive interface, complies with the Ecodesign Directive, and has a clear and easy-to-read 14-segment LED display.

Heatit WiFi7 has 3 modes: Heat, Cool and Eco.

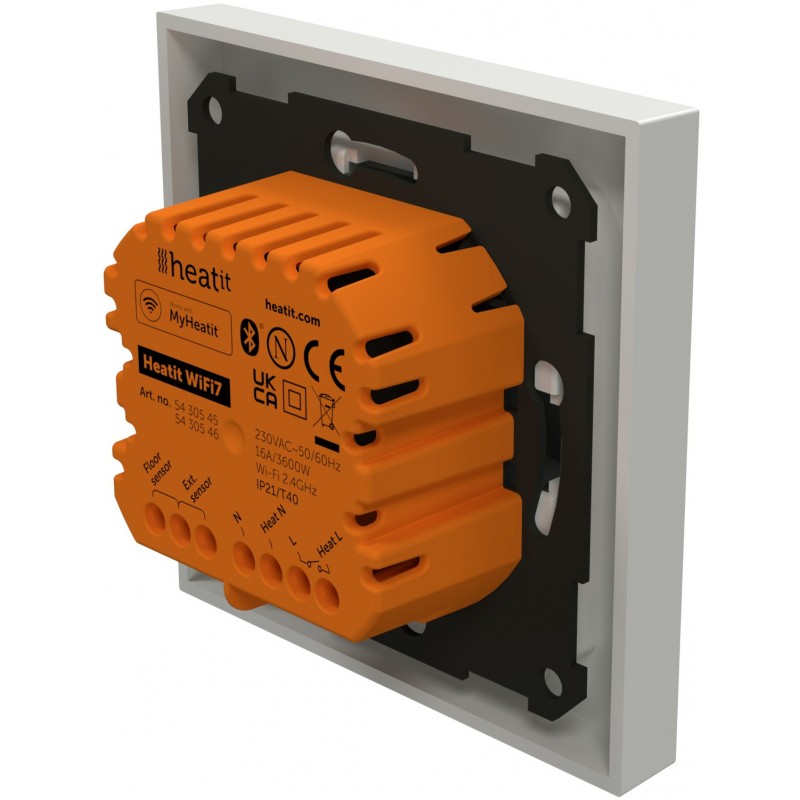

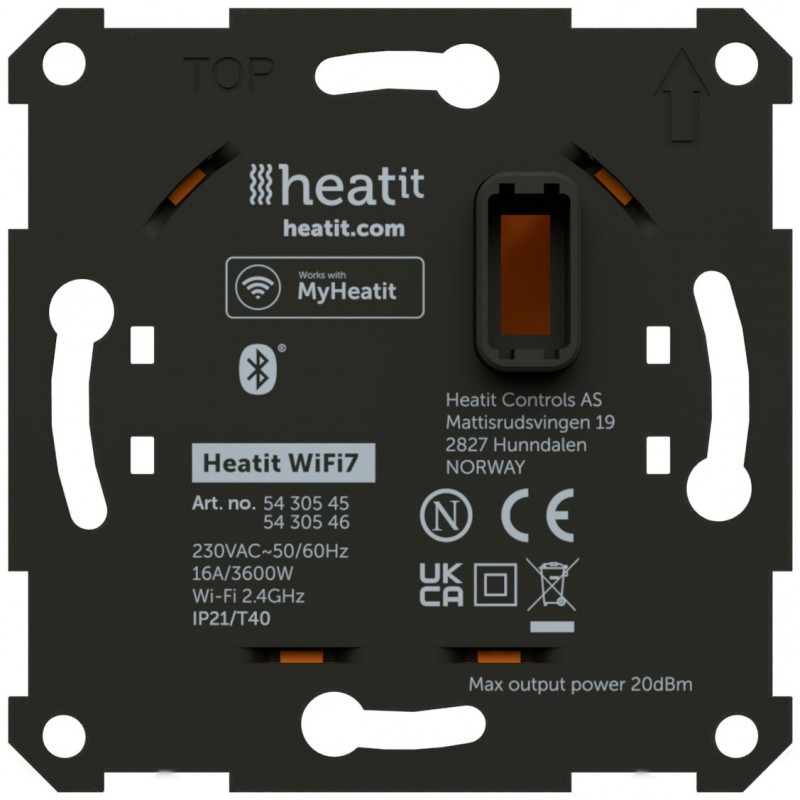

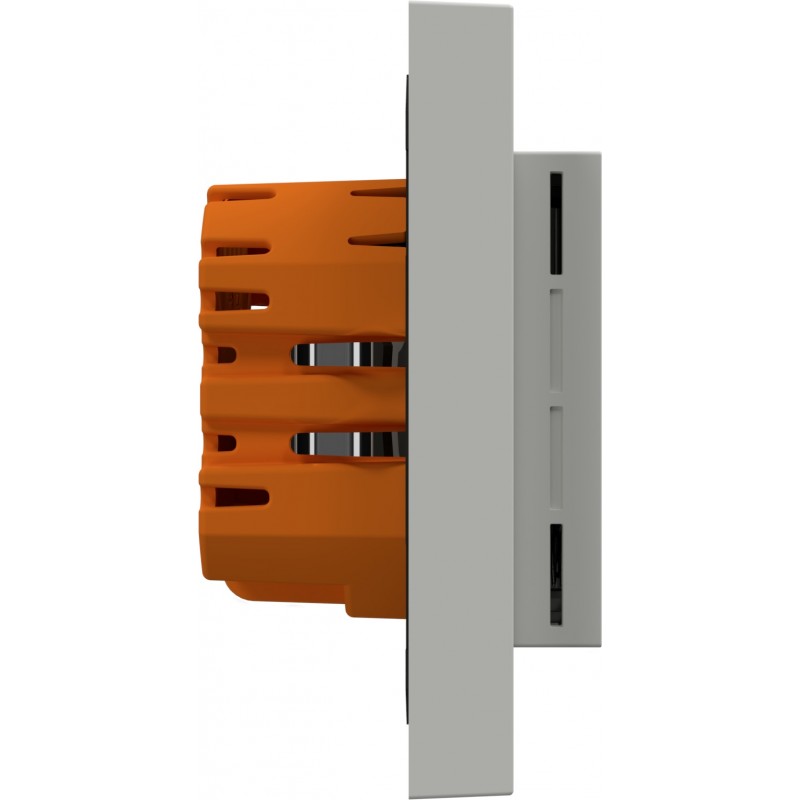

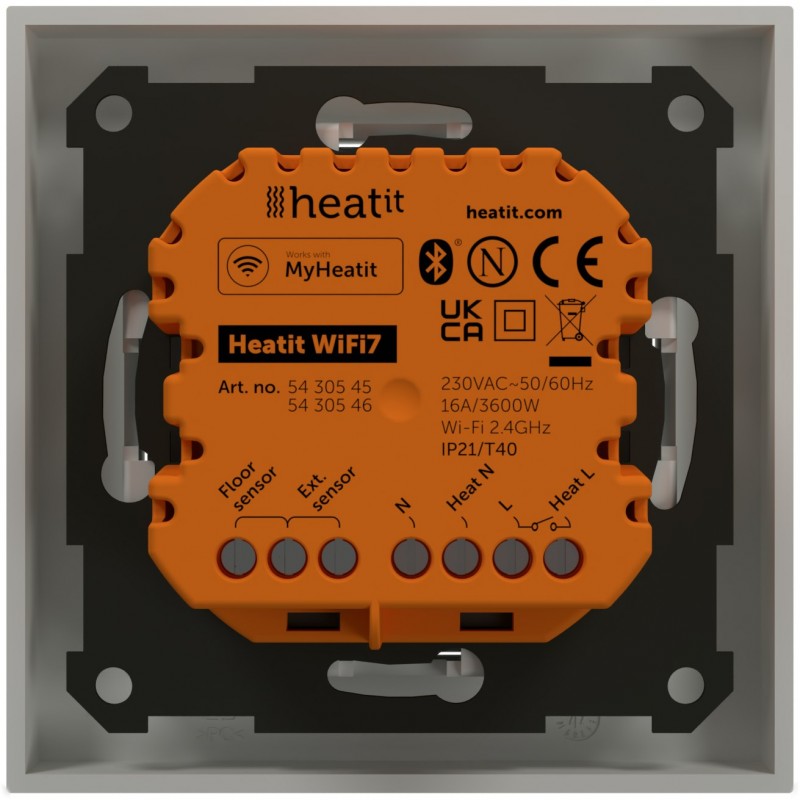

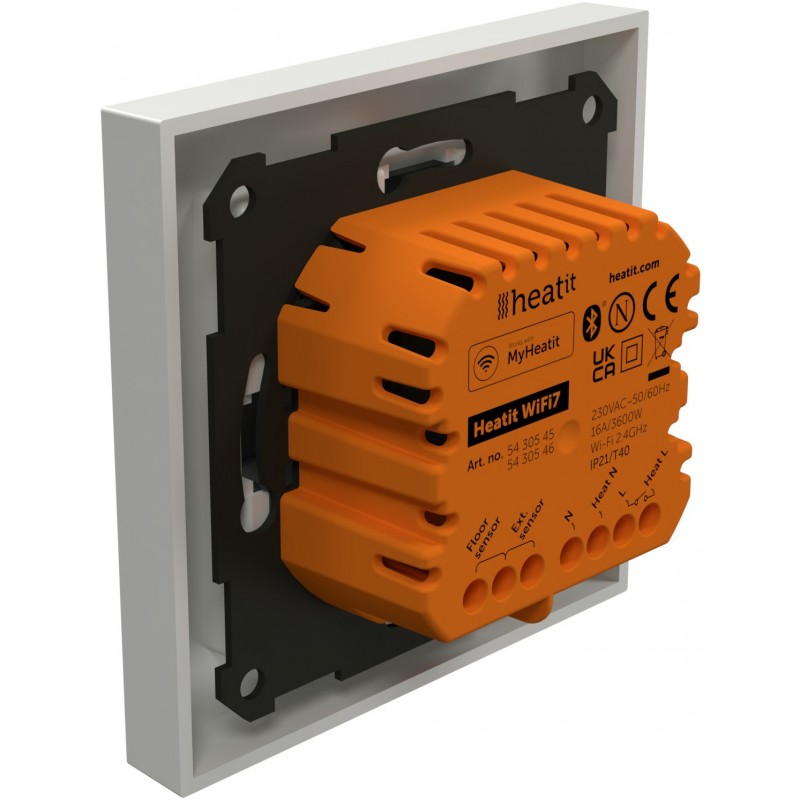

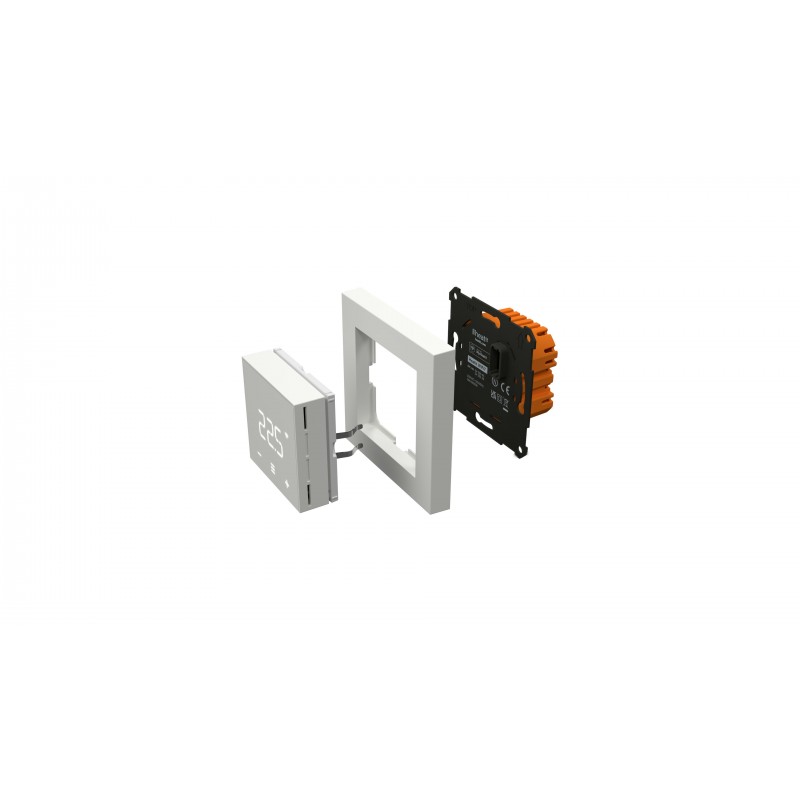

It features a robust metal frame for secure mounting in the junction box. The thermostat has an integrated ambient temperature sensor. Two additional external temperature sensors can also be connected.

All Heatit products with Wi-Fi compatibility and marked with the MyHeatit logo can be controlled via our MyHeatit app. Within the app, you can create profiles such as "Home," "Away," "Night," and "Work" to easily control, monitor, and organize your connected devices, or manage them using a weekly schedule.

The installer configures the system via Wi-Fi. If Wi-Fi is unavailable, the system can be configured via Bluetooth. Once the system is configured, the installer can transfer ownership to the customer. The customer can then add the system to their local Wi-Fi network.

When used with Wi-Fi, the thermostat can communicate via a local API, allowing the user to integrate it with a gateway, server, or local controller that offers this service, without needing to connect to the cloud. The device is also compatible with Amazon Alexa and Google Home.

The thermostat can connect wirelessly to other devices via DirectLink and BlueFusion. It can be controlled by other thermostats and can also control other units.

Heatit WiFi7 features active power measurement, providing real-time information on energy consumption. It also allows manual adjustment of the power measurement value when connected to a contactor.

The device is equipped with ZeroX technology, which ensures the relay switches to 0V when turning on and off. This technology significantly extends the thermostat's lifespan.

Compatibility with electrical loads

The thermostat is specifically designed for resistive loads.

When controlling large resistive, capacitive, or inductive loads, it is essential to use a suitable contactor to protect the thermostat from excessive load and ensure safe operation.

The thermostat can handle a resistive load of up to 16 A/3600 W at 230 VAC. For loads above 13 A, we recommend using a contactor.

The Heatit WiFi7 White RAL 9003 is a state-of-the-art smart thermostat designed to offer precise, efficient, and fully connected control of electric heating systems, especially underfloor heating. Thanks to its WiFi connectivity, it allows you to manage the temperature from anywhere, optimizing energy consumption and improving daily comfort.

One of its major advantages is its local integration with Home Assistant , allowing for complete control without relying on the cloud. This translates into greater privacy, faster response times, and improved stability for the home automation system. It's an ideal solution for advanced users and installers seeking reliable integration within professional automation ecosystems.

The white RAL 9003 design offers a clean and modern aesthetic, perfect for any room. Furthermore, its intuitive interface simplifies both installation and daily use, reducing setup and maintenance time.

The Heatit WiFi7 incorporates advanced features such as weekly scheduling, intelligent temperature control, and energy-saving modes, allowing you to reduce electricity consumption without sacrificing comfort. It is compatible with floor and room sensors, ensuring precise temperature regulation adapted to each space.

Thanks to its stable connectivity and remote control capabilities, this thermostat is ideal for smart home projects, energy efficiency upgrades, and new installations. Its direct integration with home automation systems like Home Assistant makes it a particularly attractive option for those seeking centralized control, advanced automation, and efficient energy management.

If you're looking for a powerful, flexible WiFi thermostat ready for professional home automation, the Heatit WiFi7 White RAL 9003 is a safe bet.
