The Chain Engine for AIR window is a...
The Chain Engine for AIR window is a chain or rack motor to automate the opening of skylights and windows both inside and outside . 250 / 380mm stroke (configurable stroke length by wiring). Compatible with Z-Wave motor control micromodules such as Fibaro, Qubino, Widom, etc.
Warning: Last items in stock!
Chain motor for electric actuation window . Wired chain window motor for opening upper or lower casement windows. Maneuver through a switch incorporated in the actuator itself, ideal for inaccessible windows or for greater comfort in the home.
The electric chain motor is a well-thought-out and elegant solution for direct exposure of interior opening, exterior opening and swinging leaves, roof windows and skylights. They can be used twice for daily aeration and ventilation, for smoke and heat extraction safely and quickly and for this type of tasks, automating the opening of windows.

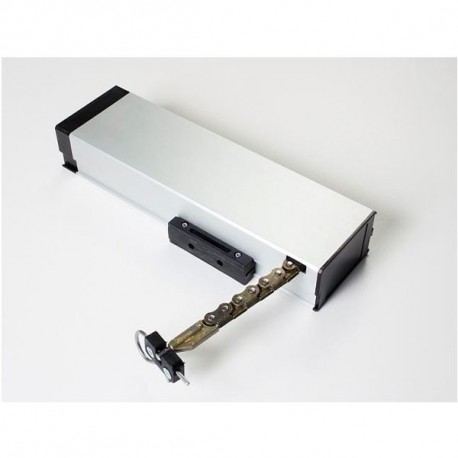

The AIR Window Chain Motor is anodized aluminum electric with linear rack movement equipped with an electronic limit switch, degree of protection IP 65, with the possibility of parallel connection, self-noise condenser, equipped with anodized aluminum stirrup and frame connection Zinc plated steel The zipper is made of galvanized C43 steel with a 10x10 square section.
The box containing the motor apparatus is made of anti-shock ABS, consisting of two pieces with gaskets. Equipped with power cable connected directly inside the actuator. Upon request: stainless steel zipper. Many stirrups for different types of employment.
The AIRE Chain Engine is a Chain Engine to automate the opening of skylights and Interior or Exterior windows . 250 / 380mm stroke
- Stroke: 250/380 mm
- Dovetail shaped motor support for faster
- Removable electrical connector
- Quick release for manual window opening
- Minimum window height of 500 mm for 280 mm of stroke and 800 mm for a stroke of 380 mm
|ApriLineare AIR 220V|
|Feeding||230 Vac ± 10%|
|Electric connection||3 wires + Earth|
|Race||Selectable 250 mm / 380 mm|
|Pushing force|| 180 N (for 280 mm) |
90 N (for 380 mm)
|Tractive force||~ 40 mm / s|
