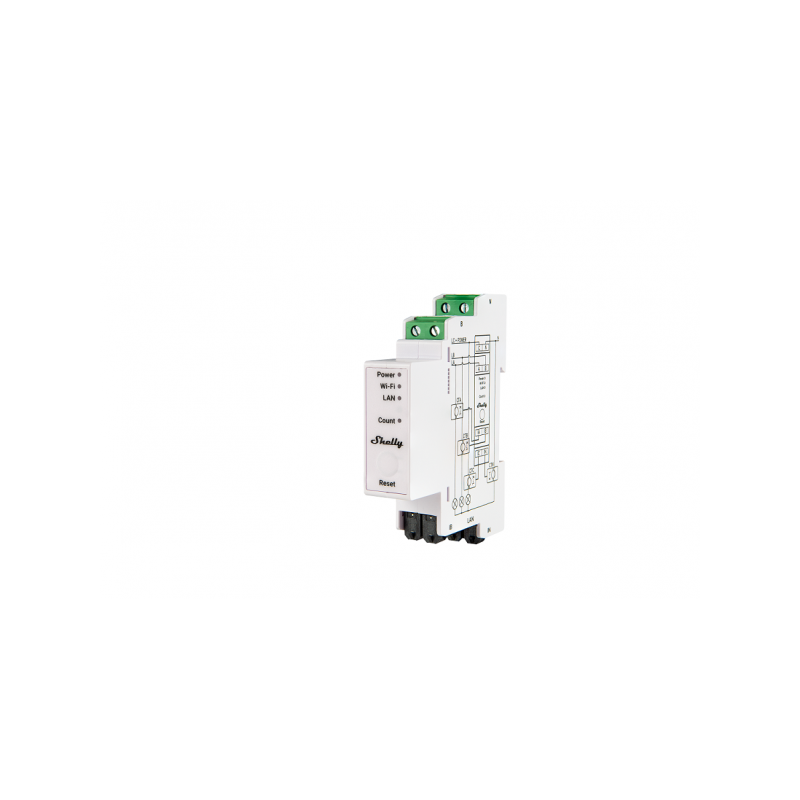

Shelly Pro 3EM - Three-phase electricity consumption meter for DIN rail

PRO3EM

New

Three-phase energy meter to be installed on a DIN rail.
Shelly Pro 3EM is your device if you need to monitor the consumption or production of your three-phase electrical installation or any electrical appliance, electrical circuit and office equipment

More details

Out of stock

145,08 €

More info

State-of-the-art DIN rail mountable three-phase energy meter
Shelly Pro 3EM is a DIN rail mountable three-phase energy meter. Enhanced with all the flexibility of gen2 firmware and LAN connectivity, it offers professional integrators additional options for end-customer solutions. Shelly Pro 3EM reports accumulated energy as well as instantaneous voltage, current and power factor per phase in real time.

4-quadrant measurement with multiple connection types
Accuracy Class B (IEC 62053-21) of active energy
Prepared for photovoltaic
Phase sequence error detection* (optional)
Pulse optical indication of energy usage
Measurement accuracy t> 1%
Stores data in non-volatile memory that can be recalled for up to 60 days at 1-minute intervals

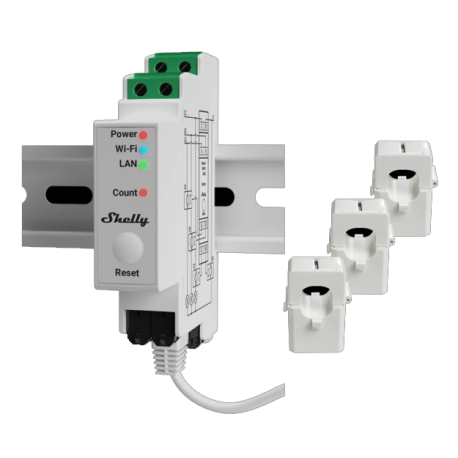

Package includes 3 120A current transformers

WHY SHELLY PRO 3EM?
State-of-the-art three-phase energy meter
Shelly Pro 3EM is a DIN mount three phase energy meter with Wi-Fi, Bluetooth and LAN connectivity. With an active energy measurement accuracy of 1%, Shelly Pro 3EM can be used to monitor the consumption of any individual home appliance, electrical circuit and office equipment. It has 60 days of historical data on the device with a 1 minute resolution for each phase. In addition, its scripting functionalities allow the execution of complex scenes and provide more extensive monitoring capabilities.

FUNCTIONALITIES

4 quadrant measurement

Measurement of types of capacitive and inductive load of imported and exported active energies.

Class B accuracy (active energy)

Shelly Pro 3EM has a measurement accuracy of 1%.

Supports MODBUS

It allows an easy and fast implementation in existing industrial installations.

Wi-Fi, LAN, and Bluetooth connectivity

Simultaneous use of Ethernet and Wi-Fi. Supports MQTT, incoming and outgoing WebSocket, UDP, and mTLS.

feeding control

Monitor single-phase electrical systems with up to 3 points simultaneously. Quick notifications and at least 60 days of 1-minute log storage.

Scripting Features

Shelly Pro 3PM fully supports mjS scripting, allowing you to create more features and functionality.

CHARACTERISTICS
Industrial level security
Shelly Pro 3EM supports mTLS for secure outbound MQTT, HTTP, and WebSockets. Its industrial-grade security allows direct connections to your cloud infrastructure, reducing the cost of deploying complex networks and VPNs.

Infinite applications of use

USE CASES
Industrial facilities
Shelly Pro 3EM supports MODBUS for voltage, current, power and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for a custom implementation that can report as fast as every 100ms to your infrastructure.

USE CASES
Two-way monitoring of energy consumption
Take control of your home, office or factory and avoid additional expenses or voltage drops that can damage your devices and devices. Shelly Pro 3EM can calculate bi-directional consumption: energy produced and used for each of the three phases. The apparatus can be configured to measure three separate circuits of a single phase electrical network. Visualize the quality of your electrical network in terms of active power, reactive power, voltage and power factor.

USE CASES
local control
Thanks to Shelly Pro 3EM's scripting and webhooks capabilities, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact EV heating, cooling, or charging parameters based on PV output and have your devices automatically reduce energy use. All this without using the cloud.

USE CASES
Monitoring and control of solar panels
Control how much energy your solar panels or wind turbines generate and save effortlessly. Shelly Pro 3EM provides real-time information on the efficiency of the solar and wind power system, as well as historical data on how much power has been generated and consumed every minute for the last 60 days. This helps you control the flow of energy, getting the most out of your solar panels and wind turbines. To take it a step further, connect the Shelly Pro 3EM to your other Shelly devices and create scenes to trigger desired actions like turning off appliances or sounding alarms.

SMART HOME CONTROL, PERFECTED.
Shelly Cloud App

PHYSICAL
Current transformer: 3 x CT120 included in the package
Size (height x width x depth): 94x19x69 ±0.5mm / 3.70x0.75x2.71 ±0.02 inches
Weight: 62 ± 1 g / 2.19 ± 0.05 ounces
Mounting: DIN rail
max torque of screw terminals: 0.4 Nm / 4.43 lbs
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and corded lugs)
Stripped conductor length: 6 to 7 mm / 0.24 to 0.28 inches
Shell material: The plastic
ENVIRONMENTAL
Room temperature: -20°C to 40°C / -5°F to 105°F
Humidity: 30% to 70% RH
max altitude: 2000m / 6562ft
ELECTRIC
AC supply voltage: 110 - 240V, 50/60Hz
DC supply voltage: N/A
Power Consumption: <3W
SENSORS, METERS
Temperature sensor: Yeah
Voltmeters (RMS for each phase): 100 - 260V
Voltmeters Accuracy: ±1%
Ammeters (RMS via CT for each phase and the Neutral): 0 - 120A
Ammeters Accuracy: ±1% (2 - 120A), ±2% (1 - 2A), ±5% (0 - 1A)
Power and energy meters: active and apparent power; Active and apparent energy; power factor; Fundamental active and fundamental reactive energy
Measurement data storage: At least 60 days of 1-minute data resolution
Data export: CSV for registered PQ values, export in JSON format via RPC
RADIO
wifi protocol: 802.11 b/g/n
Wi-Fi range: Up to 100ft/30m indoors and 160ft/50m outdoors (depends on local conditions)
Bluetooth protocol: 4.2
CPU: ESP32-D0WDQ6
Flash: 16MB
FIRMWARE CAPABILITIES
Webhooks (URL actions): 20 with 5 URLs per hook
Scripts: mJS
MQTT: Yeah
COAP: No
