Fibaro -Double Switch 2- Micromodulo relé interruptor doble On / Off Z-Wave+ con medicion de consumo

FGS-223

Nuevo

El relé / interruptor en formato micromódulo Fibaro FGS-223 "Double Switch 2" le permitirá controlar dos luces o dos dispositivos remotos al tiempo que permite conservar el interruptor convencional existente.

Más detalles

En Stock - Envío inmediato

63,89 €

-20%

79,86 €

Características técnicas

Tecnología Z-Wave Plus
Característica Medición de Consumo

Descripción

El nuevo micromódulo interruptor / relé doble de Fibaro,  Fibaro FGS-223 "Double Switch 2" disponible como un interruptor doble Z-Wave, fue diseñado para activar y desactivar los dispositivos o cargas eléctricos. Gracias a su pequeño tamaño se puede montar en cajas de conexión o carcasas de dispositivos en el interior. El módulo se controla ya sea a través de la red Z-Wave o mediante un simple interruptor. Dispone de función de medida de potencia y consumo de energía de uso que le permite controlar y reducir sus facturas de electricidad. Conecte su Fibaro FGS-223 "Double Switch 2" en el sistema junto a otros dispositivos para disfrutar de las posibilidades casi infinitas!

Al tratarse de 1 relé doble dispone de 2 salidas:

  • 6,5A (1.560W a 240V) máx. por salida con carga resistiva.
  • 10A (2.400W a 240V) máx. por salida TOTAL con carga resistiva.

Dispone de un mecanismo de activación de escenas integrado

clases de comunicación y notificación de seguridad
menú de configuración con un diodo
Última generación Z-Wave con chip de la serie 500
Compatible Z-Wave Plus

Realiza funciones de repetidor Z-Wave
Mide energía y potencia de los dispositivos conectados
Soporta el modo seguro (Red de Seguridad Z-Wave) con cifrado AES-128
Un complejo sistema de control para cada canal
Un complejo sistema de activación de escena para cada canal (manejo de la escena)
1 a 3 pulsaciones y manteniendo la tecla pulsada se pueden asignar a cuatro acciones diferentes
medición de energía muy precisa +/- 1% de potencia por encima de 5W
Notificaciones inteligentes
Conexiones mejoradas
menú de configuración sencillo
Dispone de testigo de prueba de cobertura de la red Z-Wave
Actualizaciones de software*
compatibilidad con la certificación confirmada por FCC, DEKRA, Z-Wave

Comprobacion cobertura Z-Wave

Atención:

Tenga en cuenta que este módulo requiere de NEUTRO para operar. La salida no es libre de potencial, lo que no permite controlar un contacto seco o cargar otra tensión de alimentación de la entrada.

REPETIMOS: no puede ser utilizado en un esquema de conexión del tipo "contacto seco", como podía hacerlo su predecesor el Fibaro FGS-222.

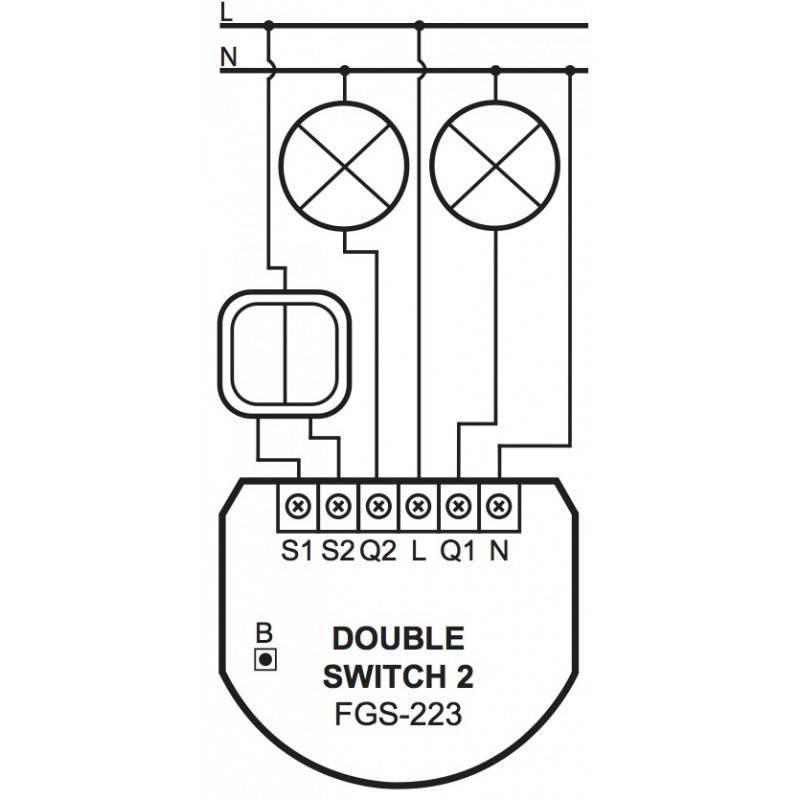

Esquema de Cableado del relé Fibaro FGS-223

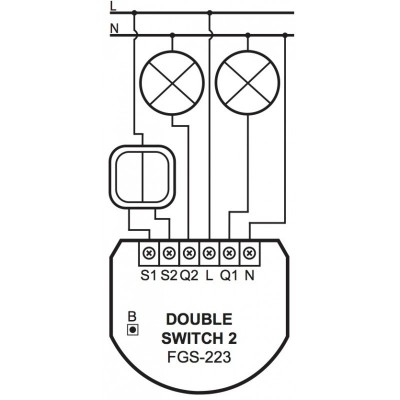

Imagen de cableado tanto con 1 como con 2 circuitos

Imagen de cableado tanto con 1 como con 2 circuitos

Esquema de Conexión para controlar 1 zona de iluminación con "llaves conmutadas":

Esquema Conexión Fibaro FGS-223 conmutada

Resumen:

2 salidas:

  • 6,5A (1560W a 240V) máx. por salida con carga resistiva.
  • 10A (2400W a 240V) máx. por salida TOTAL con carga resistiva.


la medición precisa de consumo (+/- 1% de 5W).
Z-Wave + 500 Series (mejor comunicación a distancia).
comunicaciones seguras con el cifrado AES-128.
Capacidad de desencadenar escenas de domótica * a través de las entradas S1 y S2 (4 posibles escenas por botón).
función de repetidor para extender la red Z-Wave.
Configuración con función de menú interactivo y probador de red Z-Wave con LED

Tamaño rele fibaro



Z-Wave Plus - Fibaro ZW5



Información Ampliada Z-Wave (Inglés)

Nombre: FIBARO Double Switch 2
Fabricante:FIBARO
Identificador:FGS-223
Número de Certificación Z-Wave:ZC10-18015920
Plataforma Hardware:ZM5101
FLiRS:NO
Tipo de Role:Always On Slave
Descripción Corta:FIBARO Double Switch 2 is designed to turn two electrical devices on and off and to measure their power and energy consumption.
Descripción:The remotely operated FIBARO Double Switch 2 is designed to turn two electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Double Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.

Descargue el manual desde aquí.

Grupo
Max Nodos
Descripción
1
1
“Lifeline” reports the device status and allows for assigning single device only (main controller by default).
2
5
“On/Off (S1)” is assigned to switch connected to the S1 terminal (uses Basic command class).
3
5
“Dimmer (S1)” is assigned to switch connected to the S1 terminal (uses Switch Multilevel command class).
4
5
“On/Off (S2)” is assigned to switch connected to the S2 terminal (uses Basic command class).
5
5
“Dimmer (S2)” is assigned to switch connected to the S2 terminal (uses Switch Multilevel command class).
Número
Tamaño (Bytes)
Valor por Defecto
Nombre
Descripción
10
1
0
First channel - operating mode
This parameter allows to choose operating for the 1st channel controlled by the S1 switch. 0 - standard operation 1 - delay ON function 2 - delay OFF function 3 - auto ON function 4 - auto OFF function 5 - flash function
11
1
0
First channel - reaction to switch for delay/auto ON/OFF modes
This parameter determines how the device in timed mode reacts to pushing the switch connected to the S1 terminal. 0 - cancel mode and set target state 1 - no reaction to switch - mode runs until it ends 2 - reset timer - start counting from the beginning
12
2
50
First channel - time parameter for delay/auto ON/OFF modes
This parameter allows to set time parameter used in timed modes. 0 (0.1s), 1-32000 (1-32000s, 1s step) - time parameter
13
2
5
First channel - pulse time for flashing mode
This parameter allows to set pulse time used in flashing mode. 1-32000 (0.1-3200.0s, 0.1s step) - time parameter
15
1
0
Second channel - operating mode
This parameter allows to choose operating for the 1st channel controlled by the S2 switch. 0 - standard operation 1 - delay ON function 2 - delay OFF function 3 - auto ON function 4 - auto OFF function 5 - flash function
16
1
0
Second channel - reaction to switch for delay/auto ON/OFF modes
This parameter determines how the device in timed mode reacts to pushing the switch connected to the S2 terminal. 0 - cancel mode and set target state 1 - no reaction to switch - mode runs until it ends 2 - reset timer - start counting from the beginning
17
2
50
Second channel - time parameter for delay/auto ON/OFF modes
This parameter allows to set time parameter used in timed modes. 0 (0.1s), 1-32000 (1-32000s, 1s step) - time parameter
18
2
5
Second channel - pulse time for flashing mode
This parameter allows to set pulse time used in flashing mode. 1-32000 (0.1-3200.0s, 0.1s step) - time parameter
20
1
2
Switch type
This parameter as what type the device should treat the switch connectedto the S1 and S2 terminals. 0 - momentary switch 1 - toggle switch (contact closed - ON, contact opened - OFF) 2 - toggle switch (device changes status when switch changes status)
21
1
0
Flashing mode - reports
This parameter allows to define if the device sends reports during the flashing mode. 0 - the device does not send reports 1 - the device sends reports
27
1
15
Associations in Z-Wave network security mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline” group. 1 - 2nd group sent as secure 2 - 3rd group sent as secure 4 - 4th group sent as secure 8 - 5th group sent as secure NOTE Parameter 27 values may be combined, e.g. 1+2=3 means that 2nd & 3rd groups are sent as secure.
28
1
0
S1 switch - scenes sent
This parameter determines which actions result in sending scene assigned to them. 1 - Key pressed 1 time 2 - Key pressed 2 time 4 - Key pressed 3 time 8 - Key Hold Down and Key Released NOTE Parameter 28 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.
29
1
0
S2 switch - scenes sent
This parameter determines which actions result in sending scene assigned to them. 1 - Key pressed 1 time 2 - Key pressed 2 time 4 - Key pressed 3 time 8 - Key Hold Down and Key Released NOTE Parameter 29 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.
30
1
0
S1 switch - associations sent to 2nd and 3rd association groups
This parameter determines which actions result in sending commands to devices associated in 2nd and 3rd association group. All actions are active by default. 1 - ignore turning ON with 1 click of the switch 2 - ignore turning OFF with 1 click of the switch 4 - ignore holding and releasing the switch* 8 - ignore double click of the switch** NOTE Parameter 30 values may be combined, e.g. 1+2=3 means that associations for turningON and OFF are not sent.
32
2
0
S1 switch - Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group. 0-255 - sent value 0 - turning off associated devices 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on NOTE Setting parameters 31-33, 36-38 to appropriate value should result in: 0 - turning off associated devices 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on
33
2
99
S1 switch - Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group. 0-255 - sent value
35
1
0
S2 switch - associations sent to 2nd and 3rd association groups
This parameter determines which actions result in sending commands to devices associated in 2nd and 3rd association group. All actions are active by default. 1 - ignore turning on with 1 click of the switch 2 - ignore turning off with 1 click of the switch 4 - ignore holding and releasing the switch* 8 - ignore double click of the switch** NOTE Parameter 35 values may be combined, e.g. 1+2=3 means that associations for turning ON and OFF are not sent. NOTE *Hold and release is inactive when parameter 20 is set to 1 or 2. **Double click is inactive when parameter 20 is set to 1.
36
2
255
S2 switch - Switch ON value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group. 0-255 - sent value 0 - turning off associated devices 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on
37
2
0
S2 switch - Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group. 0-255 - sent value 0 - turning off associated devices 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on
38
2
99
S2 switch - Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group. 0-255 - sent value 0 - turning off associated devices 1-99 - forcing level of associated devices 255 - setting associated devices to the last remembered state or turning them on
40
1
3
Reaction to General Alarm
This parameter determines how the device will react to General Alarm frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame
41
1
2
Reaction to Flood Alarm
This parameter determines how the device will react to Flood Alarm frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame
42
1
3
Reaction to CO/CO2/Smoke Alarm
This parameter determines how the device will react to CO, CO2 or Smoke frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame
43
1
1
Reaction to Heat Alarm
This parameter determines how the device will react to Heat Alarm frame. 0 - alarm frame is ignored 1 - turn ON after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame
44
2
600
Flashing alarm duration
This parameter allows to set duration of flashing alarm mode. 1-32000 (1-32000s, 1s step) - duration
50
1
20
First channel - power reports
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller. 0 - reports are disabled 1-100 (1-100%) - change in power
51
1
10
First channel - minimal time between power reports
This parameter determines minimum time that has to elapse before sending new power report to the main controller. 0 - periodic reports are disabled 1-120 (1-120s) - report interval
53
2
100
First channel - energy reports
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. 0 - reports are disabled 1-32000 (1-32000Wh) - change in energy
54
1
20
Second channel - power reports
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller. 0 - reports are disabled 1-100 (1-100%) - change in power
55
1
10
Second channel - minimal time between power reports
This parameter determines minimum time that has to elapse before sending new power report to the main controller. 0 - periodic reports are disabled 1-120 (1-120s) - report interval
57
2
100
Second channel - energy reports
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. 0 - reports are disabled 1-32000 (1-32000Wh) - change in energy
58
2
3600
Periodic power reports
This parameter determines in what time intervals the periodic power reports are sent to the main controller. 0 - periodic reports are disabled 1-32000 (1-32000s) - report interval
59
2
3600
Periodic energy reports
This parameter determines in what time intervals the periodic energy reports are sent to the main controller. 0 - periodic reports are disabled 1-32000 (1-32000s) - report interval
60
1
0
Measuring energy consumed by the device itself
This parameter determines whether energy metering should include the amount of energy consumed by the device itself. Results are being added to energy reports for first endpoint. 0 - function inactive 1 - function activate
9
1
1
Restore state after power failure
This parameter determines if the device will return to state prior to the power failure after power is restored. 0 - the device does not save the state prior to the power failure and returns to „off” position 1 - the device restores its state prior to the power failure
Basic
COMMAND_CLASS_BASIC
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Switch Multilevel V3
COMMAND_CLASS_SWITCH_MULTILEVEL_V3
Application Status
COMMAND_CLASS_APPLICATION_STATUS
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic
COMMAND_CLASS_BASIC
Central Scene V2
COMMAND_CLASS_CENTRAL_SCENE_V2
Configuration
COMMAND_CLASS_CONFIGURATION
CRC16 Encapsulation
COMMAND_CLASS_CRC_16_ENCAP
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V3
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Meter V3
COMMAND_CLASS_METER_V3
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Multi-Channel V4
COMMAND_CLASS_MULTI_CHANNEL_V4
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Powerlevel
COMMAND_CLASS_POWERLEVEL
Protection V2
COMMAND_CLASS_PROTECTION_V2
Security S0
COMMAND_CLASS_SECURITY
Switch Binary
COMMAND_CLASS_SWITCH_BINARY
Version V2
COMMAND_CLASS_VERSION_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Additional Special Features
Z-Wave Plus communication protocol

Active power and energy metering functionality

Z-Wave range tester

LED diode

Inclusion
1) Switch off the mains voltage (disable the fuse).

2) Make sure the Switch 2 is within the direct range of your Z-Wave controller.

3) Connect the device in accordance with one of the diagrams included in the manual.

4) After verifying correctness of the connection switch on the mains voltage.

5) Identify the S1 switch or the B-button (located on the device’s housing).

6) Set the main controller in (security/non-security) add mode (see the controller’s manual).

7) Quickly, three times press the S1 switch or the B-button.

8) Wait for the adding process to end.

9) Successful adding will be confirmed by the Z-Wave controller’s message.
Exclusion
1) Make sure the Switch 2 is within the direct range of your Z-Wave controller.

2) Identify the S1 switch or the B-button (located on the device’s housing).

3) Set the main controller in remove mode (see the controller’s manual).

4) Quickly, three times press the S1 switch or the B-button.

5) Wait for the removing process to end.

6) Successful removing will be confirmed by the Z-Wave controller’s message.
Device Wake-Up
The FIBARO Double Switch 2 is powered with the mains voltage so it is always awake.
Factory Reset
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device:



1) Switch off the mains voltage (disable the fuse).

2) Remove the Switch 2 from the wall switch box.

3) Switch on the mains voltage.

4) Press and hold the B-button to enter the menu.

5) Wait for the visual LED indicator to glow yellow.

6) Quickly release and click the B-button again.

7) After few seconds the device will be restarted, which is signalled with the red LED indicator colour.



Use reset procedure only if the primary controller is missing or inoperable.

Switch Load Capacity Watts
The amount of switch load energy the product is rated for in Watts
Color
If the product is only available in one color, pick the color from the list.
Switch Load Capacity Current
The amount of switch load energy the product is rated for in Amps
Supported Meter Type
Indicate which type of metering is supported by the device.
Supported Notification Types
Select the Notification Types that the product handles (controllers), or sends (slaves).



Opiniones

grado
25/11/2021

Domtizar luces

Buen rele para domotizar luces encendido/apagado. Facil de parametrizar para pulsador con los parametros Z-Wave

grado
29/10/2019

Envio rapido

Asesoramiento correcto. Envio rapido y bien.

¡Escriba su opinión!

Escribe tu opinión

Fibaro -Double Switch 2- Micromodulo relé interruptor doble On / Off Z-Wave+ con medicion de consumo

Fibaro -Double Switch 2- Micromodulo relé interruptor doble On / Off Z-Wave+ con medicion de consumo

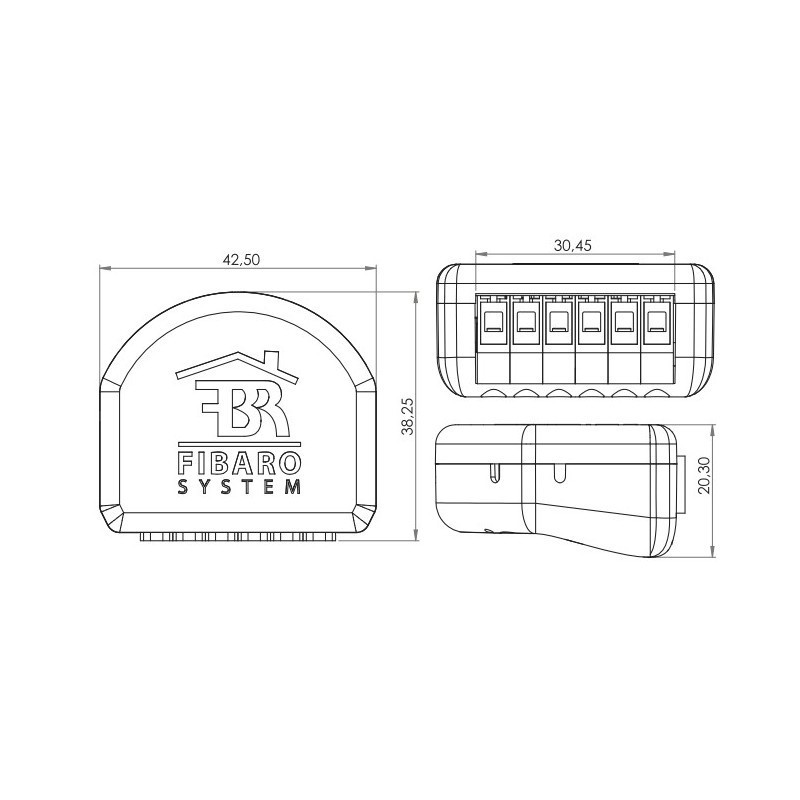

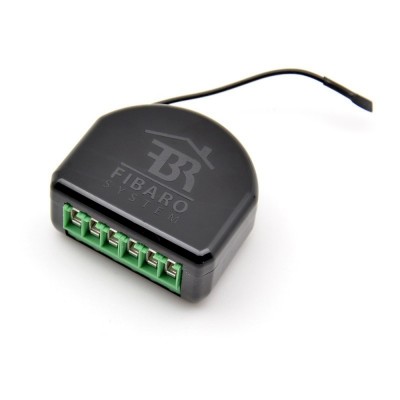

El relé / interruptor en formato micromódulo Fibaro FGS-223 "Double Switch 2" le permitirá controlar dos luces o dos dispositivos remotos al tiempo que permite conservar el interruptor convencional existente.

30 otros productos de la misma categoría:

Los clientes que compraron este producto también han comprado...
