Aeotec Home Energy Meter 8 - tres pinzas 60A

AEOEZWA046C3A60

Nuevo

Monitorización energética, apta para todos los hogares con el avanzado medidor de energía doméstico. Monitorice y optimice sin problemas el consumo y la producción de energía en tiempo real, lo que garantiza un ahorro energético significativo. Obtenga información instantánea, establezca objetivos de ahorro energético y reduzca de forma eficiente facturas.

Más detalles

En Stock - Envío inmediato

96,90 €

Características técnicas

Tecnología Domótica Z-Wave Long Range

Descripción

Aeotec Home Energy Meter 8: monitorización inteligente del consumo energético de tu hogar.

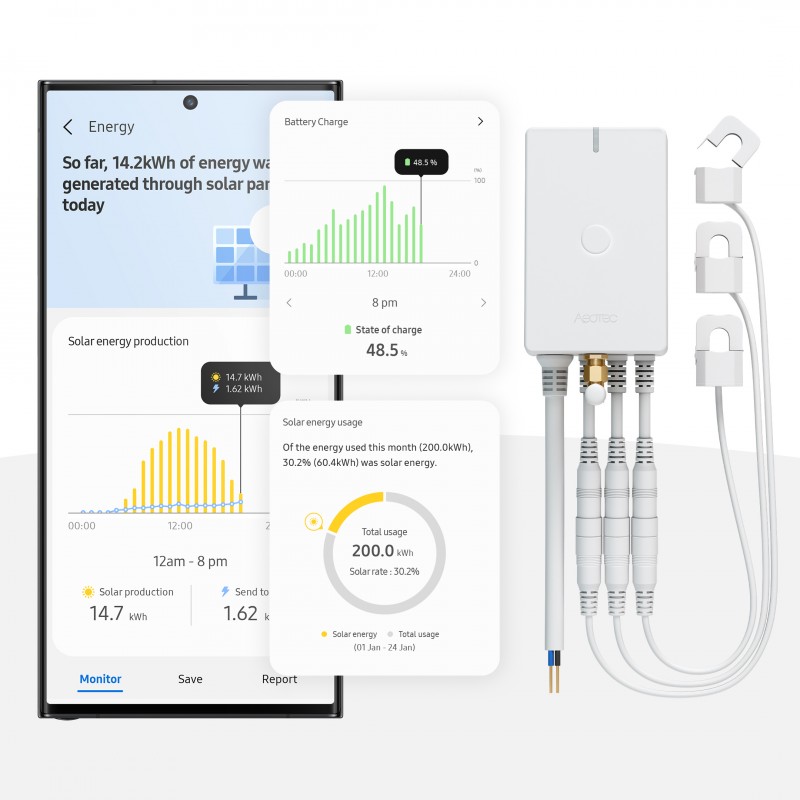

Con el Aeotec Home Energy Meter 8 (Z-Wave 800), puedes optimizar tu consumo energético en tiempo real y reducir de forma eficiente tus gastos de electricidad. Este dispositivo mide con precisión tu consumo eléctrico y el exceso de energía de los paneles solares, lo que garantiza un uso inteligente de la energía. Gracias a la integración con SmartThings, puedes monitorizar tu consumo energético en cualquier momento y desde cualquier lugar.

Características destacadas:

Monitorización en tiempo real del consumo y la producción de energía.

Alta precisión de medición (99 %) para un análisis preciso.

Compatible con sistemas trifásicos, ideal para hogares con paneles solares.

Integración con SmartThings para un control sencillo a través de tu Smart Home Hub.

Conexión Z-Wave con cifrado AES-128 para una máxima seguridad de los datos.

Resistente a la intemperie y duradero, apto para uso en exteriores.

Características:

Eficiencia energética maximizada mediante el uso optimizado de la energía solar autogenerada.

Monitorización y control remotos a través de la aplicación SmartThings.

Ahorro energético automatizado mediante una gestión inteligente del consumo.

Alcance inalámbrico ampliado con Z-Wave Gen8 (hasta 300 m).

Voltaje de entrada: 230 V~, 50 Hz, 10 mA.

Rango de voltaje medible: de 180 V~ a 260 V~.

Rango de corriente medible: de 0 A a 60 A.

Número de pinzas: 3 (para sistemas trifásicos)

Estándar inalámbrico: Z-Wave 800 (868 MHz)

Cifrado de seguridad: AES-128

Resistencia a la intemperie: alta tolerancia a la humedad y al frío

Alcance: hasta 300 metros (campo abierto)

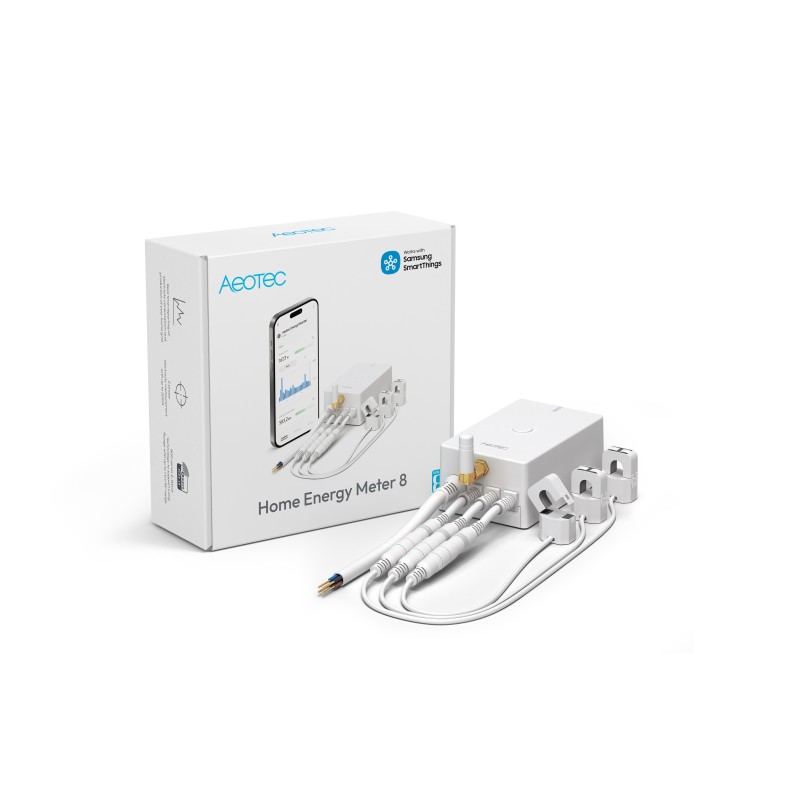

Contenido del envío: medidor de energía doméstica Aeotec 8, 3 pinzas amperimétricas, accesorios de montaje, manual de usuario

Technical details

Article Dimensions (WxHxL) 53 x 60 x 41 mm
Package Dimensions (WxHxL) 19 x 17 x 7 mm
Article net weight 0.433 Kg
Article gross weight 0.566 Kg
Z-Wave S2
IP-Rating IP44

Información Ampliada Z-Wave (Inglés)

Nombre: Home Energy Meter 8
Fabricante:Aeotec
Identificador:ZWA046-C_1P
Número de Certificación Z-Wave:ZC14-24070453
Plataforma Hardware:EFR32ZG23A
FLiRS:NO
Tipo de Role:Always On End Node
Descripción Corta:Aeotec Home Energy Meter 8
Descripción:Aeotec Home Energy Meter 8
Grupo
Max Nodos
Descripción
1
5
Número
Tamaño (Bytes)
Valor por Defecto
Nombre
Descripción
10
2
50
export watt threshold(Phase B)
export watt threshold(Phase B)
100
1
0
Set 101-106 to default
Set 101-106 to default
101
4
50529027
Automatic Report list 1 (Import)
Checklist 1 for automatic timed report
102
4
202116108
Automatic Report list 2 (Import)
Checklist 2 for automatic timed report
103
4
4042322160
Automatic Report list 3 (Import)
Checklist 3 for automatic timed report
104
4
50529027
Automatic Report list 1 (Export)
Checklist 1 for automatic timed report
105
4
202116108
Automatic Report list 2 (Export)
Checklist 2 for automatic timed report
106
4
4042322160
Automatic Report list 3 (Export)
Checklist 3 for automatic timed report
11
2
50
export watt threshold(Phase C)
export watt threshold(Phase C)
110
1
0
Set 111-116 to default
Set 111-116 to default
111
4
3600
Automatic list 1 Interval Time (Import)
Timing detection time of Checklist 1
112
4
7200
Automatic list 2 Interval Time (Import)
Timing detection time of Checklist 2
113
4
7200
Automatic list 3 Interval Time (Import)
Timing detection time of Checklist 3
114
4
3600
Automatic list 1 Interval Time (Export)
Timing detection time of Checklist 1
115
4
7200
Automatic list 2 Interval Time (Export)
Timing detection time of Checklist 2
116
4
7200
Automatic list 3 Interval Time (Export)
Timing detection time of Checklist 3
12
1
20
import watt percentage threshold(Total)
import watt percentage threshold(Total)
13
1
20
import watt percentage threshold(Phase A)
import watt percentage threshold(Phase A)
14
1
20
import watt percentage threshold(Phase B)
import watt percentage threshold(Phase B)
15
1
20
import watt percentage threshold(Phase C)
import watt percentage threshold(Phase C)
16
1
20
export watt percentage threshold(Total)
export watt percentage threshold(Total)
17
1
20
export watt percentage threshold(Phase A)
export watt percentage threshold(Phase A)
18
1
20
export watt percentage threshold(Phase B)
export watt percentage threshold(Phase B)
19
1
20
export watt percentage threshold(Phase C)
export watt percentage threshold(Phase C)
252
1
0
Enable/disable configuration setting
Enable/disable configuration setting
3
1
1
Threshold Check Enable/Disable
Enable/Disable threshold reporting
4
2
50
import watt threshold(Total)
import watt threshold(Total)
5
2
50
import watt threshold(Phase A)
import watt threshold(Phase A)
6
2
50
import watt threshold(Phase B)
import watt threshold(Phase B)
7
2
50
import watt threshold(Phase C)
import watt threshold(Phase C)
8
2
50
export watt threshold(Total)
export watt threshold(Total)
9
2
50
export watt threshold(Phase A)
export watt threshold(Phase A)
Application Status
COMMAND_CLASS_APPLICATION_STATUS
Association Group Information (AGI) V3
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Configuration V4
COMMAND_CLASS_CONFIGURATION_V4
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta Data V5
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Indicator V3
COMMAND_CLASS_INDICATOR_V3
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Meter V6
COMMAND_CLASS_METER_V6
Multi Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Multi Channel V4
COMMAND_CLASS_MULTI_CHANNEL_V4
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security 0
COMMAND_CLASS_SECURITY
Security 2
COMMAND_CLASS_SECURITY_2
Supervision
COMMAND_CLASS_SUPERVISION
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Where to find S2 DSK on product
Page 4 in the operation manual
Classic Inclusion
1. Turn your gateway/ main controller into adding mode.

2. Press once the Action Button on the product.
Classic Exclusion
1. Turn your gateway/ main controller into removing mode.

2. Press once the Action Button on the product.
Factory Reset Procedure
Press and hold the Action Button on product for 10s.



Note: Please use this procedure only when the network’s primary controller is missing or otherwise inoperable.
S2 Authenticated
S2_AUTHENTICATED
S2 Unauthenticated
S2_UNAUTHENTICATED
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
