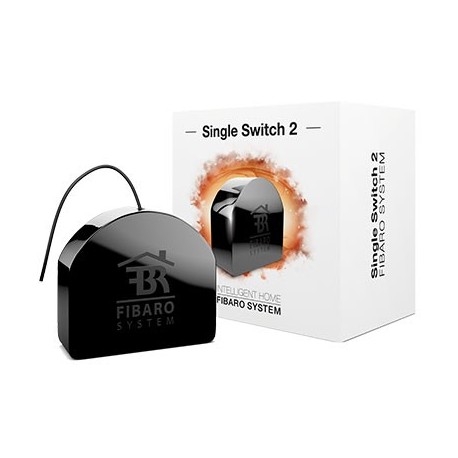

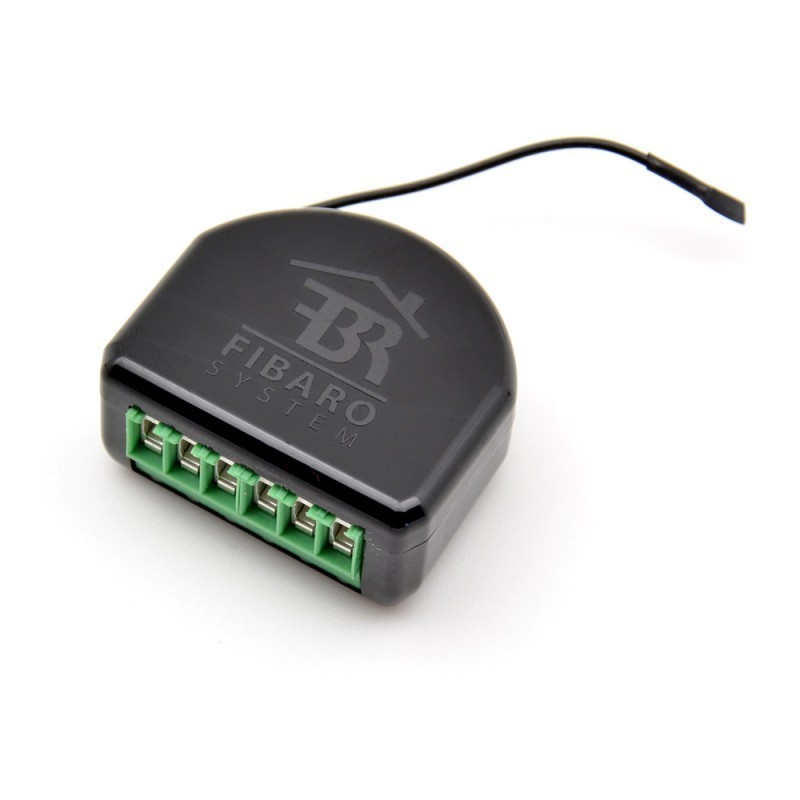

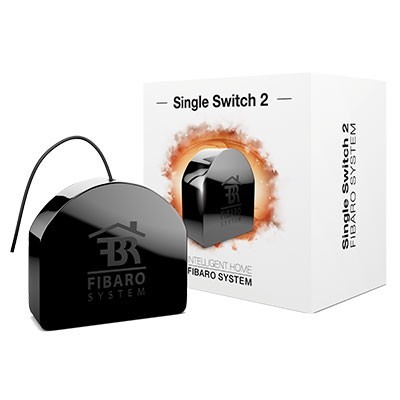

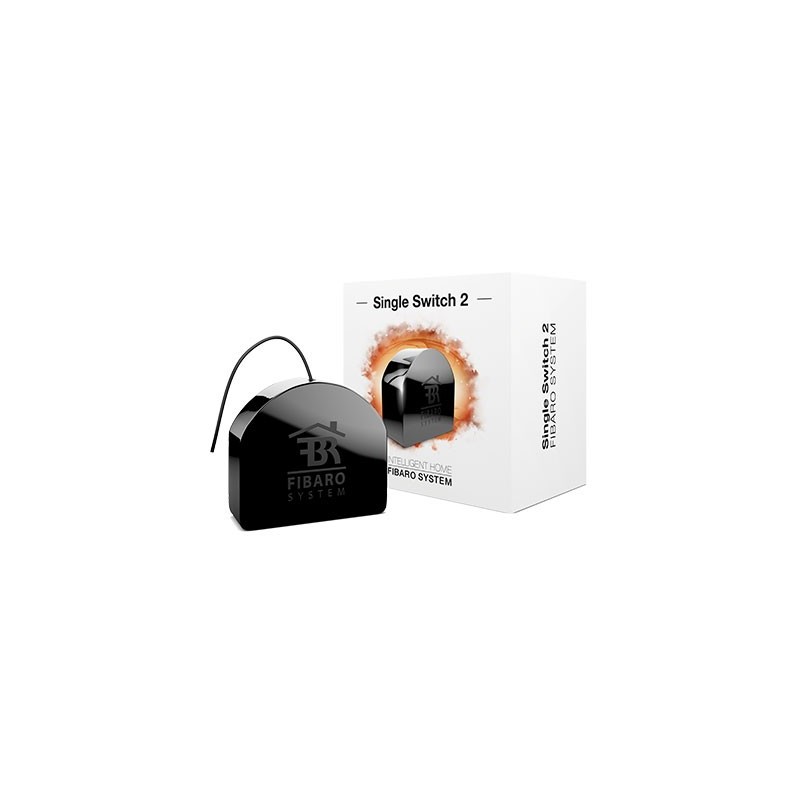

Fibaro -Single Switch 2- Micromódulo relé simples On / Off Z-Wave + switch com medição de consumo

FGS-213

Novo

O relé / chave do micromódulo Fibaro FGS-213 "Single Switch 2" permitirá que você controle um circuito de luz ou um dispositivo remoto enquanto mantém a chave convencional existente.

Mais detalhes

Em estoque

59,99 €

Características tecnicas

Tecnologia Z-Wave Plus
Recurso Medição de Consumo

Mais Informação

O novo interruptor / relé simples da Fibaro, Fibaro FGS-213 "Chave Única 2" disponível como uma chave ou relé simples, foi projetado para ativar e desativar dispositivos elétricos. Graças ao seu pequeno tamanho, pode ser montado dentro de caixas de mecanismo ou carcaças de eletrodomésticos. O módulo é controlado pela rede Z-Wave ou por um switch convencional. Tem a função de medir a potência e o consumo de energia de utilização que lhe permite controlar e reduzir a sua fatura de luz. Conecte seu Fibaro FGS-213 "Single Switch 2" no sistema de automação residencial Z-Wave junto com outros dispositivos para desfrutar de possibilidades quase infinitas!

Por se tratar de 1 relé simples, possui 1 saída:

  • 1 saída de 8A máx. (1920W máx. Em 240V) com carga resistiva.

Mecanismo de gatilho de cena integrado

comunicação de segurança e classes de notificação
menu de configuração com um diodo
Z-Wave de última geração com chip da série 500
Compatível com Z-Wave Plus

Executa funções de repetidor Z-Wave
Mede a energia e potência dos dispositivos conectados
Suporta modo de segurança (Z-Wave Security Network) com criptografia AES-128
Um sistema de controle complexo para cada canal
Um sistema de ativação de cena complexo para cada canal (gerenciamento de cena)
Premir 1 a 3 sem soltar a tecla pode ser atribuído a quatro ações diferentes
medição de potência muito precisa +/- 1% de potência acima de 5W
Notificações inteligentes
Conexões aprimoradas
menu de configuração simples
Ele tem uma testemunha de teste de cobertura de rede Z-Wave
Atualizações de software*
compatibilidade com certificação confirmada pela FCC, DEKRA, Z-Wave

Verificação de cobertura Z-Wave

Observe que este módulo requer NEUTRO para operar. A saída não é livre de potencial, o que não permite controlar um contato seco ou carregar outra tensão de alimentação de entrada.

REPETIMOS: não pode ser usado em um esquema de conexão do tipo "contato seco", como seu predecessor, o Fibaro FGS-212, poderia.

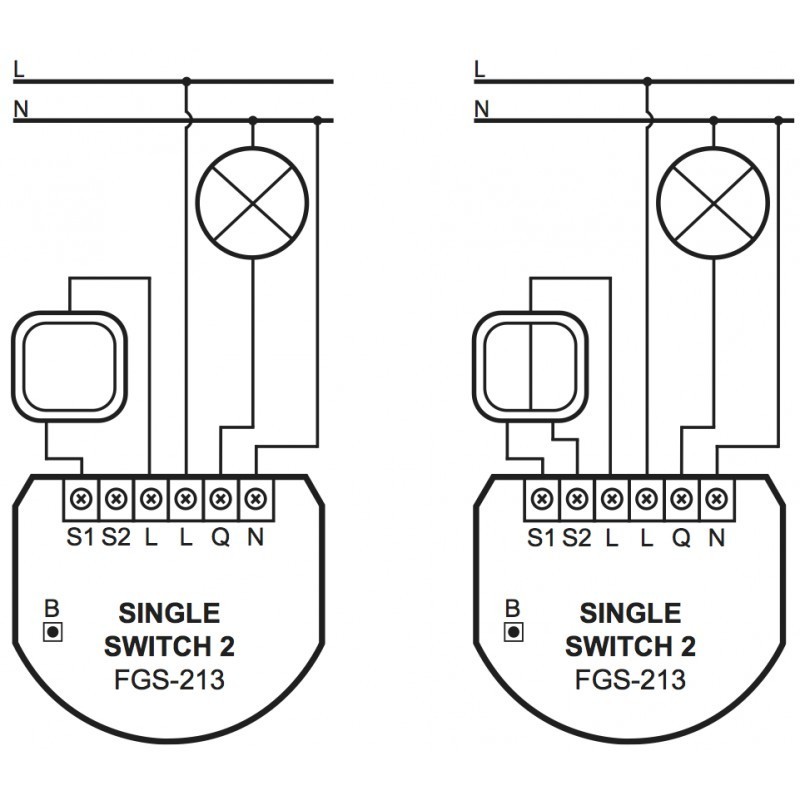

Diagrama de fiação do relé Fibaro FGS-213

Fiação Fibaro FGS-213

Imagem de fiação com 1 e 2 circuitos

Resumo:

1 saída:

  • de 8A máx. (1920W máx. Em 240V) com carga resistiva.


medição precisa do consumo (+/- 1% de 5W).
Série Z-Wave + 500 (melhor comunicação remota).
comunicações seguras com criptografia AES-128.
Capacidade de acionar cenas de automação residencial através das entradas S1 e S2 (4 cenas possíveis por botão).
* verifique se o controlador de automação residencial é compatível com este recurso específico
Configuração com função de menu interativo e testador de rede Z-Wave com LED

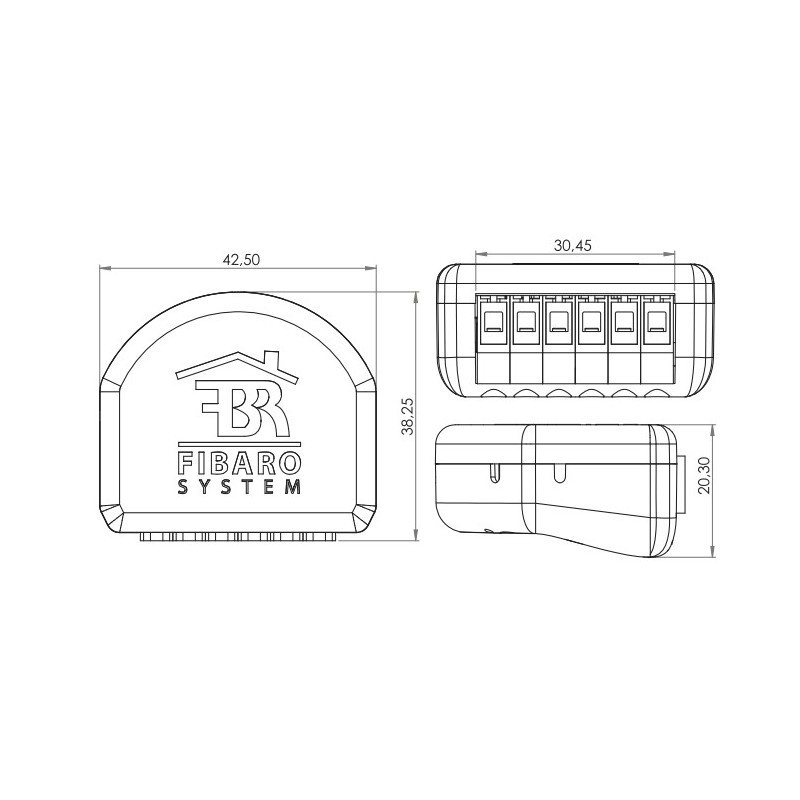

Rele fibaro tamanho

Z-Wave Plus - Fibaro ZW5

Informação alargada da Z-Wave (Inglês)

Nome: Single Switch 2
Fabricante:FIBARO
Identificador:FGS-213
Número de Certificação Z-Wave :ZC10-19076667
Plataforma de Hardware :ZM5101
FLiRS:Não
Tipo de Role :Always On Slave
Descrição breve :FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption.
Descrição :The remotely operated FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Single Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.

Descarregue o manual a partir de aqui.

Grupo
Nodos máximos
Descrição
1
1
“Lifeline” reports the device status and allows for assigning single device only (main controller by default).
2
5
“On/Off (S1)” is assigned to switch connected to the S1 terminal (uses Basic command class).
3
5
“Dimmer (S1)” is assigned to switch connected to the S1 terminal (uses Switch Multilevel command class).
4
5
“On/Off (S2)” is assigned to switch connected to the S2 terminal (uses Basic command class).
5
5
“Dimmer (S2)” is assigned to switch connected to the S2 terminal (uses Switch Multilevel command class).
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
10
1
0
First channel - operating mode
This parameter allows to choose operating for the 1st channel controlled by the S1 switch.
11
1
0
First channel - reaction to switch for delay/auto ON/OFF modes
This parameter determines how the device in timed mode reacts to pushing the switch connected to the S1 terminal.
12
2
50
First channel - time parameter for delay/auto ON/OFF modes
This parameter allows to set time parameter used in timed modes.
13
2
5
First channel - pulse time for flashing mode
This parameter allows to set pulse time used in flashing mode.
20
1
2
Switch type
This parameter as what type the device should treat the switch connected to the S1 and S2 terminals.
21
1
0
Flashing mode - reports
This parameter allows to define if the device sends reports during the flashing mode.
27
1
15
Associations in Z-Wave network security mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline” group. NOTE Parameter 27 values may be combined, e.g. 1+2=3 means that 2nd & 3rd groups are sent as secure.
28
1
0
S1 switch - scenes sent
This parameter determines which actions result in sending scene assigned to them. NOTE Parameter 28 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.
29
1
0
S2 switch - scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. NOTE Parameter 29 values may be combined, e.g. 1+2=3 means that scenes for single and double click are sent.
30
1
0
S1 switch - associations sent to 2nd and 3rd association groups
This parameter determines which actions are ignored when sending commands to devices associated in 2nd and 3rd association group. All actions are active by default. NOTE Parameter 30 values may be combined, e.g. 1+2=3 means that associations for turning ON and OFF are not sent. NOTE *Hold and release is inactive when parameter 20 is set to 1 or 2. **Double click is inactive when parameter 20 is set to 1.
31
2
255
S1 switch - Switch ON value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group.
32
2
0
S1 switch - Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group. NOTE Setting parameters 31-33, 36-38 to appropriate value should result in:
33
2
99
S1 switch - Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group.
35
1
0
S2 switch - associations sent to 4th and 5th association groups
This parameter determines which actions result in sending commands to devices associated in 4th and 5th association group. All actions are active by default. NOTE Parameter 35 values may be combined, e.g. 1+2=3 means that associations for turning ON and OFF are not sent. NOTE *Hold and release is inactive when parameter 20 is set to 1 or 2. **Double click is inactive when parameter 20 is set to 1.
36
2
255
S2 switch - Switch ON value sent to 4th and 5th association groups
This parameter defines value sent with Switch ON command to devices associated in 4th and 5th association group.
37
2
0
S2 switch - Switch OFF value sent to 4th and 5th association groups
This parameter defines value sent with Switch OFF command to devices associated in 4th and 5th association group.
38
2
99
S2 switch - Double Click value sent to 4th and 5th association groups
This parameter defines value sent with Double Click command to devices associated in 4th and 5th association group.
40
1
3
Reaction to General Alarm
This parameter determines how the device will react to General Alarm frame
41
1
2
Reaction to Flood Alarm
This parameter determines how the device will react to Flood Alarm frame.
42
1
3
Reaction to CO/CO2/Smoke Alarm
This parameter determines how the device will react to CO, CO2 or Smoke frame.
43
1
1
Reaction to Heat Alarm
This parameter determines how the device will react to Heat Alarm frame.
44
2
600
Flashing alarm duration
This parameter allows to set duration of flashing alarm mode.
50
1
20
First channel - power reports
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller.
51
1
10
First channel - minimal time between power reports
This parameter determines minimum time that has to elapse before sending new power report to the main controller.
53
2
100
First channel - energy reports
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller.
58
2
3600
Periodic power reports
This parameter determines in what time interval the periodic power reports are sent to the main controller.
59
2
3600
Periodic energy reports
This parameter determines in what time interval the periodic energy reports are sent to the main controller.
60
1
0
Measuring energy consumed by the device itself
This parameter determines whether energy metering should include the amount of energy consumed by the device itself. Results are being added to energy reports for first endpoint.
9
1
1
Restore state after power failure
This parameter determines if the device will return to state prior to the power failure after power is restored.
Basic
COMMAND_CLASS_BASIC
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Switch Multilevel V3
COMMAND_CLASS_SWITCH_MULTILEVEL_V3
Application Status
COMMAND_CLASS_APPLICATION_STATUS
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic
COMMAND_CLASS_BASIC
Central Scene V2
COMMAND_CLASS_CENTRAL_SCENE_V2
Configuration
COMMAND_CLASS_CONFIGURATION
CRC16 Encapsulation
COMMAND_CLASS_CRC_16_ENCAP
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V3
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Meter V3
COMMAND_CLASS_METER_V3
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Multi-Channel V4
COMMAND_CLASS_MULTI_CHANNEL_V4
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Powerlevel
COMMAND_CLASS_POWERLEVEL
Protection V2
COMMAND_CLASS_PROTECTION_V2
Security S0
COMMAND_CLASS_SECURITY
Switch Binary
COMMAND_CLASS_SWITCH_BINARY
Version V2
COMMAND_CLASS_VERSION_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Exclusion
1) Make sure the Switch 2 is within the direct range of your Z-Wave controller.

2) Identify the S1 switch or the B-button (located on the device’s housing).

3) Set the main controller in remove mode (see the controller’s manual).

4) Quickly, three times press the S1 switch or the B-button.

5) Wait for the removing process to end.

6) Successful removing will be confirmed by the Z-Wave controller’s message

Inclusion
1) Switch off the mains voltage (disable the fuse).

2) Make sure the Switch 2 is within the direct range of your Z-Wave controller.

3) Connect the device in accordance with one of the diagrams included in the manual.

4) After verifying correctness of the connection switch on the mains voltage.

5) Identify the S1 switch or the B-button (located on the device’s housing).

6) Set the main controller in (security/non-security) add mode (see the controller’s manual).

7) Quickly, three times press the S1 switch or the B-button.

8) Wait for the adding process to end.

9) Successful adding will be confirmed by the Z-Wave controller’s message.

Factory Reset
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device:



1) Switch off the mains voltage (disable the fuse).

2) Remove the Switch 2 from the wall switch box.

3) Switch on the mains voltage.

4) Press and hold the B-button to enter the menu.

5) Wait for the visual LED indicator to glow yellow.

6) Quickly release and click the B-button again.

7) After few seconds the device will be restarted, which is signalled with the red LED indicator colour.



Use reset procedure only if the primary controller is missing or inoperable.

Device Wake-Up
The FIBARO Single Switch 2 is powered with the mains voltage so it is always awake.
Additional Special Features
Z-Wave Plus communication protocol

Active power and energy metering functionality

Z-Wave range tester

LED diode



Color
If the product is only available in one color, pick the color from the list.
Supported Meter Type
Indicate which type of metering is supported by the device.
Supported Notification Types
Select the Notification Types that the product handles (controllers), or sends (slaves).
Switch Load Capacity Current
The amount of switch load energy the product is rated for in Amps
Switch Load Capacity Watts
The amount of switch load energy the product is rated for in Watts
