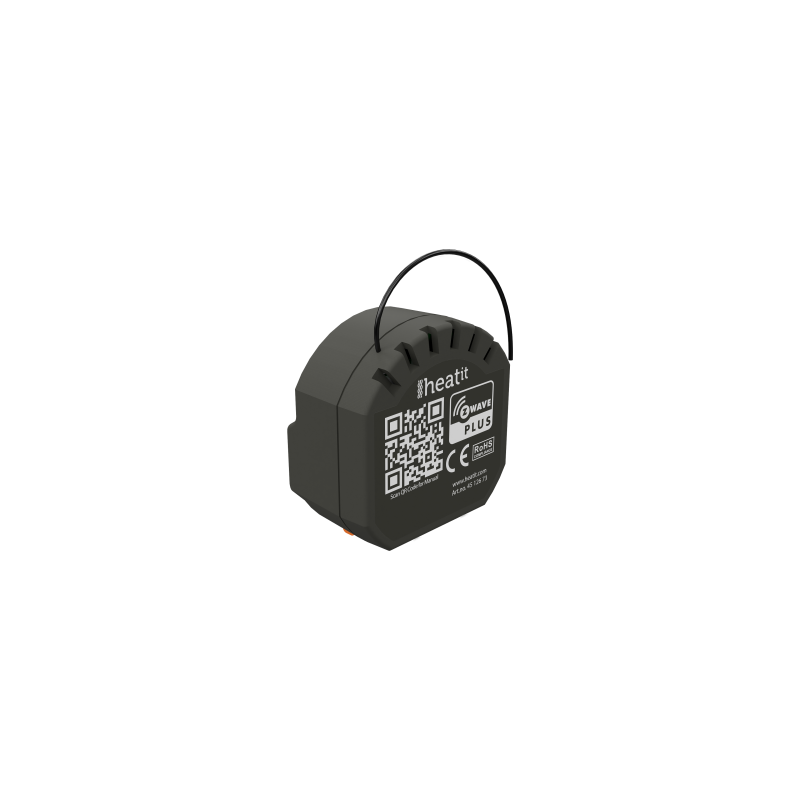

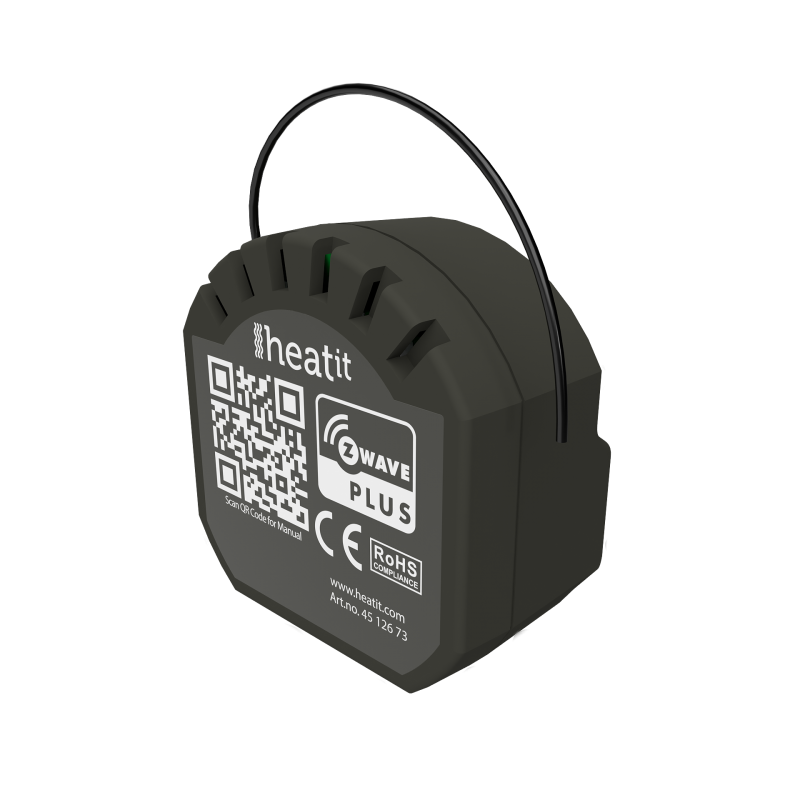

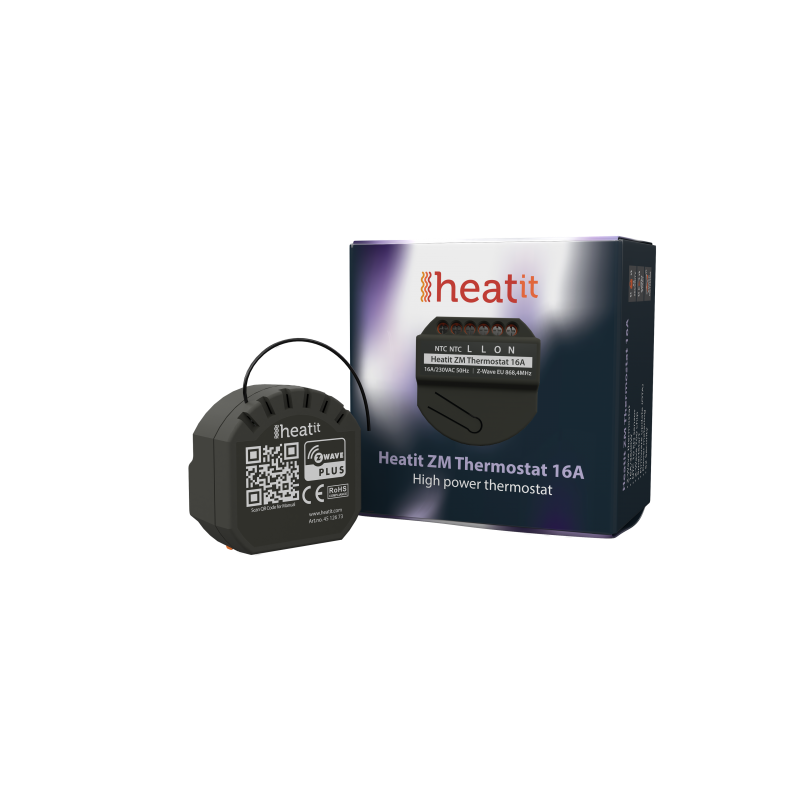

Heatit ZM Thermostat 16A - Termostato Z-Wave 16A

View larger

Termostato Heatit ZM 16A - Termostato Z-Wave 16A

Referência: 4512673

Estado: Novo

O termostato Heatit ZM é um termostato eletrônico Z-Wave para piso radiante elétrico ou para controle de válvulas solenóides 220V para piso radiante de água, projetado para montagem na parede, em formato de micromódulo.

Mais detalhes

Em estoque

Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

Características tecnicas

Tecnologia	Z-Wave Serie 700

Mais Informação

Heatit ZM Thermostat é um termostato eletrônico para piso radiante elétrico projetado para instalações embutidas. O termostato permite controlar o aquecimento elétrico através da rede Z-Wave.

O módulo está equipado com um relé de 16A. O termostato requer que você conecte um sensor externo com fio, que está incluído.

O termostato Heatit ZM possui medição de potência ativa e fornece informações em tempo real sobre seu consumo de energia.

Onda Z
Termostato para instalações internas
Cargas resistivas de 16A/3600W
Sensor NTC 10k© (incluído)
Setpoint a ser configurado no gateway
SmartStart
Atualização de firmware (OTA)
Medição de potência ativa
Suporta modo de criptografia: S0, classe autenticada S2, classe não autenticada S2

DADOS ESPECÍFICOS DE IOT/INTELIGENTE CASA
Frequência Z-Wave Z-Wave - 868,4 MHz (UE)
Chip Z-Wave Chip Z-Wave 700
Comunicação alternativa de IoT
protocolos
Não há protocolos de comunicação
protocolos
Alcance mínimo de radiofrequência 40m
Atualização Over The Air (OTA) Sim
Modo de criptografia Z-Wave S0
Classe autenticada S2
Classe S2 não autenticada
Certificações Z-Wave Plus
DADOS TÉCNICOS ELÉTRICOS
Tensão 230V 50Hz
Carga máxima (carga resistiva) 3600W
Corrente máxima 16A
Consumo próprio 1W
Faixa de temperatura ambiente em
usar
5 a 40°C
Umidade ambiente mínima e máx.
(HR%)
10 a 85%.

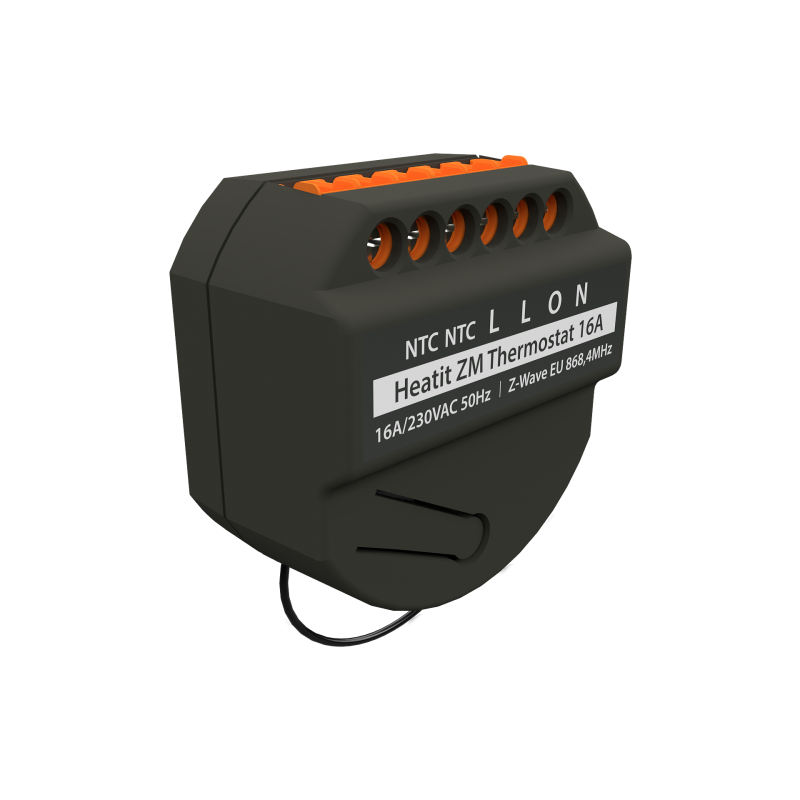

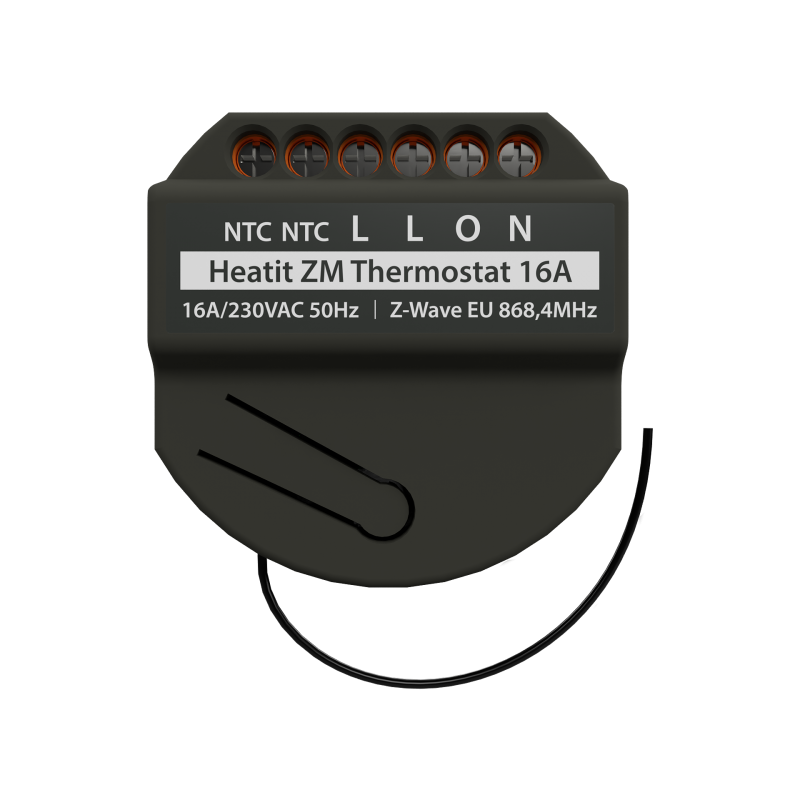

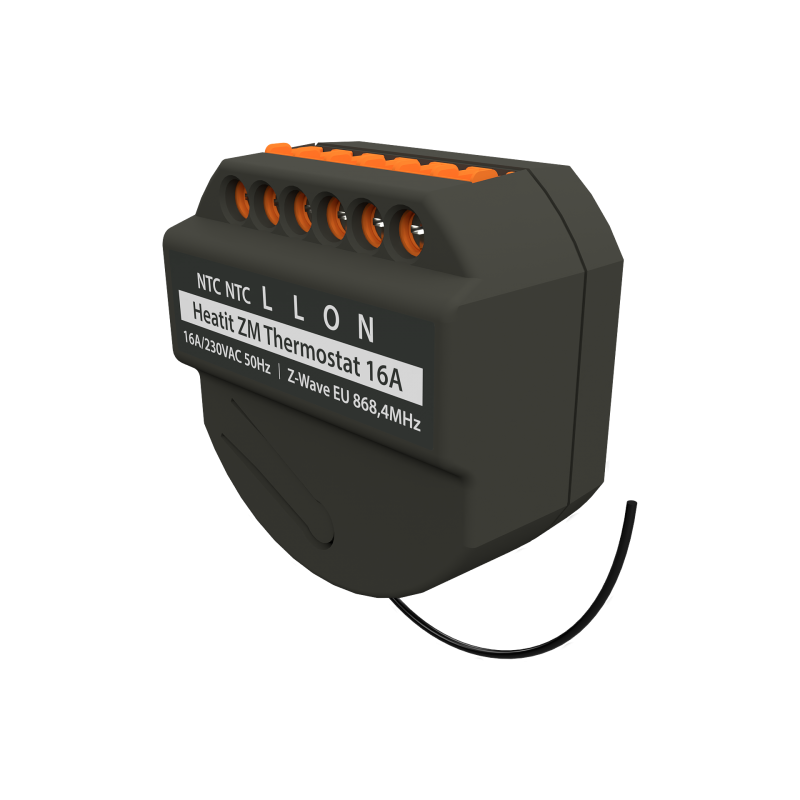

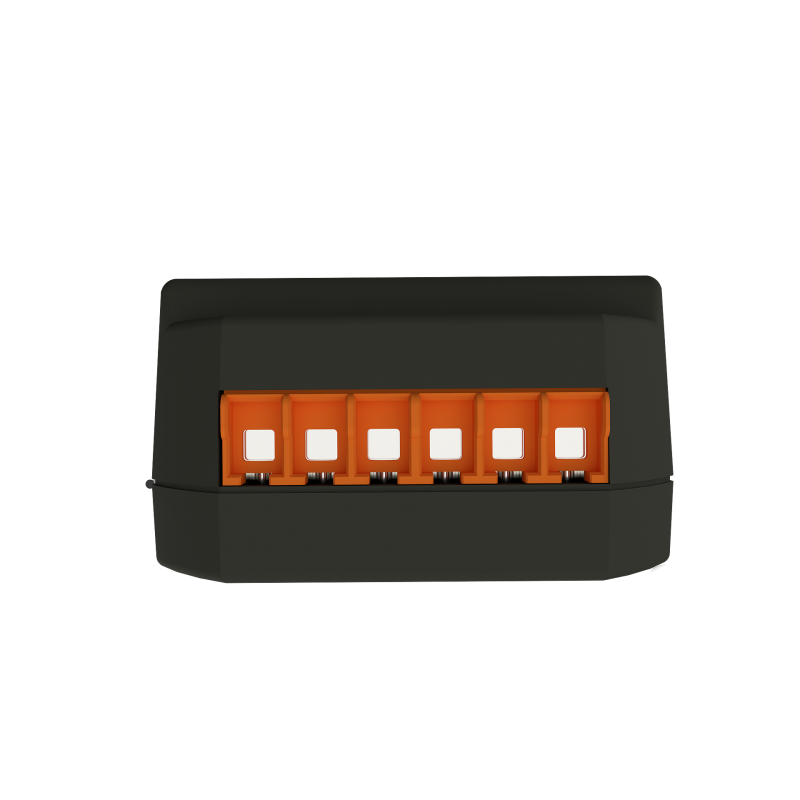

Tipo de conexão Grampos de parafuso
Diâmetro dos terminais de conexão de 0,2 a 2,5 mm².
Torque máximo de aperto
conexões
2N·m
Grau de proteção (IP) IP20
Declarações Declaração CE
DADOS DO TERMÓSTATO
Temperatura de regulação 5 a 40°C

Informação alargada da Z-Wave (Inglês)

Nome: Heatit ZM Thermostat 16A

Fabricante:Heatit controls

Identificador:ZM Thermostat 16A

Número de Certificação Z-Wave :ZC12-21100317

Plataforma de Hardware :ZGM130

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :Heatit ZM Thermostat is an electronic thermostat for electrical floor heating designed for in-wall installations.

Descrição :Heatit ZM Thermostat is an electronic thermostat for electrical floor heating designed for in-wall installations. The thermostat allows you to control your electrical heating through your Z-Wave™ network. The module is equipped with a 16A single pole relay. The thermostat requires you to connect an external sensor which is included with the device. The device can withstand a max load of 16A at 230VAC.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

Lifeline. (Normally used by the Z-Wave Controller) Sends

Send Binary Switch set commands representing the status of the internal relay.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

Operating mode

Set the thermostat mode

Inverted output

Decides if the relay output should be inverted

43200

Relay state update interval

Set the time interval of how often the device reports Binary Switch Set and thermostat mode

Temperature control hysteresis

Choose the hysteresis for the thermostat

Minimum setpoint temperature

Decide the lowest setpoint temperature allowed by the thermostat

400

Maximum setpoint temperature

Decide the highest setpoint temperature allowed by the thermostat

210

Setpoint

Decide the thermostat setpoint

Sensor calibration

Manually calibrate the sensor ±6°C

1020

Temperature report interval

Time interval between consecutive temperature reports

Temperature report hysteresis

Temperature reports based on change in temperature from last report

1020

Meter report interval

Time interval between consecutive meter reports

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Meter V3

COMMAND_CLASS_METER_V3

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V3

COMMAND_CLASS_THERMOSTAT_SETPOINT_V3

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Factory Reset Procedure

Press and hold the configuration button. After 3 seconds the LED will start to blink in green. After 20 seconds the LED will start to blink green rapidly for 5 seconds. You may now release the button

Classic Exclusion

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.

Remove mode is indicated on the device by a blinking green LED. It indicated this for 90 seconds until a timeout occurs, or until the module has been removed from the network. To start the configuration process, press the configuration button 3 times in rapid succession. The LED will light up green for 3 seconds if removing is successful.

Other Special Features

Paragraph 11.1 Overload.

Paragraph 11.2 Overheating.

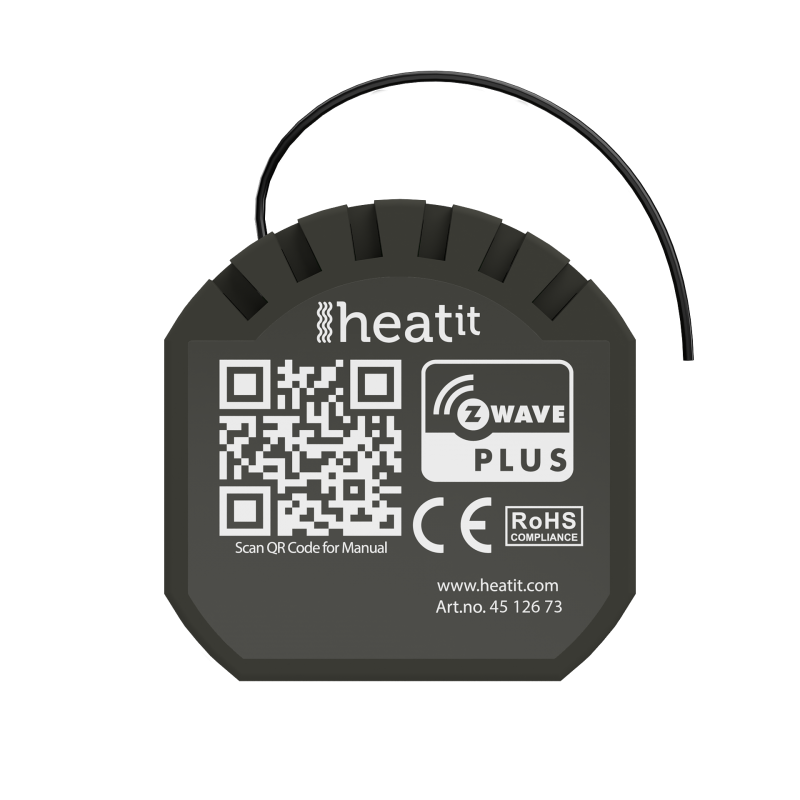

Where to find S2 DSK on product

The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;

1. On the product.

2. On the Quick Guide manual.

3. On the F-Pack (gift box).

Classic Inclusion

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.

There are two ways to add the device to a Z-Wave network.

Method 1: Standard (Manual)

Add mode is indicated on the device by a blinking green LED. It indicated this for 90 seconds until a timeout occurs, or until the module has been added to the network. To start the configuration process, press the configuration button 3 times in rapid succession. The LED will light up green for 3 seconds if adding is successful.

The device is now ready for use with default settings.

Method 2: SmartStart (Automatic)

SmartStart enabled products may be added to a Z-Wave network by scanning the Z-Wave QR-Code on the product if your primary controller supports SmartStart inclusion. No further action is required and the SmartStart product will be added automatically after being powered on within range of the primary controller.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

IP (Ingress Protection) Rated

Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.

Neutral Wire Required

For electric in-wall/wired switches, indicate whether a neutral wire is required for installation.

Outdoor Use

Product is suitable for use outdoors.
