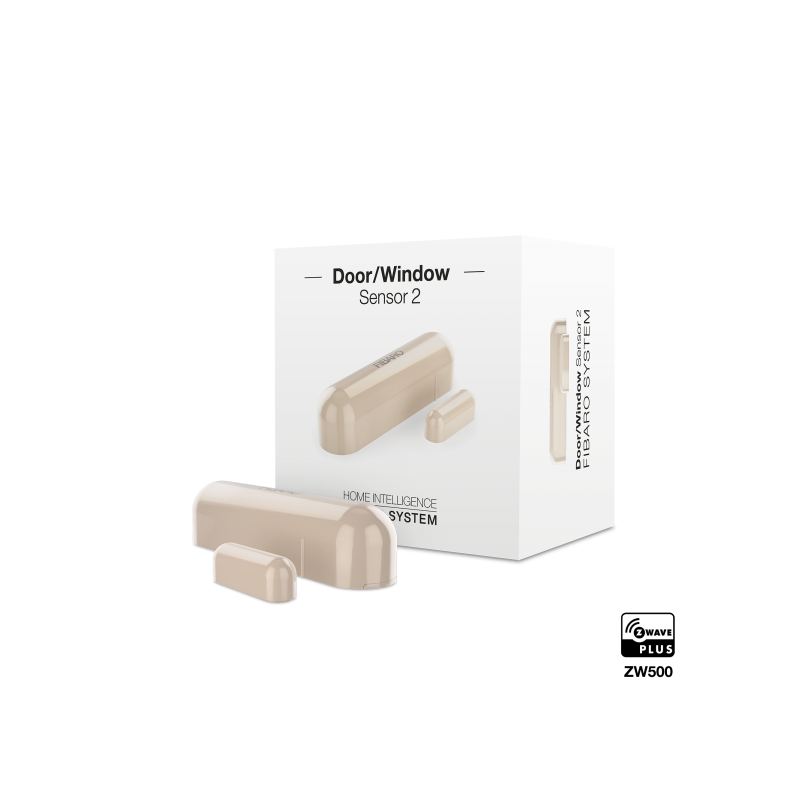

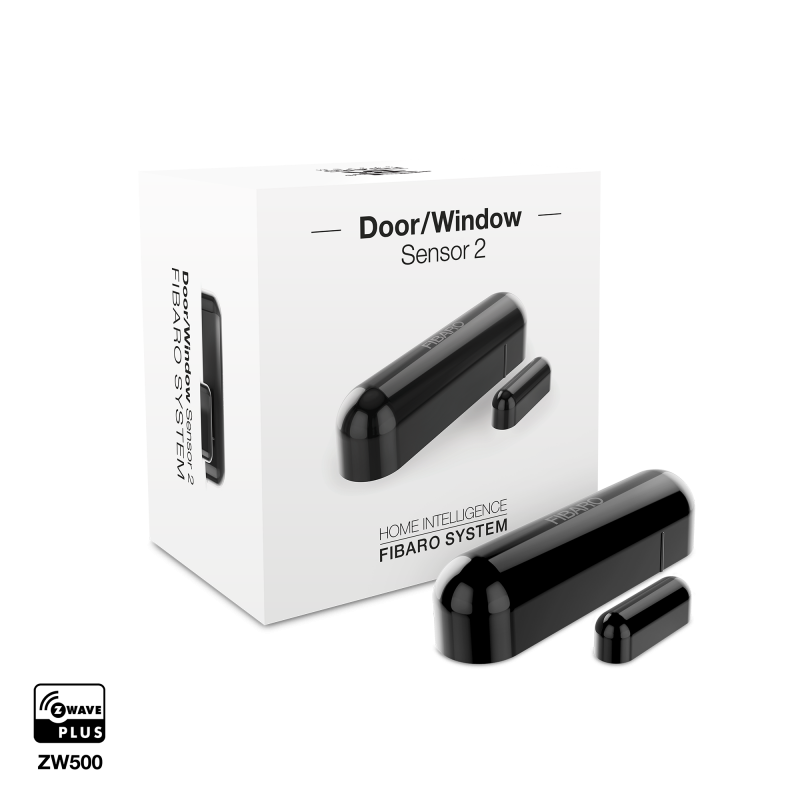

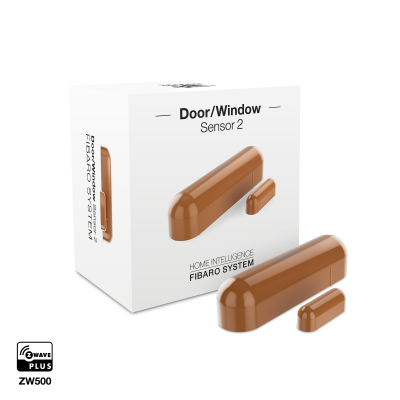

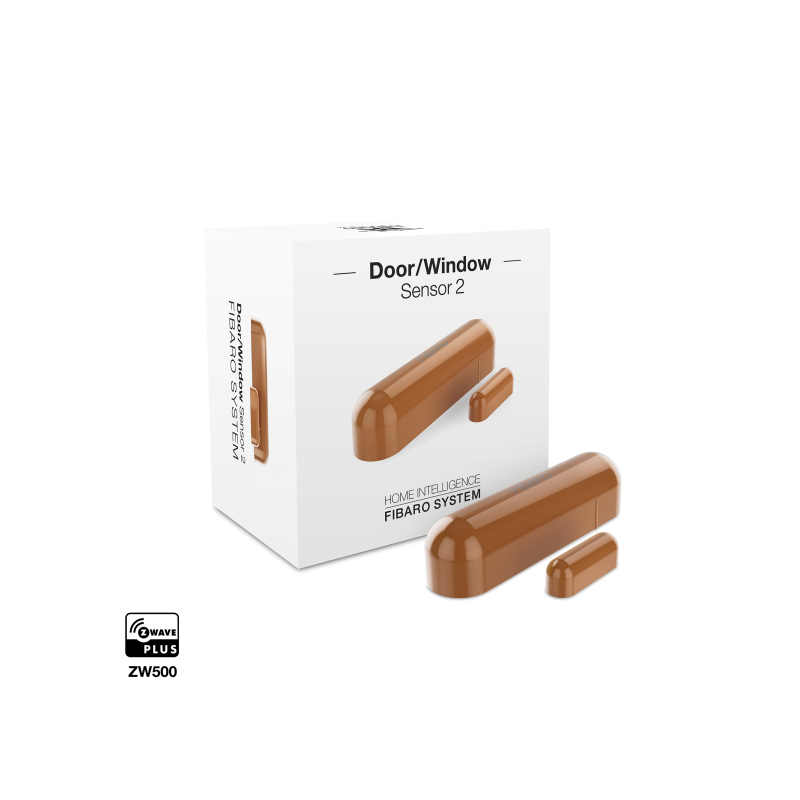

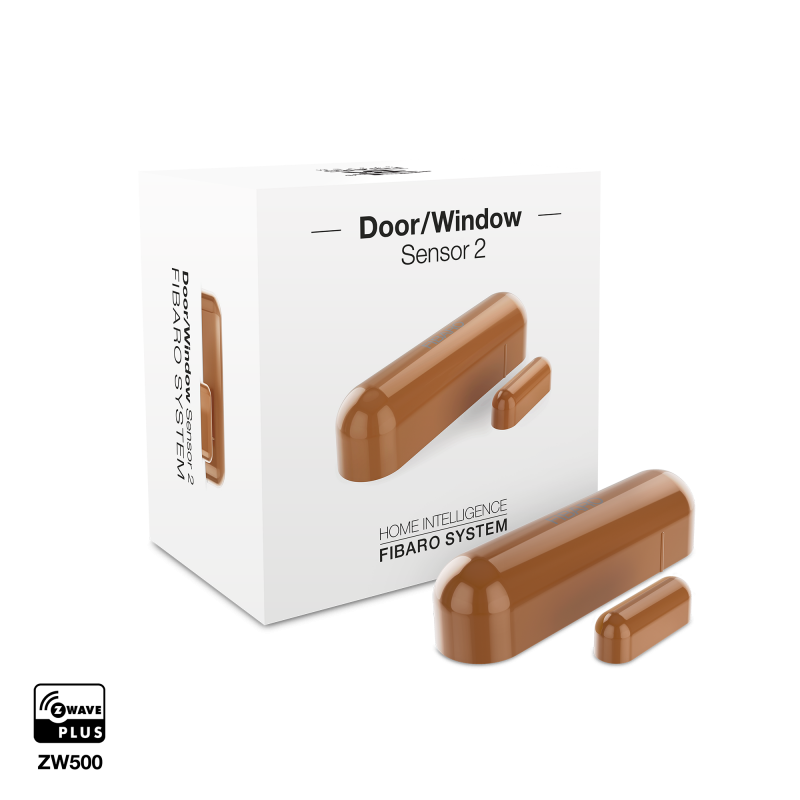

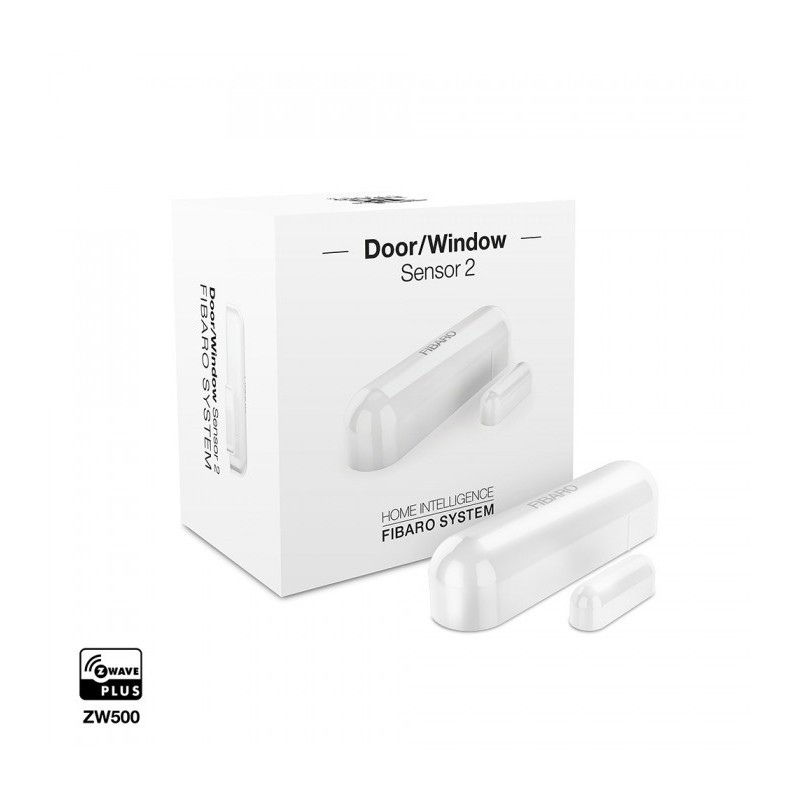

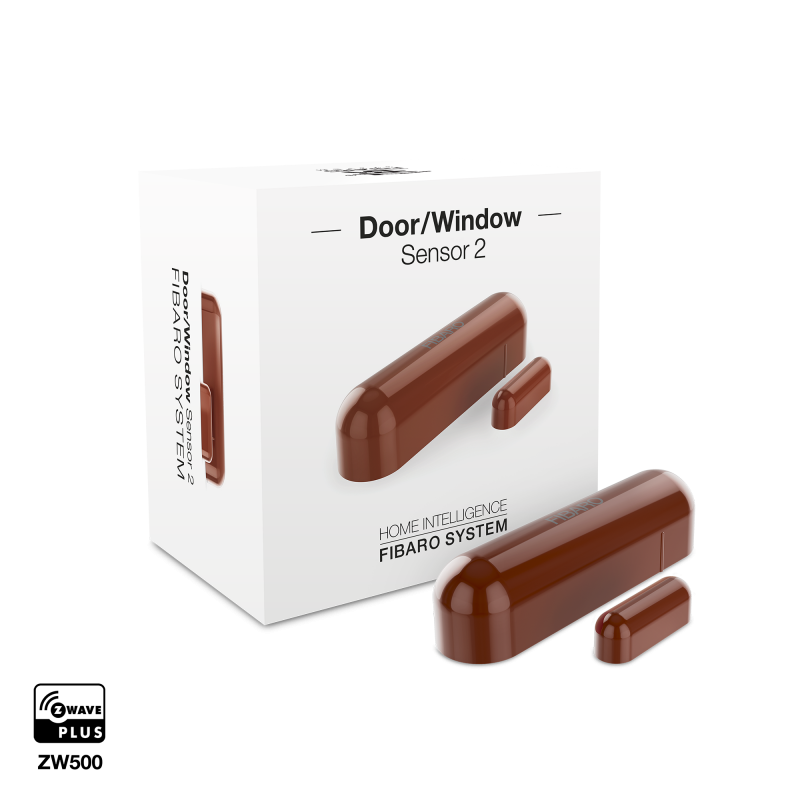

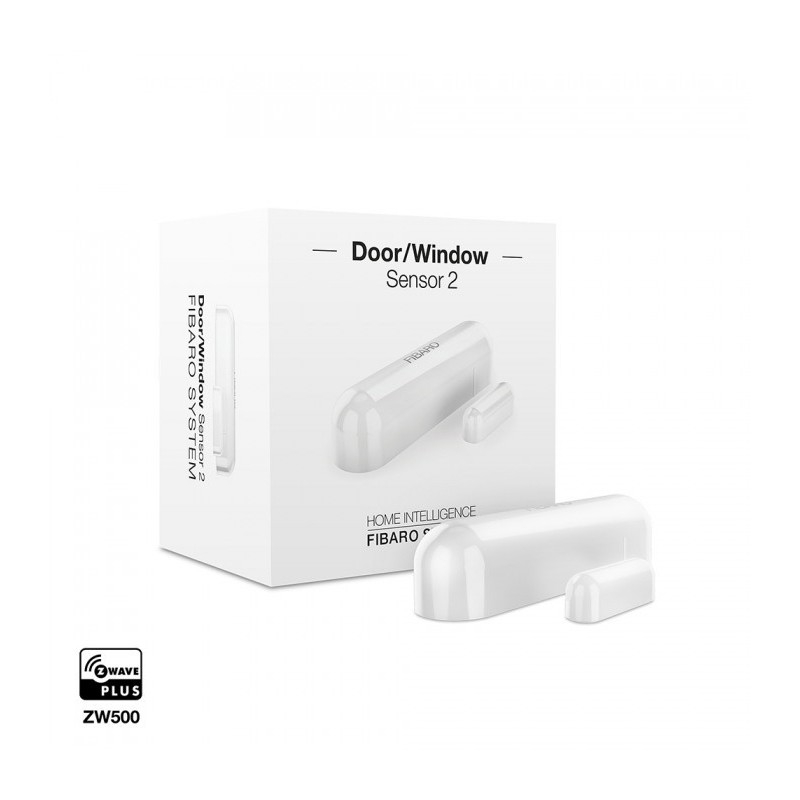

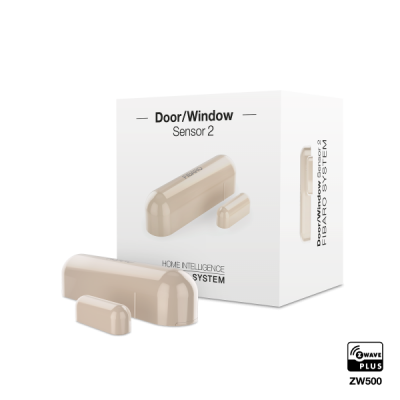

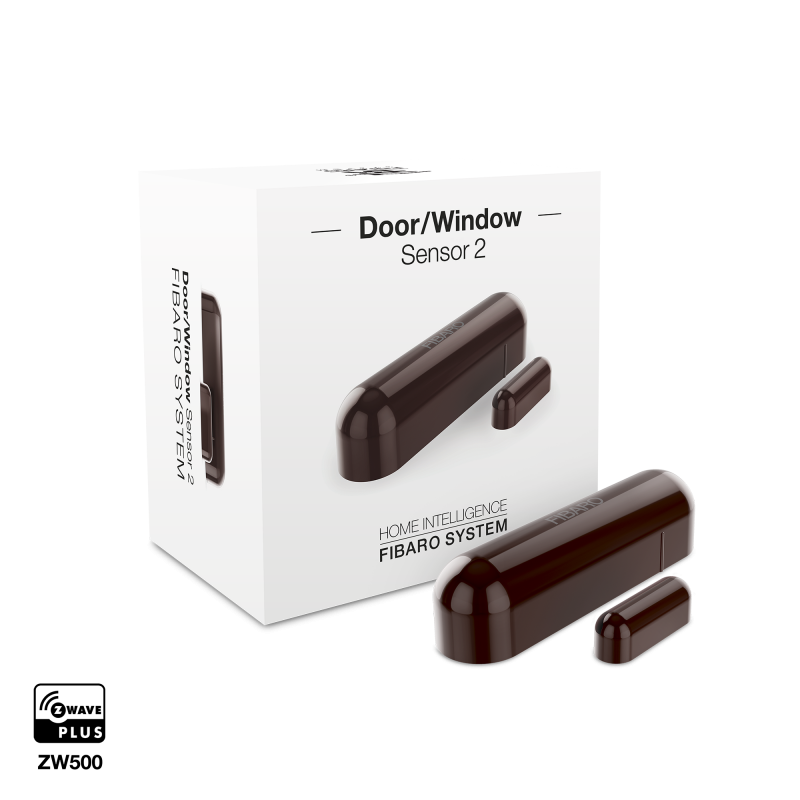

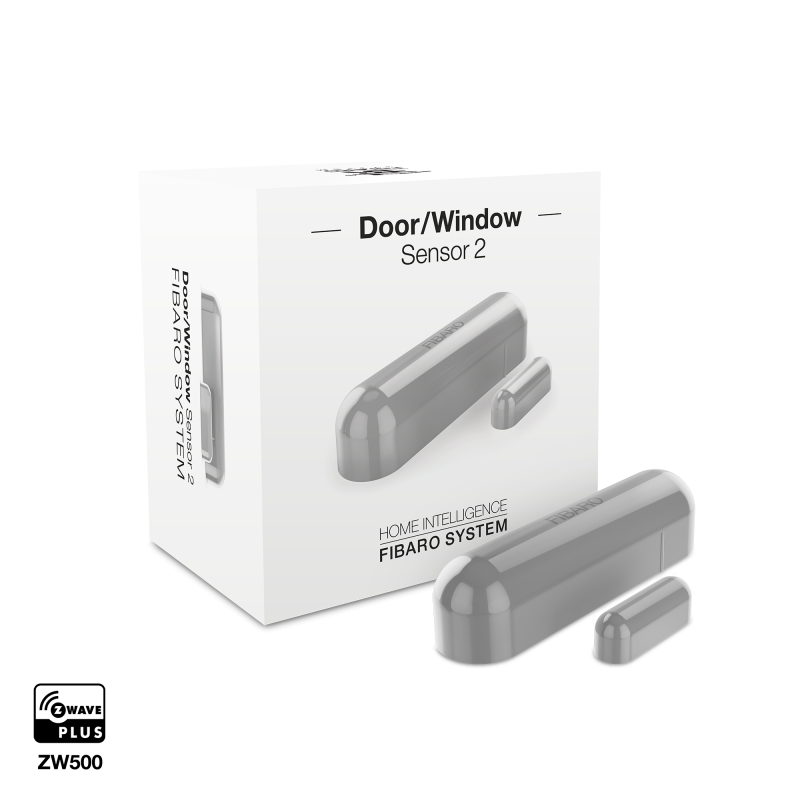

FIBARO Door / Window Sensor 2 Detector de abertura e temperatura para porta / janela Z-Wave Plus

Novo

Detector de abertura Z-Wave + disponível em várias cores para portas, janelas, janelas de telhado, etc. ElFIBARO Sensor de porta / janela 2 para porta / janela combina a funcionalidade de dois dispositivos: um sensor de contato e temperatura em um único produto fácil de usar. Também tem dupla proteção contra sabotagem.

Mais detalhes

Em estoque

49,99 €

Características tecnicas

Tecnologia Z-Wave Plus

Mais Informação

É um sensor magnético Z-Wave + chamado com sensor de temperatura que lhe permitirá controlar o estado aberto ou fechado de portas e janelas. Integrável com outros dispositivos Z-Wave, como sensores de movimento , sensores de inundação, sensores de alarme , etc., permite que você crie eventos diferentes, se tiver um controlador Z-Wave.

Tem uma parte móvel com um imã fixo na porta ou janela, e a unidade principal localizada na parte fixa da janela ou porta. Quando ambas as partes não estão frente a frente, um sinal de rádio Z-Wave é enviado automaticamente. Muito fácil de instalar, a unidade principal é normalmente colocada na parte móvel da janela ou porta, e o elemento magnético é instalado na estrutura. Disponível em várias cores (branco, preto, cinza, cinza claro, marrom, marrom claro, marrom escuro) para não colidir com a cor de suas portas e janelas.

Este detector operado por bateria de 4 funções para redes sem fio Z-Wave possui um sensor de proximidade magnético para detectar a abertura de uma porta ou janela. O dispositivo consiste em uma parte com ímãs (a parte móvel) fixada na porta ou janela, e a unidade principal localizada na parte fixa da janela ou porta com parafusos ou por meio de adesivo. Quando ambas as partes não estão frente a frente, um sinal é automaticamente enviado para a rede de rádio Z-Wave.

Além disso, o sensor possui um sensor de temperatura.

Uma Unidade de Controle Z-Wave é necessária para integrar este sensor na rede Z-Wave.

CARACTERÍSTICAS:

  • Detector de abertura
  • Sensor de temperatura
  • Botão para incluir / excluir o detector
  • Detecção de bateria fraca
  • Manuseio de proteção
  • Tamanho muito pequeno
  • Facilidade de uso e instalação

ESPECIFICAÇÕES :

  • Tipo de módulo: comportamento sem fio como um transmissor Z-Wave
  • Comportamento sem fio: escravo
  • Cores: Branco, Cinza, Preto, Cinza Claro, Castanho Claro, Castanho, Castanho Escuro
  • Potência: bateria ER14250 (1 / 2AA) 3,6 V
  • Freqüência: 868,42 Mhz
  • Distância de transmissão: 50m de campo livre, 30m em edifícios
  • Dimensões: 76 x 17 x 19 mm
  • Temperatura de operação: 0-40 ° C
  • Certificações:
    • RoHS 2011/65 / EU
    • LVD 2006/95 / WE
    • EMC 2004/108 / WE
    • R & TTE 1999/5 / WE

Z-Wave Plus - Fibaro ZW5Atende às certificações CE e ROHS

Informação alargada da Z-Wave (Inglês)

Nome: FIBARO Door/Window Sensor 2
Fabricante:FIBARO
Identificador:FGDW-002
Número de Certificação Z-Wave :ZC10-17035459
Plataforma de Hardware :ZM5101
FLiRS:Não
Tipo de Role :Reporting Sleeping Slave
Descrição breve :FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible magnetic contact sensor.
Descrição :FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible magnetic contact sensor. Changing the device’s status will automatically send signal to the Z-Wave controller and associated devices. In addition the FIBARO Door/Window Sensor 2 is equipped with a built-in temperature sensor. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet.

Descarregue o manual a partir de aqui.

Grupo
Nodos máximos
Descrição
1
1
“Lifeline” reports the device status and allows for assigning single device only (main controller by default).
2
5
2nd Association Group – “On/Off” is assigned to the device status - Hall effect sensor (sends Basic Set command frames).
3
5
3rd Association Group – “Tamper” is assigned to the TMP switch (sends alarm command frames).
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
1
1
0
Door window state
This parameter allows to set in what state is door window when the magnet is close to the sensor. 0 - closed when magnet near 1 - opened when magnet near
11
1
0
2nd association group triggers
Parameter defines events which result in sending on-off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off. 0 - switch after opening and closing 1 - switch after opening (parameter 12) 2 - switch after closing (parameter 13)
12
2
255
Association for opening - value sent
Value sent to devices in 2nd association group when opening is detected. The value of 0 turns OFF the device, 255 turns it On. In case of associating devices allowing smooth control, values 1-99 allow to set an associated device to a specified level.
13
2
0
Association for closing - value sent
Value sent to devices in 2nd association group when closing is detected The value of 0 turns OFF the device, 255 turns it On. In case of associating devices allowing smooth control, values 1-99 allow to set an associated device to a specified level.
14
2
0
Association for opening - time delay
Time that must elapse from opening to send the command frame to to devices in 2nd association group. 0-32400 - time in seconds
15
2
0
Association for closing - time delay
Time that must elapse from closing to send the command frame to devices in 2nd association group. 0-32400- time in seconds
2
1
0
Visual LED indications
This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life. 1 - indication of opening-closing status change 2 - indication of wake up (1 x click or periodical) 4 - indication of device tampering NOTE Parameter 2 values may be combined, e.g. 1+2=3 means that in -dications for opening/ closing and waking up are enabled.
3
1
3
Associations in Z-Wave network Security Mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network Security Mode. It does not apply to 1st group Lifeline. 0 - none of the groups sent as secure 1 - 2nd group On-Off sent as secure 2 - 3rd group Tamper sent as secure 3 - 2nd and 3rd group sent as secure
30
2
5
Tamper - alarm cancellation delay
Time period after which a tamper alarm will be cancelled. 0-32400- time in seconds .
31
1
1
Tamper - reporting alarm cancellation
Reporting cancellation of tamper alarm to the controller and 3rd association group. 0 - do not send tamper cancellation report 1 - send tamper cancellation report
50
2
300
Interval of temperature measurements
This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten. 0 - temperature measurements disabled 5-32400 - time in seconds
51
2
10
Temperature reports threshold
This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller. 0 - temperature reports based on threshold disabled 1-300 - temperature threshold (0.1-30C, 0.1C step) NOTE Parameter 51 is active only if parameter 50 is not set to 0. Temperature measurement is performed before sending any report (regardless of parameter no. 50). Excessive reporting can affect battery lifetime. Reporting on the basis of temperature change (parameter no. 51) is recommended.
52
2
0
Interval of temperature reports
This parameter determines how often the temperature reports will be sent to the main controller (regardless of parameters 50 and 51). 0 - periodic temperature reports disabled 300-32400 - time in seconds
53
2
0
Temperature offset
The value to be added to the actual temperature, measured by the sensor (temperature compensation). - 1000–1000 (-100–100C, 0.1C step)
54
1
0
Temperature alarm reports
Temperature alarms reported to the Z-Wave controller. Thresholds are set in parameters 55 and 56. 0 - temperature alarms disabled 1 - high temperature alarm 2 - low temperature alarm 3 - high and low temperature alarms enabled.
55
2
350
High temperature alarm threshold
If temperature is higher than set value, overheat notification will be sent and high temperature scene will be triggered (if activated). 1-600 (0.1-60C, 0.1C step)
56
2
100
Low temperature alarm threshold
If temperature is lower than the set value, underheat notification will be sent and low temperature scene will be triggered (if activated). 0-599 (0-59.9C, 0.1C step)
Basic
COMMAND_CLASS_BASIC
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Application Status
COMMAND_CLASS_APPLICATION_STATUS
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic
COMMAND_CLASS_BASIC
Battery
COMMAND_CLASS_BATTERY
Configuration
COMMAND_CLASS_CONFIGURATION
CRC16 Encapsulation
COMMAND_CLASS_CRC_16_ENCAP
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Notification V5
COMMAND_CLASS_NOTIFICATION_V5
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Sensor Multilevel V5
COMMAND_CLASS_SENSOR_MULTILEVEL_V5
Version V2
COMMAND_CLASS_VERSION_V2
Wake Up V2
COMMAND_CLASS_WAKE_UP_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Exclusion
1) Place the Door/Window Sensor 2 within the direct range of your Z-Wave controller.

2) Set the main controller into remove mode (see the controller’s manual).

3) Quickly, three times press one of the TMP buttons (while the other button is pressed).

4) Wait for the removing process to end.

5) Successful removing will be confirmed by the Z-Wave controller’s message.



Device Wake-Up
The Door/Window Sensor 2 needs to be woken up to receive informa¬tion about the new configuration from the controller, like parameters and associations.

1) To wake up the sensor manually, click one of the TMP buttons (while the other button is pressed).

Inclusion
1) Place the Door/Window Sensor 2 within the direct range of your Z-Wave controller.

2) Set the main controller in (security/non-security) add mode (see the controller’s manual).

3) Click the Button at least six times.

4) Quickly, three times press one of the TMP buttons (while the other button is pressed).

5) Wait for the adding process to end.

6) Successful adding will be confirmed by the Z-Wave controller’s message.

Factory Reset
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device:

1) Open the cover.

2) Remove the battery.

3) Install the battery while holding both TMP buttons.

4) Release the TMP button within 5 seconds.

5) Visual indicator will blink 3 times to confirm launching of reset procedure.

6) Wait around 30s for the resetting process to end, do not remove the battery.

7) Visual LED indicator will blink 6 times to confirm the reset.



*Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
Supported Notification Types
Select the Notification Types that the product handles (controllers), or sends (slaves).
Battery Quantity
Enter the number of batteries of the designated type that the product uses.
Battery Type
Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
Sensors
Sensor types supported by the product.
