Reduced price! Sensor de inundação, temperatura e umidade Philio 3-em-1 View larger

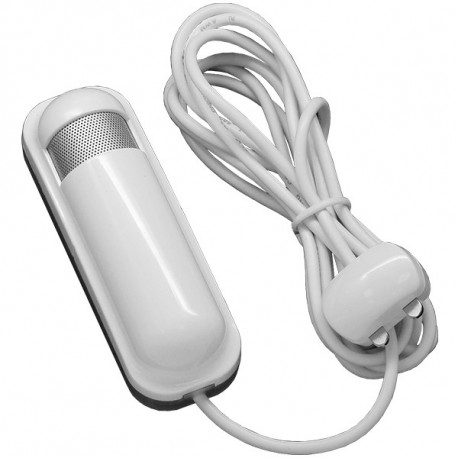

Sensor de inundação, temperatura e umidade Philio 3-em-1

PHIEPAT02-A

Novo

Sensor de inundação integrado, sensor de umidade e sensor de temperatura
Consumo de energia extremamente baixo
Maior potência de saída para melhorar o alcance de comunicação
Slim, pequeno e elegante
Muito fácil de instalar

Mais detalhes

Em estoque

46,75 €

-15%

54,99 €

Características tecnicas

Tecnologia Z-Wave Plus

Mais Informação

Su algoritmo avanzado (p

O sensor Z-Wave 3 em 1 foi projetado com três sensores de detecção:

1. Água/Inundação

2. Temperatura

3. Humidade

O detector pode ser usado como dispositivo de segurança ou dispositivo de automação doméstica. Quando o detector é cooperado com aparelhos de segurança, o detector actua como um dispositivo de segurança ao detectar uma inundação, por exemplo, ao lado de uma máquina de lavar roupa com fugas. Além disso, a detecção de alta temperatura e umidade pode ser definida como gatilho para sinais de alarme.

O Z-Wave Philio Multisensor pode ser usado como dispositivo de segurança ou dispositivo de automação doméstica. Quando o detector é operado com dispositivos de segurança, o detector atua como um dispositivo de segurança ao detectar inundações, por exemplo, próximo a uma máquina de lavar roupa com vazamento. Além disso, a detecção de alta temperatura e umidade pode ser definida como gatilho para sinais de alarme. Além disso, o sensor de água pode ser usado para monitorar o nível de água em reservatórios cheios, por exemplo, um tanque, para informar em caso de água baixa.

Informação alargada da Z-Wave (Inglês)

Nome: Flood Multisensor
Fabricante:Philio
Identificador:PAT02-A
Número de Certificação Z-Wave :ZC10-20026862
Plataforma de Hardware :SD3502
FLiRS:Não
Tipo de Role :Reporting Sleeping Slave
Descrição breve :The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave TM technology.
Descrição :This product can be included and operated in any Z-Wave TM network with other Z-Wave TM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

Descarregue o manual a partir de aqui.

Grupo
Nodos máximos
Descrição
1
4
Used for returned events.
2
4
Used for Basic set event.
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
1
1
0
Basic Set OFF Level
Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2.
10
1
12
Auto Report Battery Time
The interval time for auto report the battery level.
13
1
12
Auto Report Temperature Time
The interval time for auto report the temperature.
14
1
12
Auto Report Humidity Time
The interval time for auto report the humidity.
15
1
12
Auto Report Flood Time
The interval time for auto report the flood state.
2
1
-1
Basic Set ON Level
Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2.
20
1
30
Auto Report Tick Interval
The interval time for auto report each tick.
21
1
1
Temperature Differential Report
The temperature differential to report.
23
1
5
Humidity Differential Report
The humidity differential to report.
5
1
0
Operation Mode
Operation mode. Using bit to control.
6
1
0
Mult-Sensor Function Switch
Multisensor function switch. Using bit to control.
7
1
0
Customer Function
Customer function switch, using bit control.
Basic
COMMAND_CLASS_BASIC
Association Group Info
COMMAND_CLASS_ASSOCIATION_GRP_INFO
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Battery
COMMAND_CLASS_BATTERY
Configuration
COMMAND_CLASS_CONFIGURATION
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Notification V8
COMMAND_CLASS_NOTIFICATION_V8
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Security S2
COMMAND_CLASS_SECURITY_2
Sensor Multilevel V11
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
Supervision
COMMAND_CLASS_SUPERVISION
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Wake Up V2
COMMAND_CLASS_WAKE_UP_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Where to find S2 DSK on product
The QR code can be found on the device PAT02 or in the box.
Classic Inclusion
1. Have Z-WaveTM Controller entered inclusion mode.

2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode.

3. After add successful, the device will wake to receive the setting command from Z-WaveTM Controller about 20 seconds.
Classic Exclusion
1. Have Z-WaveTM Controller entered exclusion mode.

2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.

Node ID has been excluded.

Wake-Up Procedure
When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
Factory Reset Procedure
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.

2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.

3. IDs are excluded and all settings will reset to factory default.
S2 Unauthenticated
S2_UNAUTHENTICATED
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
