Nome: Strike Lock Control
Número de Certificação Z-Wave :ZC10-17035482
Plataforma de Hardware :ZM5202
Tipo de Role :Listening Sleeping Slave

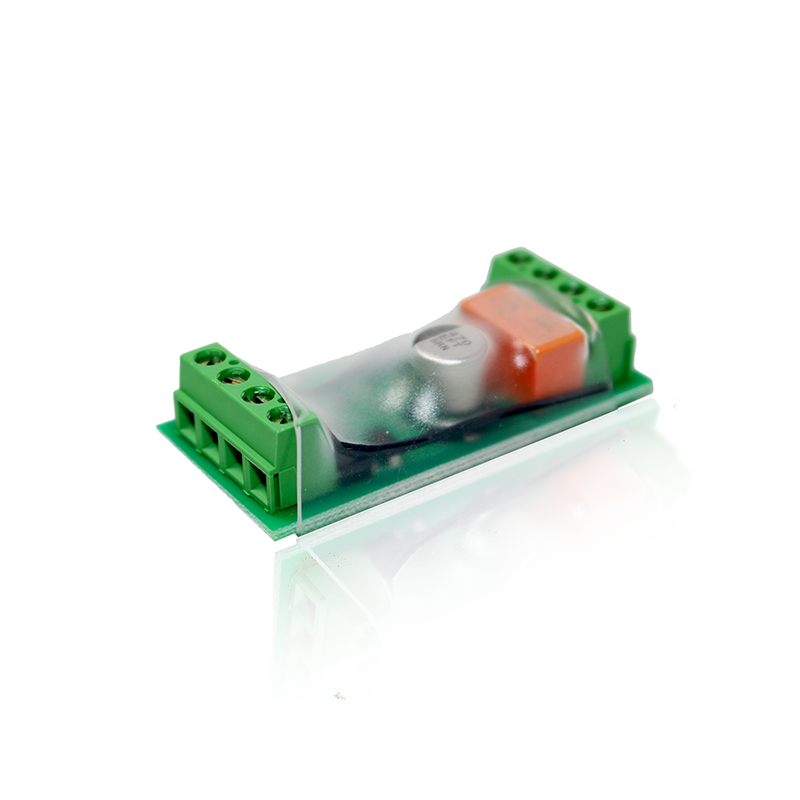

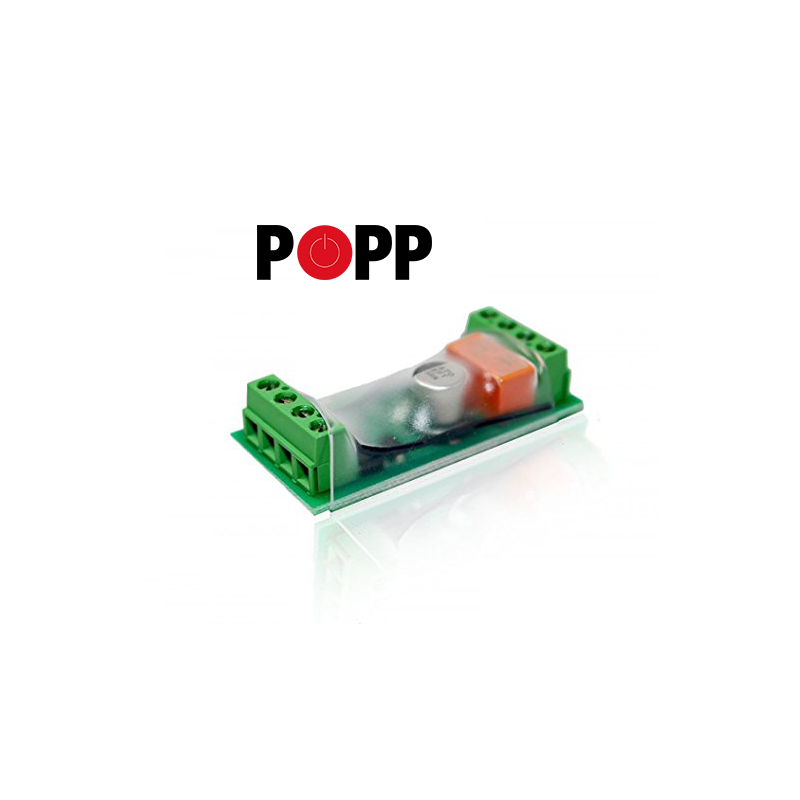

Descrição breve :This device controls a Strike Lock.
Descrição :An electric strike is an access control device used to lock and release doors. Electric strikes are installed in or on the doorframe and work in conjunction with mechanical door lock, on the principle of electronically controlling the rotation of the keeper allowing for door opening without manual retraction of the mechanical door lock. This product combines a 16 mm thick strike lock (that will fit into almost all door formats) with a Z-Wave plus empowered wireless control. The lock mechanics and the Z-Wave control are operated by a 9V block battery or an external 8-12V AC / 8-24V DC transformer. The Z-Wave control accepts commands to open or close the strike. Depending on a configuration parameter the door will be looked automatically after a certain time even if no ‘close’ command was sent. The device can be used standalone and within every conventional Intercom system controlling strike locks.
Descarregue o manual a partir de aqui.
Z-Wave Plus Lifeline
Action on external dry contact
Valor por defeito
Value of OPEN-Command
This parameter defines the value of the BASIC Set command issued into association group 2 when the dry contact opens.
Value of CLOSE-command
This parameter defines the value of the BASIC Set command issued into association group 2 when the dry contact closes.
Association Group Info
Device Reset Locally
Door Lock V2
Firmware Update Meta-Data V3
Manufacturer Specific V2
Sensor Binary V2
Z-Wave Plus Info V2
Pressing the Z-Wave button for one second includes the device. It is not allowed to operate the device in a non-secure environment. This means that the including controller must support Secure Command Class.
A single click on the button will exclude the device.
To do a factory reset press the Z-Wave button on the bottom of the device for at least 10 seconds. This procedure should only be used when the primary controller is missing or inoperable.
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
Door Lock Type
Describes the general type of door lock.
Enter the number of batteries of the designated type that the product uses.
Product is suitable for use outdoors.
