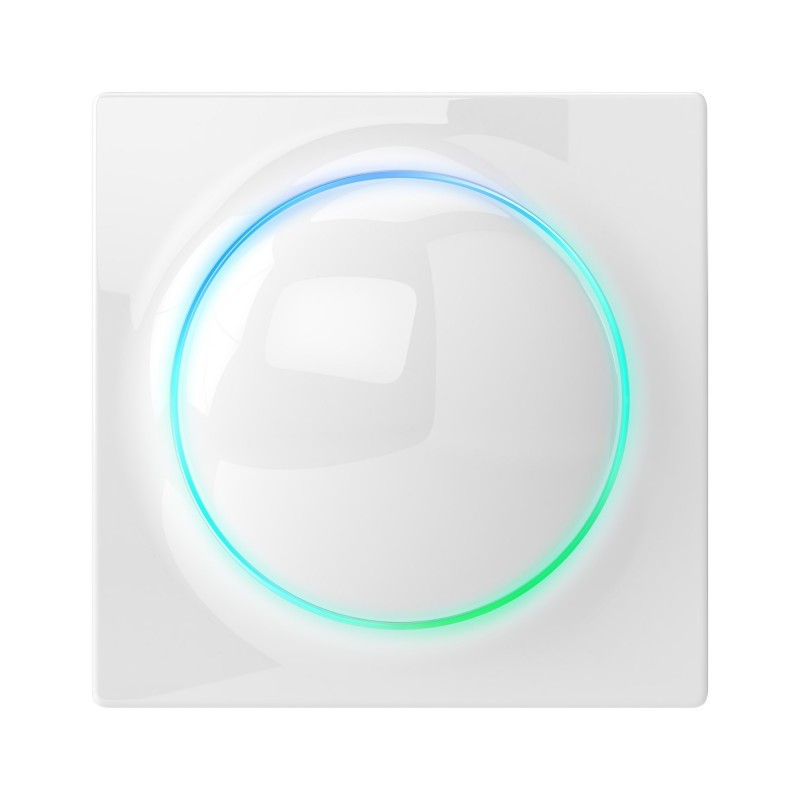

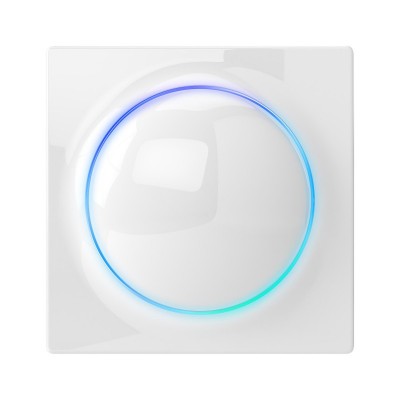

FIBARO - Walli Roller Shutter

FGWREU-111

Novo

O mecanismo de obturação Fibaro Walli é um controlador de motor de rolo inteligente que permite gerenciar portas de garagem, persianas, persianas e cenas com um único clique. Z-Wave + compatível

Mais detalhes

Não disponível

123,42 €

Características tecnicas

Tecnologia Z-Wave Plus

Mais Informação

Interruptor inteligente Z-Wave + Fibaro Walli persiana

O obturador de rolo Fibaro Walli é um controlador de persiana inteligente que permite gerenciar a porta, os estores, as persianas e as cenas com um único clique.

Design exclusivo e tecnologia excepcional

A série completa de conectores e conectores inteligentes FIBARO baseados na tecnologia Z-Wave proporcionará à sua casa uma inteligência versátil. O visual da série é inspirado em uma pérola - sua sofisticação intemporal e bela forma que completa qualquer interior.

Fibaro Walli

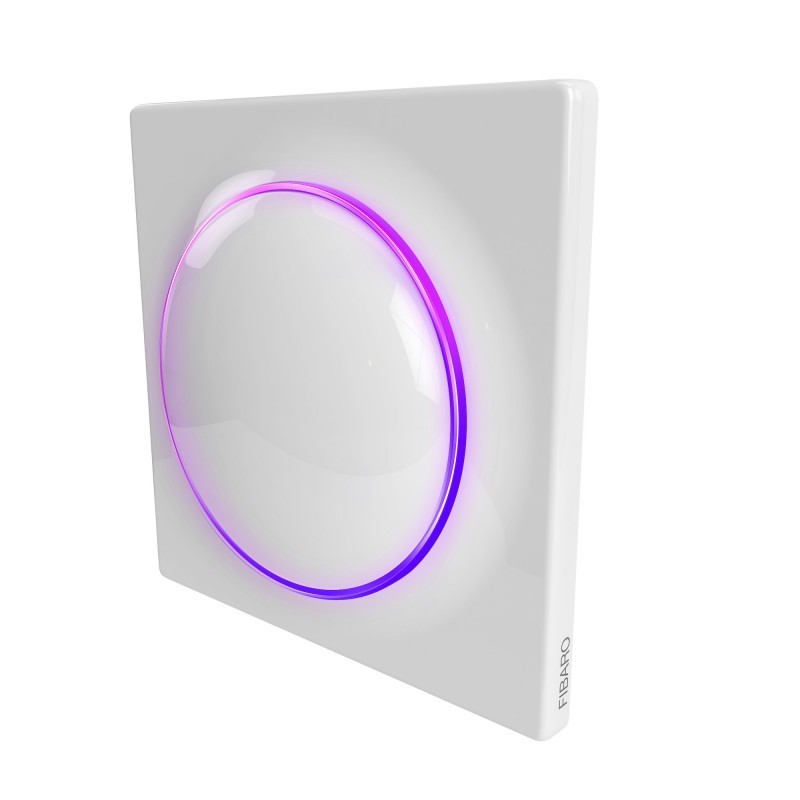

Anel LED para combinar com sua casa

Escolha sua cor favorita

Selecione a cor do anel de LED para adaptá-lo às suas preferências pessoais.

Botão duplo de luz de fundo

Use duas cores de luz de fundo onde quiser - uma cor diferente na parte inferior e outra na parte superior para ver o status exato do dispositivo.

Uma visão geral do consumo de energia

Controle a quantidade de energia consumida pelo equipamento em sua casa.

Componentes confiáveis e detalhes atraentes

Na FIBARO, qualidade e design únicos sempre andam de mãos dadas. A linha Walli foi projetada para melhorar o conforto e a segurança de sua família por muitos anos.

Fibaro Walli

Pulsações a gosto

Configure o botão de comutador Walli para aproveitar ao máximo seus incríveis recursos.

Um único clique para acender a luz, um duplo clique para desligá-lo, um clique triplo para ativar a cena "Fun", uma pulsação mantida para intensidade de luz de 60%.

Compatível com produtos de outros fabricantes

O FIBARO Walli é compatível (com adaptadores) com placas frontais de outros fabricantes: GIRA - System 55, Legrand - Céliane, Schneider - Odace. Se estiver conectado a tomadas e comutadores existentes, equipe-os com uma peça inteligente integrada e aproveite os recursos de uma casa inteligente sem precisar substituir o painel frontal.

Fibaro Walli

Gerencie toda a casa com voz

Os interruptores e tomadas inteligentes da Walli são totalmente compatíveis com os famosos assistentes de voz do Google Assistant e do Amazon Alexa. Gerenciamento de voz fácil e confortável de toda a casa.

Seja com sua casa onde quer que você esteja

A aplicação móvel FIBARO Home Center permite-lhe gerir interruptores e tomadas inteligentes com o seu smartphone, tablet ou smartwatch. Mantenha tudo sob controle como um chefe.

Consumo de energia controlada

Dê uma olhada em sua casa, analise o consumo de energia de seus aparelhos e otimize suas despesas como sempre quis.

Dê um passo adiante no futuro

A série Walli da FIBARO inclui interruptores e tomadas clássicas e não inteligentes para manter constante a estética da sua casa. Escolha-os como desejar e desfrute de um design e recursos exclusivos.

Atenção: tenha cuidado, este interruptor requer que o neutro opere.

FUNÇÕES

Várias blinds e gerenciamento de cena com um único clique.
Controle remoto de cortinas e persianas.
Gestão de persianas e persianas por voz.
Controle remoto da porta da garagem.
Adaptação do anel luminoso às preferências do usuário.
Controle do consumo de energia.

AS ESPECIFICAÇÕES TÉCNICAS

Potência: 110-230V 50 / 60Hz
Corrente de carga nominal:
4A - motores com compensação do fator de potência (indutivo)
13A - cargas resistivas
Tipos de carga suportados: motores CA monofásicos, resistivos
Radiofreqüência: 868.0-868.6 megahertz
Âmbito: até 40 m no interior (dependendo do terreno e da estrutura do edifício)
Potência máxima de transmissão: + 6dBm
Temperatura de operação: 0-35 ° C
Umidade ambiente: 10-95% RH sem condensação
Para instalação em caixas: Ø = 60mm, profundidade e 40mm
Dimensões (A x L x P): 86 x 86 x 51 mm

Toda a documentação e instruções dos produtos Fibaro estão disponíveis no site manuals.fibaro.com

Informação alargada da Z-Wave (Inglês)

Nome: Wall Roller Shutter
Fabricante:FIBARO
Identificador:FGWREU-111
Número de Certificação Z-Wave :ZC10-19056517
Plataforma de Hardware :ZM5101
FLiRS:Não
Tipo de Role :Always On Slave
Descrição breve :FIBARO Walli Roller Shutter is a smart wall switch designed to control motors of roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network.
Descrição :FIBARO Walli Roller Shutter is a smart wall switch designed to control motors of roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Roller Shutter: - Can be used with: o Roller blinds, o Venetian blinds, o Awnings, o Blind motors with electronic or mechanical limit switches. - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

Descarregue o manual a partir de aqui.

Grupo
Nodos máximos
Descrição
1
1
1st association group – “Lifeline” reports the device status and allows for assigning single device only (main controller by default).
2
5
2nd association group – “Roller Shutter” is assigned to shutter position control – UP/DOWN (uses Switch Multilevel command class).
3
5
3rd association group – “Slats” is assigned to slats position control – UP/DOWN (uses Switch Multilevel command class). The device allows to control 5 regular or multichannel
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
11
1
1
LED frame – colour when moving
This parameter defines the LED colour when the motor is running.
12
1
0
LED frame – colour when not moving
13
1
100
LED frame – brightness
This parameter allows to adjust the LED frame brightness.
150
1
0
Force calibration
By setting this parameter to 2 the device enters the calibration mode. The parameter relevant only if the device is set to work in positioning mode (parameter 151 set to 1 or 2).
151
1
1
Operating mode
This parameter allows adjusting operation according to the connected device.
152
4
150
Venetian blind – time of full turn of the slats
For Venetian blinds (parameter 151 set to 2) the parameter determines time of full turn cycle of the slats. The parameter is irrelevant for other modes.
153
1
1
Set slats back to previous position
For Venetian blinds (parameter 151 set to 2) the parameter determines slats positioning in various situations. The parameter is irrelevant for other modes.
154
2
10
Delay motor stop after reaching end switch
The parameter determines the time after which the motor will be stopped after end switch contacts are closed.
155
2
10
Motor operation detection
Power threshold interpreted as reaching a limit switch.
156
4
6000
Time of up movement
This parameter determines the time needed for roller blinds to reach the top. For modes with positioning value is set automatically during calibration, otherwise, it must be set manually.
157
4
6000
Time of down movement
This parameter determines the time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibration, otherwise, it must be set manually.
24
1
0
Buttons orientation
This parameter allows reversing the operation of the buttons.
25
1
0
Outputs orientation
This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (e.g. in case of invalid motor connection).
30
4
0
Alarm configuration - 1st slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
31
4
0
Alarm configuration - 2nd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
32
4
0
Alarm configuration - 3rd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
33
4
0
Alarm configuration - 4th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
34
4
0
Alarm configuration - 5th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
35
2
600
Alarm configuration – duration
This parameter defines duration of alarm sequence. When time set in this parameter elapses, alarm is cancelled, LED frame and relay restore normal operation, but do not recover state from before the alarm.
40
1
0
First button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.
41
1
0
Second button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.
60
1
0
Power reports – include self-consumption
This parameter determines whether the power measurements should include power consumed by the device itself.
61
2
15
Power reports – on change
This parameter defines minimal change (from the last reported) in measured power that results in sending new report. For loads under 50W the parameter is irrelevant, report are sent every 5W change.
62
2
3600
Power reports – periodic
This parameter defines reporting interval for measured power. Periodic reports are independent from changes in value (parameter 61).
65
2
10
Energy reports – on change
This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.
66
2
3600
Energy reports – periodic
This parameter defines reporting interval for measured energy. Periodic reports are independent from changes in value (parameter 66).
Switch Multilevel V4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4
Application Status
COMMAND_CLASS_APPLICATION_STATUS
Association Group Information V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic
COMMAND_CLASS_BASIC
Central Scene V3
COMMAND_CLASS_CENTRAL_SCENE_V3
Configuration
COMMAND_CLASS_CONFIGURATION
CRC16 Encapsulation
COMMAND_CLASS_CRC_16_ENCAP
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V4
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Meter V3
COMMAND_CLASS_METER_V3
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Multi-Channel V4
COMMAND_CLASS_MULTI_CHANNEL_V4
Notification V8
COMMAND_CLASS_NOTIFICATION_V8
Powerlevel
COMMAND_CLASS_POWERLEVEL
Protection V2
COMMAND_CLASS_PROTECTION_V2
Security S0
COMMAND_CLASS_SECURITY
Security S2
COMMAND_CLASS_SECURITY_2
Supervision
COMMAND_CLASS_SUPERVISION
Switch Multilevel V4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V2
COMMAND_CLASS_VERSION_V2
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Device Wake-Up
FIBARO Walli Roller Shutter is powered using DC power supply unit so it is always awake.
Factory Reset
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory.

1. Quickly, three times click, then press and hold one of the buttons to enter the menu.

2. Release the button when the device glows yellow.

3. Quickly click the button to confirm.

4. After a few seconds the device will be restarted, which is signalled with the red LED colour.

Exclusion
To remove the device from the Z-Wave network:

1. Power the device.

2. Set the main controller into remove mode (see the controller’s manual).

3. Quickly, three times click one of the buttons.

4. LED will start blinking yellow, wait for the removing process to end.

5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.

Inclusion
To add the device to the Z-Wave network manually:

1. Power the device.

2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual).

3. Quickly, three times click one of the buttons.

4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box).

5. LED will start blinking yellow, wait for the adding process to end.

6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame:

- Green - successful (non-secure, S0, S2 non-authenticated),

- Magenta - successful (Security S2 Authenticated),

- Red – not successful.



To add the device to the Z-Wave network using SmartStart:

1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual).

2. Scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box).

3. Power the device.

4. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking.

5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame:

- Green - successful (non-secure, S0, S2 non-authenticated),

- Magenta - successful (Security S2 Authenticated),

- Red – not successful.

S2 Authenticated
S2_AUTHENTICATED
Color
If the product is only available in one color, pick the color from the list.
Electric Load Type
Select the electric load type(s) supported by the device.
Loads Controlled
The number of different loads controllable by the product if it supports more than one.
Supported Meter Type
Indicate which type of metering is supported by the device.
Supported Notification Types
Select the Notification Types that the product handles (controllers), or sends (slaves).
Switch Load Capacity Current
The amount of switch load energy the product is rated for in Amps
Switch Type
Describes the type of operator for a switch.
